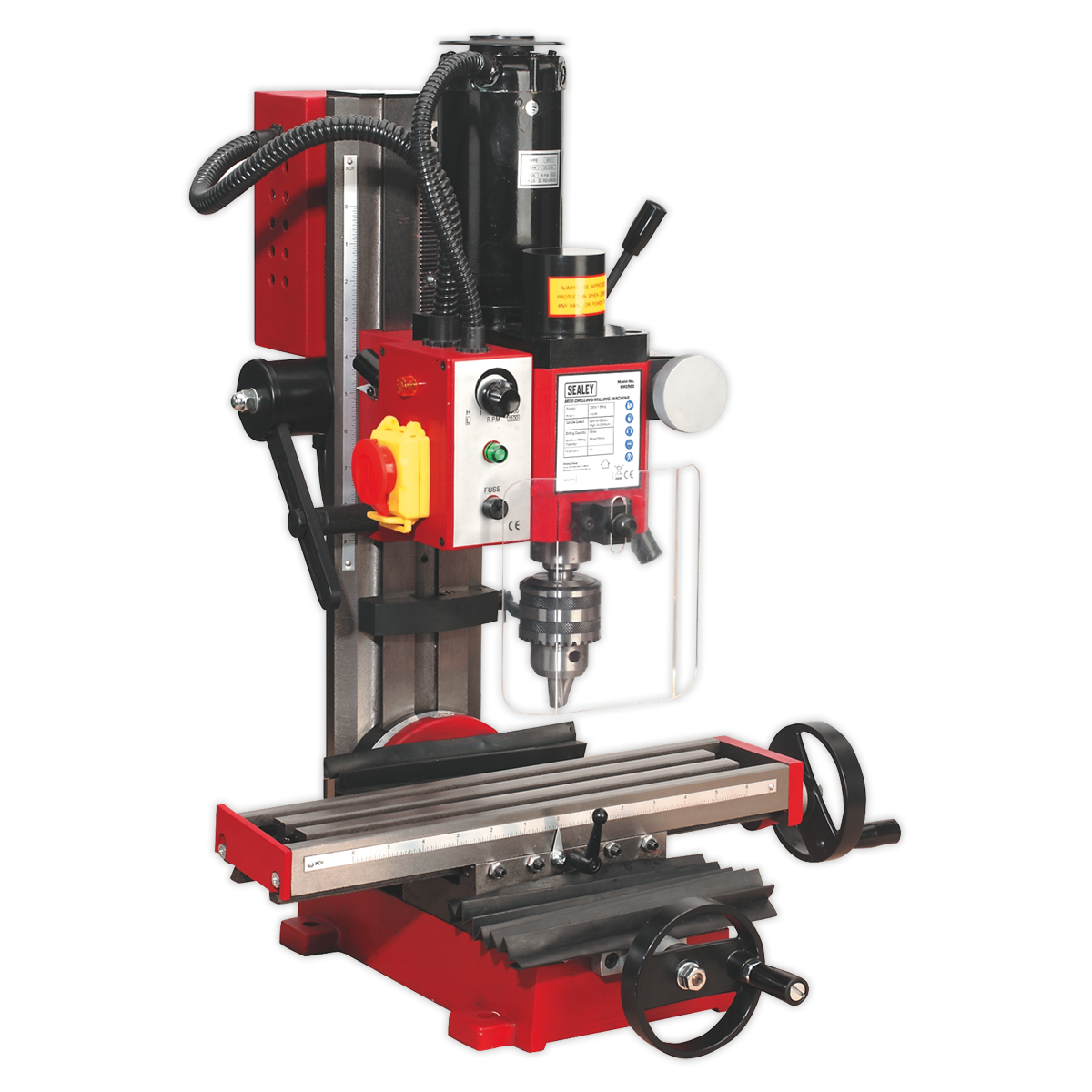

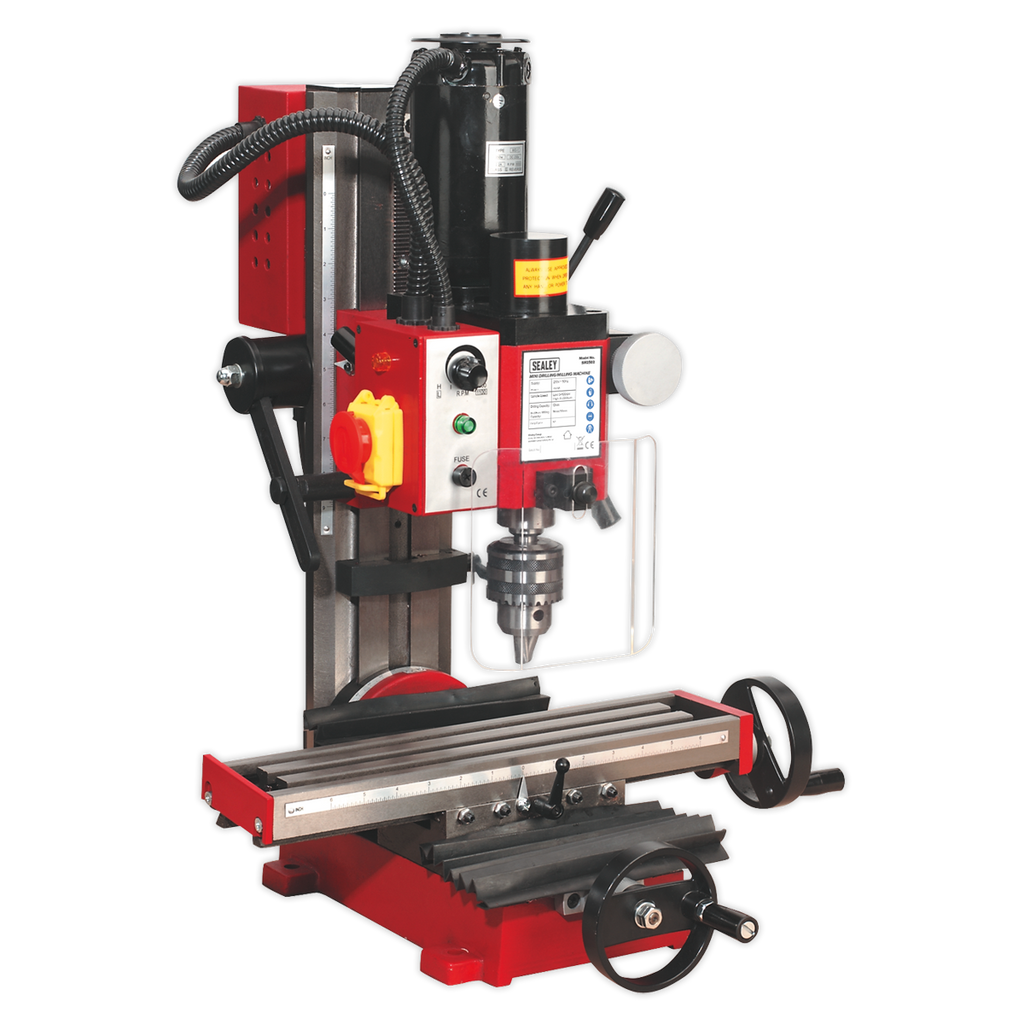

Mini Drilling & Milling Machine
Mini Drilling & Milling Machine
- VERSATILE MACHINING - handles drilling and milling operations on most materials, reducing the need for separate machines in the workshop.
- VARIABLE SPEED DRIVE - motor delivers 0-1100rpm (low range) and 0-2500rpm (high range) for matched cutting speed to material type.

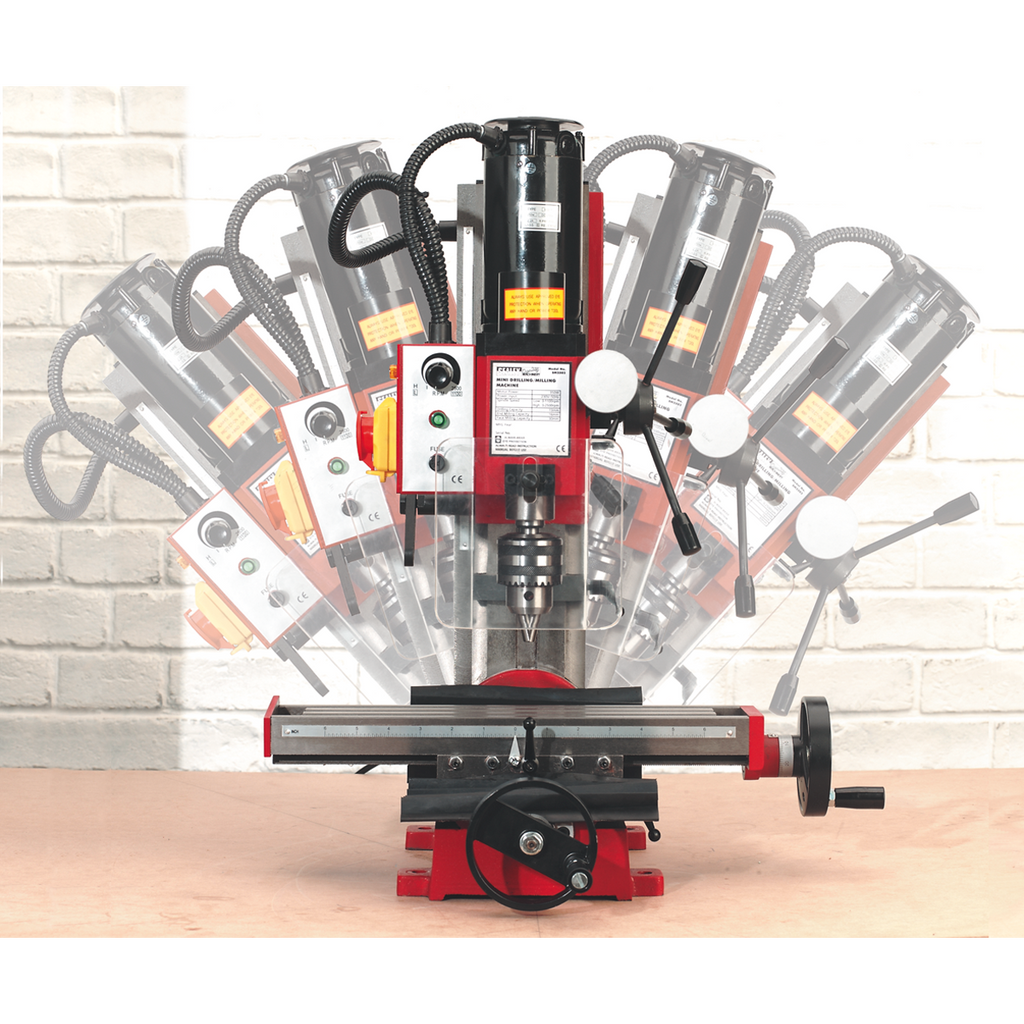

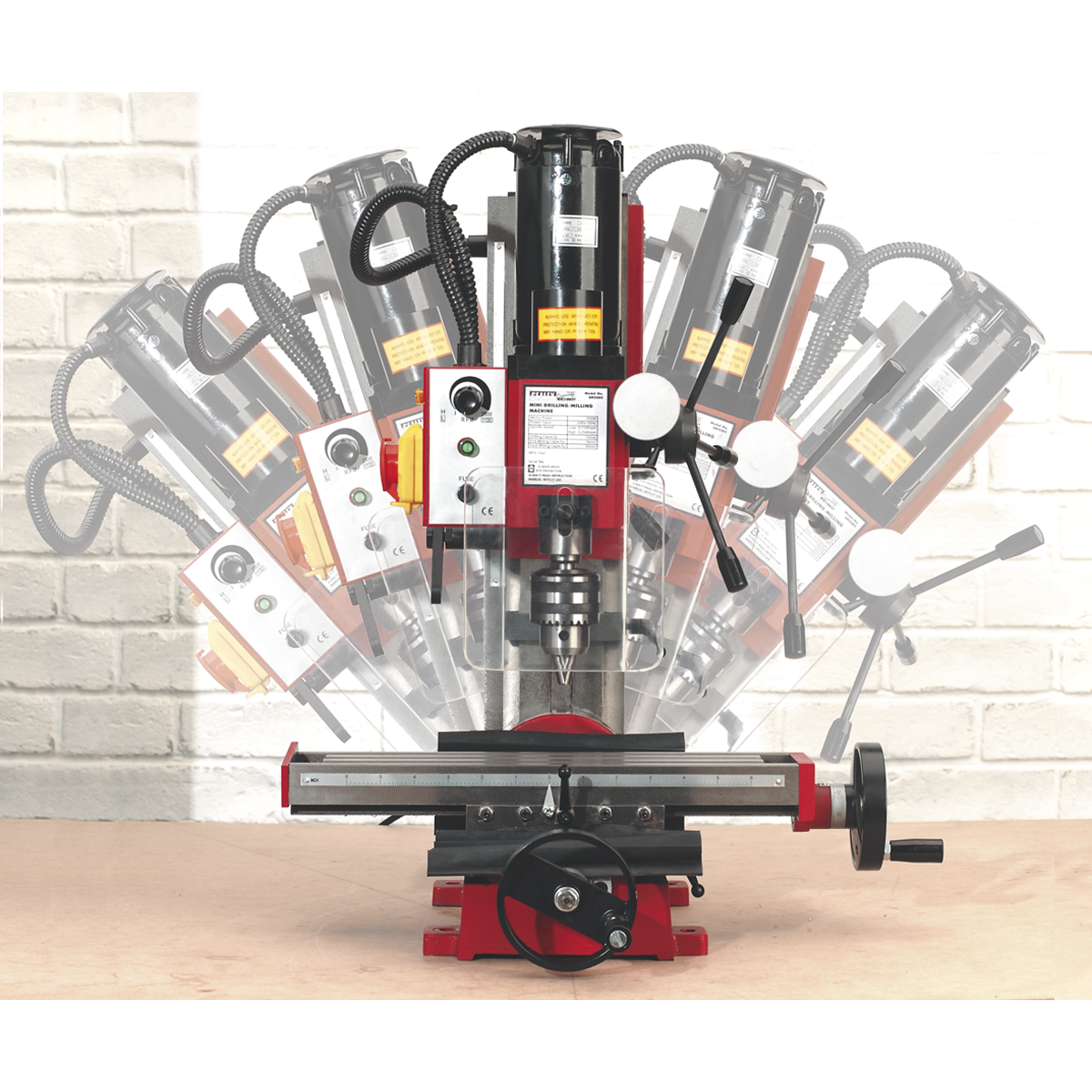

- TILTING COLUMN - column tilts ±45° from vertical for drilling or milling at angles without repositioning the workpiece.
- COMPOUND TABLE - working table with T-slots and metric graduated compound scales enables precise clamping and measurement of workpieces.
- CHUCK KIT INCLUDED - supplied with 13mm chuck accessory kit for quick setup and adjustment.
Bench mounting mini drilling/milling machine with the flexibility to handle most materials. Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales. The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical. Supplied with 13mm chuck accessory kit for adjusting and setting. An optional stand is available, order Model No. SM3002ST.
- Bench mounting mini drilling/milling machine with the flexibility to handle most materials.
- Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales.
- The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical.
- Supplied with 13mm chuck accessory kit for adjusting and setting.
- An optional stand is available, order Model No. SM3002ST.
| Model No | SM2502 |
| Brand | Sealey |
| Cross Axis | 100mm |
| Drilling Capacity (Chuck Size) | 13mm |
| End Mill Capacity | 16mm |
| Face Mill Capacity | 30mm |
| Headstock Travel | 180mm |
| Longitudinal Axis | 220mm |
| Motor Power | 350W |
| Spindle Nose Taper | MT3 |
| Spindle Speed - High Range | 0-2500rpm |
| Spindle Speed - Low Range | 0-1100rpm |
| Spindle Tilt Angle | ±45° |
| Supply | 230V |
| T-Slot | 12mm |
| Weight | 68.00kg |
