Description:

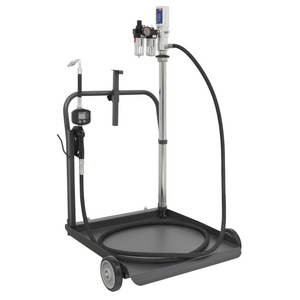

Sealey AK4561D Air Operated Oil Fluid Drum Dispenser System

Grade A Unit - New items with damaged or no packaging, may be assembled. Comes with Sealey approved 6 months warranty.

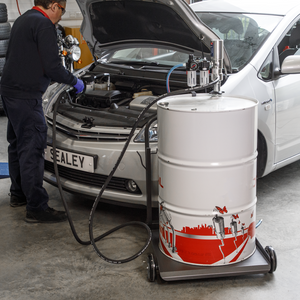

Mobile oil dispensing unit with air operated 3:1 double acting pump for barrel or tanks with 2"BSP fittings.

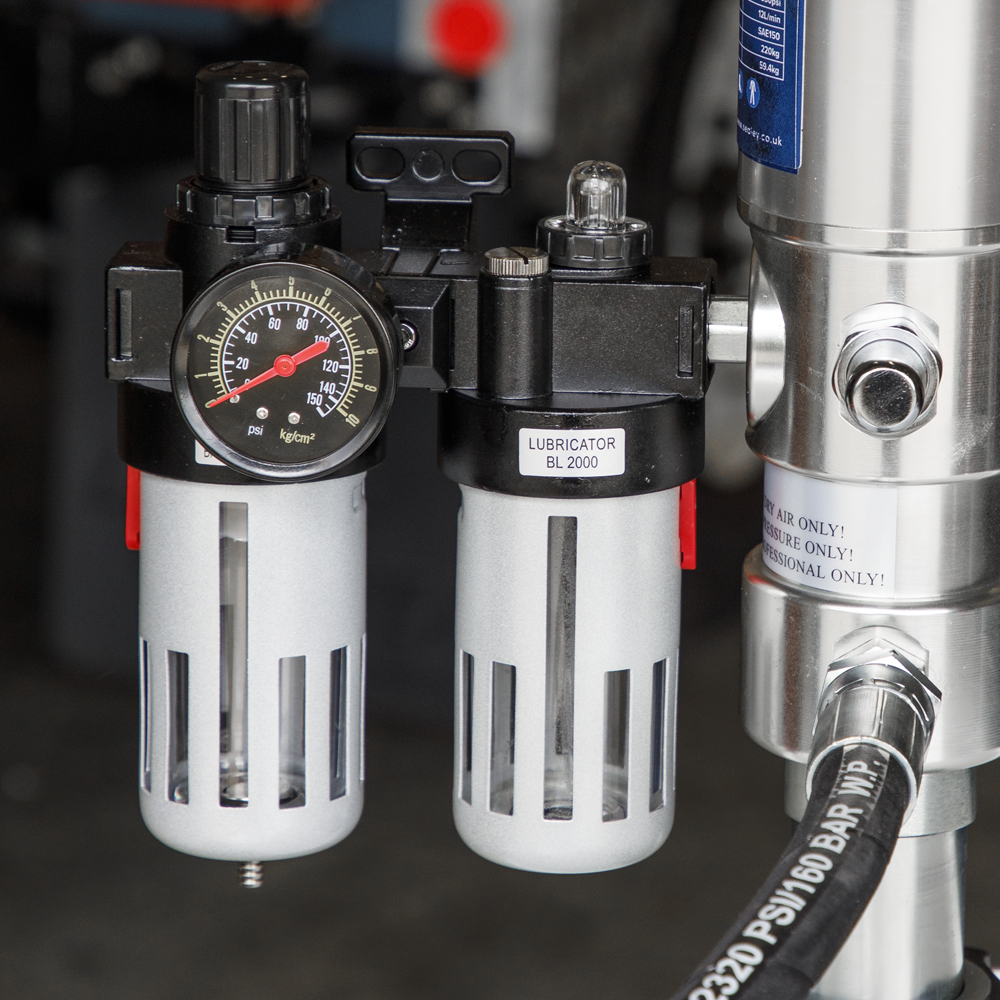

Pump is supplied with air management system and connected to a 940mm rigid suction probe with non-return valve.

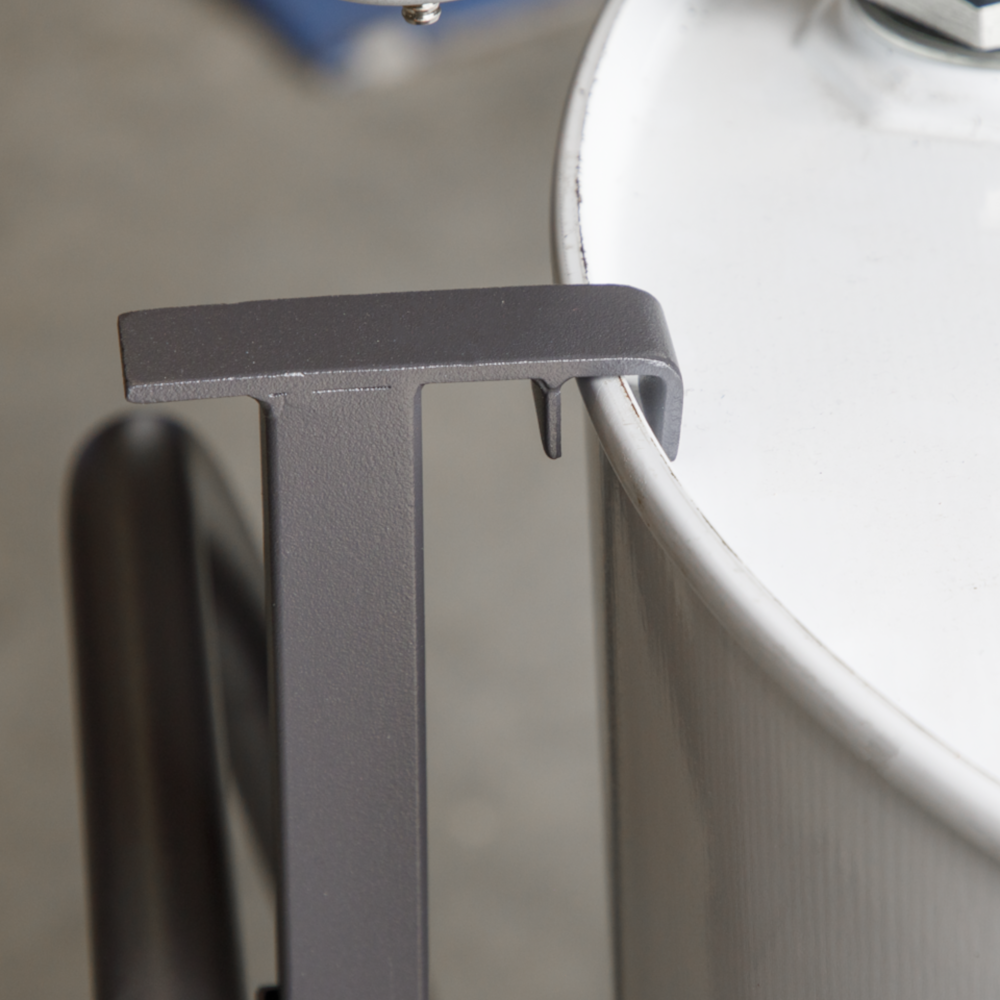

Features trolley, 4m hose and digital oil meter (Model No. AK4565D supplied).

Suitable for use with 205L drums and engine, hydraulic, synthetic, gear and transmission oils up to SAE150.

Please note: Images are for illustration purposes only

Dispenser Specification:

• Maximum Air Pressure: 115psi
• Maximum Flow Rate: 12L/min
• Maximum Output Pressure: 350psi
• Maximum Trolley Capacity: 220kg
• Maximum Viscosity: SAE150
• Outlet Size: 1/2"BSP
• Pump Ratio: 3:1
• Recommended Air Pressure: 70psi
