MIG/TIG & MMA (ARC/STICK) Inverter Welder, 200A (MIG200i)
MIG/TIG & MMA (ARC/STICK) Inverter Welder, 200A (MIG200i)
- Combines three welding processes (MIG, TIG and MMA/ARC) in a single machine
- Fan-cooled DC power supply
- 60% duty cycle at maximum output (200A MIG, 170A TIG/MMA)
- 100% duty cycle at reduced outputs (154A MIG, 131A TIG/MMA)
- Capable of MIG welding with 5kg spools of Ø0.8/Ø0.9/Ø1.0mm solid wire and flux-cored wire, while also handling MMA/ARC welding with electrodes from Ø1.6mm up to Ø4.0mm

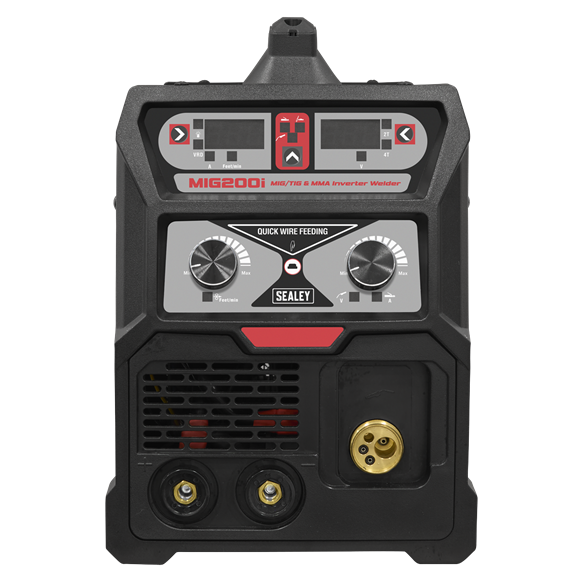

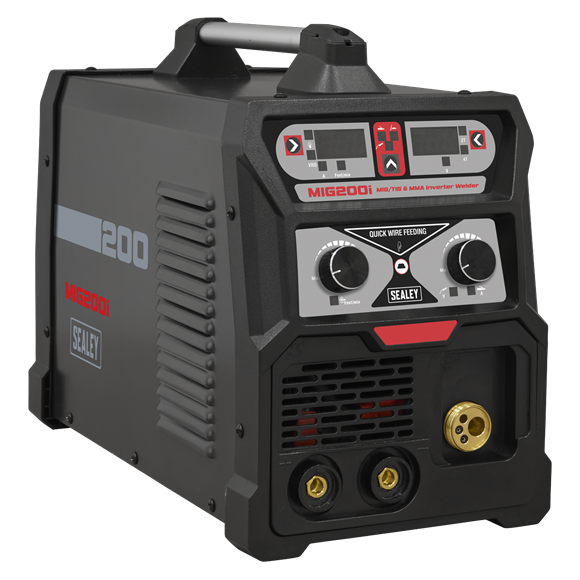

Sealey MIG/TIG & MMA (ARC/STICK) Inverter Welder, 200A 230V (MIG200i)
This versatile 3-in-1 inverter welder combines MIG, TIG, and MMA/ARC welding capabilities in a single compact unit. Featuring advanced IGBT technology with a powerful 50-200A output range, it handles a variety of materials while remaining highly portable at just 11.1kg. The comprehensive package includes a 2.8m MIG torch, 1.4m earth cable/clamp, and a 1.6m electrode holder, making it an ideal solution for workshops, garages, bodyshops, and mobile technicians requiring flexibility and performance.
Multi-Process Welding Solution
Versatile Welding Technology
Combines three welding processes (MIG, TIG and MMA/ARC) in a single machine, allowing for work on different metals and applications without needing to invest in multiple specialist welders, providing exceptional value and workshop space savings.
Superior Inverter Performance
Utilises IGBT inverter technology with fan-cooled DC power supply, delivering consistent welding performance with a current range of 50-200A, while offering advanced features like hot start and anti-stick for improved weld quality.
Professional Duty Cycle
Maintains a substantial 60% duty cycle at maximum output (200A MIG, 170A TIG/MMA), enabling longer continuous welding periods without excessive downtime, while providing 100% duty cycle at reduced outputs (154A MIG, 131A TIG/MMA).
Enhanced Portability

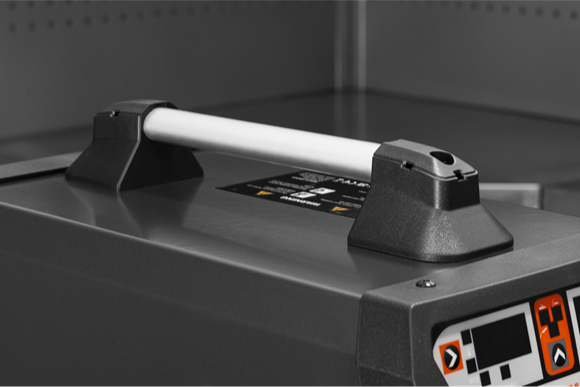

Weighs just 11.1kg with an integrated carry handle, allowing easy transportation between work sites and making it ideal for mobile repairs, agricultural applications, and situations where welding equipment must be brought to the workpiece.
Comprehensive Material Compatibility
Capable of MIG welding with 5kg spools of Ø0.8/Ø0.9/Ø1.0mm solid wire and flux-cored wire, while also handling MMA/ARC welding with electrodes from Ø1.6mm up to Ø4.0mm, accommodating a wide range of projects and materials.
Integrated Protection Systems
Features forced air cooling and thermal cut-out protection that safeguard internal components during extended use, prolonging service life and providing reliable performance even in demanding workshop environments.
Technical Specifications
Power Requirements: Absorbs 7.7kW power with insulation class H and IP21S protection rating, suitable for workshop and site environments while maintaining safety standards.

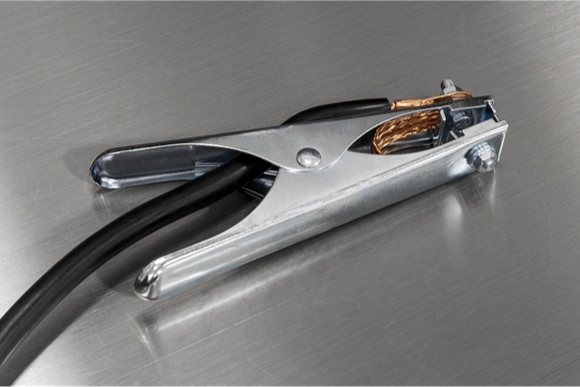

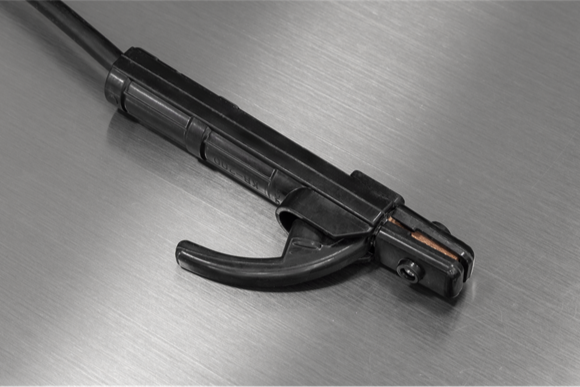

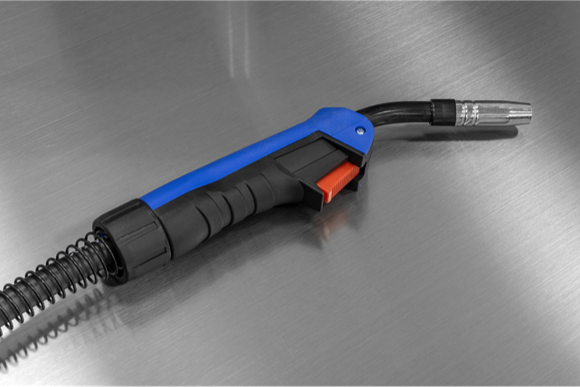

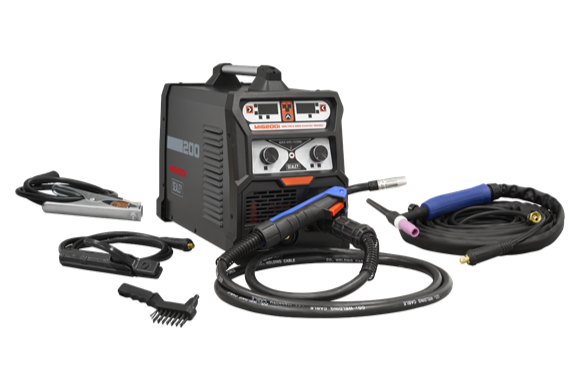

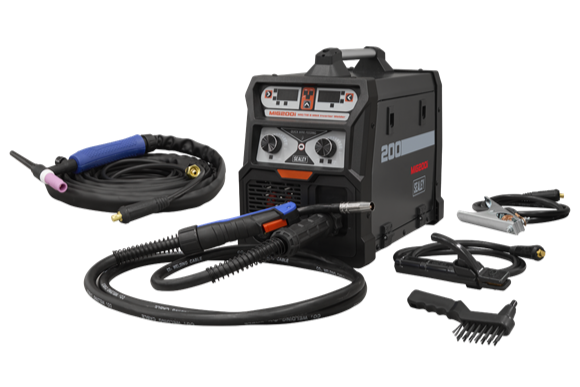

Equipment Package: Supplied with fixed non-live MIG torch (2.8m), earth cable/clamp (1.4m), and electrode holder (1.6m), providing all essential accessories for immediate welding operations.
Welding Parameters: Duty cycle of 60% @ 200A (MIG) and 60% @ 170A (TIG/MMA) with 5kg wire capacity and electrode capacity of Ø1.6-4mm, allowing for professional-grade welding applications.
| Model NO | MIG200i |
| Absorbed Power | 7.7kW |
| Duty Cycle | MIG; 60% @ 200A, 100% @ 154A |
| MMA; 60% @ 170A, 100% @ 131A | |
| TIG; 60% @ 170A, 100% @ 131A | |
| Electrode Capacity | Ø1.6-4mm |
| Insulation Class | H |
| IP Rating | IP21S |
| Welding Current | 50-200A |
| Wire Capacity | 5kg |
| Weight | 11.10kg |
