Air/Hydraulic Floor Type Press, 20 Tonne (YK20FAH)
Air/Hydraulic Floor Type Press, 20 Tonne (YK20FAH)

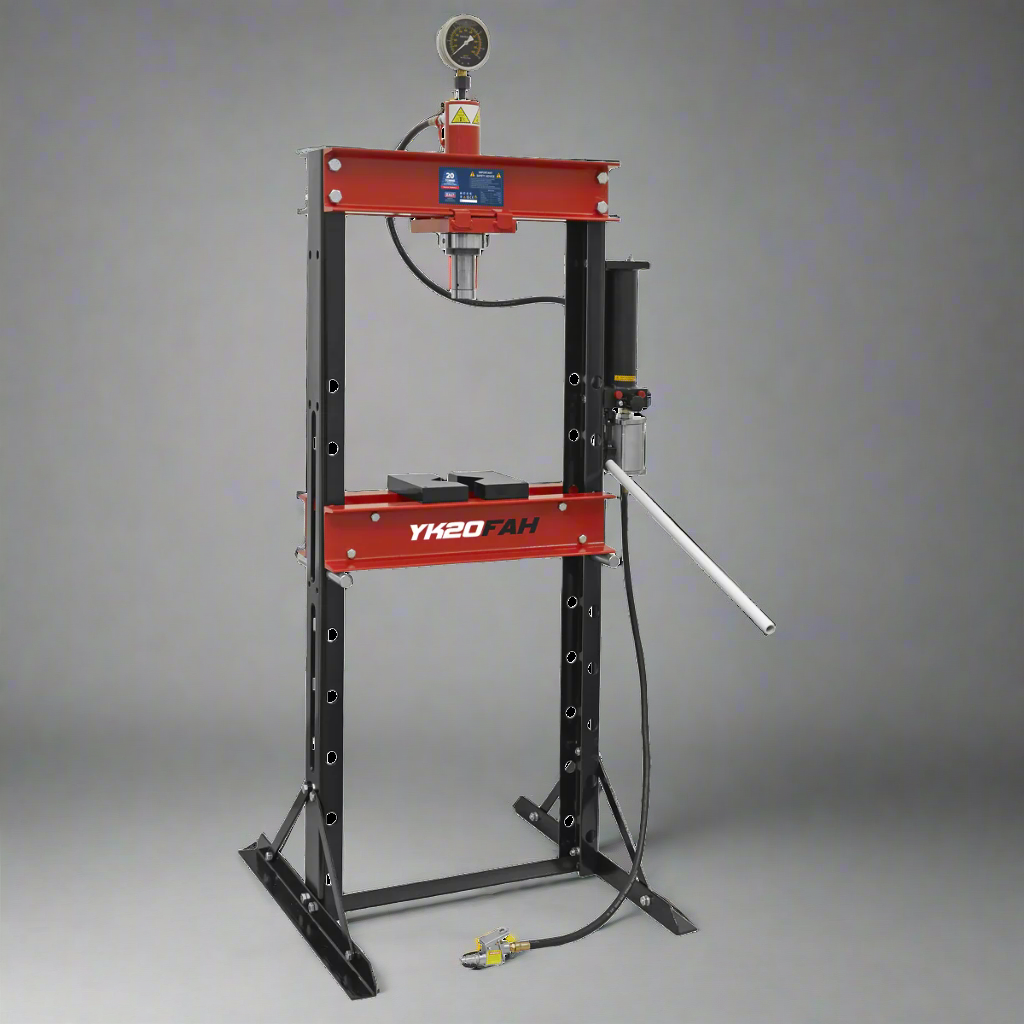

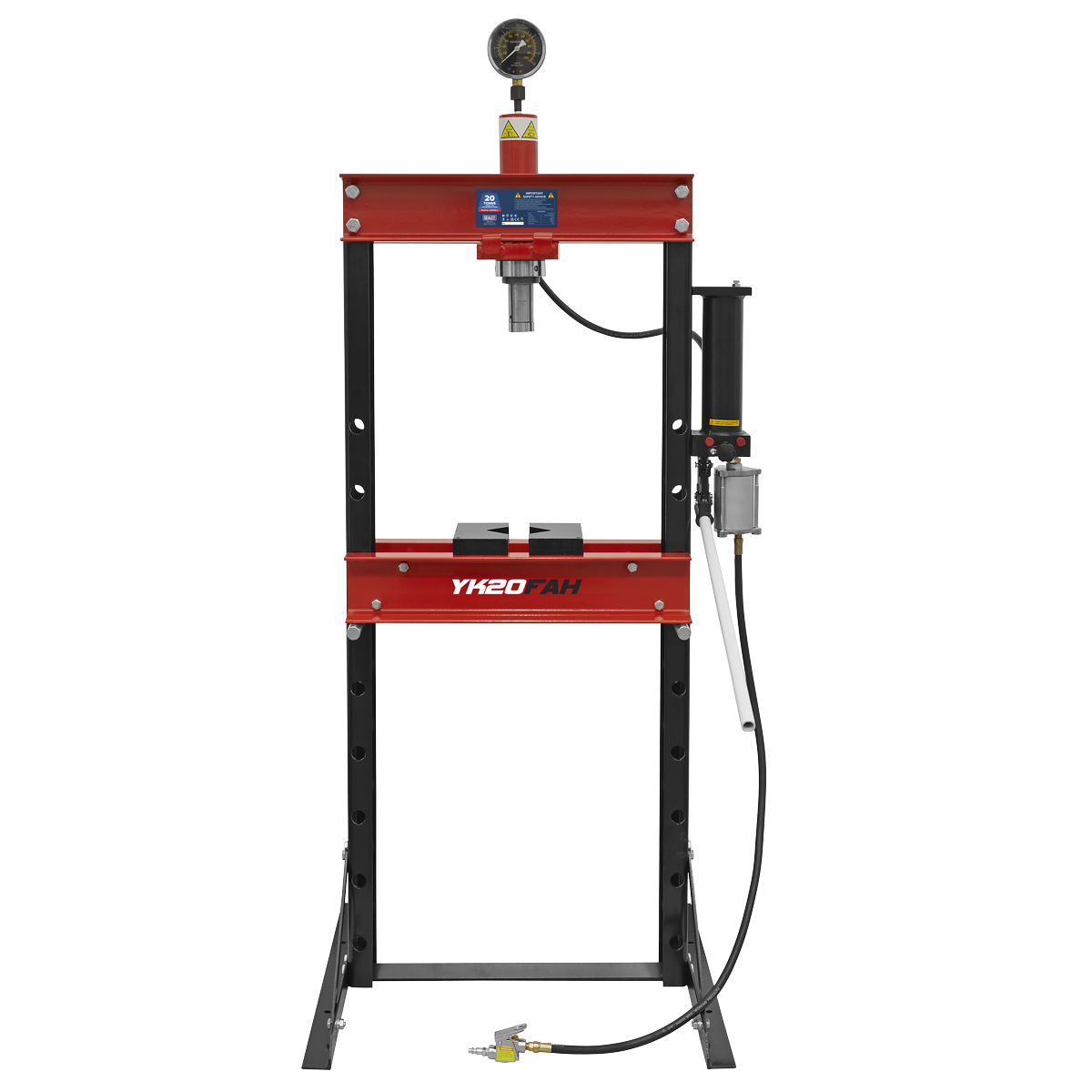

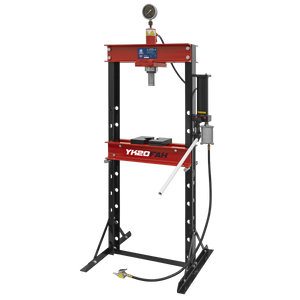

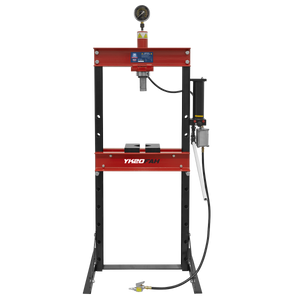

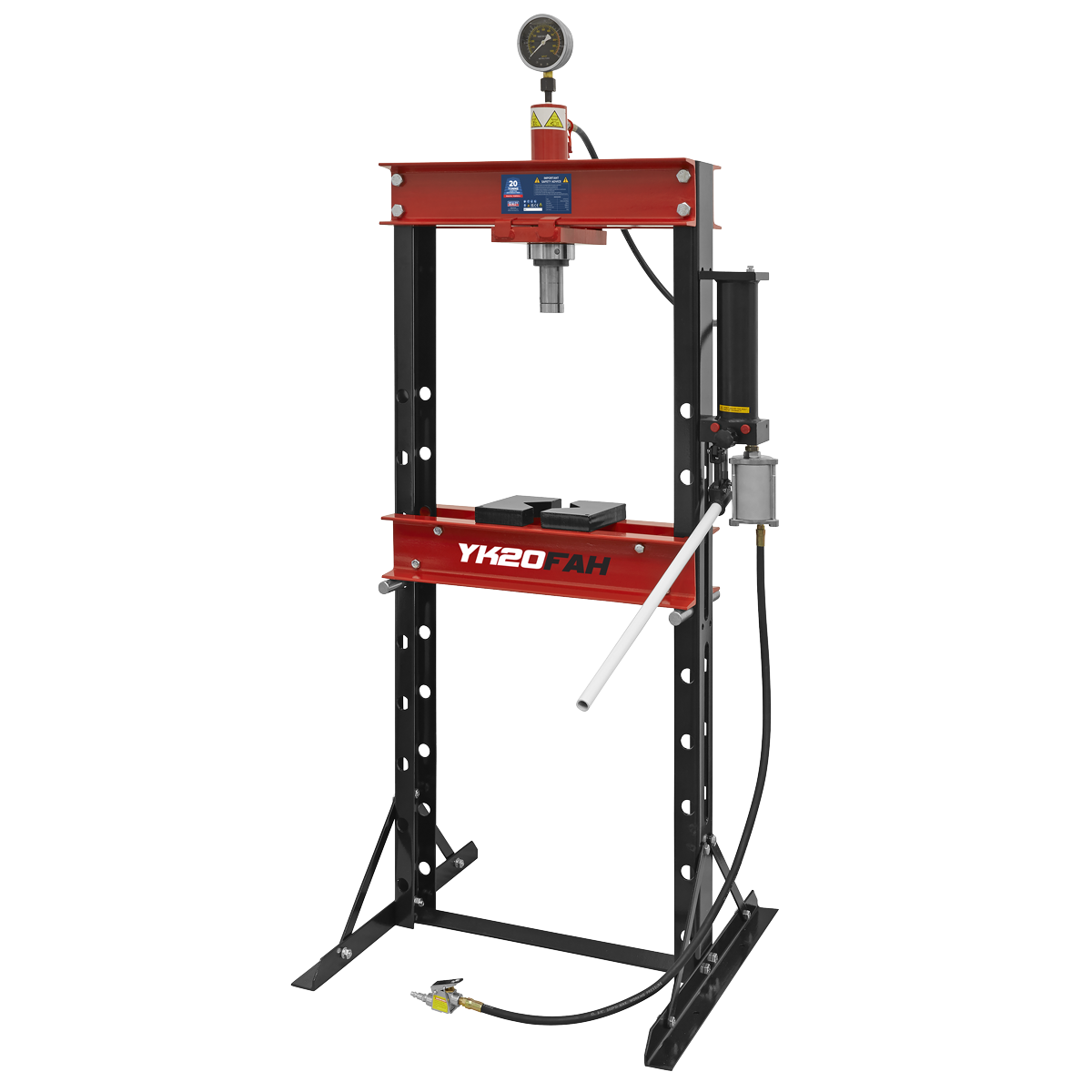

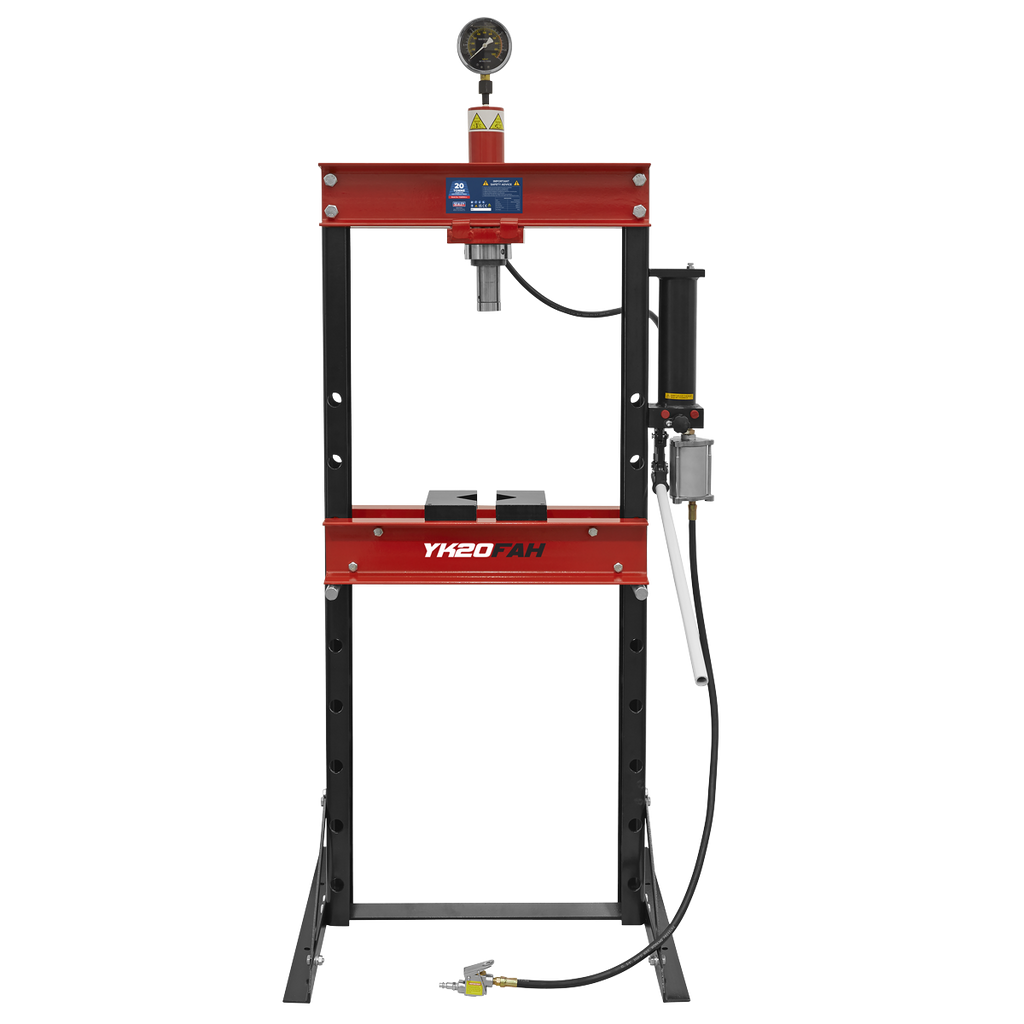

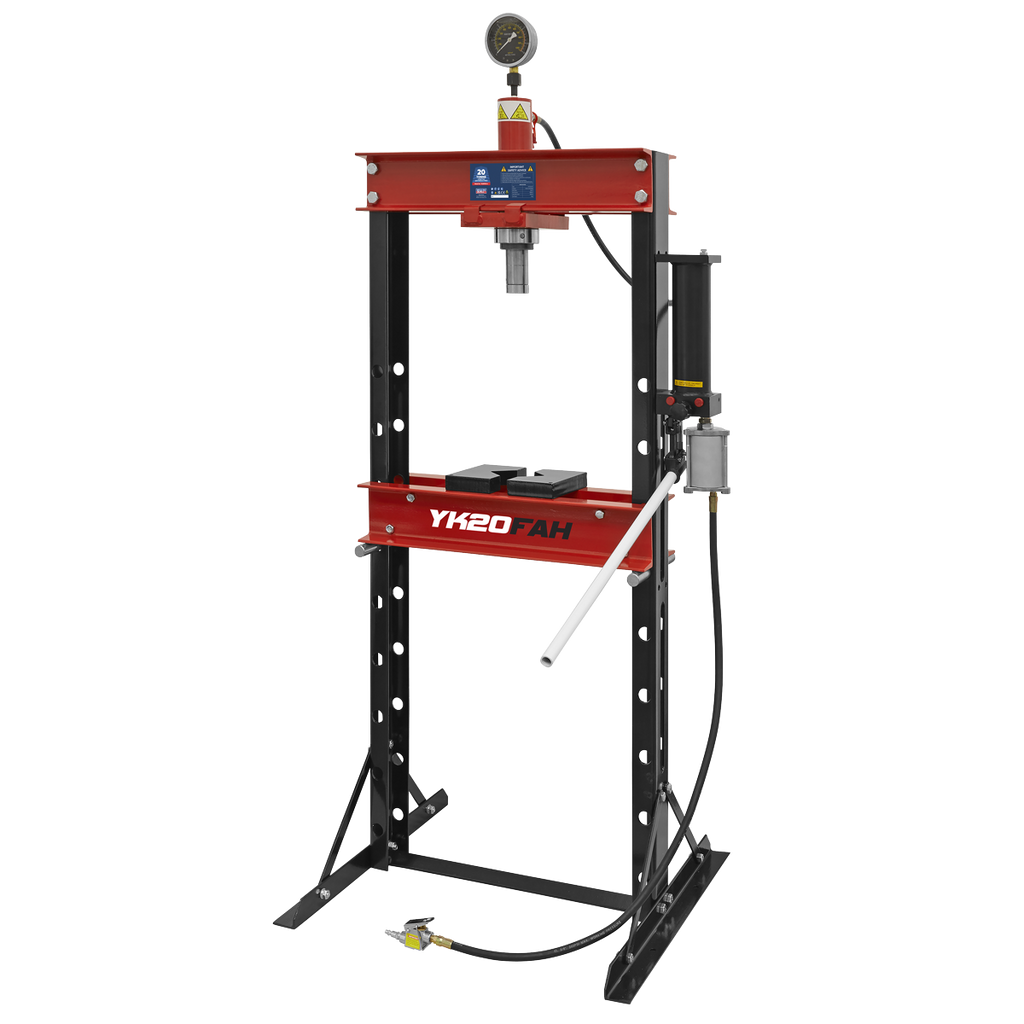

The Sealey YK20FAH 20-ton air/hydraulic floor press delivers versatile pressing power with 176mm of lateral ram travel. Combining pneumatic speed with hydraulic precision, it's ideal for workshops needing efficient bearing work and metal fabrication.
- Dual power operation – Air-powered (7.06cfm) for speed or manual pumping for precision control
- Exceptional off-center reach – 176mm lateral ram travel handles awkwardly positioned components

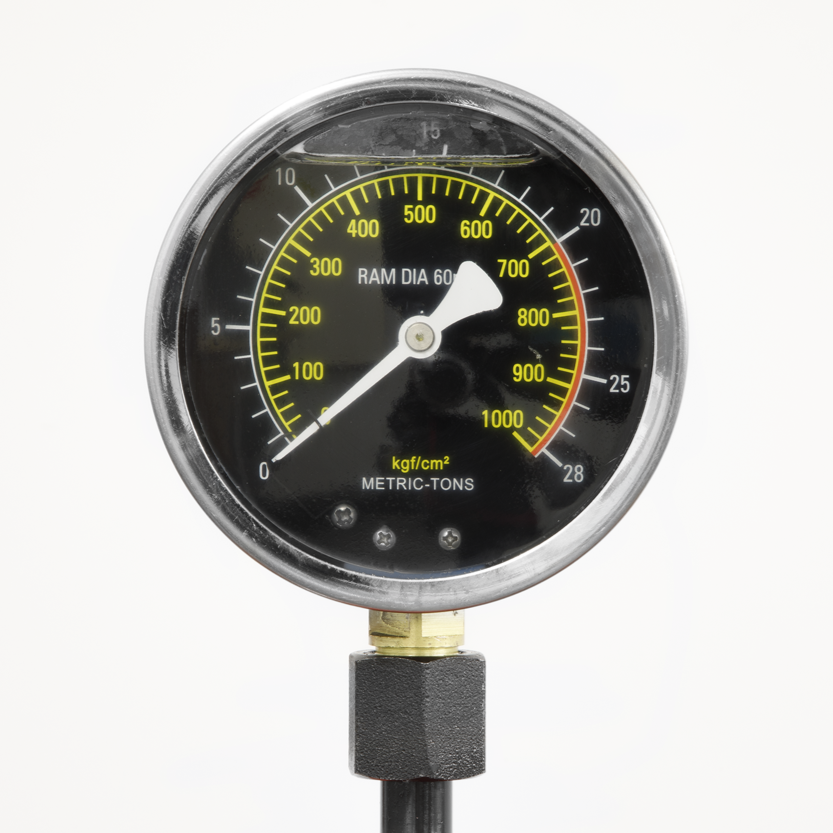

- Precision pressure monitoring – Included gauge ensures accurate force application

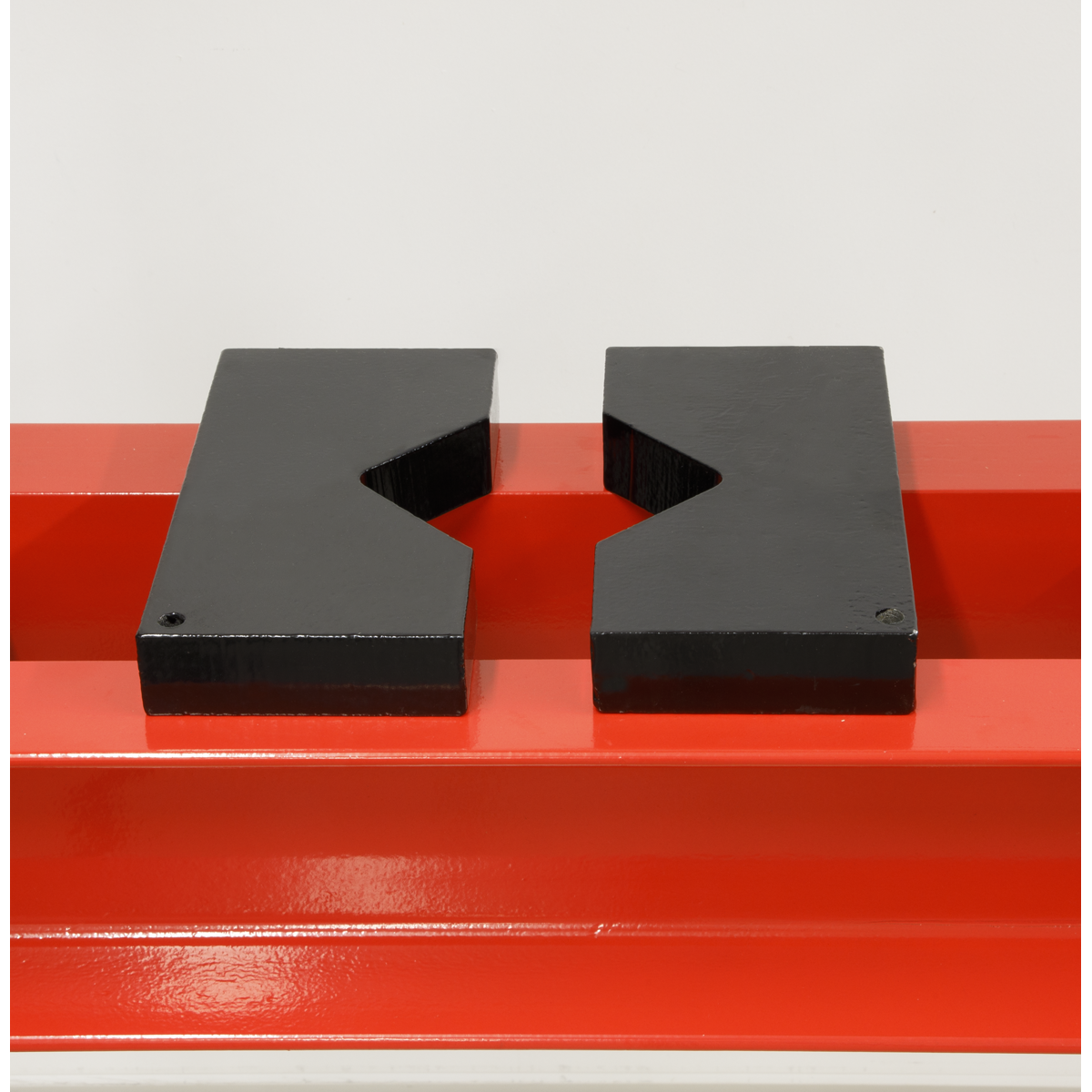

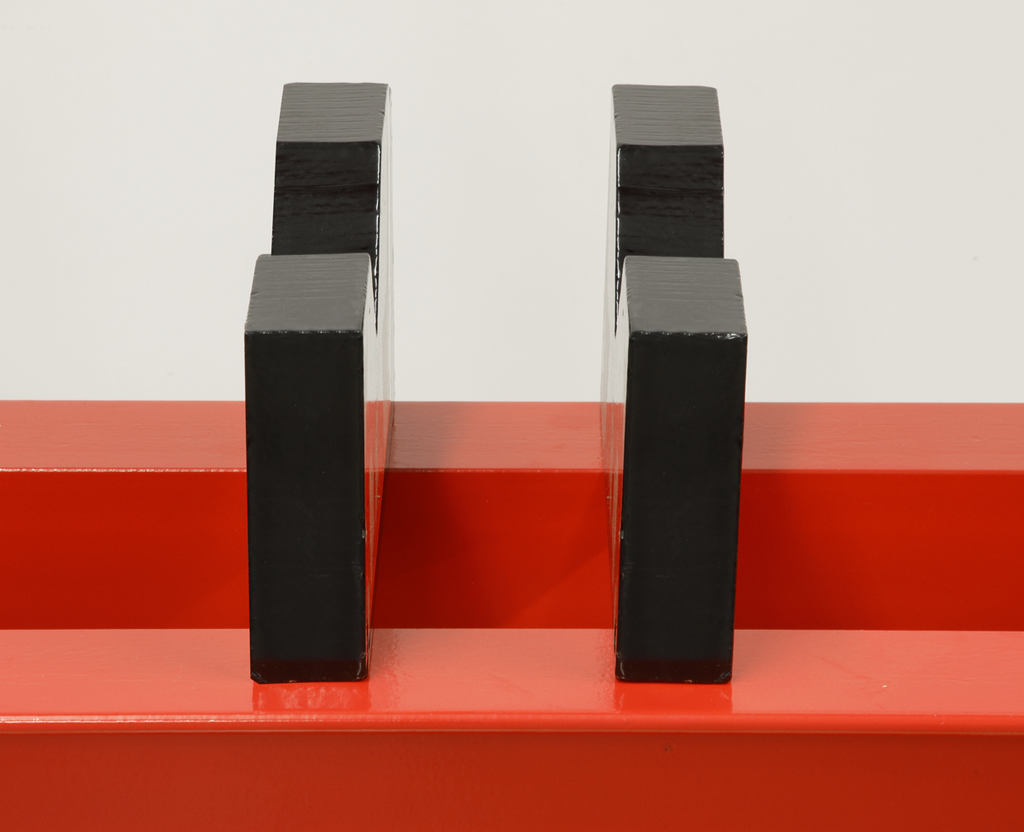

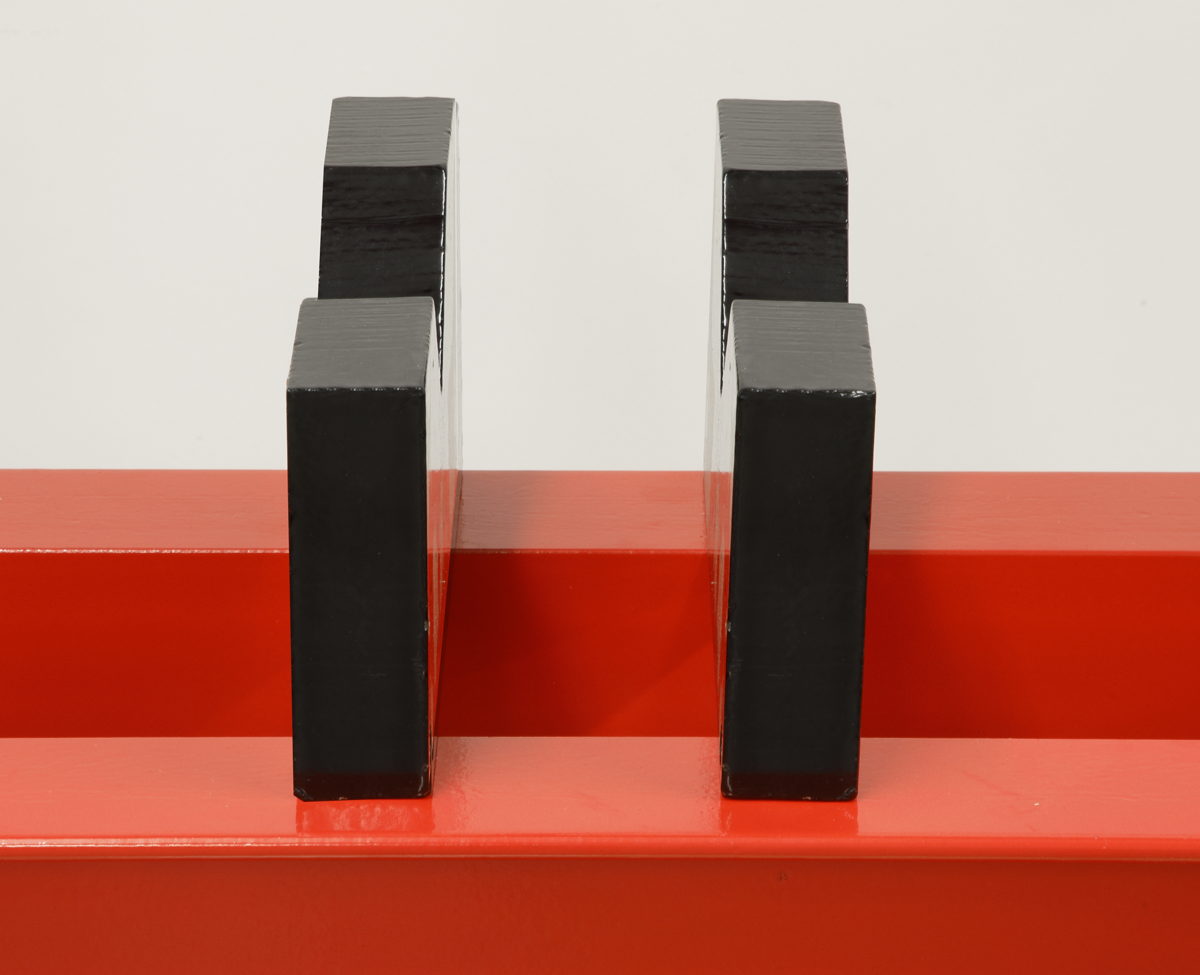

- Versatile tooling included – Flat plate and V-blocks supplied for diverse pressing tasks
- Optimized workspace – 630mm × 211mm table with 1018mm max height accommodates various workpieces
The 48mm diameter ram provides even force distribution across its 185mm stroke. At 93kg with a 1796mm height, it balances power with workshop-friendly dimensions. Optional YKPP8 press pin set available for specialized bearing work.
| Model No | YK20FAH |
| Air Consumption | 7.06cfm |
| Bench or Floor Mounting | Floor |
| Brand | Sealey |
| Capacity | 20 Tonne |
| Gauge Included | Yes |
| Lateral Ram Travel | 176mm |
| Maximum Height - Ram to Table | 1018mm |
| Minimum Height - Ram to Table | 58mm |
| Nett Weight | 93kg |
| Operating Table Width | 542mm |
| Optional Accessories | YKPP8 - Press Pin Set |
| Overall Height | 1796mm |
| Ram Diameter | Ø48mm |
| Ram Stroke | 185mm |
| Table Aperture | 105mm |
| Type | Air/Hydraulic |
| Working Table Depth | 211mm |
| Working Table Width | 630mm |
