Hydraulic Floor Type Press 20 Tonne
1-2 Days (Mainland UK)
We accept

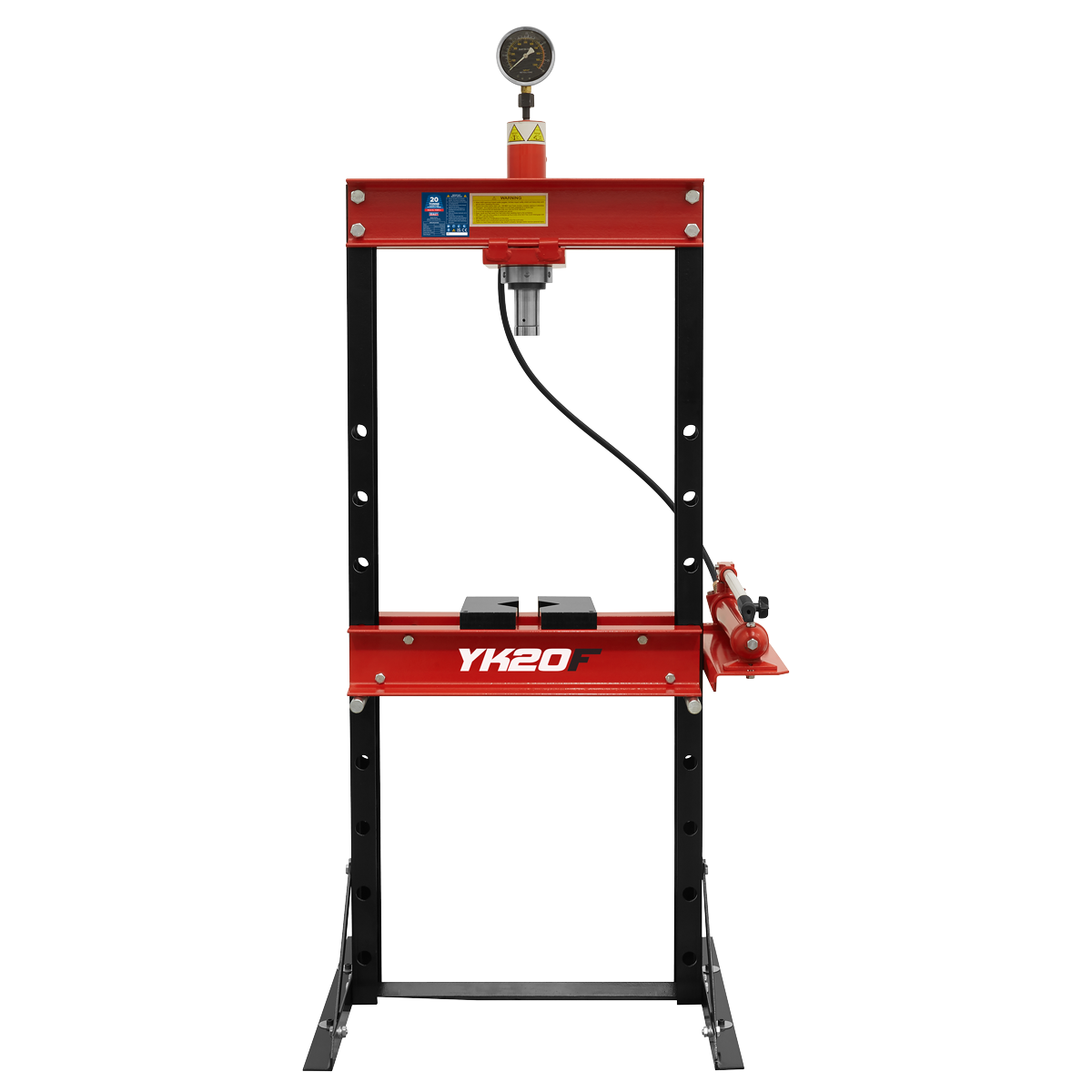

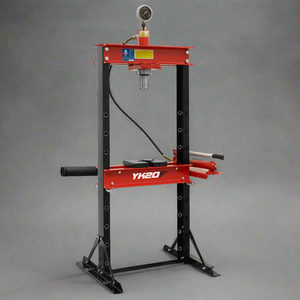

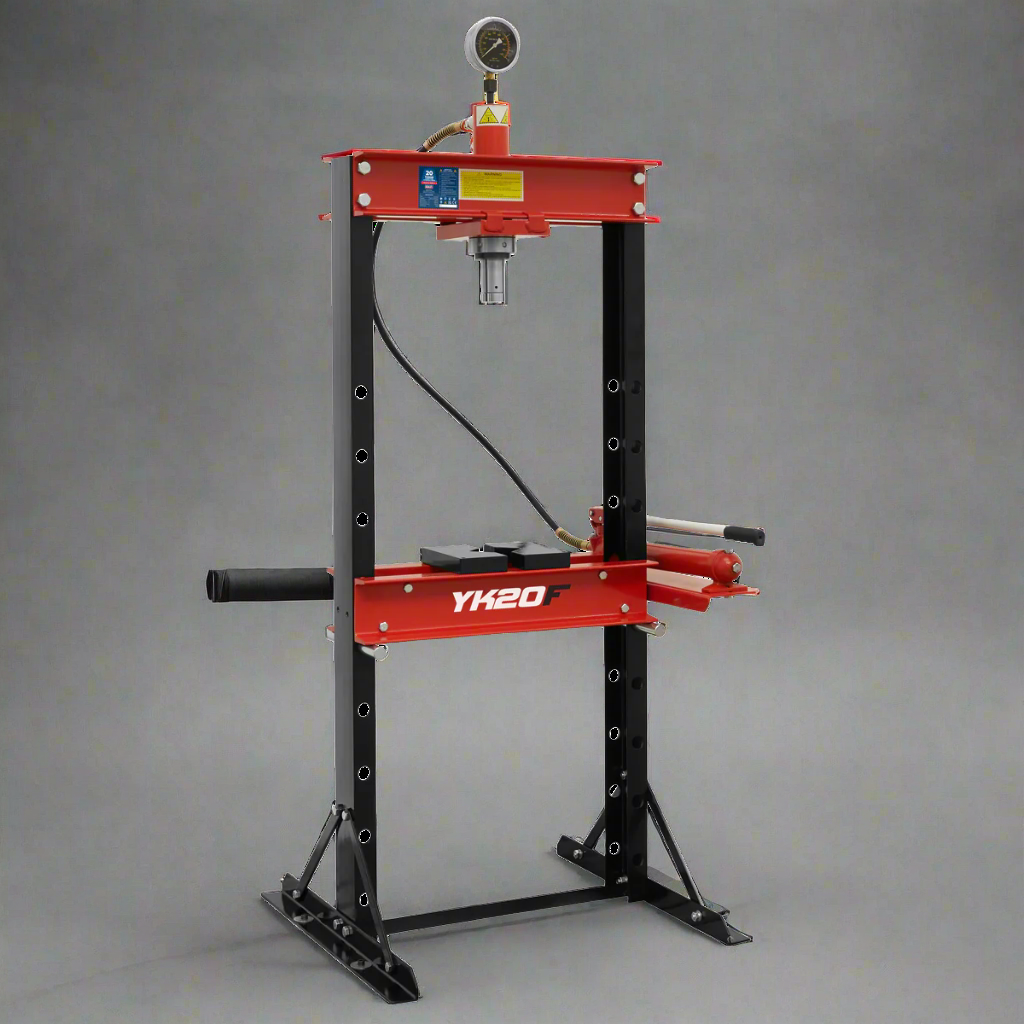

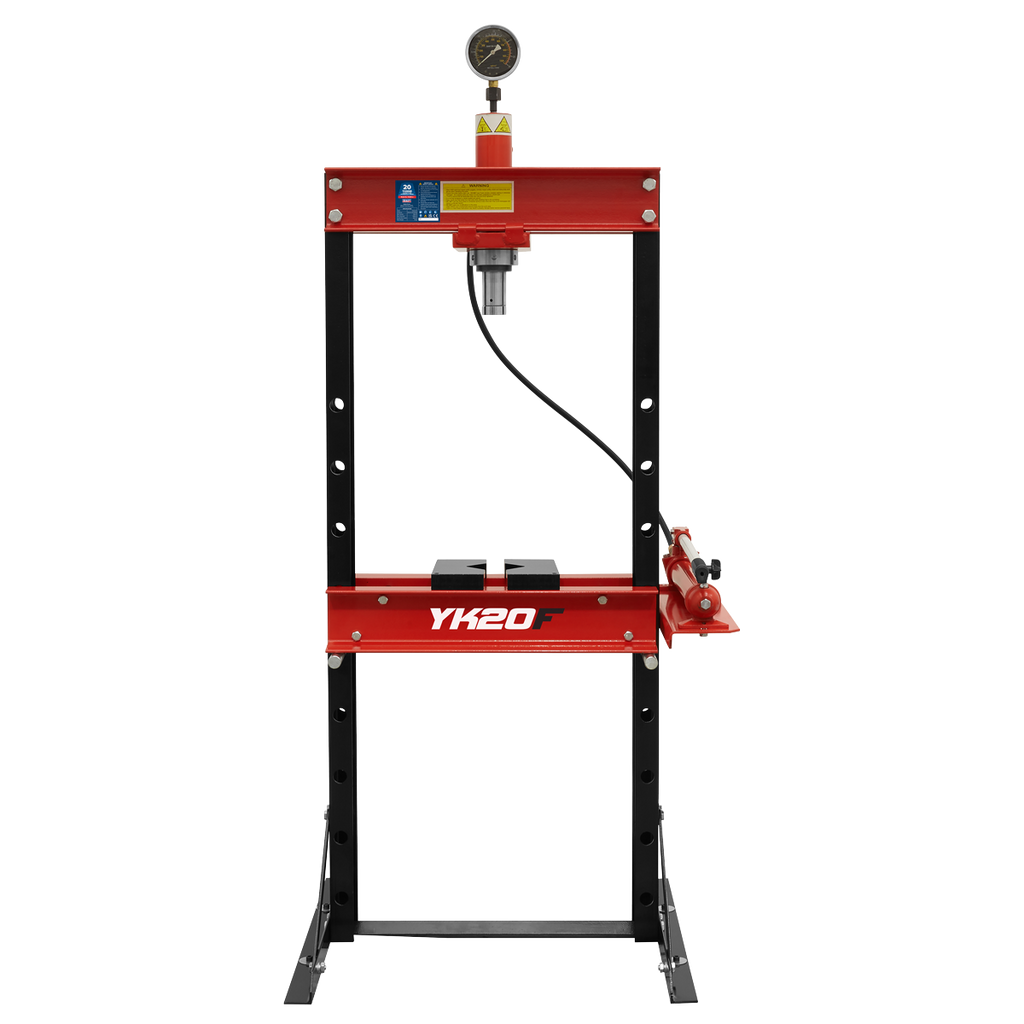

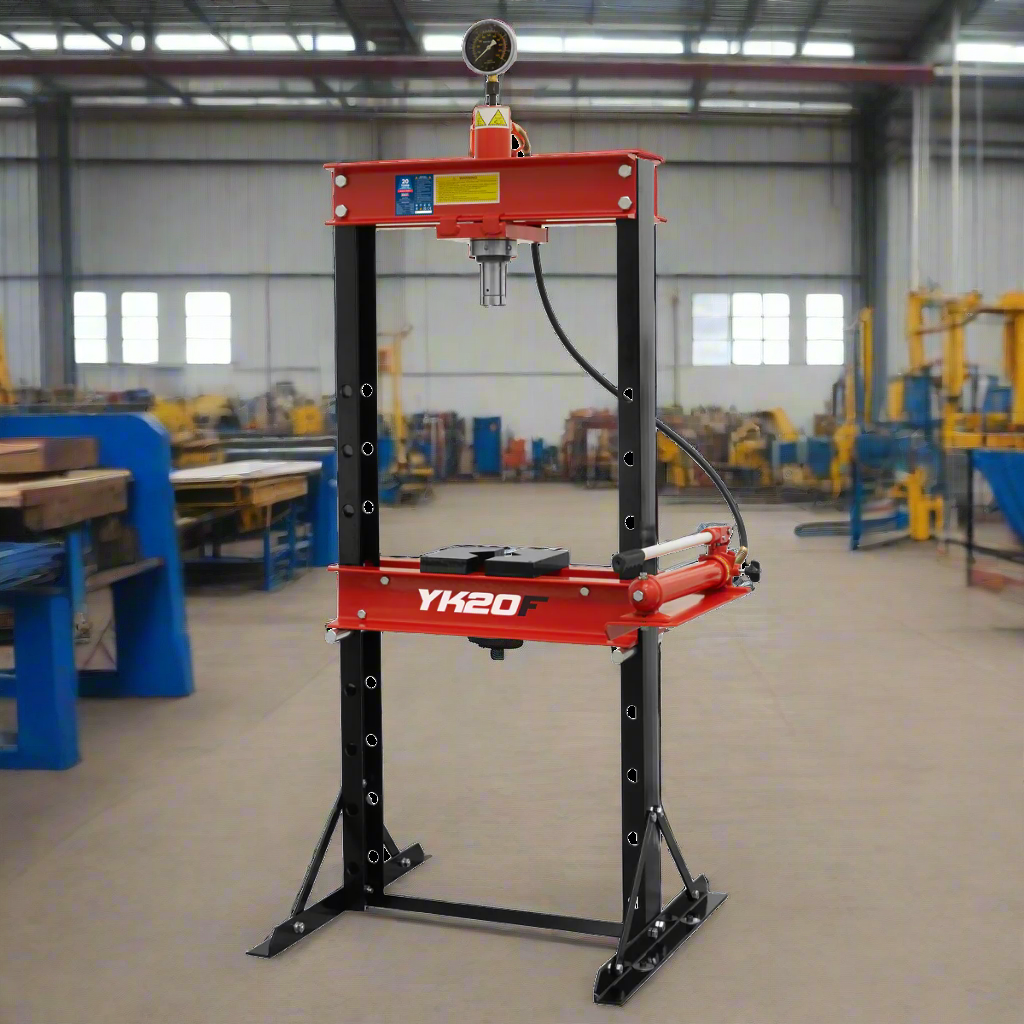

Sealey YK20F Hydraulic Floor Type Press, 20 Tonne Capacity
This robust 20-tonne hydraulic press delivers professional-grade pressing power through a durable steel frame construction and side-mounted hydraulic pump unit. The sliding ram assembly offers 403mm of lateral travel, enabling off-centre pressing applications without repositioning workpieces. With a 185mm ram stroke, 48mm ram diameter, and working height range from 58mm to 1018mm, this versatile press accommodates various component sizes across a 545mm wide operating table. Featuring a built-in pressure gauge for precise force monitoring and supplied with flat pressing plate and V-blocks, this workshop essential combines industrial capacity with practical functionality for demanding pressing operations.
Workshop Pressing Solution
Industrial-Grade Pressing Capacity
The 20-tonne hydraulic system provides sufficient force for demanding applications including bearing installation, shaft straightening, and metal forming operations, delivering professional results when working with heavy-duty components that require substantial pressing force.
Lateral Ram Mobility
The sliding hydraulic ram assembly with 403mm of lateral travel allows precise positioning over workpieces without moving heavy components, enabling off-centre pressing tasks and improving workflow efficiency when working on awkwardly shaped or positioned items.
Versatile Working Height
The substantial height range between ram and table (58mm to 1018mm) accommodates components of various dimensions from small precision parts to larger assemblies, eliminating the need for multiple pressing solutions in a workshop environment.
Precise Force Monitoring
The integrated ram pressure gauge provides visual feedback on applied force during operation, allowing for controlled pressing that prevents component damage and ensures appropriate pressure application for specific materials and applications.
Adaptable Workpiece Support
Included flat pressing plate and V-blocks accommodate various component shapes and sizes, providing stable support during pressing operations and reducing the risk of workpiece movement or misalignment under pressure.
Stable Operating Platform
The robust steel frame construction and 92.5kg weight create a stable platform that absorbs pressing forces without movement or flexing, ensuring consistent results even when working at maximum capacity on challenging materials.
Practical Applications
Automotive Repair: Facilitates bearing installation and removal, bushing replacement, shaft straightening, and ball joint servicing with the force and control needed for modern vehicle components, while the lateral ram travel allows access to awkwardly positioned assemblies without component removal.
Fabrication Operations: Provides controlled bending, forming, and shaping of metal components with precise force application monitored through the pressure gauge, allowing for repeatable results when producing multiple identical parts.
Industrial Maintenance: Supports maintenance operations in manufacturing environments where components require pressing together or separation during repair procedures, with the substantial 20-tonne capacity handling heavy-duty industrial parts that smaller presses cannot manage.
| Model No | YK20F |
| Bench or Floor Mounting | Floor Mounted |
| Brand | Sealey |
| Capacity | 20 Tonne |
| Gauge Included | Yes |
| Lateral Ram Travel | 403mm |
| Maximum Height - Ram to Table | 1018mm |
| Minimum Height - Ram to Table | 58mm |
| Operating Table Width | 545mm |
| Optional Accessories | YKPP8 - Press Pin Set |
| Overall Height | 1796mm |
| Ram Diameter | Ø48mm |
| Ram Stroke | 185mm |
| Table Aperture | 100mm |
| Type | Hydraulic |
| Weight | 92.50kg |
| Condition |
New, Factory Refurbished (Grade B) |
|---|
