Viking Air Operated High Lift Single Stage Jack 30 Tonne

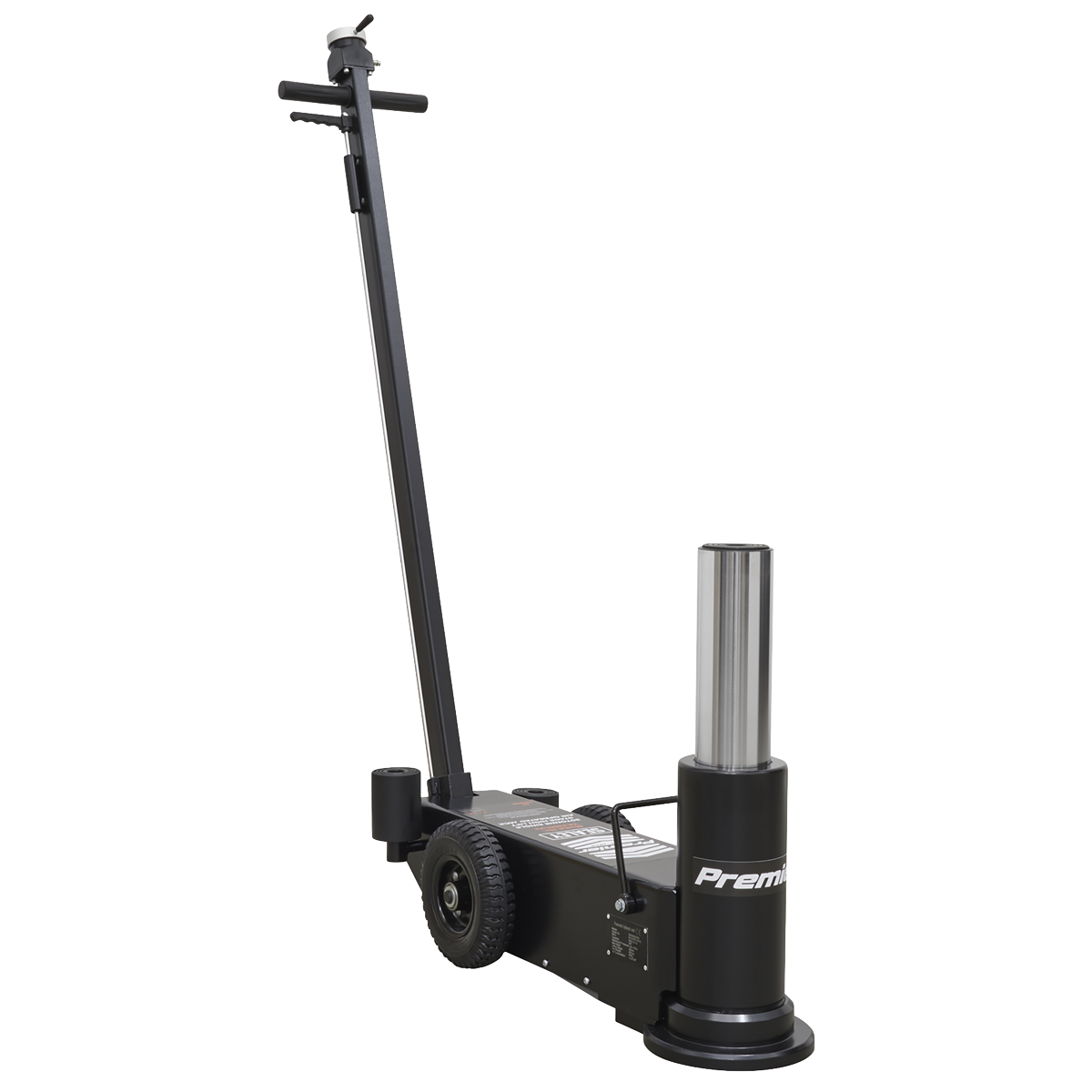

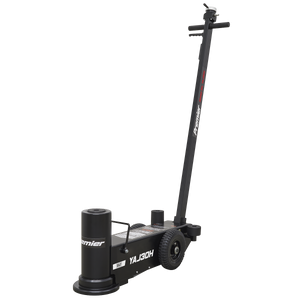

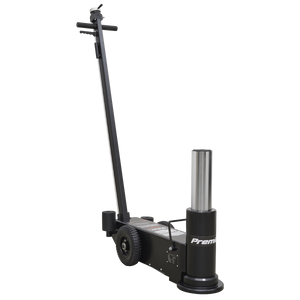

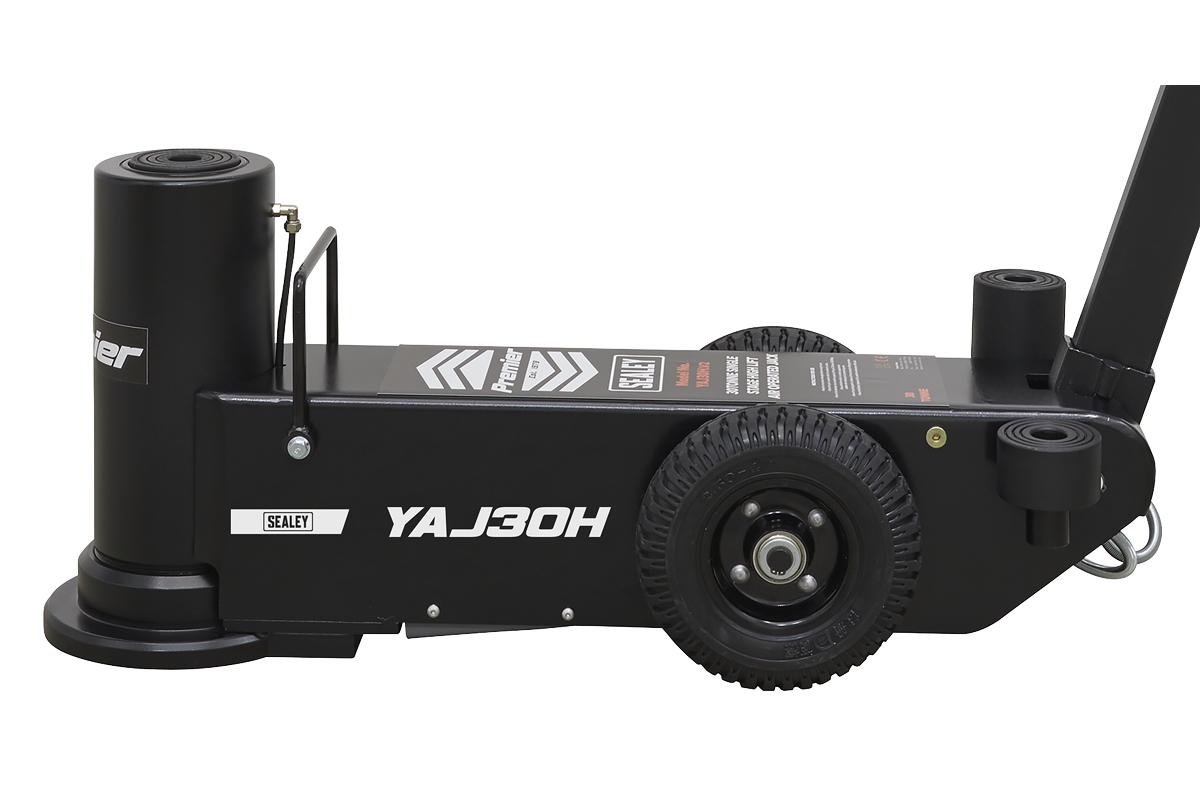

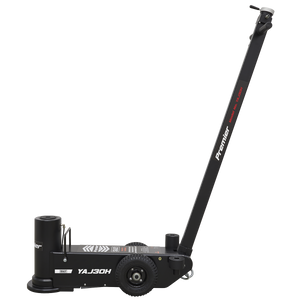

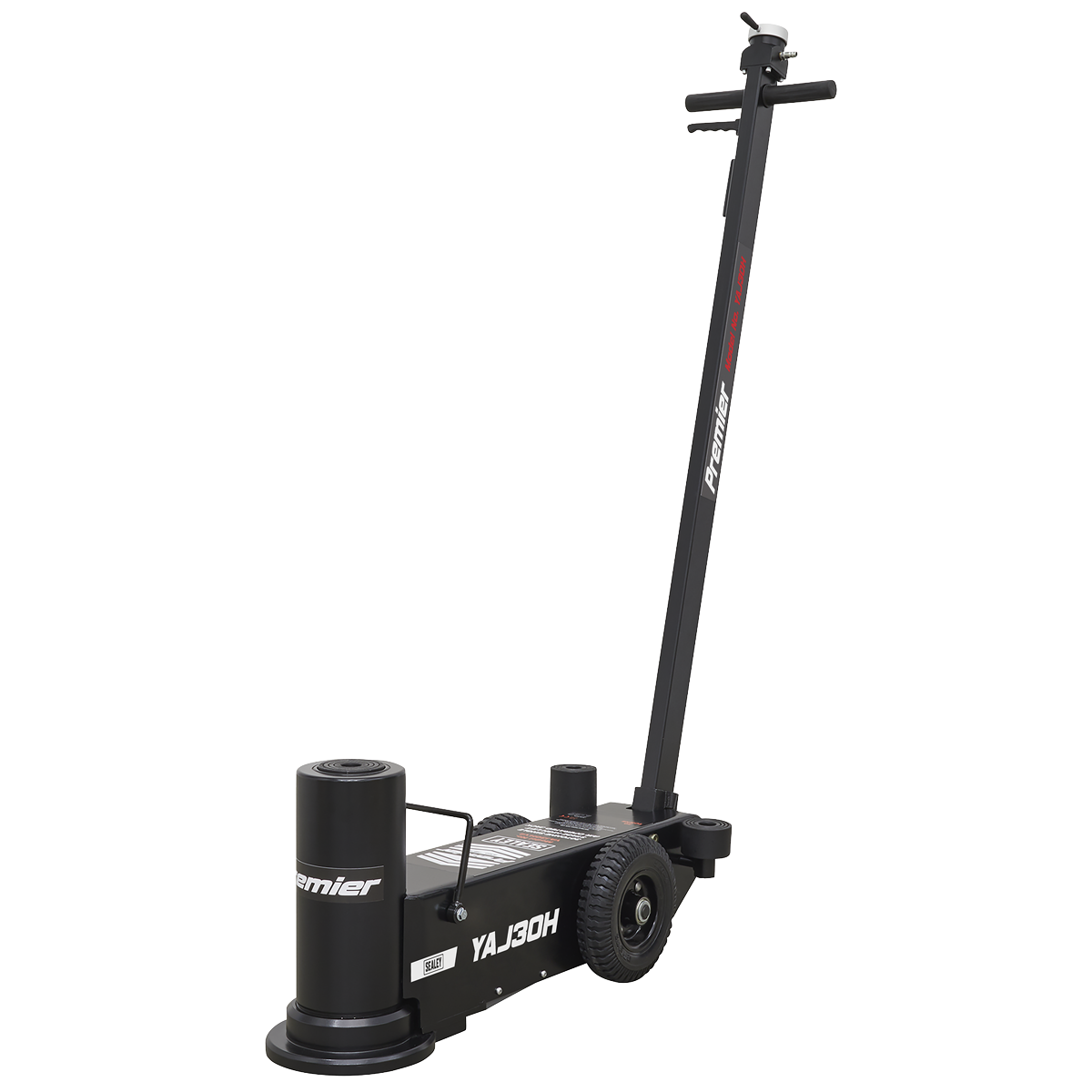

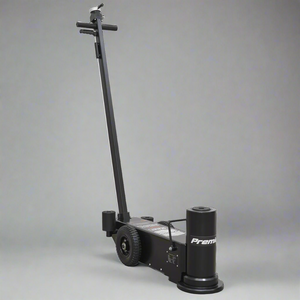

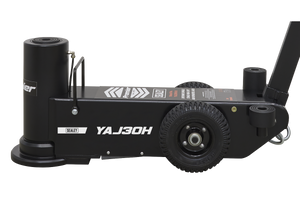

Viking YAJ30H Air Operated High Lift Single Stage Jack 30 Tonne
The Viking YAJ30H delivers 30-tonne lifting capacity in an air-operated system designed for heavy commercial vehicles and plant machinery. With a minimum saddle height of 360mm and maximum lift of 772mm, this single-stage jack includes safety features such as a dead man's handle for controlled lowering. Two included extensions help bridge the gap to various jacking points, making it suitable for both workshop and roadside applications.
Heavy-Duty Lifting Capabilities
Air-Powered Operation
Eliminates manual pumping effort when lifting heavy commercial vehicles and plant machinery, reducing operator fatigue during repeated use and increasing workplace efficiency.
30-Tonne Capacity
Handles the substantial weight of agricultural tractors, commercial trucks, and construction equipment, providing reliable support for essential maintenance tasks.

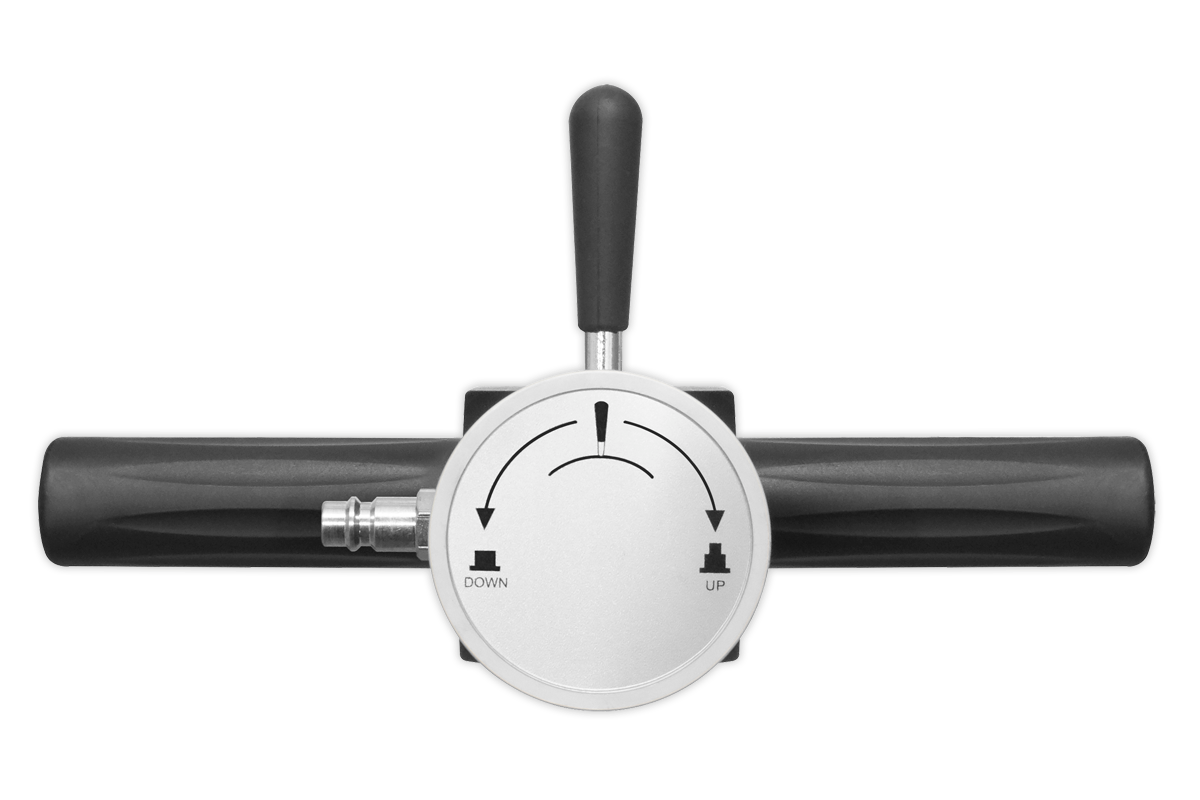

Dead Man's Handle Control
Ensures the jack immediately stops operating if the handle is released, preventing accidents and allowing precise control during the critical lowering phase.
Portable Design
Functions effectively both in workshop environments and roadside callouts, with a manageable width of 295mm that allows positioning in confined spaces under vehicles.
Extended Reach Capability

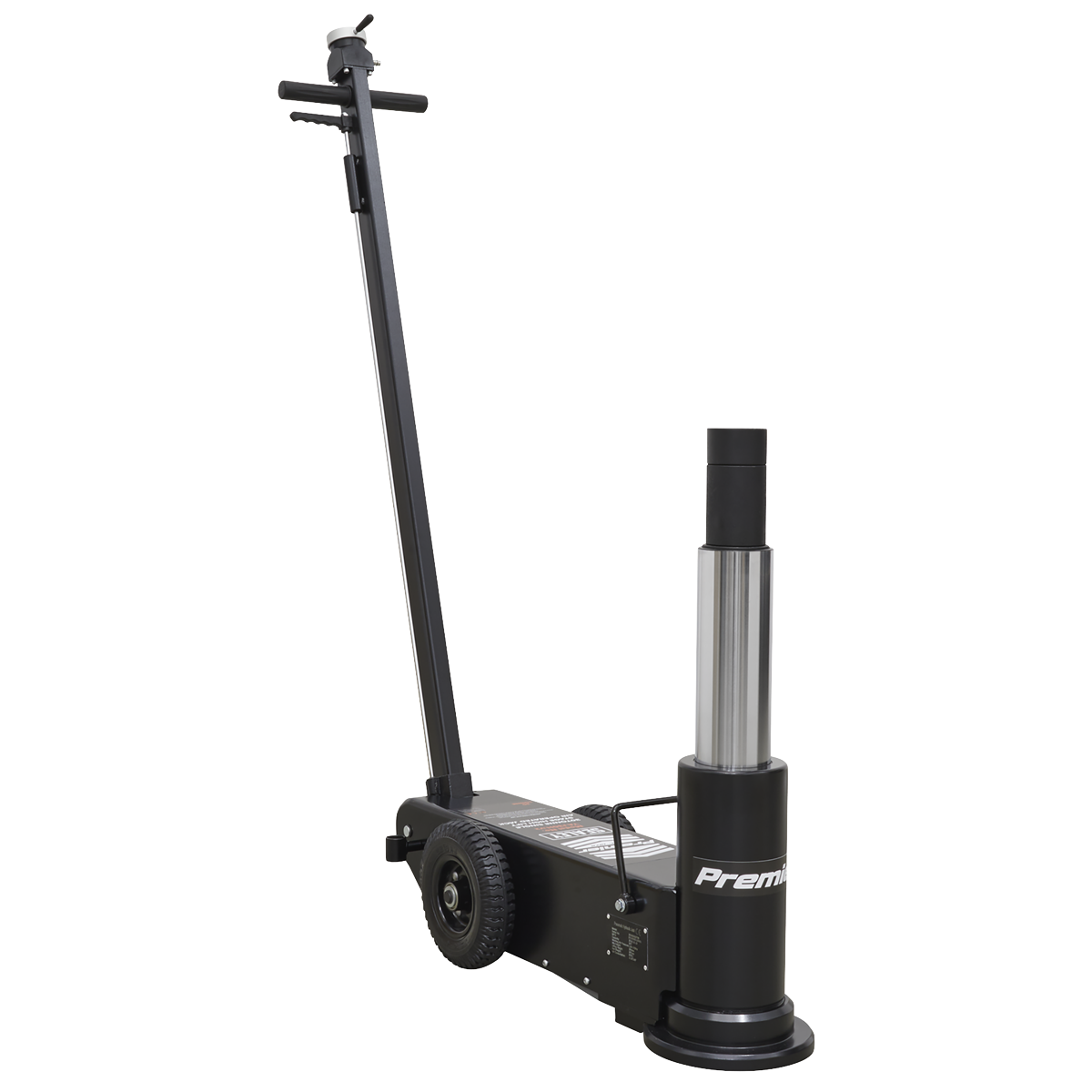

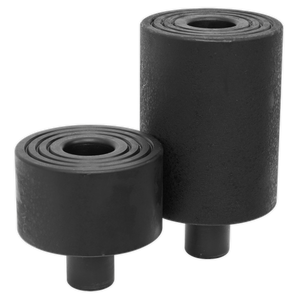

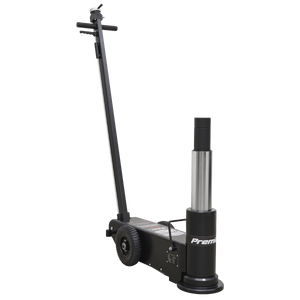

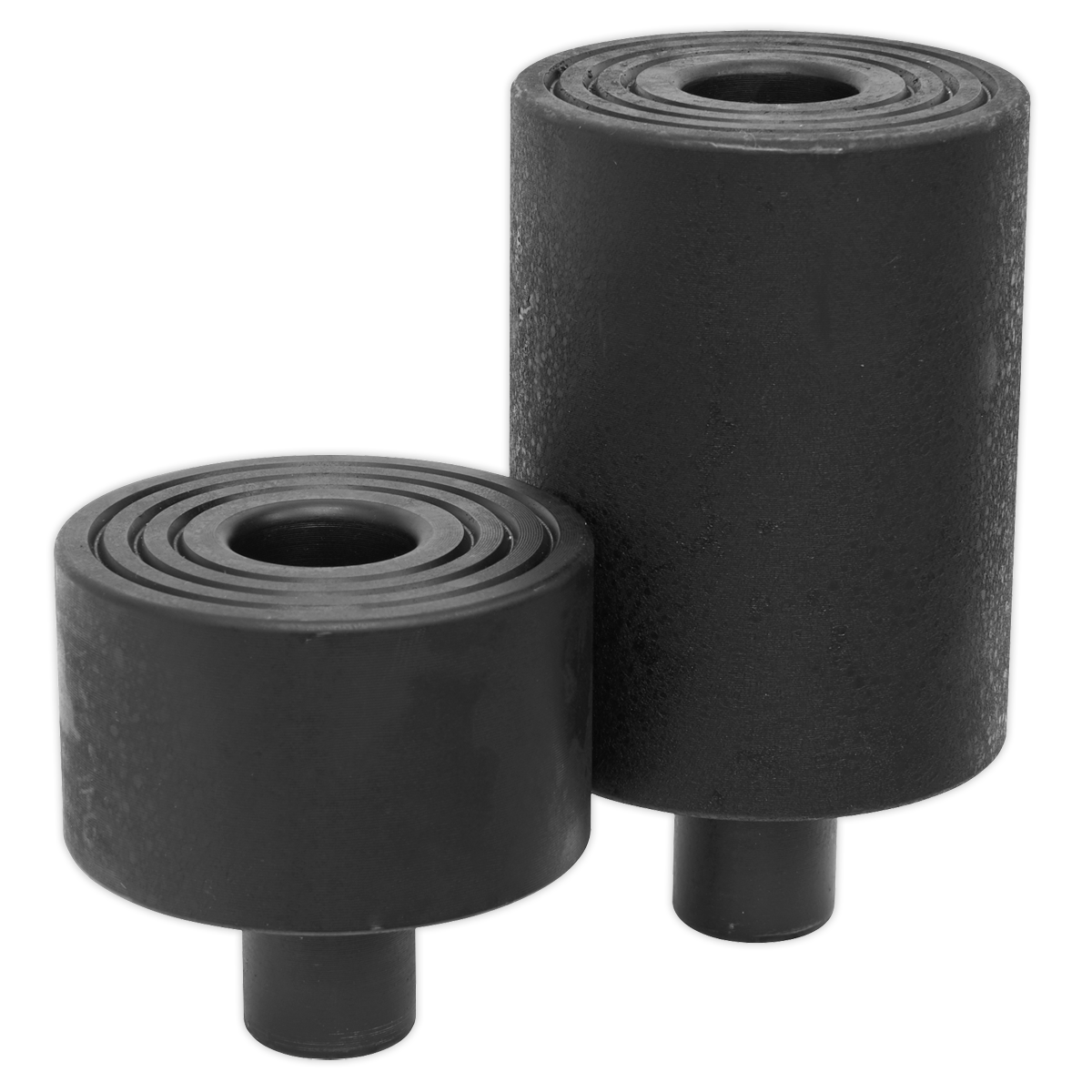

Offers a minimum saddle height of 360mm with 267mm piston stroke, plus two extension adapters (45mm and 100mm) to accommodate various vehicle clearances and jacking points.
Robust Construction
Built with heavy-duty materials to withstand demanding commercial use conditions, providing long-term reliability and workplace safety during critical lifting operations.
Technical Specifications
Model YAJ30H from Viking Premier. 30-tonne lifting capacity with 360mm minimum saddle height and 772mm maximum height with extensions. Features 842mm chassis length, 295mm overall width, and 126kg net weight. Requires 116-174psi working pressure with 11.5cfm air consumption. Includes 45mm and 100mm extensions.
Operational Requirements
Air Supply: Requires workshop compressed air system capable of delivering 11.5cfm at 116-174psi for optimal performance.
Safety Considerations: Always use with appropriate jack stands after lifting. The dead man's handle feature ensures controlled lowering but proper safety protocols must still be followed.
Mobility: At 126kg, this equipment requires appropriate handling equipment or multiple personnel for safe transport and positioning.
| Model No | YAJ30H |
| Air Consumption | 11.5cfm |
| Brand | Viking |
| Capacity | 30 Tonne |
| Chassis Length | 842mm |
| Extensions | 45/100mm |
| Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne) | 772/30 |
| Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne) | n/a |
| Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne) | n/a |
| Maximum Length | 2222mm |
| Minimum Saddle Height | 360mm |
| Nett Weight | 126kg |
| Overall Width | 295mm |
| Piston Stroke | 267mm |
| Screw Extension | n/a |
| Width without Wheels | 195mm |
| Working Pressure | 116-174psi |
