Viking Long Reach/Low Profile Air Telescopic Jack, 20-60 Tonne (YAJ20-60LR)
Viking Long Reach/Low Profile Air Telescopic Jack, 20-60 Tonne (YAJ20-60LR)
- HEAVY DUTY HYDRAULICS - Powerful and reliable, this 3-stage jack is ideal for workshop or roadside use.
- AIR OPERATED - Takes the effort out of lifting heavy plant, tractors and commercial vehicles.
- ACCESSORIES INCLUDED - Supplied with 45mm and 75mm extensions.
- VERSATILE CHASSIS - Long reach, low entry.
- MAXIMUM CAPACITY: 60 Tonne.

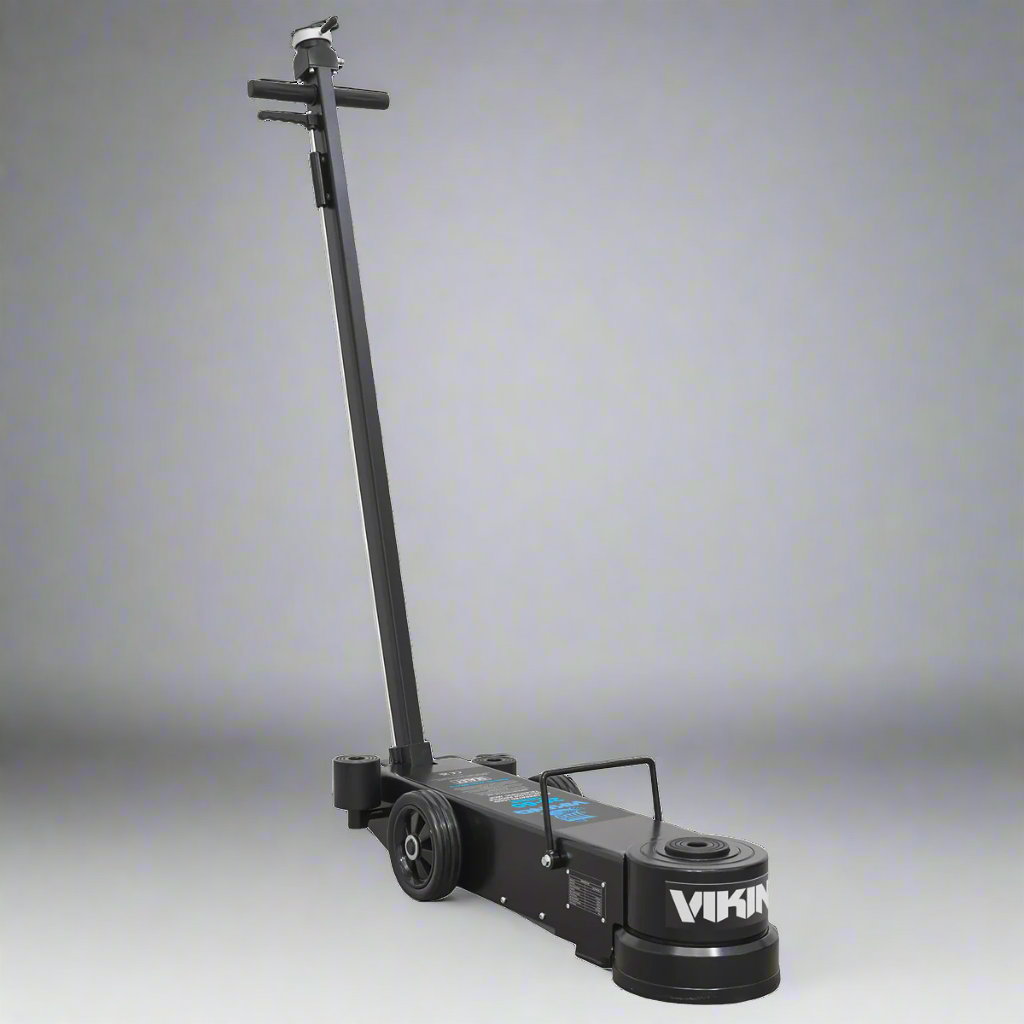

Viking Long Reach/Low Profile Air Operated Telescopic Jack, 20-60 Tonne Capacity (YAJ20-60LR)

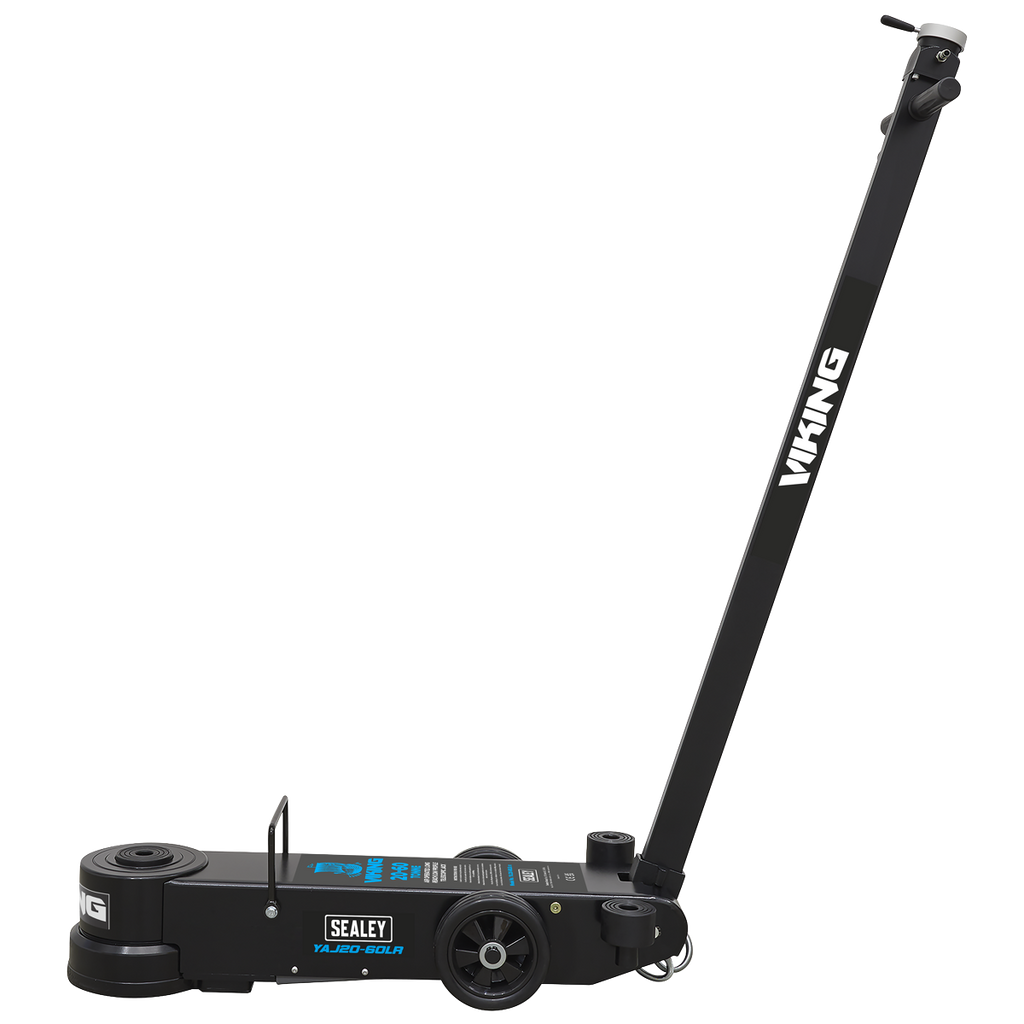

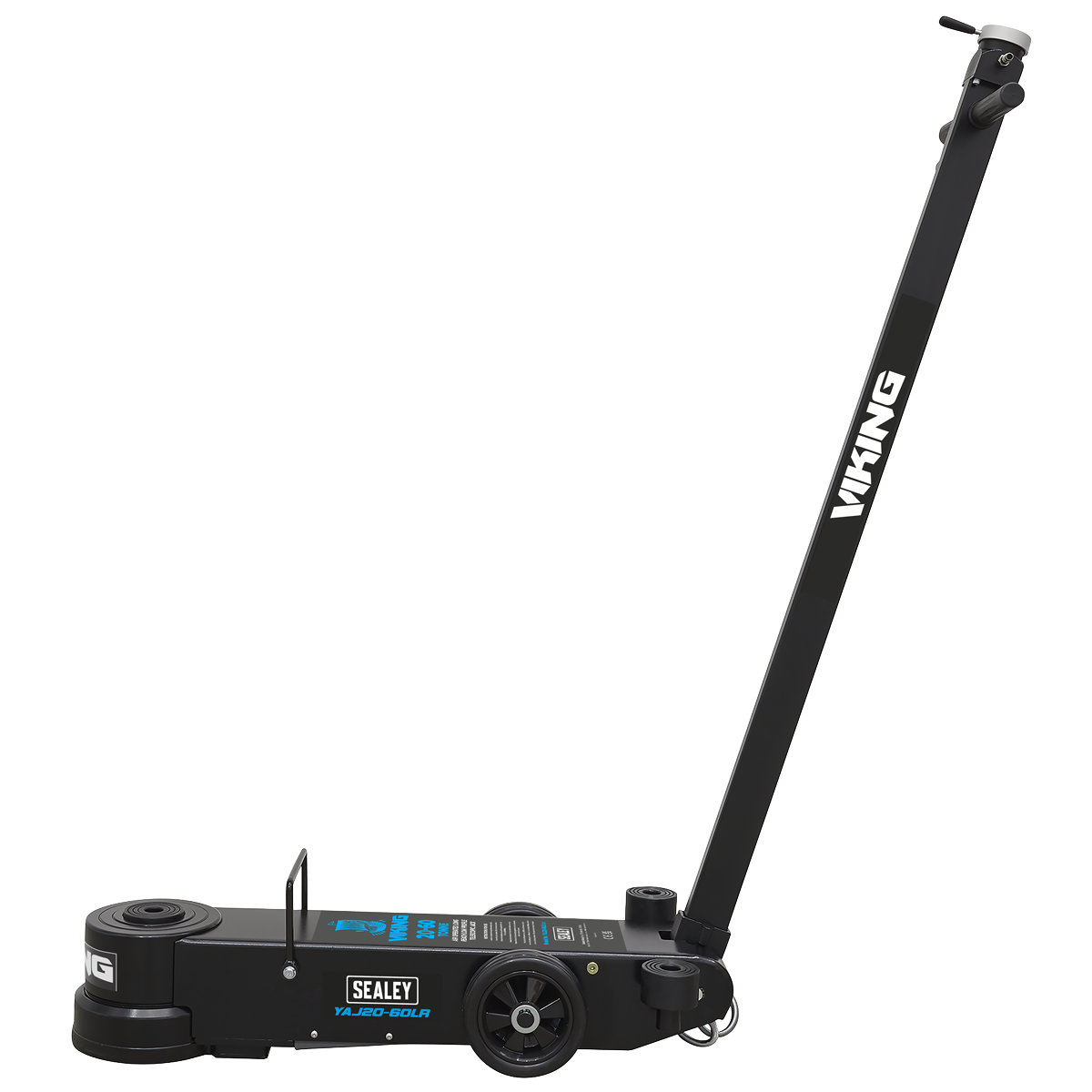

The Viking YAJ20-60LR delivers exceptional versatility with a telescopic design that provides staged lifting capacity from 20 to 60 tonnes. With an ultra-low minimum saddle height of 175mm and three-stage lift capability, this air-operated jack excels at accessing low clearance areas while maintaining substantial lifting power. The system includes important safety features like a dead man's handle for controlled lowering, making it suitable for both workshop and roadside applications.
Professional Lifting Capabilities

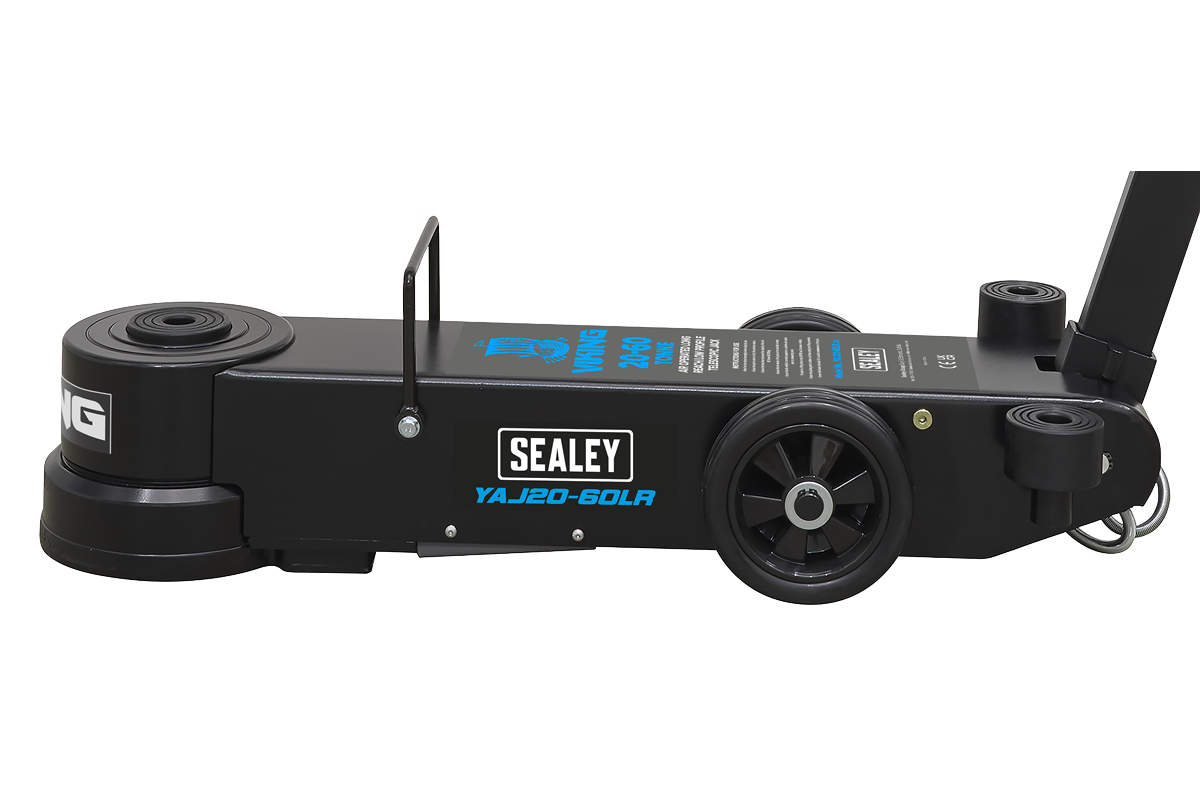

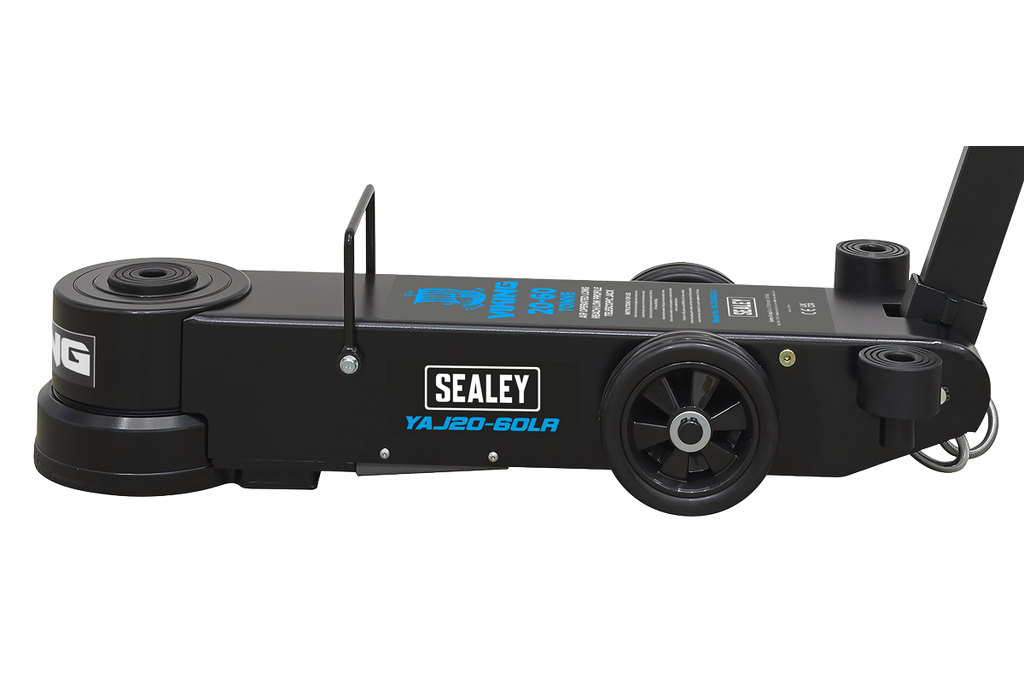

Low Profile Access
Achieves an extremely low minimum saddle height of 175mm, enabling access to jacking points on low clearance commercial vehicles that standard jacks cannot reach, particularly valuable for vehicles with damaged suspension.

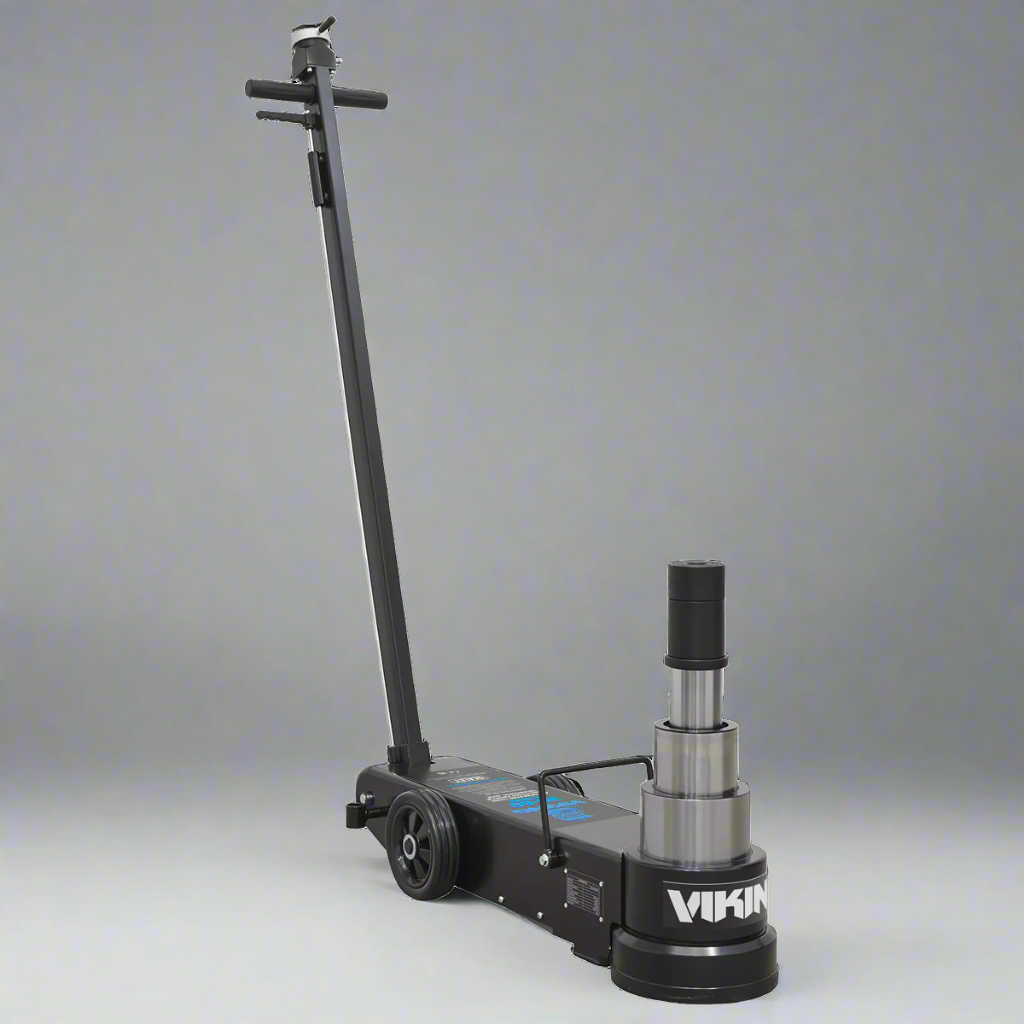

Three-Stage Telescopic Operation
Provides staged lifting capabilities of 60 tonnes at first stage (377mm), 40 tonnes at second stage (458mm), and 20 tonnes at third stage (542mm), allowing tailored performance based on the weight and height requirements of each task.
Air-Powered Efficiency
Eliminates manual effort through pneumatic operation, reducing operator fatigue during heavy lifting tasks for agricultural, commercial transport, and construction equipment maintenance.

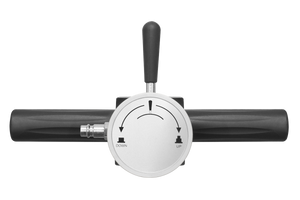

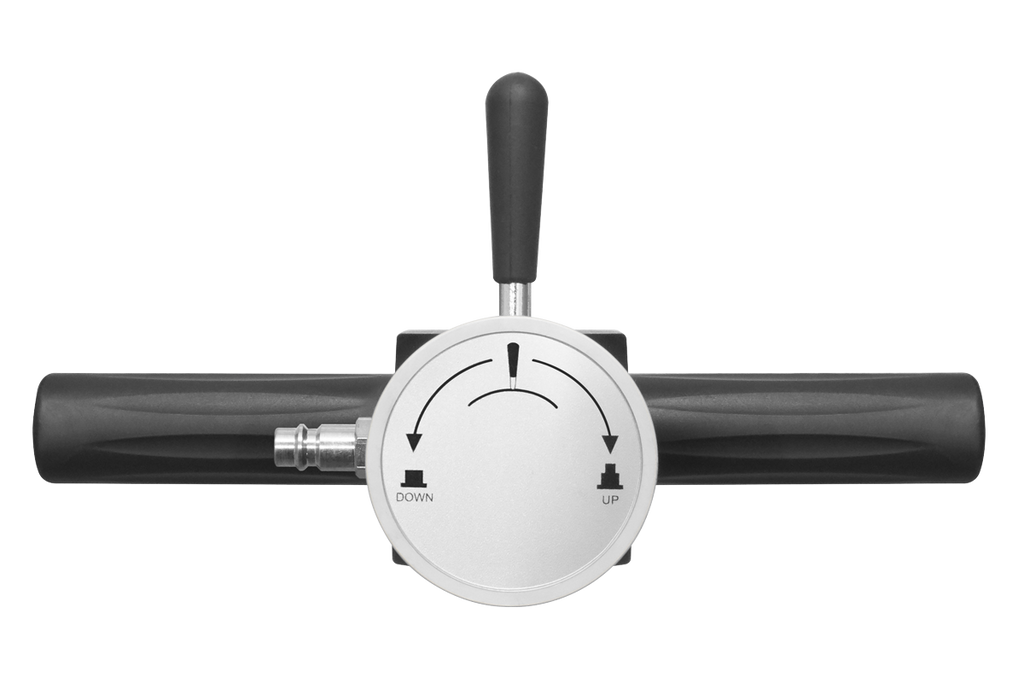

Enhanced Safety Controls

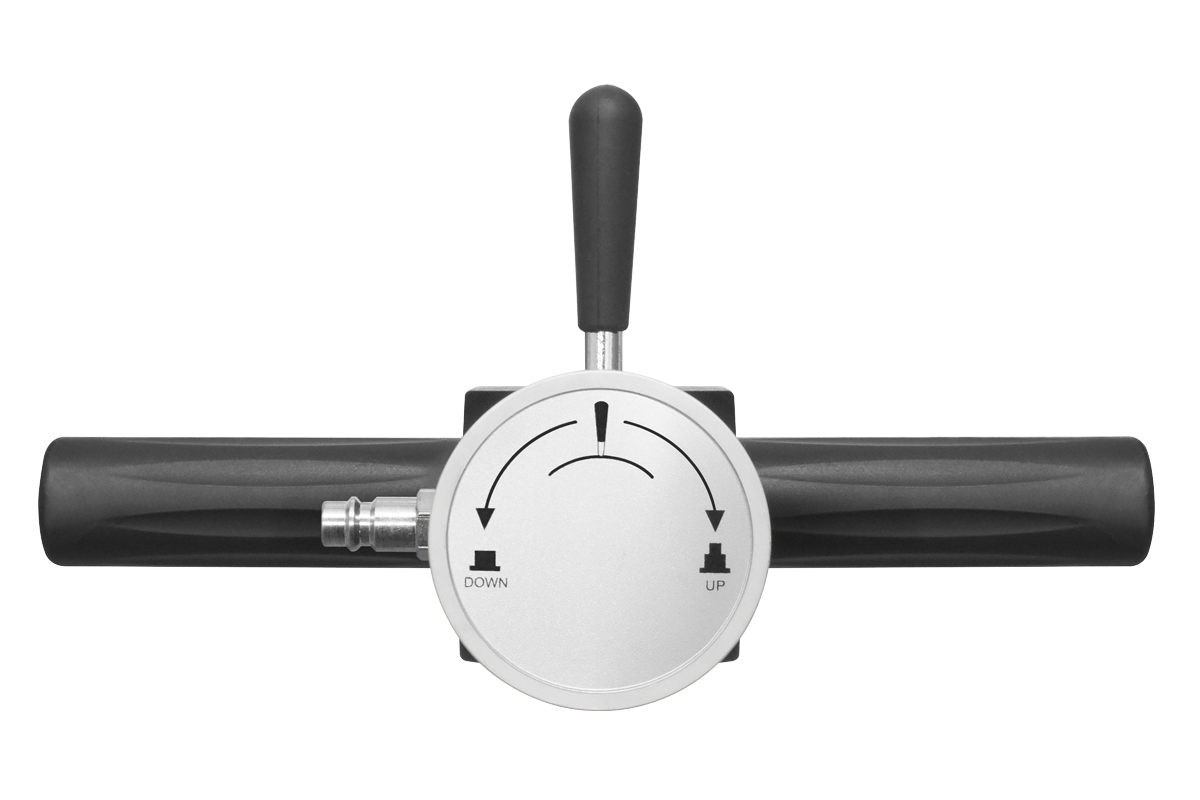

Features a dead man's handle that immediately halts operation if released, providing precise control during critical lowering phases and preventing accidental equipment damage or injury.

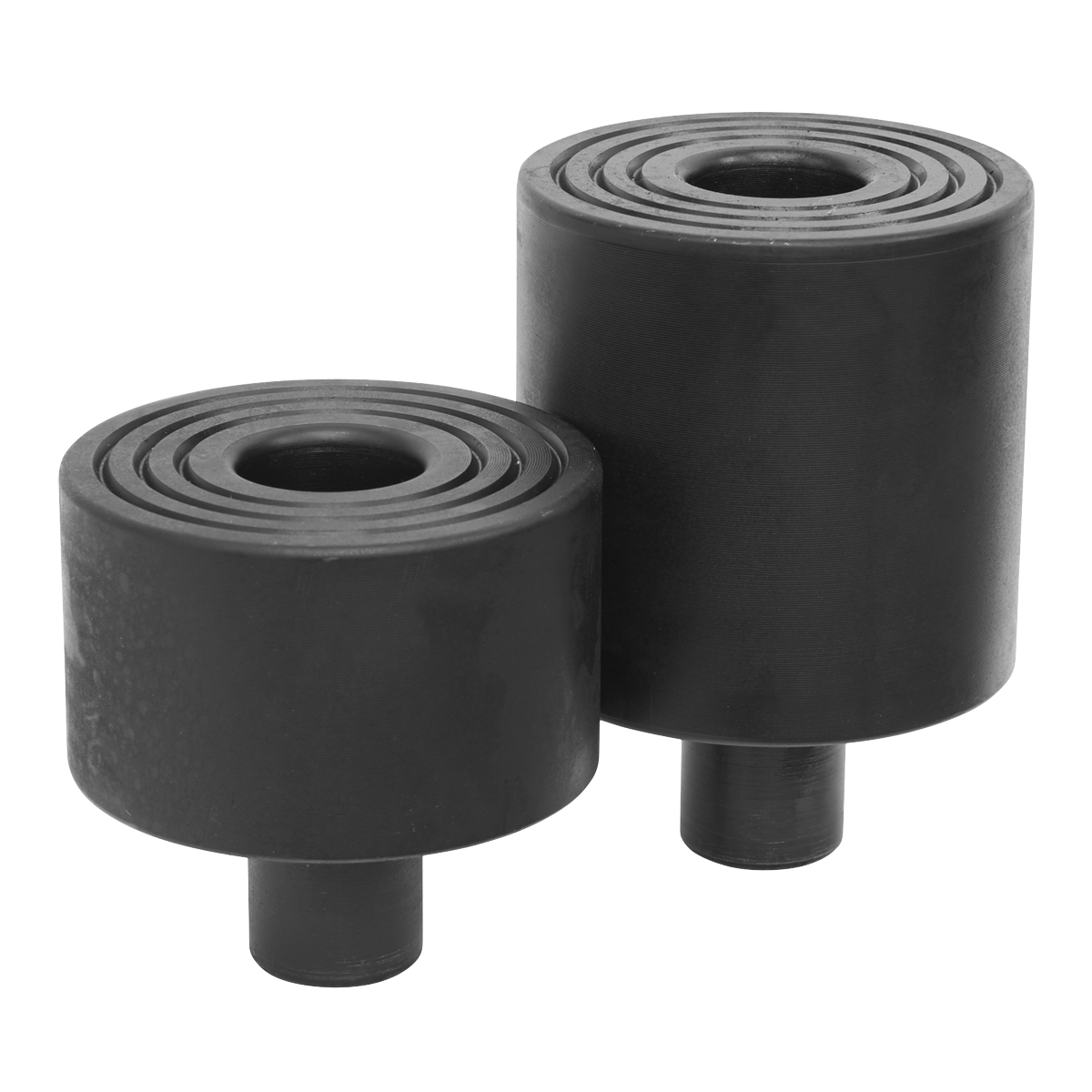

Extended Reach Capability

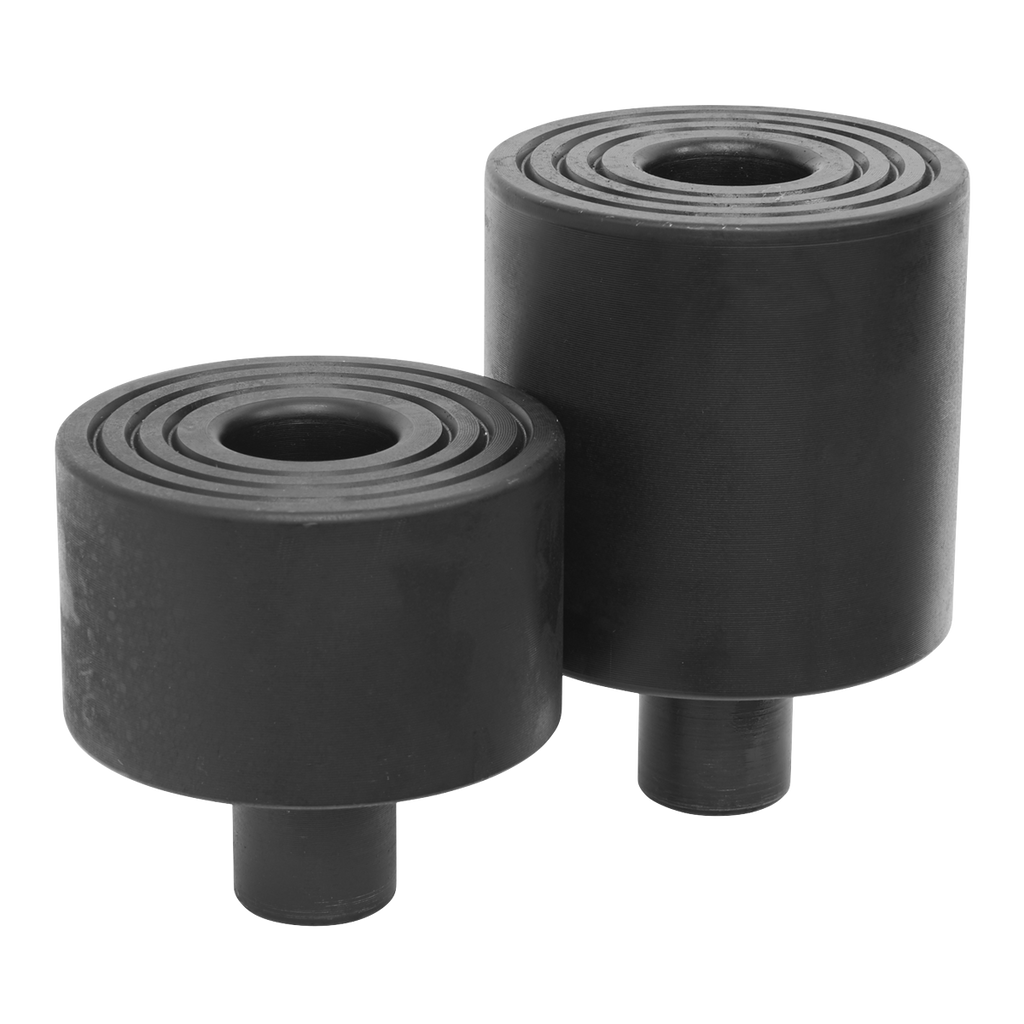

Includes two extension adapters (45mm and 75mm) that bridge the gap between the jack saddle and various jacking points, expanding the versatility of this tool across multiple vehicle types.
Optimised Portability
Weighs just 70kg despite its substantial capacity, allowing transport between workshop and roadside locations while maintaining the structural integrity needed for heavy-duty commercial applications.
Technical Specifications
Model YAJ20-60LR from Viking. Telescopic jack with 60/40/20 tonne staged capacity. Ultra-low 175mm minimum saddle height with 247mm piston stroke. Maximum heights: 377mm (60T), 458mm (40T), 542mm (20T). Dimensions: 875mm chassis length, 295mm overall width, 70kg net weight. Requires 116-174psi working pressure with 11.5cfm air consumption. Includes 45mm and 75mm extensions.
Operational Requirements
Air Supply: Requires workshop compressed air system capable of delivering 11.5cfm at 116-174psi for optimal performance.
Applications: Specifically designed for heavy plant machinery, tractors, buses, commercial vehicles and situations requiring access to low clearance jacking points.
Safety Protocol: Always use appropriate jack stands after lifting. The dead man's handle ensures controlled operation but proper safety procedures must still be followed.
| Model No | YAJ20-60LR |
| Air Consumption | 11.5cfm |
| Brand | Viking |
| Capacity | 60 Tonne |
| Chassis Length | 875mm |
| Extensions | 45/75mm |
| Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne) | 377/60 |
| Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne) | 458/40 |
| Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne) | 542/20 |
| Maximum Length | 2255mm |
| Minimum Saddle Height | 175mm |
| Overall Width | 295mm |
| Piston Stroke | 247mm |
| Screw Extension | n/a |
| Width without Wheels | 215mm |
| Working Pressure | 116-174psi |
| Weight | 70.00kg |
