OBD Breakout Box 16-Pin 12V/24V
OBD Breakout Box 16-Pin 12V/24V
- TESTS THE ON-BOARD DIAGNOSTOC PORT - For any faults before connecting other diagnostic devices to the DLC.
- UNIQUE DESIGN – The breakout box can be connected in series with 16-pin OBDII/EOBDII diagnostic equipment.
- CONNECTS TO MULTIMETERS AND OSCILLOSCOPES – To enable further testing.
- COMPATIBLE - With 12 and 24V systems.
- SELECTABLE PIN VOLTAGE INDICATOR - Shows the real-time voltage of the selected pin.

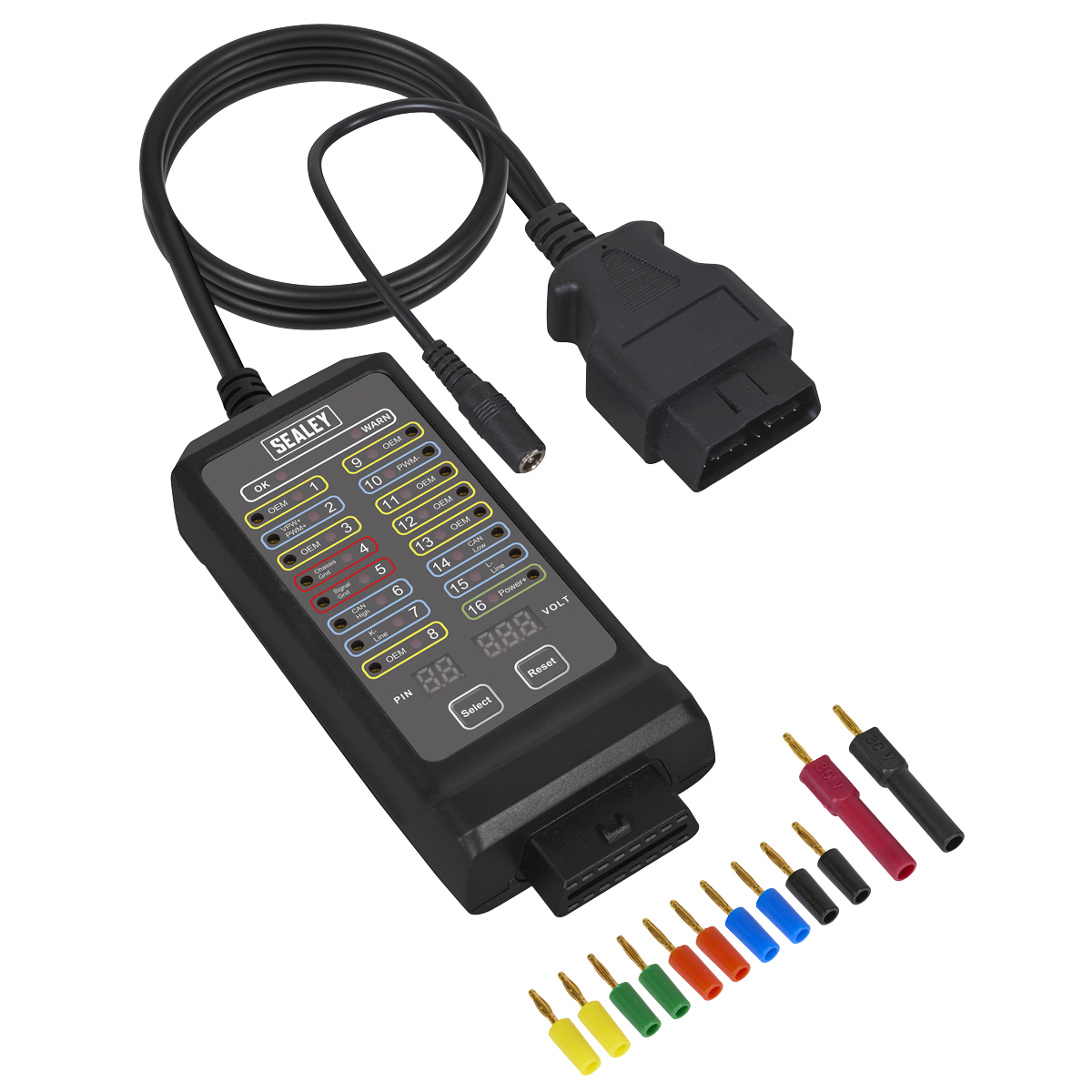

Test the onboard diagnostics port for any faults before connecting other diagnostic devices to the DLC. The breakout box is designed to be connected in series with 16-pin OBDII/EOBDII diagnostic equipment. It can also be connected to multimeters and oscilloscopes. Compatible with 12 and 24V systems. The selectable pin voltage indicator shows the real-time voltage of the selected pin. Communication Protocol Indicator - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE. Overload protection protects any connected diagnostic equipment from damage. - • TESTS THE ON-BOARD DIAGNOSTOC PORT - For any faults before connecting other diagnostic devices to the DLC.
• UNIQUE DESIGN – The breakout box can be connected in series with 16-pin OBDII/EOBDII diagnostic equipment.
• CONNECTS TO MULTIMETERS AND OSCILLOSCOPES – To enable further testing.
• COMPATIBLE - With 12 and 24V systems.
• SELECTABLE PIN VOLTAGE INDICATOR - Shows the real-time voltage of the selected pin.

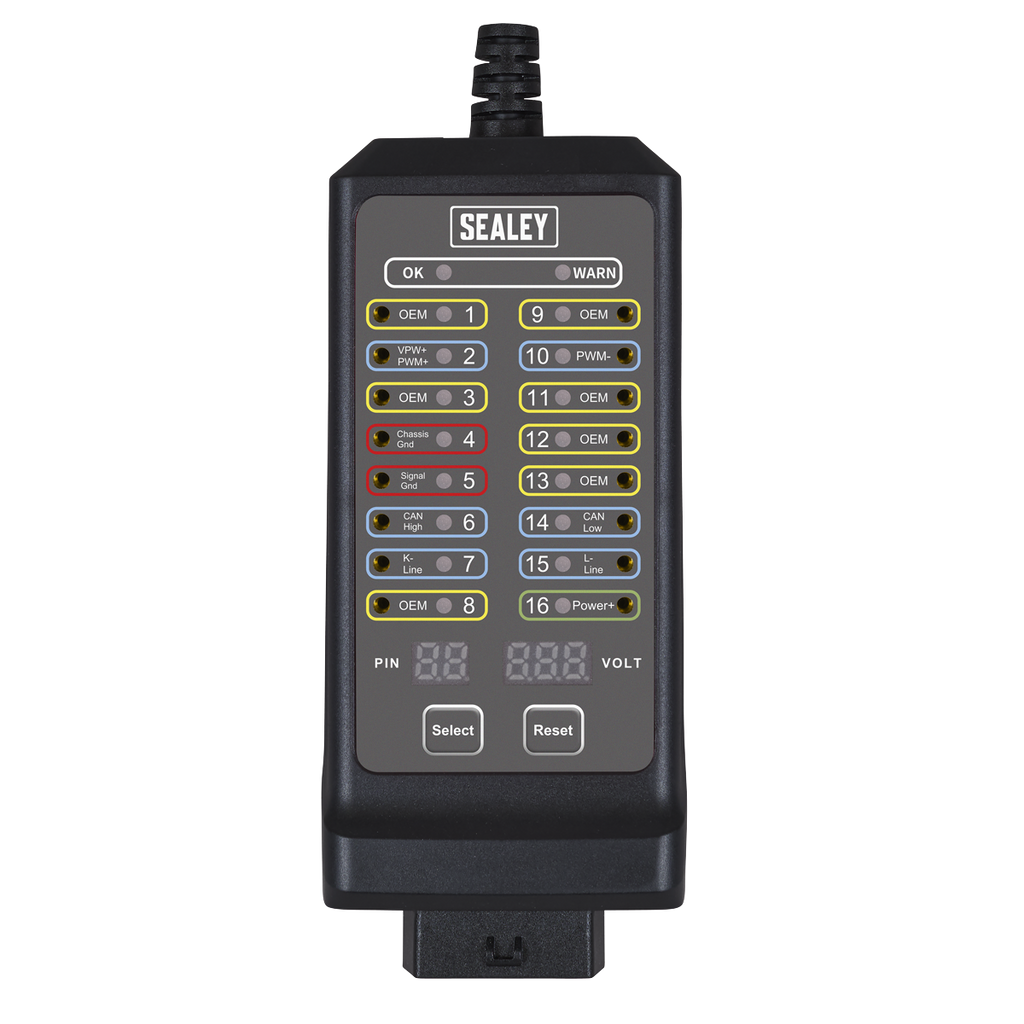

• COMMUNICCATION PROTOCOL INDICATOR - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE.
• OVERLOAD PROTECTION - Protects any connected diagnostic equipment from damage.
| Model No | VS8813 |
| Brand | Sealey |
| Nett Weight | 0.24kg |
| Input Voltage DC | 9-32V |
| Maximum Load | |
| Resolution | |
| Overload Protection | |
| Reverse Polarity Protection | |
| Operating Temperature | 0℃-50℃ |
| Cable Length | 700mm |
