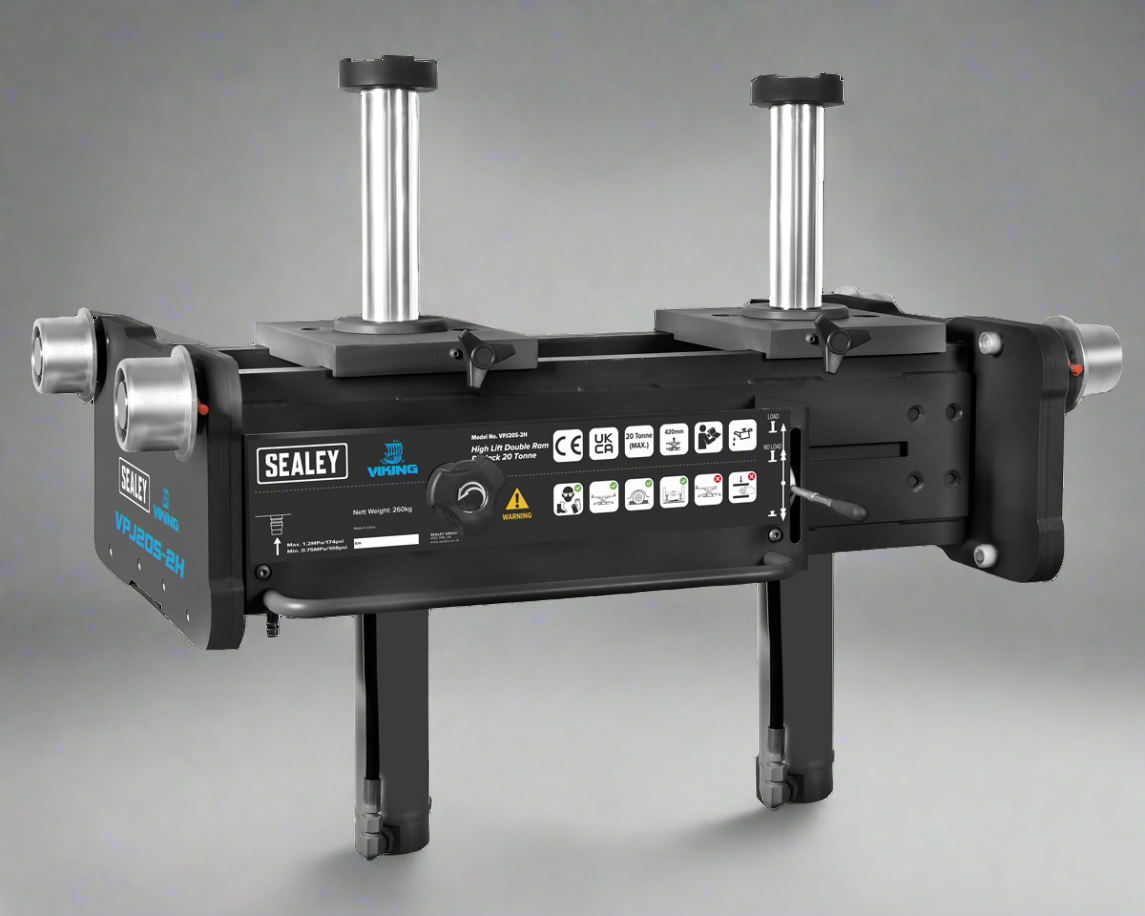

Viking High Lift Double Ram Pit Jack, 20 Tonne (VPJ20S-2H)
Viking High Lift Double Ram Pit Jack, 20 Tonne (VPJ20S-2H)
- Extended Lifting Range
- Independent Ram Control
- Two-Phase Lift Technology
- Comprehensive Safety Systems
- Effortless Positioning
Viking High Lift Double Ram Pit Jack, 20 Tonne (VPJ20S-2H)
The Viking VPJ20S-2H offers an extended 420mm lifting stroke specifically designed for high-axled commercial vehicles. This 20-tonne capacity double ram pit jack combines powerful air operation with intelligent features like rocket lift technology and independent ram control. Adjustable for narrower pit widths between 680-960mm, this professional unit includes essential safety features such as deadman controls and limited descent valves, alongside practical additions like integrated tool storage.
Commercial Transport Maintenance Solutions
Extended Lifting Range
Provides an exceptional 420mm lifting stroke that accommodates high-axled vehicles including agricultural machinery, specialist commercial transport, and off-road equipment that standard pit jacks cannot effectively service.
Independent Ram Control
Features shut-off valves that enable selective operation of either or both rams, allowing precise load balancing and adaptability when working on vehicles with asymmetrical weight distribution or unique lifting requirements.
Two-Phase Lift Technology
Employs rocket lift functionality that rapidly brings saddles to jacking points, then automatically transitions to controlled lifting under load, reducing setup time while maintaining precision during critical lifting operations.
Comprehensive Safety Systems
Integrates deadman controls that halt operation when released and limited descent control valves that prevent sudden drops, providing essential protection for technicians working beneath heavy vehicles.
Effortless Positioning
Utilises leaf spring support bearings that enable smooth transverse movement across the pit width, allowing precise alignment with various jacking points without requiring excessive physical effort.
Workshop-Optimised Design
Includes practical features such as a large positioning handle, built-in tool tray with rubber mat insert, and integrated air coupling with water separator, creating a self-contained maintenance station within the inspection pit.
Technical Specifications
Model VPJ20S-2H from Viking. 20-tonne lifting capacity with extended 420mm beam lift. Suitable for pit widths between 680-960mm. Weight: 260kg. Features dual rams with independent operation control, pneumatic power system, and comprehensive safety features for professional workshop environments.
Optional Accessories
VPJ20MCBA - Twin Ram Cross Beam Adaptor
VJP20M2CBA - Twin Ram Cross Beam Adaptor Extendable
VPJ-VA - V-Adaptor
VJP-UA - U-Adaptor
VPJ-A7 - Extension For Pit Jacks 100mm
VPJ-A8 - Extension For Pit Jacks 200mm
VPJ20S-2HSS - Integrated Safety Stand
Installation Considerations
This equipment is designed for permanent installation in inspection pits with widths between 680-960mm, making it suitable for narrower pit configurations than standard models. Professional installation is recommended due to the 260kg weight. Requires a compressed air supply within the pit area for operation.
| Model No | VPJ20S-2H |
| Beam Lift | 420mm |
| Brand | Viking |
| Capacity | 20 Tonne |
| Weight | 260.00kg |
