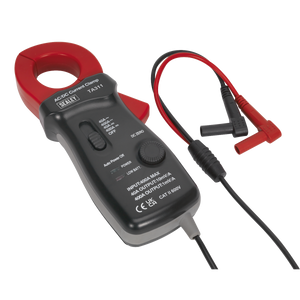

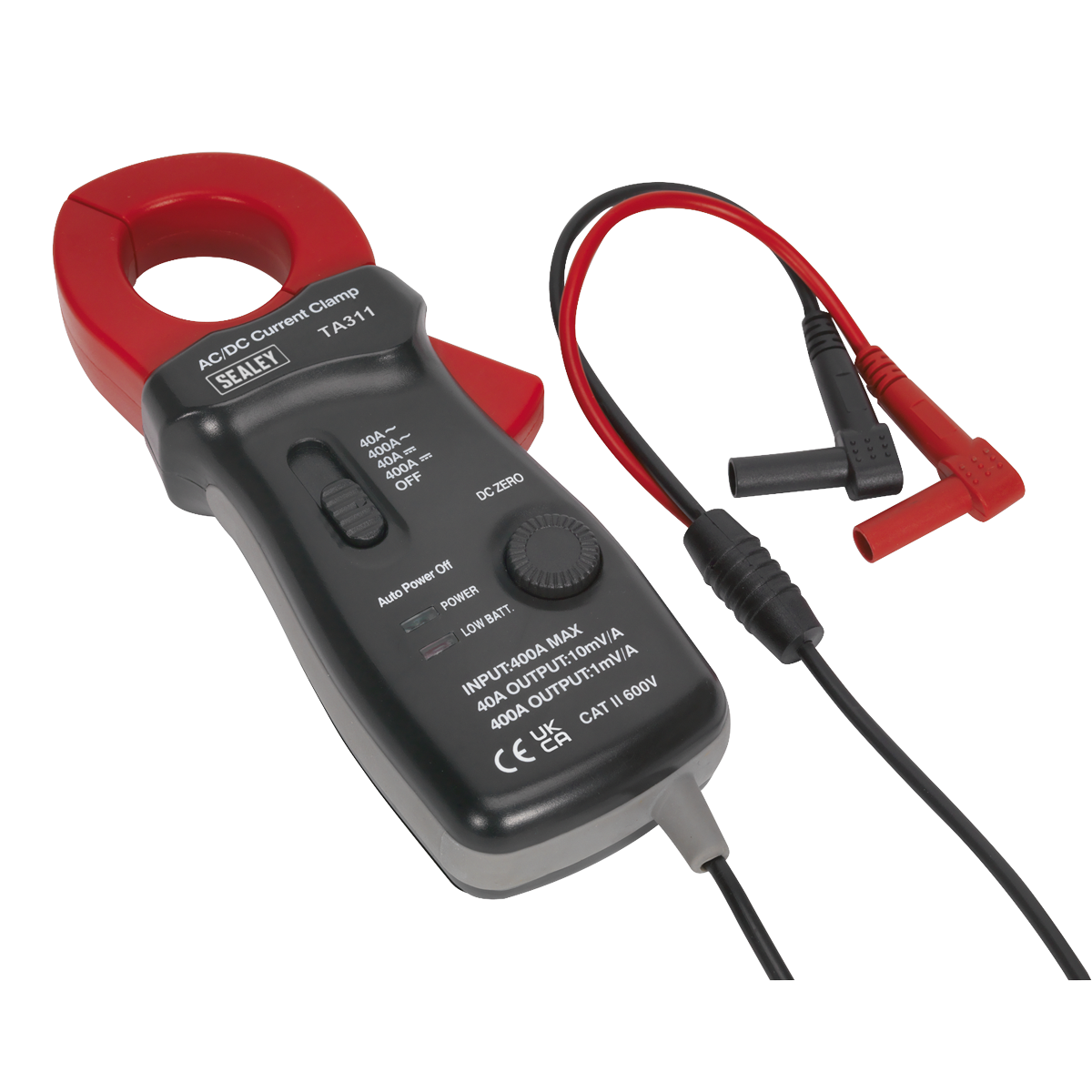

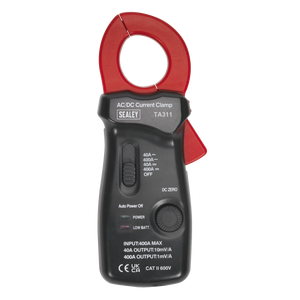

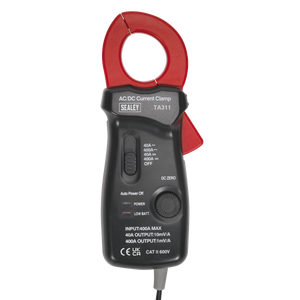

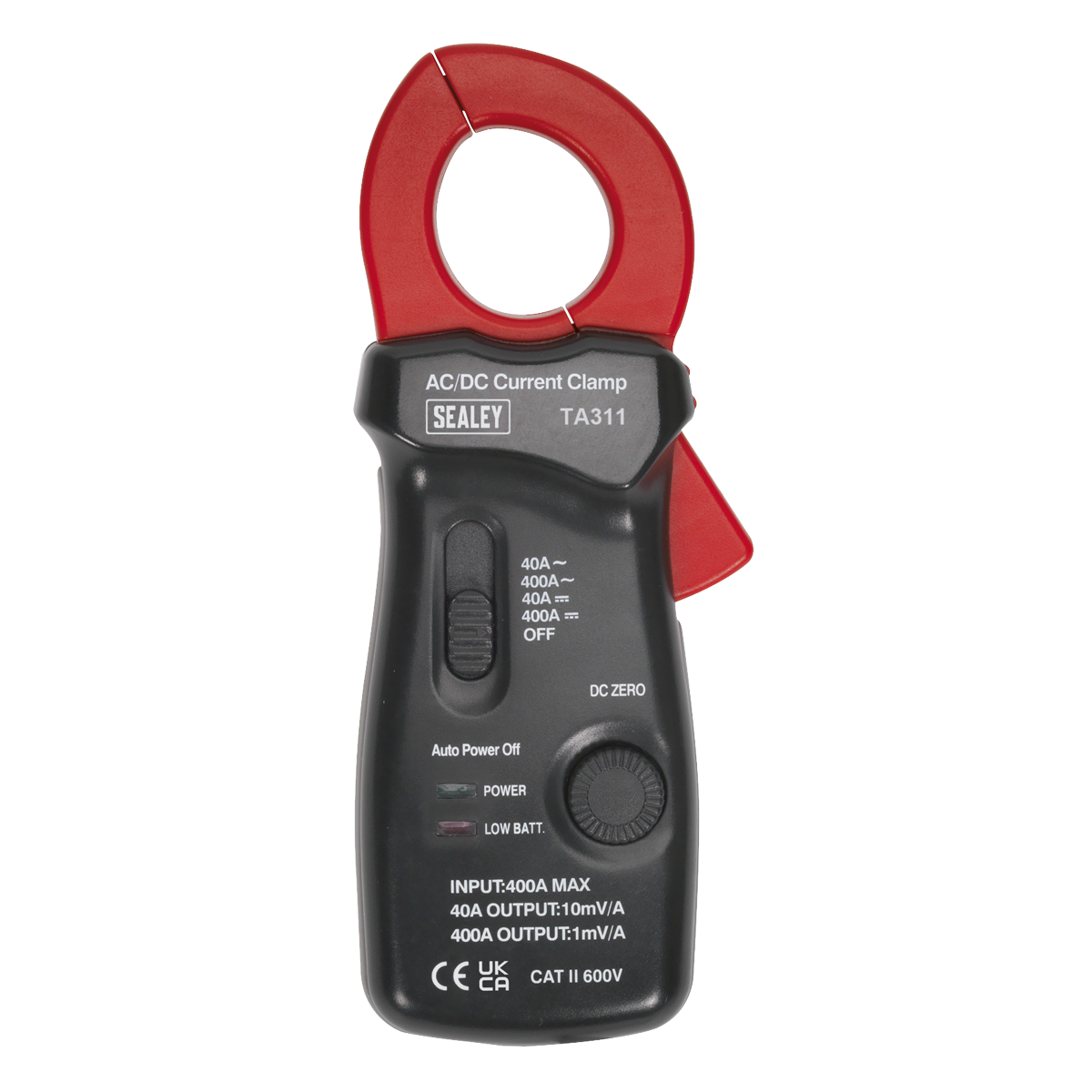

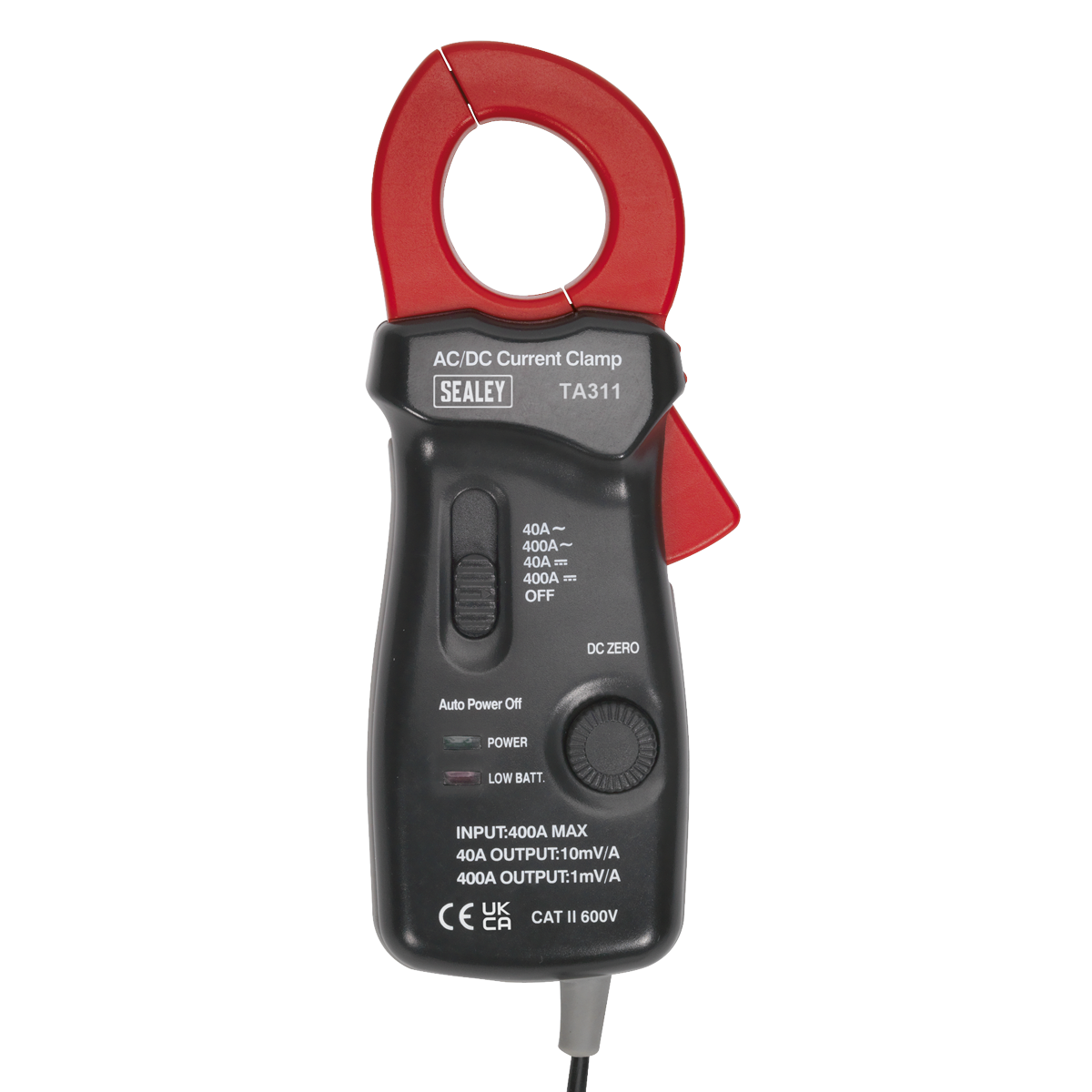

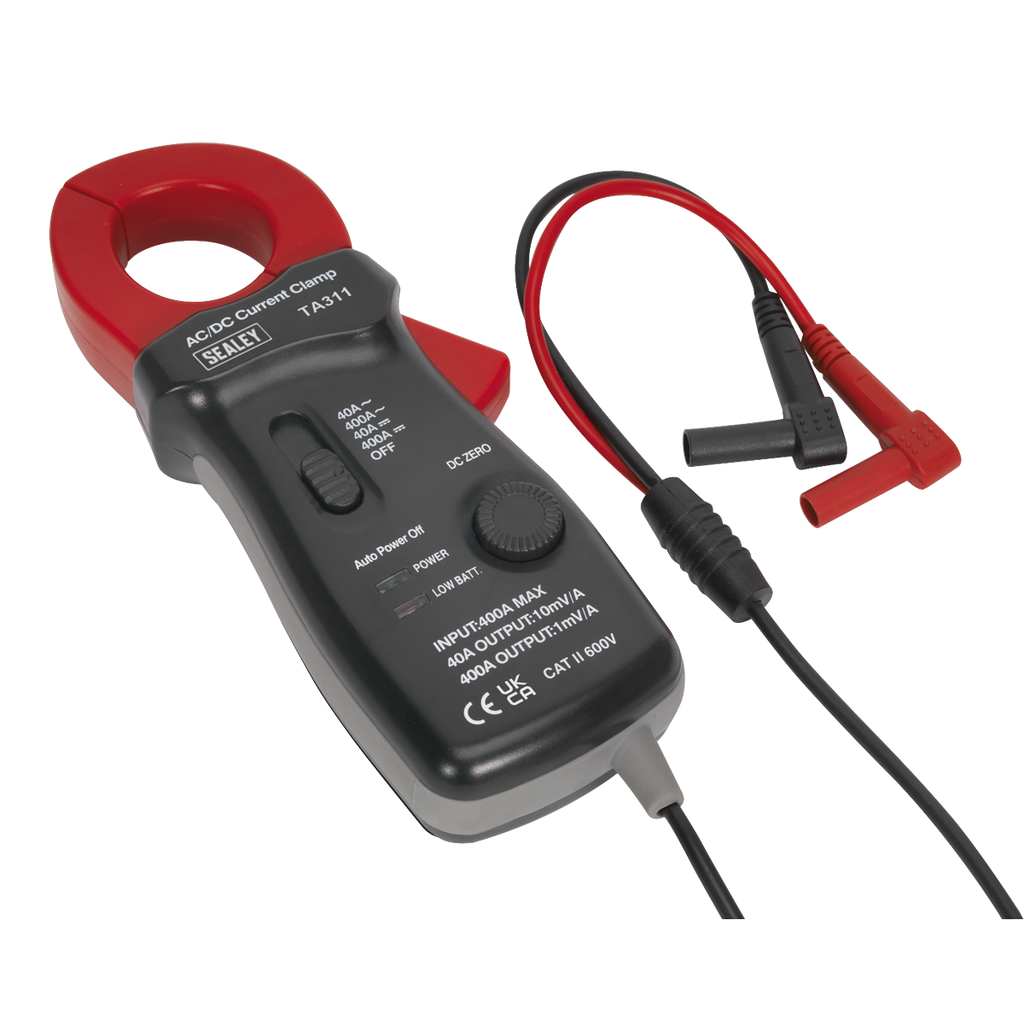

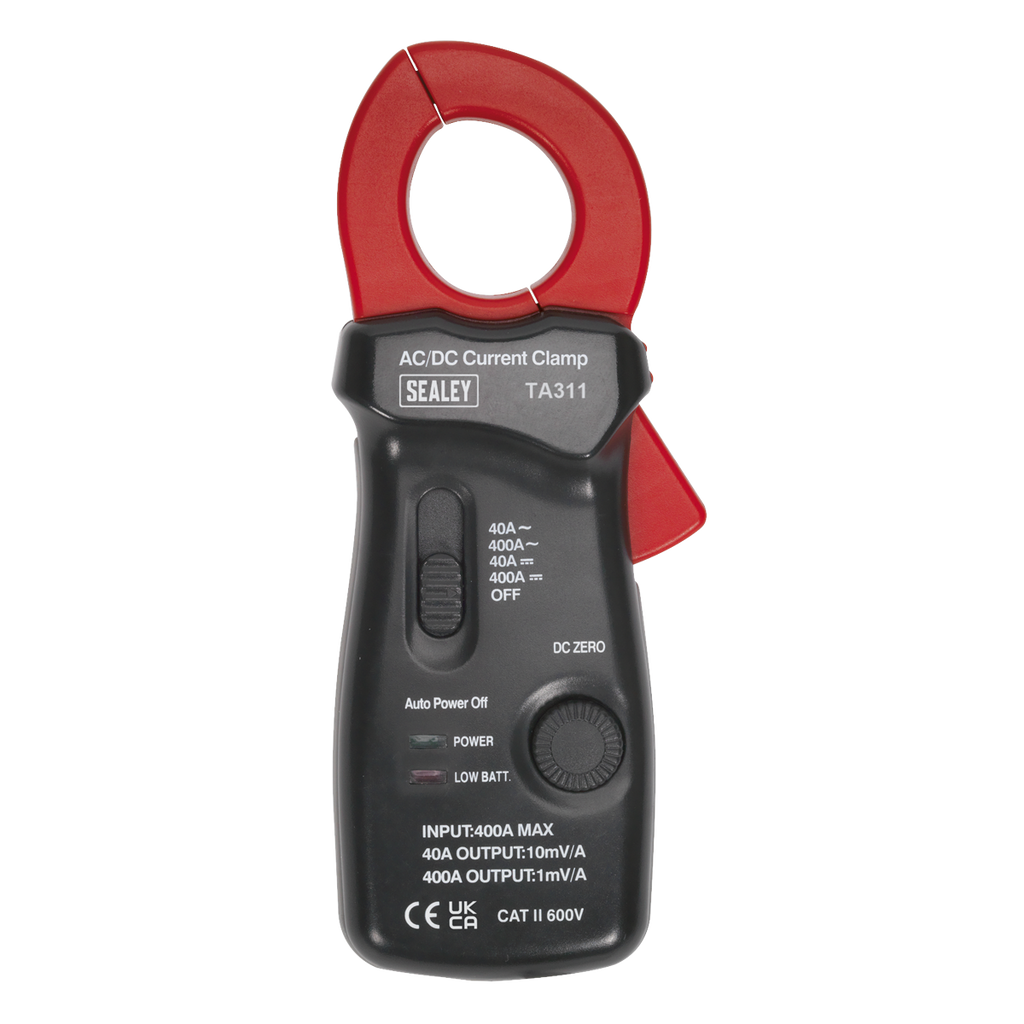

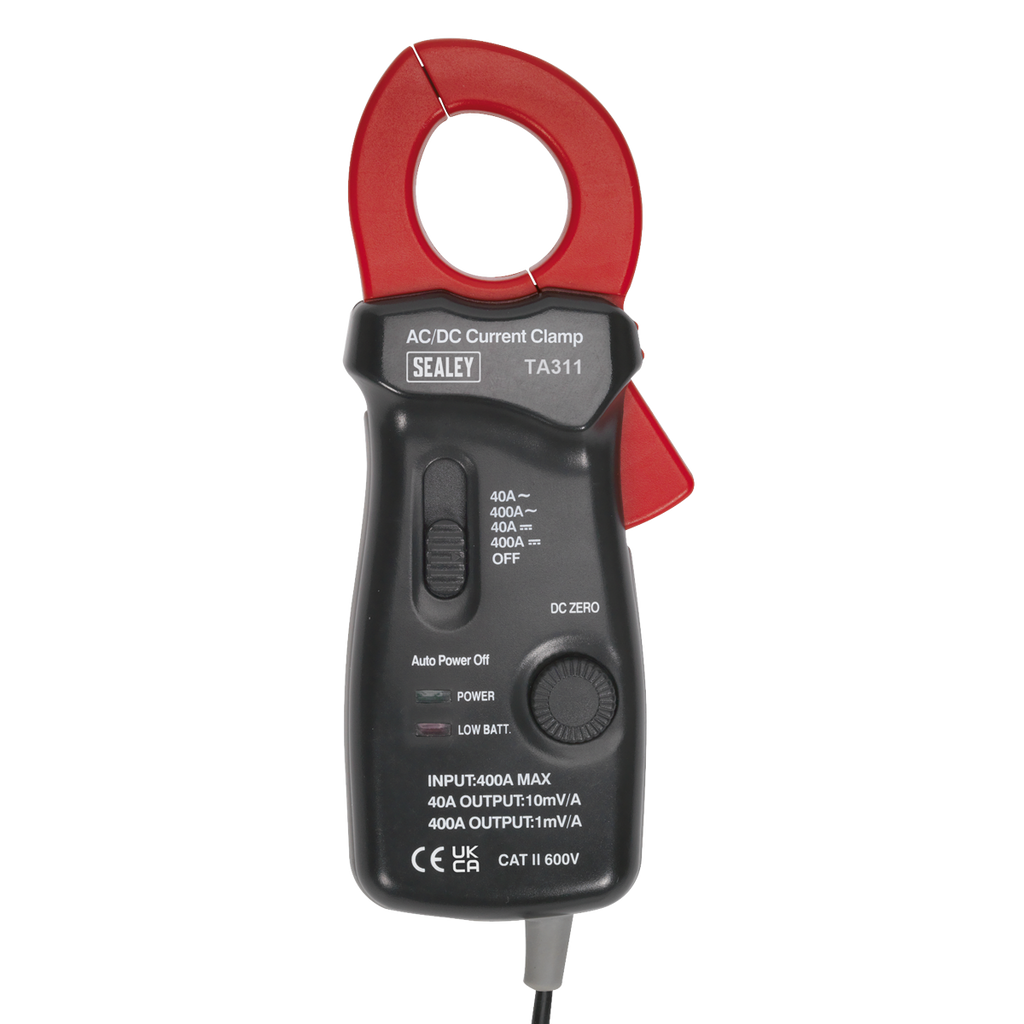

Current Clamp AC/DC 40A/400A 28mm
Current Clamp AC/DC 40A/400A 28mm
- Designed for use with a standard multimeter and measures current draw from vehicle components in situ.
- Suitable for measuring both AC and DC current, without breaking into the circuit, with a 40A and 400A setting for accurate measurement.
- Features a Ø28mm clamp ideal for testing wire bundles.
- Fitted with 4mm banana connectors and supplied in storage pouch.
- Powered by 9V battery (supplied).
Designed for use with a standard multimeter and measures current draw from vehicle components in situ. Suitable for measuring both AC and DC current, without breaking into the circuit. Fitted with 4mm banana connectors and supplied in storage pouch. Powered by 9V battery (supplied). Can also be used with an oscilloscope using a suitable BNC conversion adaptor. - • Designed for use with a standard multimeter and measures current draw from vehicle components in situ.
• Suitable for measuring both AC and DC current, without breaking into the circuit, with a 40A and 400A setting for accurate measurement.
• Features a Ø28mm clamp ideal for testing wire bundles.
• Fitted with 4mm banana connectors and supplied in storage pouch.
• Powered by 9V battery (supplied).
• Can also be used with an oscilloscope using a suitable BNC conversion adaptor.
| Model No | TA311 |
| Brand | Sealey |
| Nett Weight | 0.36kg |
| TA311 Captured Conductor Size | Ø20mm maximum |
| Low Battery Indicator | LED red |
| Operating Temperature | 0°C to 50°C. |
| Storage Temperature | -15°C to 50°C. |
| Battery Type | 9V DC |
| Typical Battery Life | 80hrs (alkaline) |
| Weight | 240g |
| TA311 Dimensions (H x W x D) | 175mm x 70mm x 38mm |
| Output Connection | Banana plugs (red & black) |
| 40A (output: 10mV/A) | DC or rms AC for 200mV or 400mV range of the multimeter. |
| 400A (output: 1mV/A) | DC or rms AC for 400mV range of the multimeter. |
