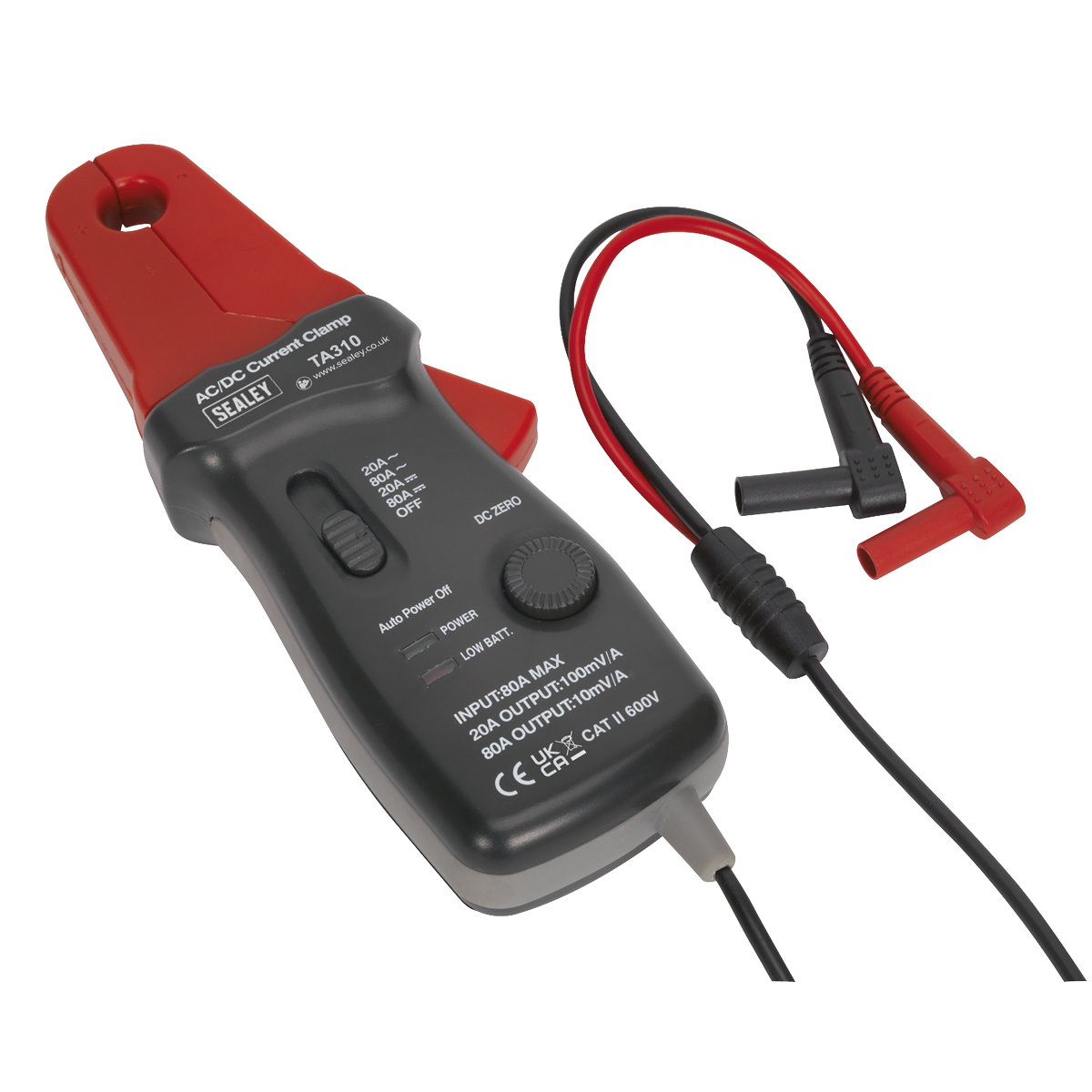

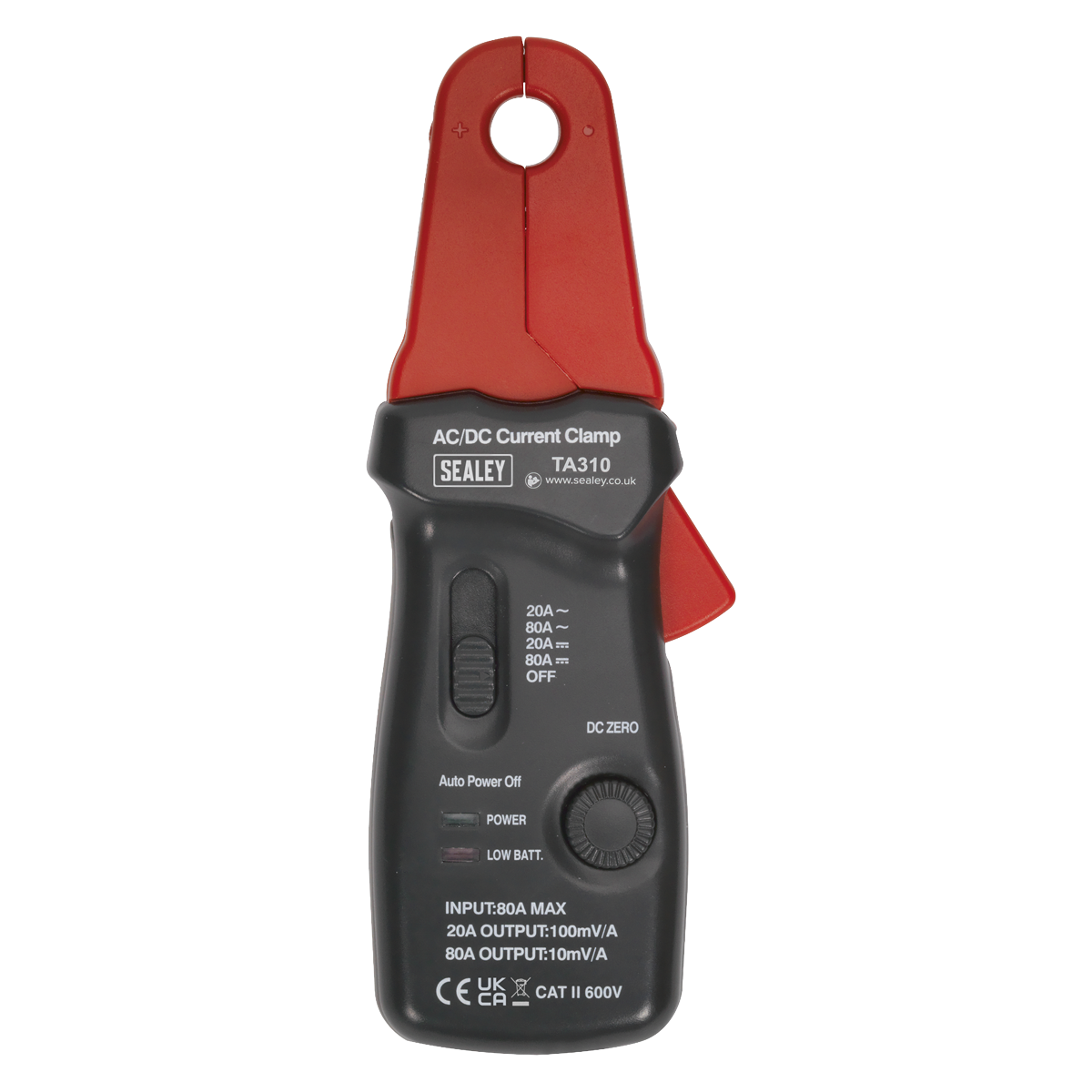

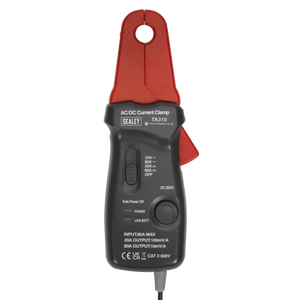

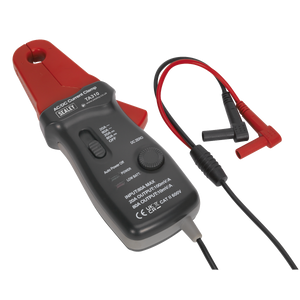

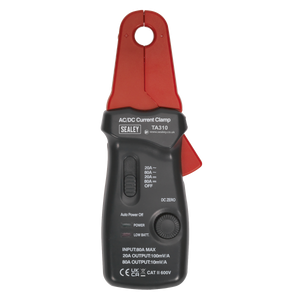

Current Clamp AC/DC 20A/80A 12mm
Current Clamp AC/DC 20A/80A 12mm
- Designed for use with a standard multimeter and measures current draw from vehicle components in situ.
- Suitable for measuring both AC and DC current, without breaking into the circuit, with a 20A and 80A setting for accurate measurement.
- Features a Ø12mm clamp ideal for testing individual wires.
- Fitted with 4mm banana connectors and supplied in storage pouch.
- Powered by 9V battery (supplied).
Designed for use with a standard multimeter and measures current draw from vehicle components in situ. Suitable for measuring both AC and DC current, without breaking into the circuit. Fitted with 4mm banana connectors and supplied in storage pouch. Powered by 9V battery (supplied). Can also be used with an oscilloscope using a suitable BNC conversion adaptor. - • Designed for use with a standard multimeter and measures current draw from vehicle components in situ.
• Suitable for measuring both AC and DC current, without breaking into the circuit, with a 20A and 80A setting for accurate measurement.
• Features a Ø12mm clamp ideal for testing individual wires.
• Fitted with 4mm banana connectors and supplied in storage pouch.
• Powered by 9V battery (supplied).
• Can also be used with an oscilloscope using a suitable BNC conversion adaptor.
| Model No | TA310 |
| Brand | Sealey |
| Nett Weight | 0.31kg |
| TA310 Captured Conductor Size | Ø8mm maximum |
| Low Battery Indicator | LED red |
| Operating Temperature | 0°C to 50°C. |
| Storage Temperature | -15°C to 50°C. |
| Battery Type | 9V DC |
| Typical Battery Life | 80hrs (alkaline) |
| Weight | 240g |
| TA310 Dimensions (H x W x D) | 190mm x 70mm x 38mm |
| Output Connection | Banana plugs (red & black) |
| 20A (output: 100mV/A=1mV/10mA) | <2A use DC or rms AC for 200mV range of the multimeter,>2A use DC or rms AC for 2V range of the multimeter. |
| 80A (output: 10mV/A) | DC or rms AC for 200mV range of the multimeter. |
