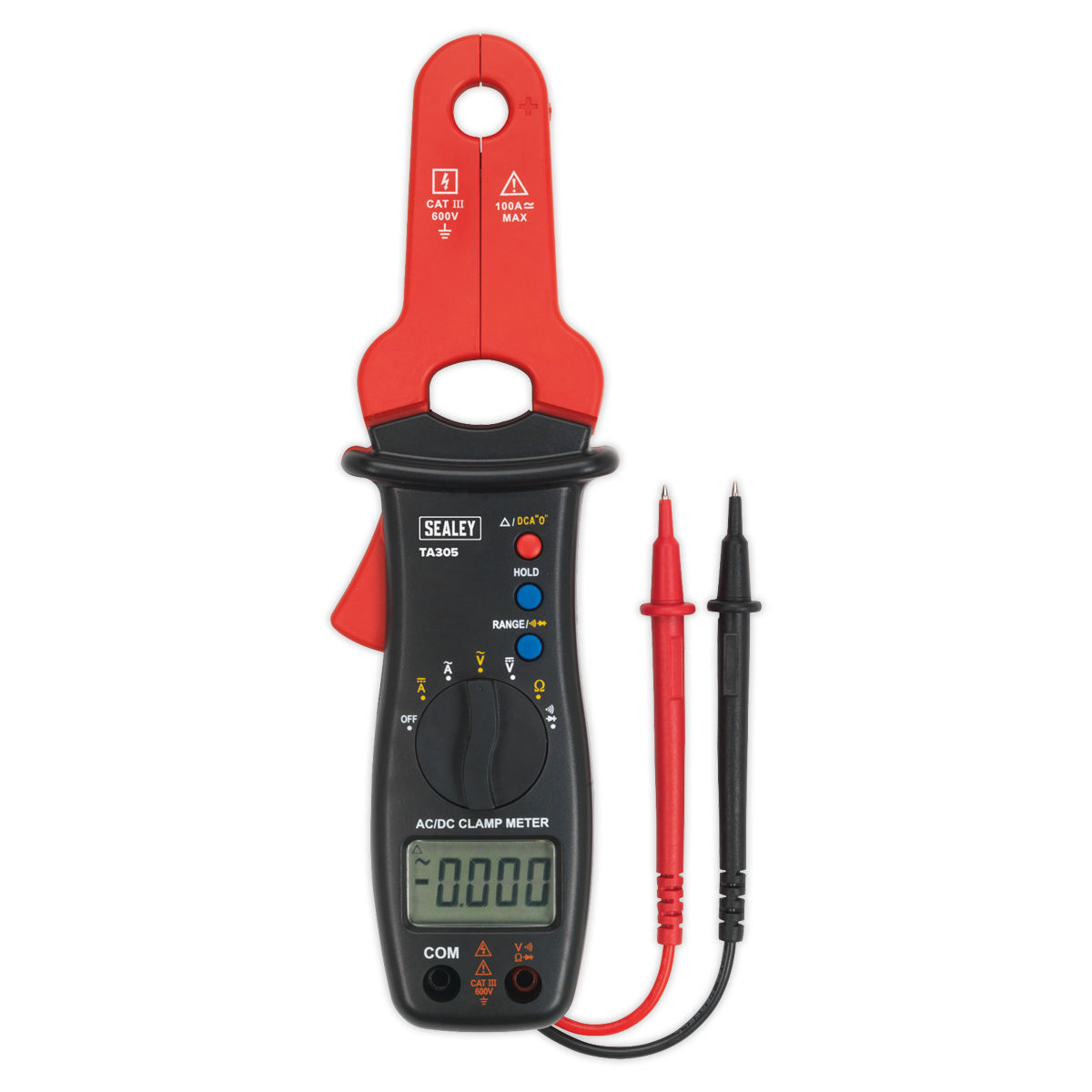

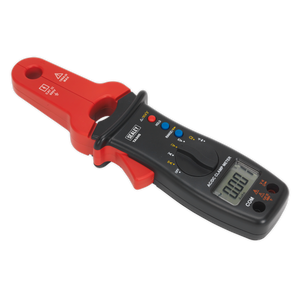

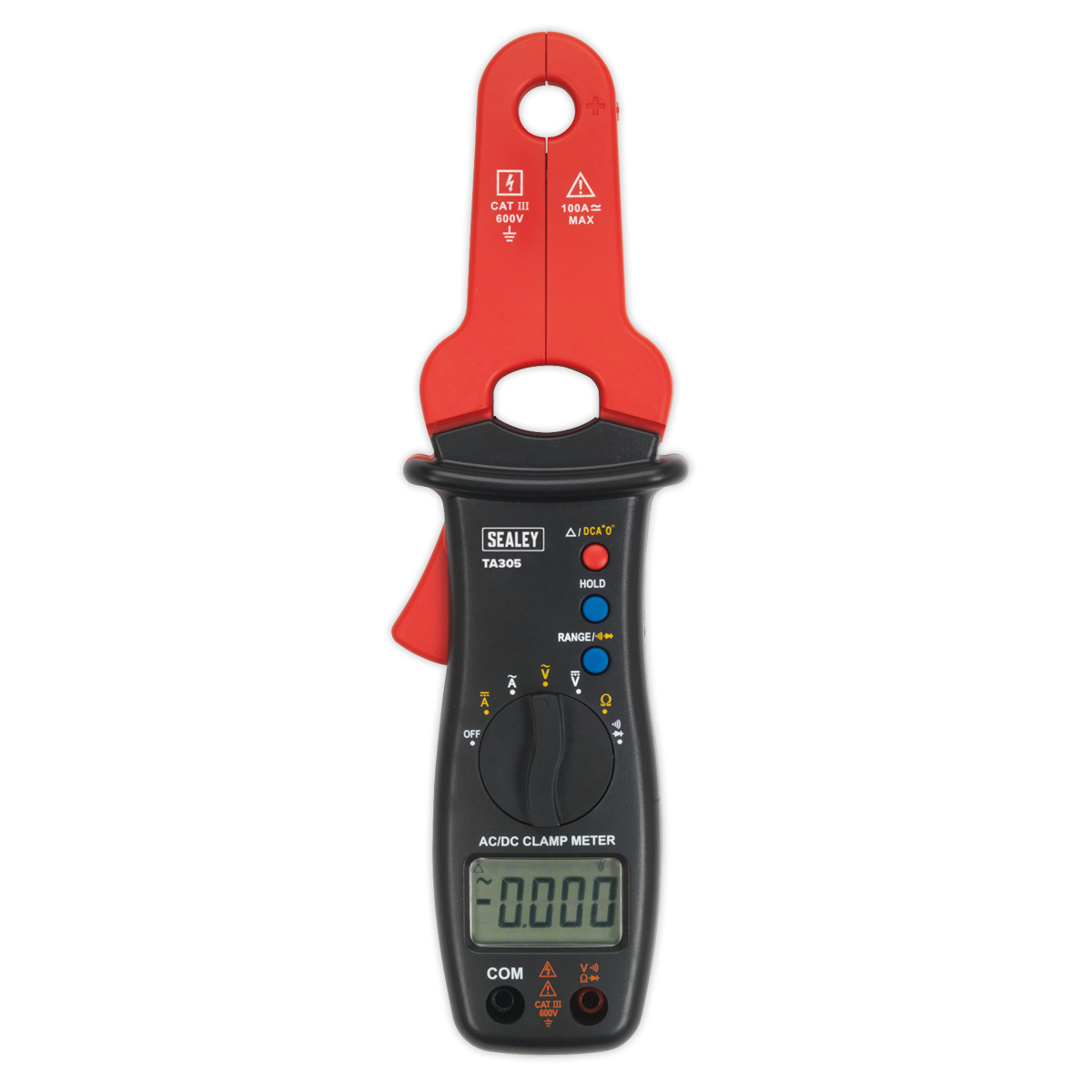

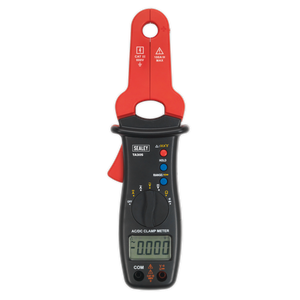

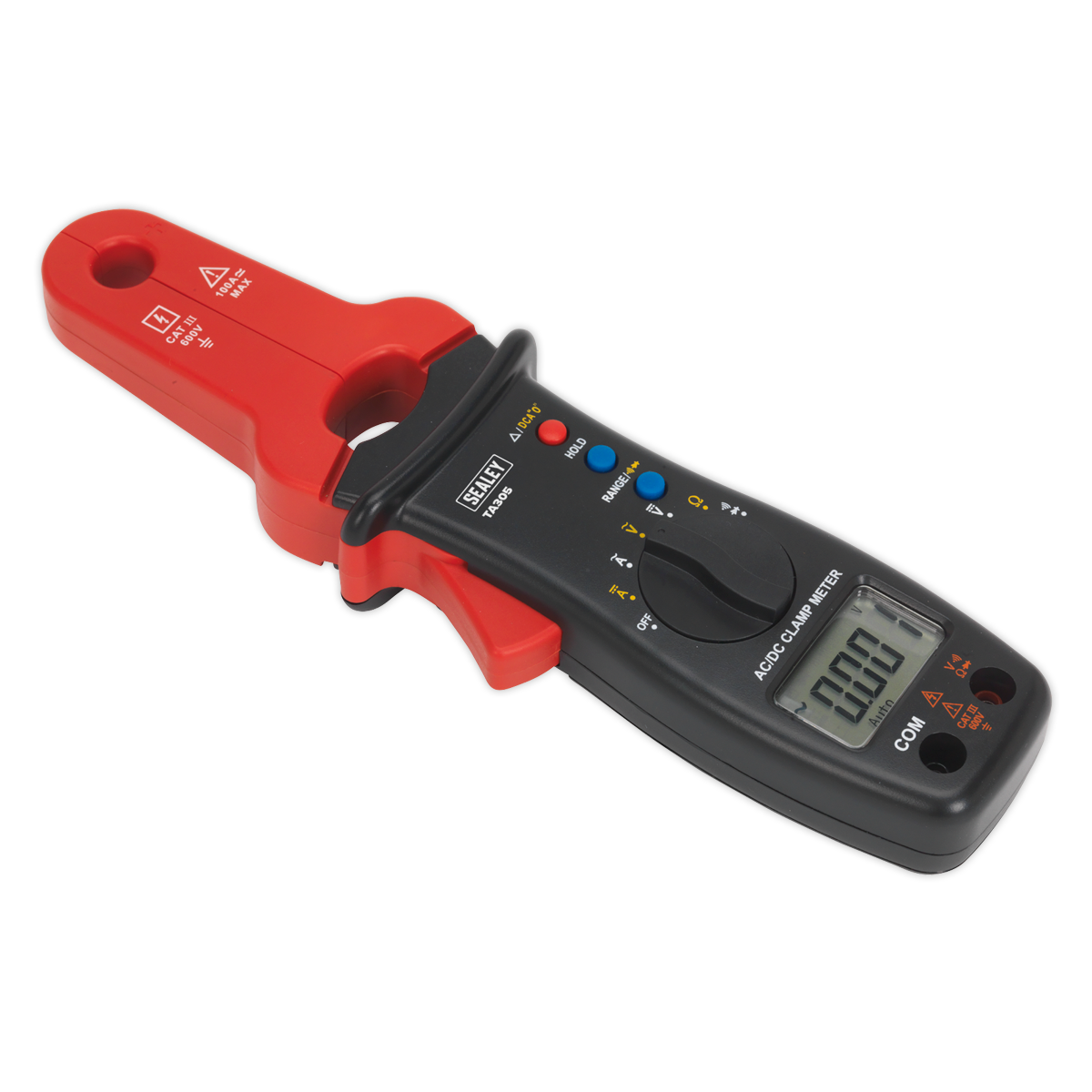

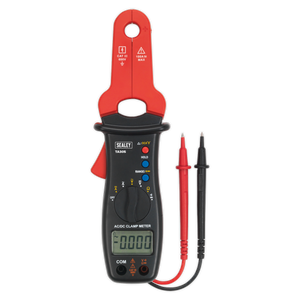

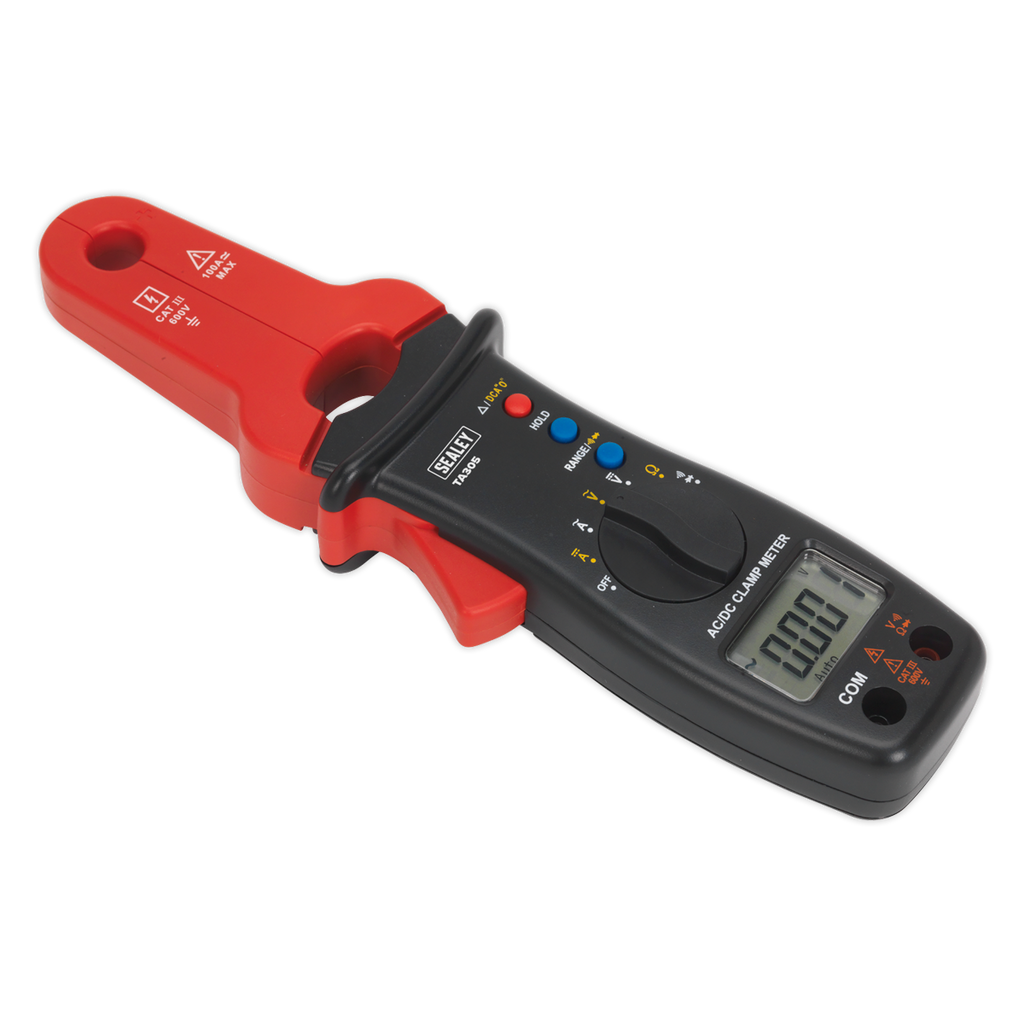

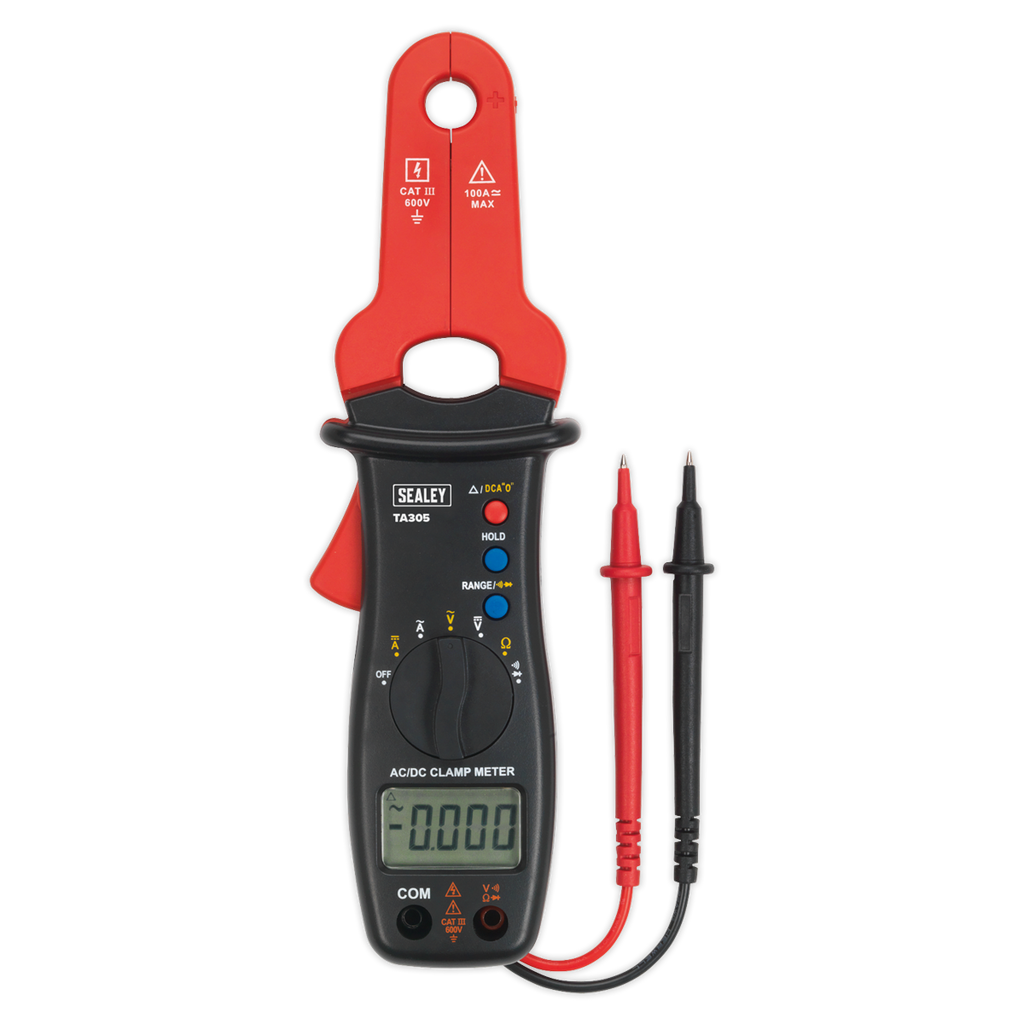

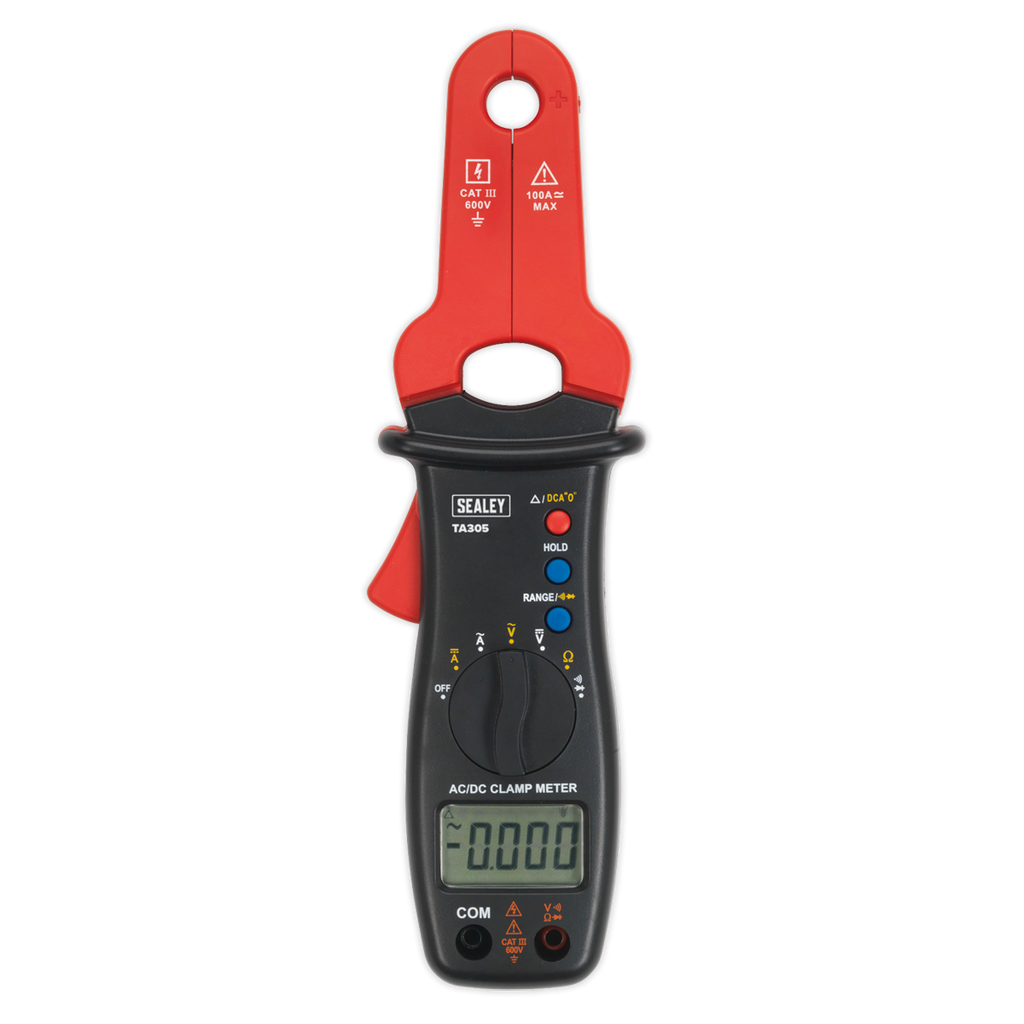

Clamp Meter & Multimeter AC/DC
Clamp Meter & Multimeter AC/DC
Designed for the automotive electrician and conforms to EN 61010 CAT III 600V. Ideal for measuring current draw from vehicle components in situ. Features 10mm clamp. Supplied in pouch.
Measures:
• AC/DC Voltage
• AC/DC Current
• Resistance
• Audible Continuity
• Diode Test. - • Designed for the automotive electrician and conforms to EN 61010 CAT III 600V.

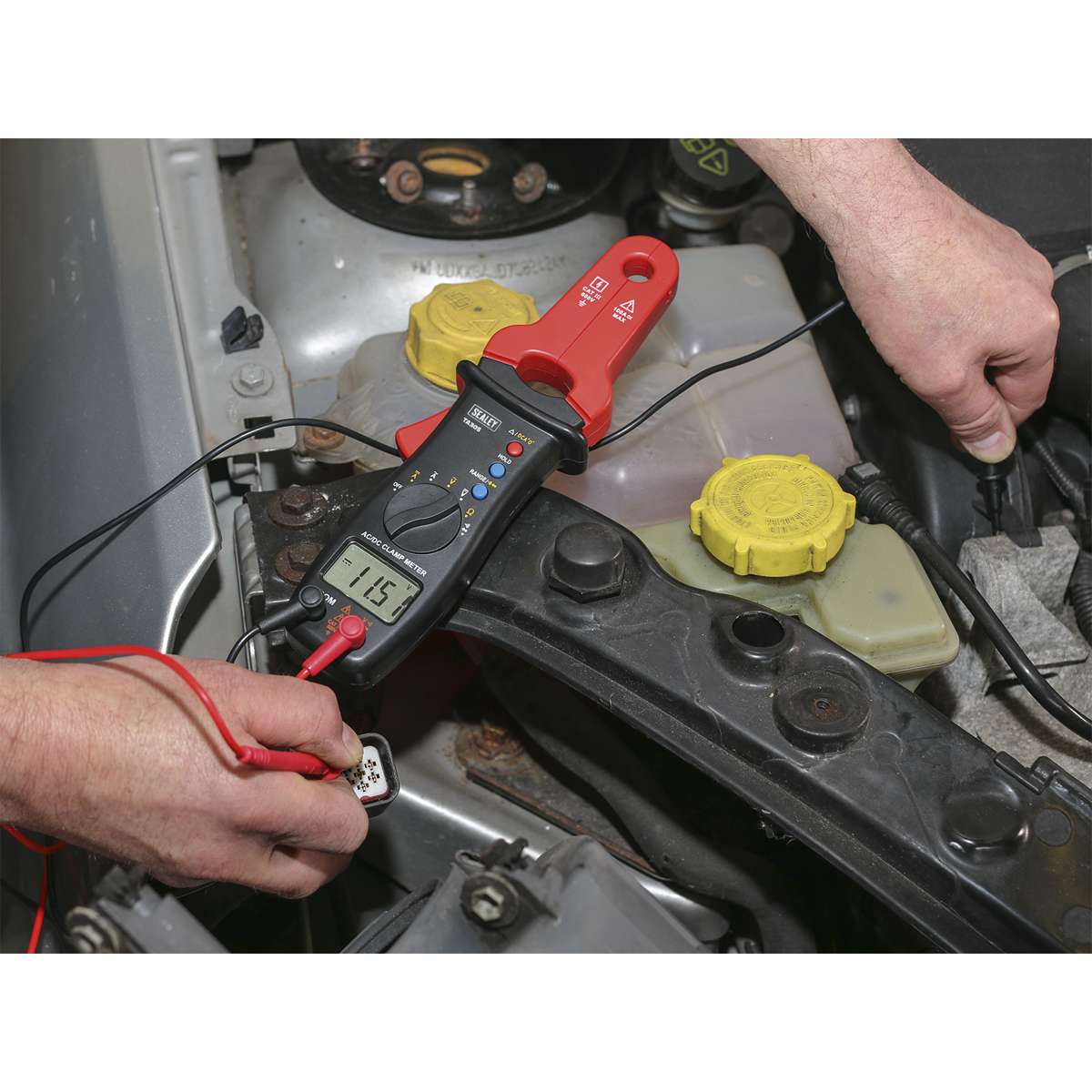

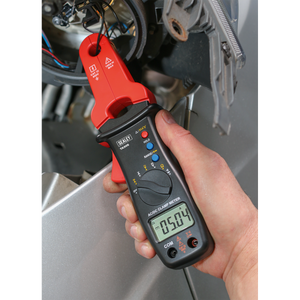

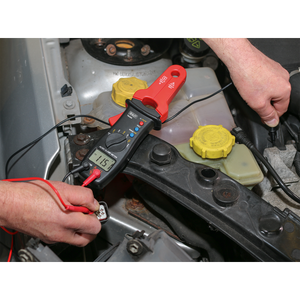

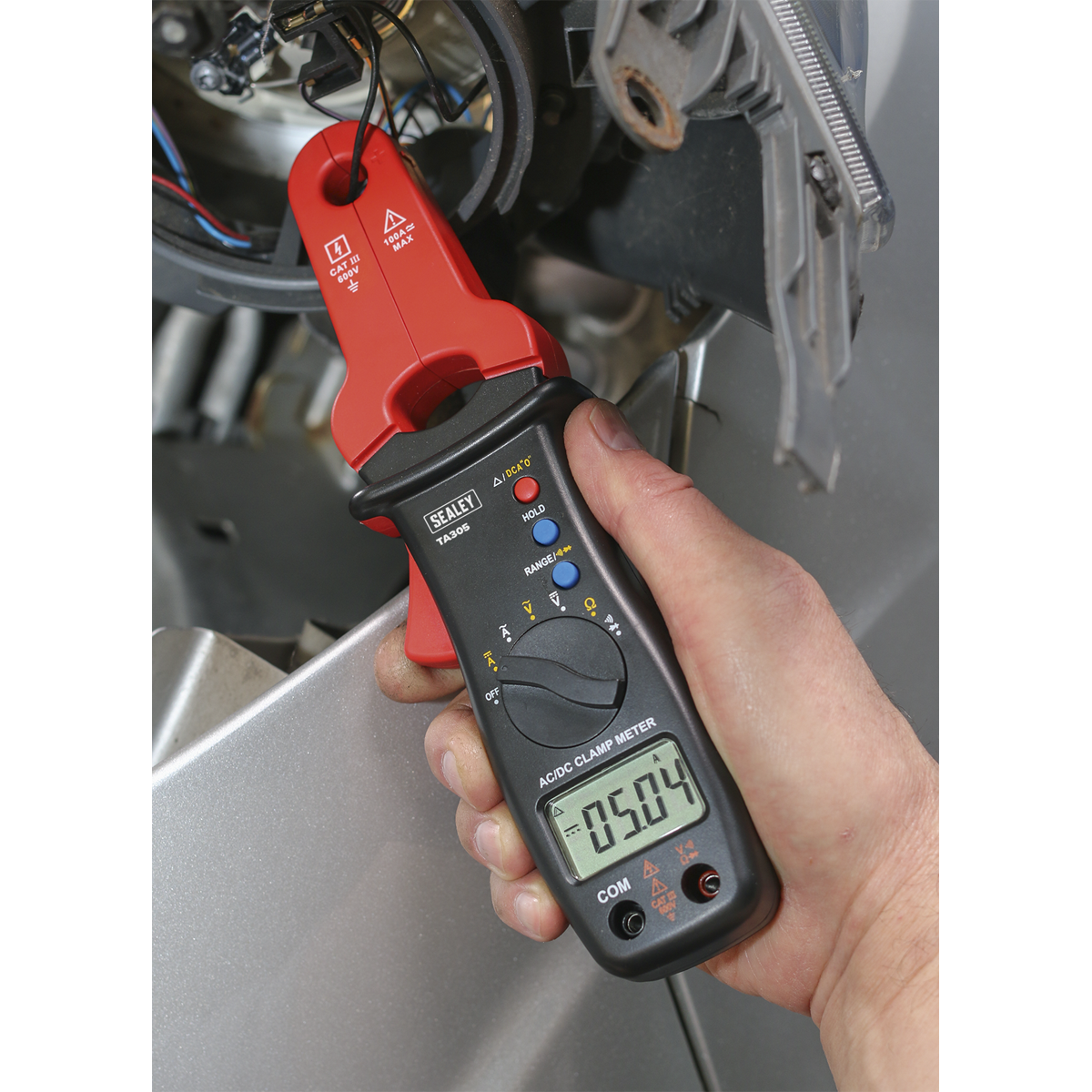

• Ideal for measuring current draw from vehicle components in situ.
• Features 10mm clamp.
• Supplied in pouch.
| Model No | TA305 |
| Brand | Sealey |
| Nett Weight | 185g |
| Jaw Opening Capacity | 10mm |
| Maximum Measurable Conductor | Ø10mm |
| Tach (rpm) | No |
| Dwell | No |
| AC Voltage (Accuracy) | 400mV, 4V (±1.2%), 40V, 400V, 600V (±1.5%) |
| DC Voltage (Accuracy) | 400mV (±0.8%), 4V, 40V, 400V, 600V (±1.0%) |
| AC Current (Accuracy) | 40A, 100A (±2.5%) |
| DC Current (Accuracy) | 40A, 100A (±2.5%) |
| Capacitance | No |
| Input Impedance | 10MΩ |
| Frequency Range | 40Hz-400Hz |
| Duty Cycle | No |
| Pulse Width | No |
| Resistance | 400Ω (±1.2%), 4kΩ, 40kΩ, 400kΩ (±1.0%), 4MΩ (±1.2%), 40MΩ (±1.5%) |
| Continuity | <50Ω |
| Temperature | No |
| IR Temperature | No |
| Insulation Test | No |
| Diode Test | Yes |
| Transistor Test | No |
| Back Light | No |
| Bar Graph Display | No |
| Data Hold | Yes |
| Auto-Ranging | Yes |
| Inductive Coupler | No |
| PC Interface | No |
| Digits Height | 11mm |
| Auto Power Off | Yes |
| Low Battery Indicator | Yes |
| Batteries (Supplied) | 2 x 1.5V |
| Hi-Impact Case | No |
| Size (L x W x D) | 226 x 71 x 38mm |
| Weight | 185g |
