12-Function Digital Automotive Multimeter with Inductive Cou
12-Function Digital Automotive Multimeter with Inductive Cou

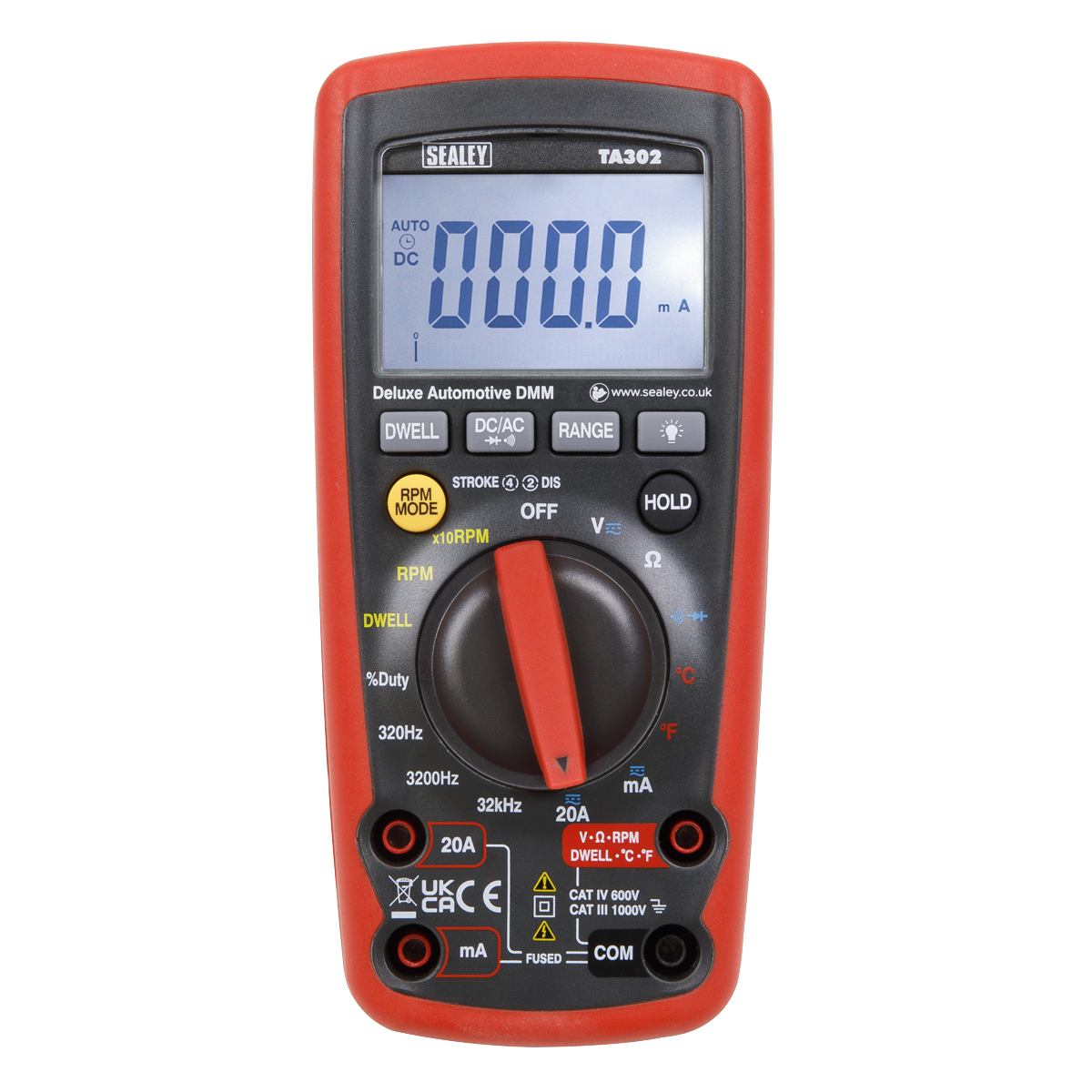

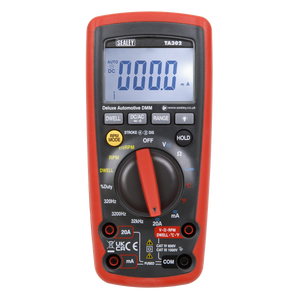

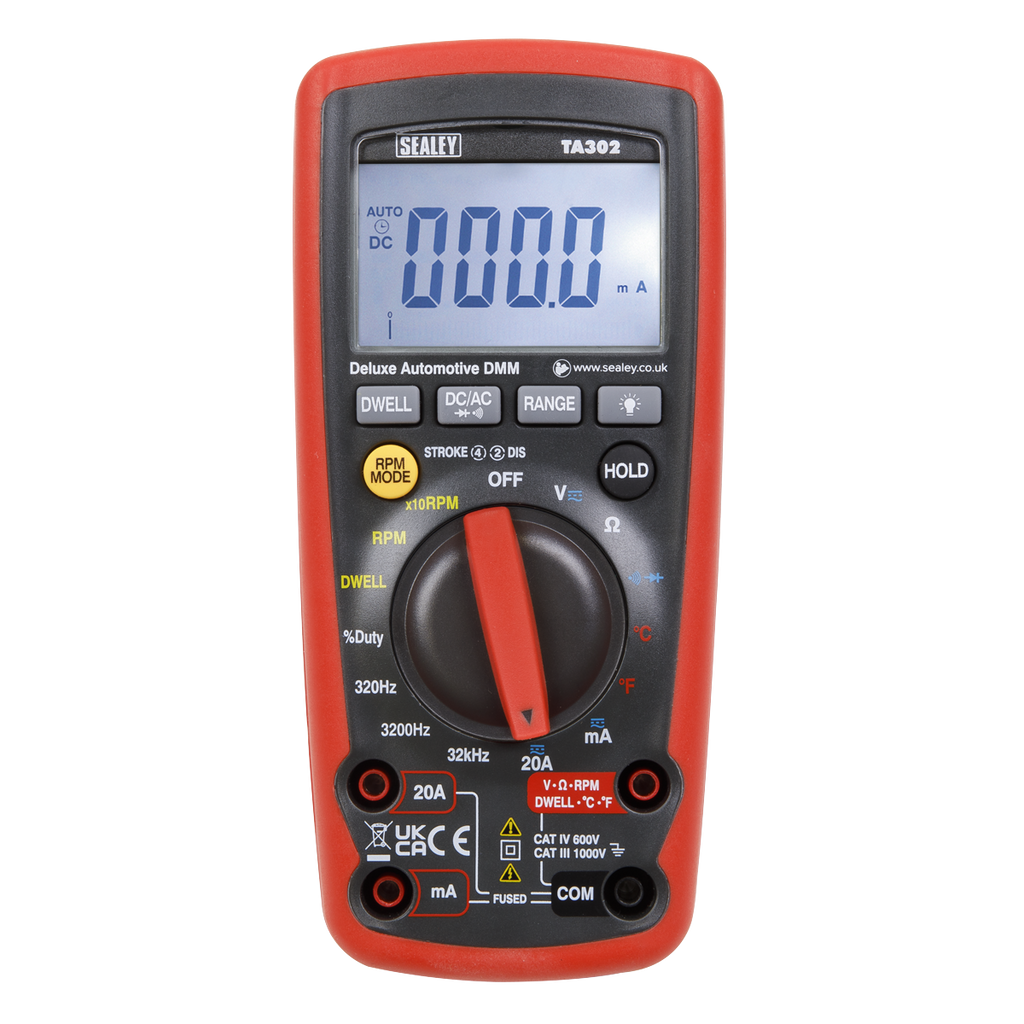

- 12-Function, auto-ranging automotive diagnostic multimeter.
- Combination digital/bar graph display gives accurate indication of component outputs.
- Large, easy-to-read high contrast display with bright, white back light.
- Workshop-tough, durable case with integral stand.
- Reads standard automotive parameters including duty cycle.
12-Function, auto-ranging automotive diagnostic multimeter. Combination digital/bar graph display gives accurate indication of component outputs. Large, easy-to-read high contrast display with bright, white back light. Workshop-tough, durable case with integral stand. Reads standard automotive parameters including duty cycle. Features auto-ranging and data-hold functions with overload protection on all ranges. Supplied with inductive coupler, test probes and thermocouple. - • 12-Function, auto-ranging automotive diagnostic multimeter.
• Combination digital/bar graph display gives accurate indication of component outputs.
• Large, easy-to-read high contrast display with bright, white back light.
• Workshop-tough, durable case with integral stand.
• Reads standard automotive parameters including duty cycle.
• Features auto-ranging and data-hold functions with overload protection on all ranges.

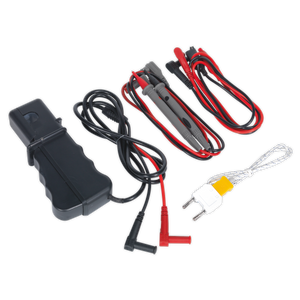

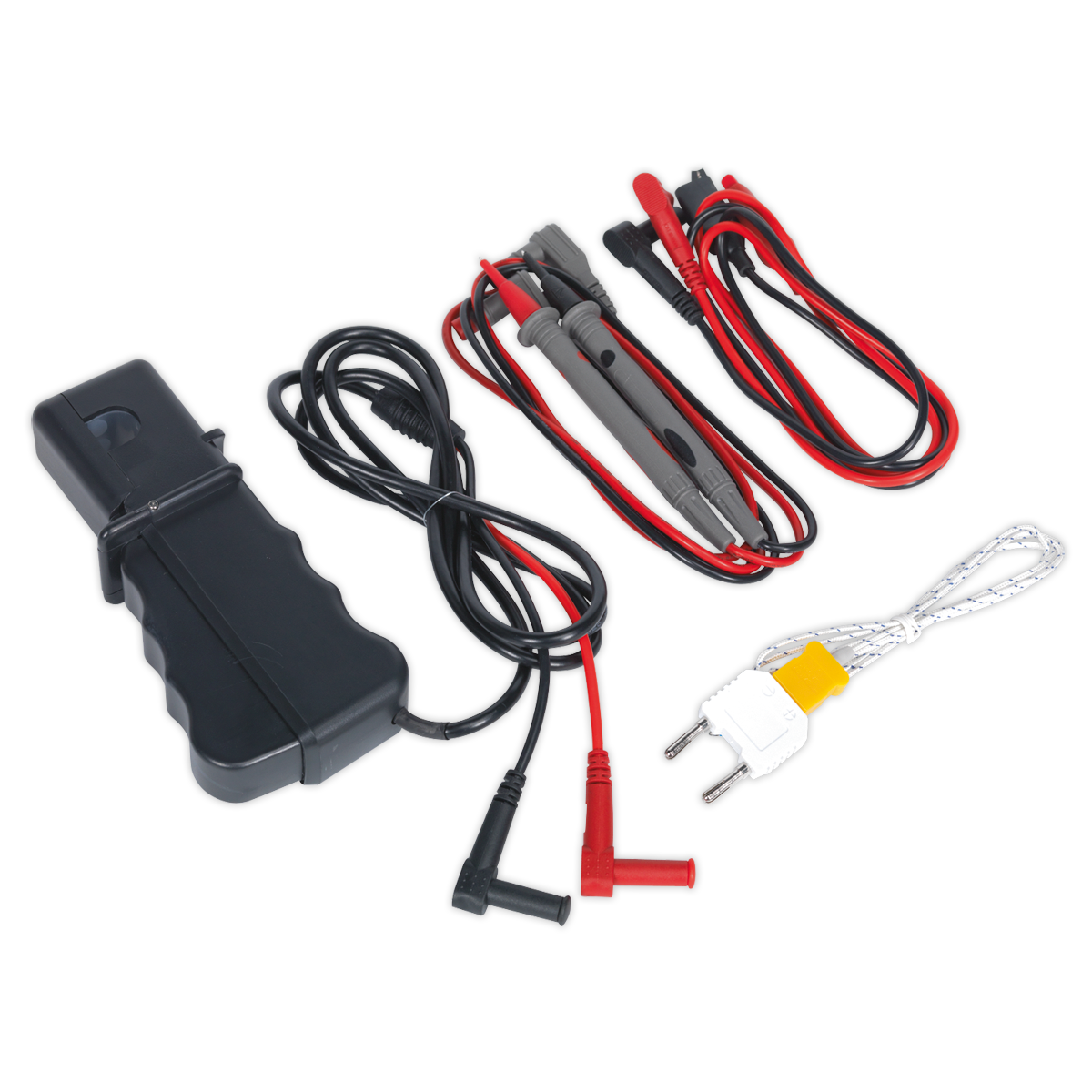

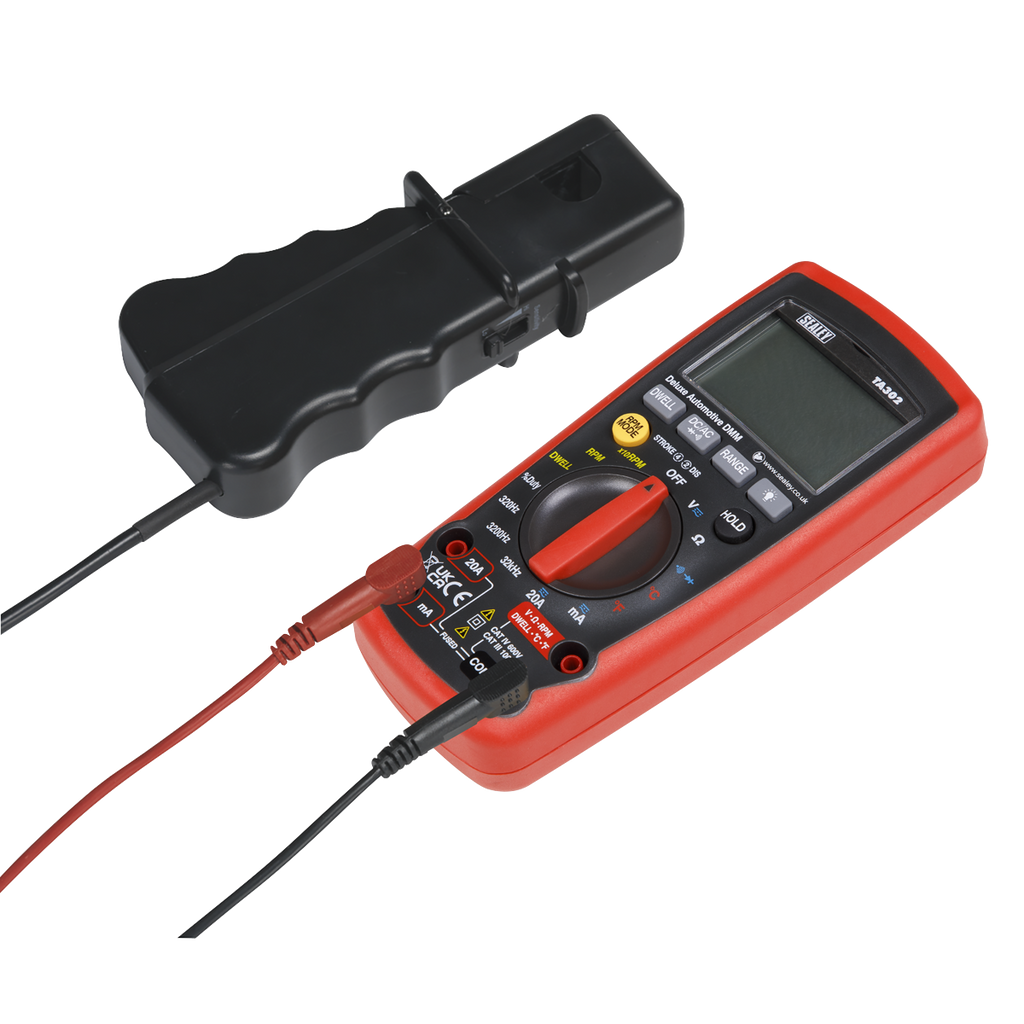

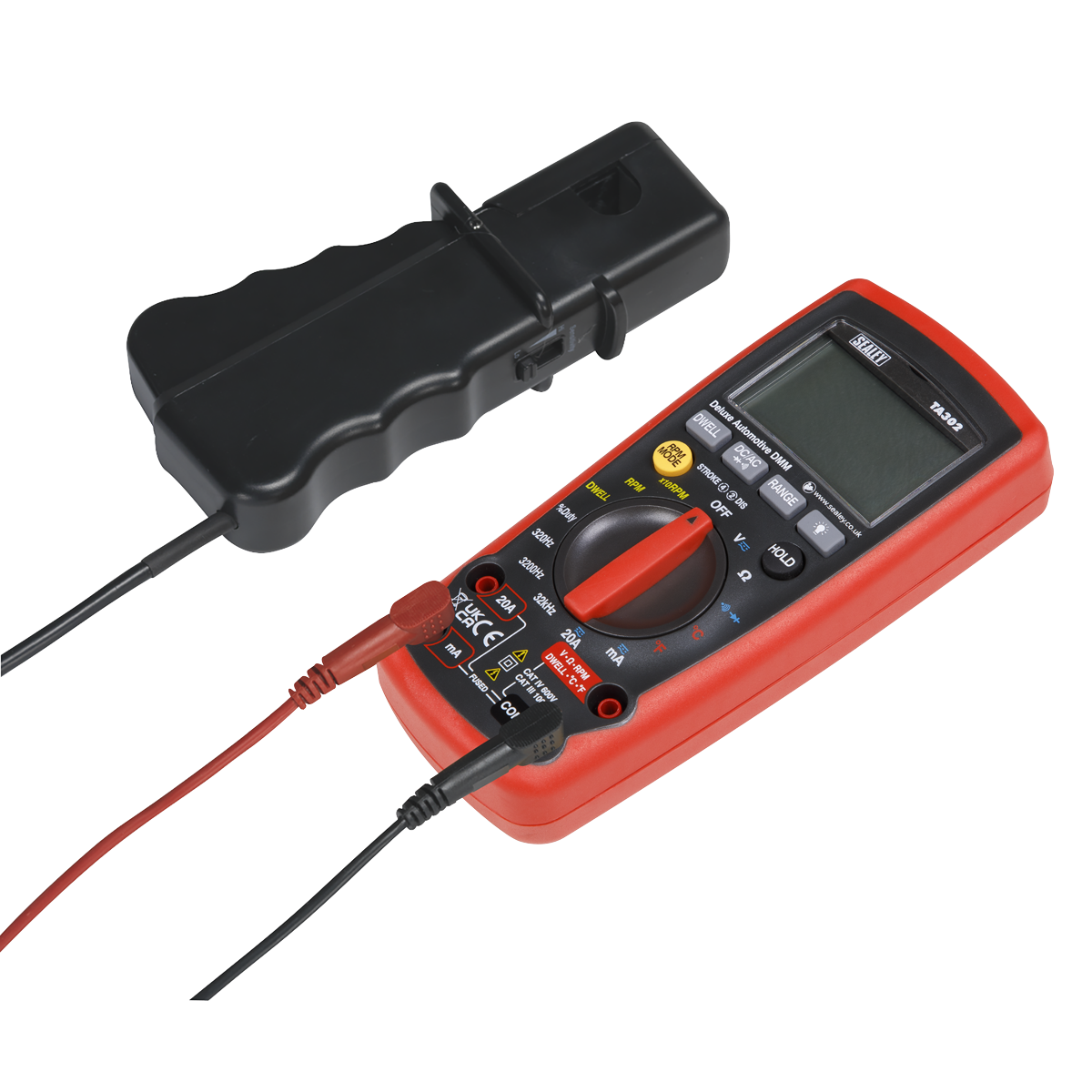

• Supplied with inductive coupler, test probes and thermocouple.
| Model No | TA302 |
| Brand | Sealey |
| Nett Weight | 366g |
| Tach (rpm) | 4-8cyl, 2 & 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm |
| Dwell | 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45° |
| AC Voltage | 3.2V, 32V, 320V, 600V (Auto-Ranging) |
| DC Voltage | 320mV, 3.2V, 32V, 320V, 600V (Auto-Ranging) |
| AC Current | 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging) |
| DC Current | 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging) |
| Capacitance | No |
| Frequency | 320Hz, 3200Hz, 32kHz (Auto-Ranging) |
| Duty Cycle | 0.1-99.9% |
| Pulse Width | No |
| Resistance | 320Ω, 3.2kΩ, 32kΩ, 320kΩ, 3.2MΩ, 32MΩ (Auto-Ranging) |
| Continuity | <35Ω Continuity Buzzer 2kHz |
| Temperature | -20 to +760°C, -4 to +1400°F |
| IR Temperature | No |
| Diode Check | Yes |
| Transistor Test | No |
| Back Light | Yes |
| Bar Graph Display | Yes |
| Display Hold | Yes |
| Auto-Ranging | Yes |
| Inductive Coupler | Yes |
| PC Interface | No |
| Digits Height | 18mm |
| Auto Power Off | n/a |
| Low Battery Indicator | Yes |
| Batteries (supplied) | 9V (PP3) |
| Hi-Impact Case | Yes |
| Size (L x W x D) | 167 x 79 x 50mm |
| Weight | 366g |
