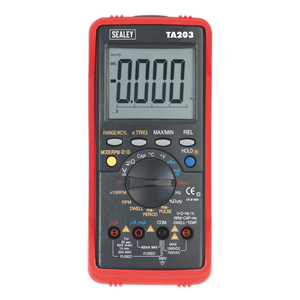

15-Function Digital Automotive Multimeter with Bar Graph/PC
15-Function Digital Automotive Multimeter with Bar Graph/PC

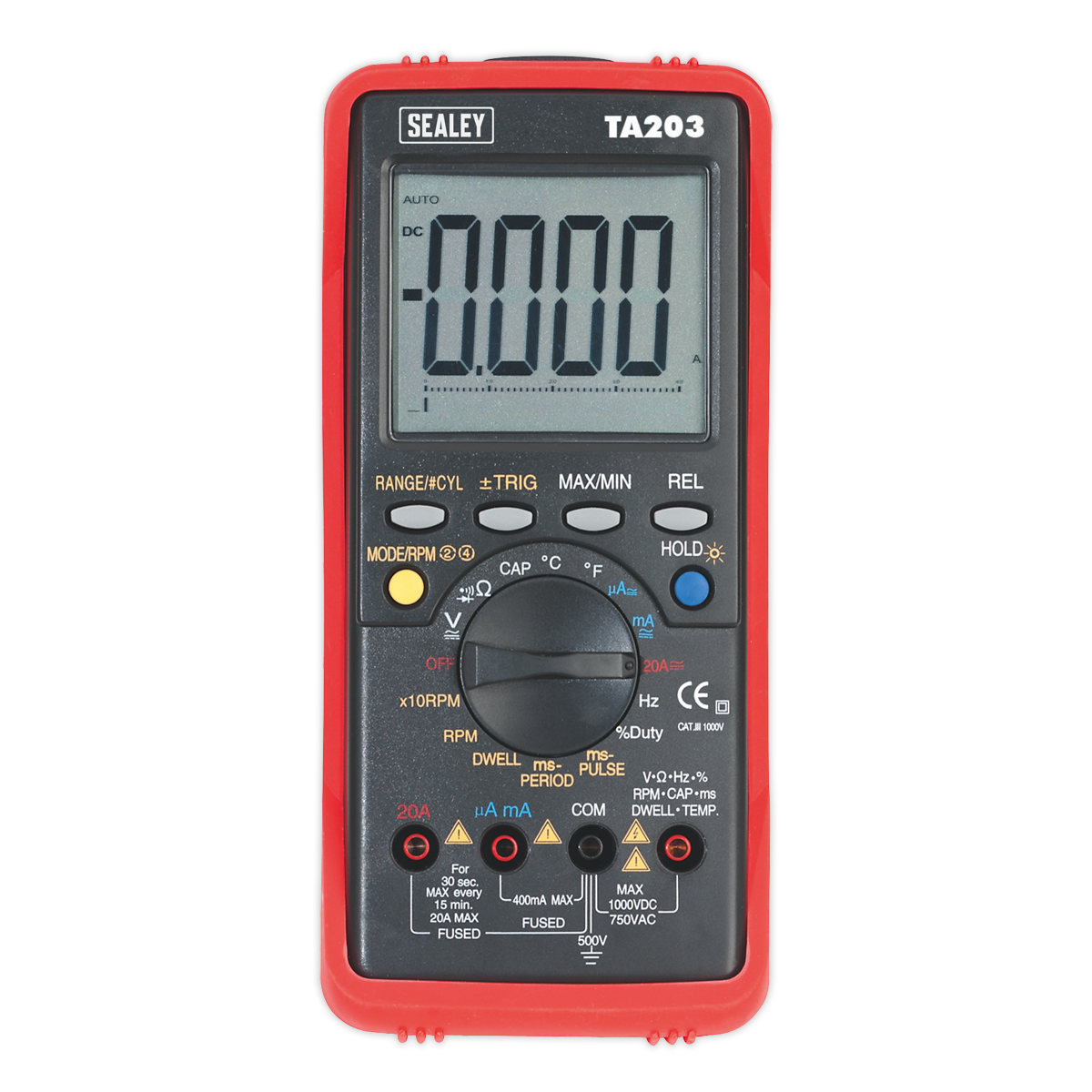

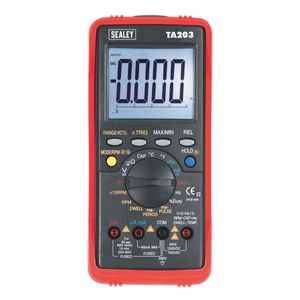

- Extra-large, high-contrast LCD display with 36mm high digital read-out, bar graph and back light.
- Durable case with probe storage and integral stand, suitable for the toughest workshop conditions.
- Features millisecond pulse-width function for accurate measurement of fuel injection systems.
- Includes auto-ranging, data-hold and auto-power-off.
- Bar-graph is essential for the correct testing of lambda sensors.
Extra-large, high-contrast LCD display with 36mm high digital read-out, bar graph and back light. Durable case with probe storage and integral stand, suitable for the toughest workshop conditions. Features millisecond pulse-width function for accurate measurement of fuel injection systems. Includes auto-ranging, data-hold and auto-power-off. Bar-graph is essential for the correct testing of lambda sensors. Supplied with inductive coupler (IC) with adjustable sensitivity, for fast reading of engine rpm, test leads (probe and clip) and thermocouple plus USB interface cable and Windows ME/XP/Vista software for downloading data to PC. - • Extra-large, high-contrast LCD display with 36mm high digital read-out, bar graph and back light.
• Durable case with probe storage and integral stand, suitable for the toughest workshop conditions.
• Features millisecond pulse-width function for accurate measurement of fuel injection systems.
• Includes auto-ranging, data-hold and auto-power-off.
• Bar-graph is essential for the correct testing of lambda sensors.
• Suitable for AC and DC circuits.

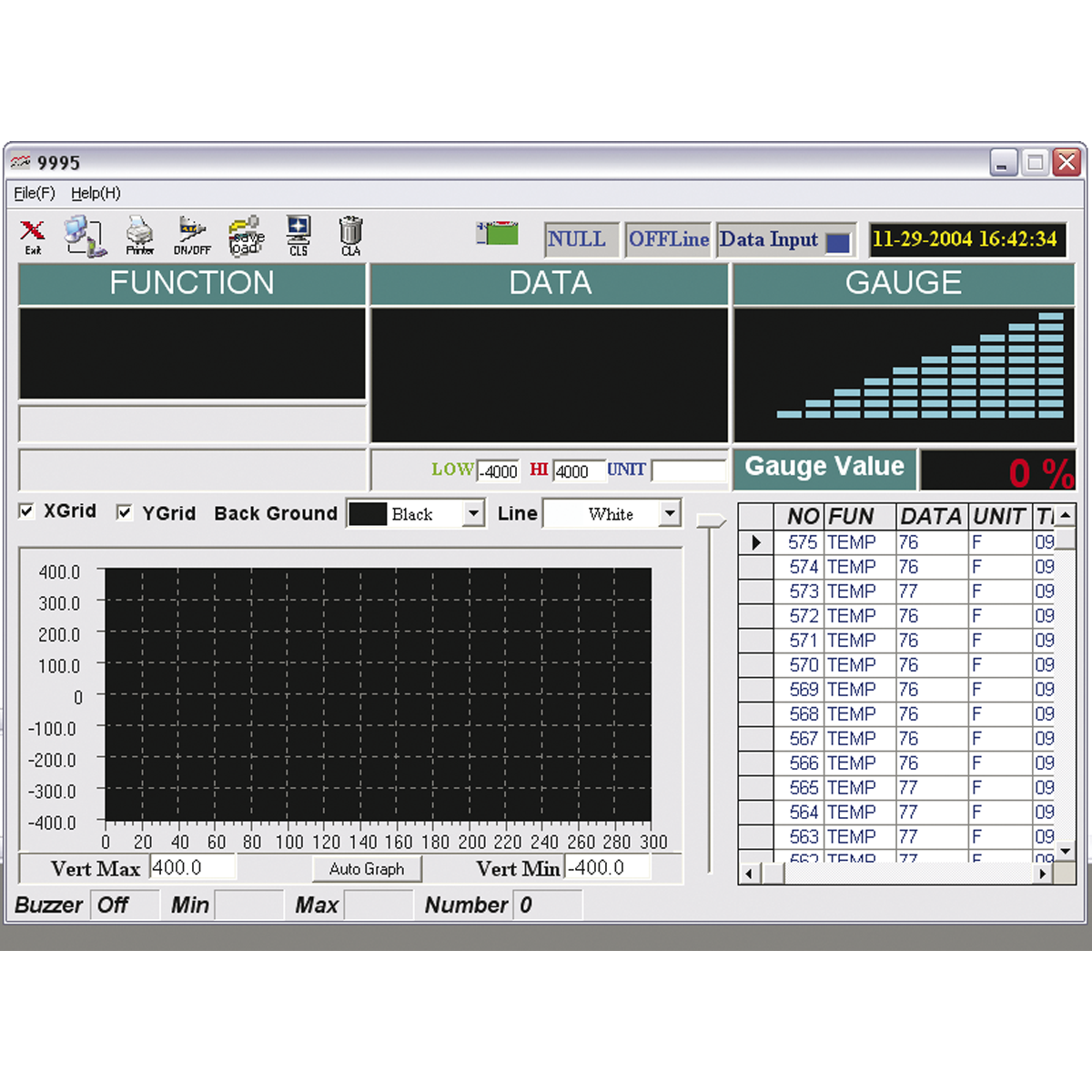

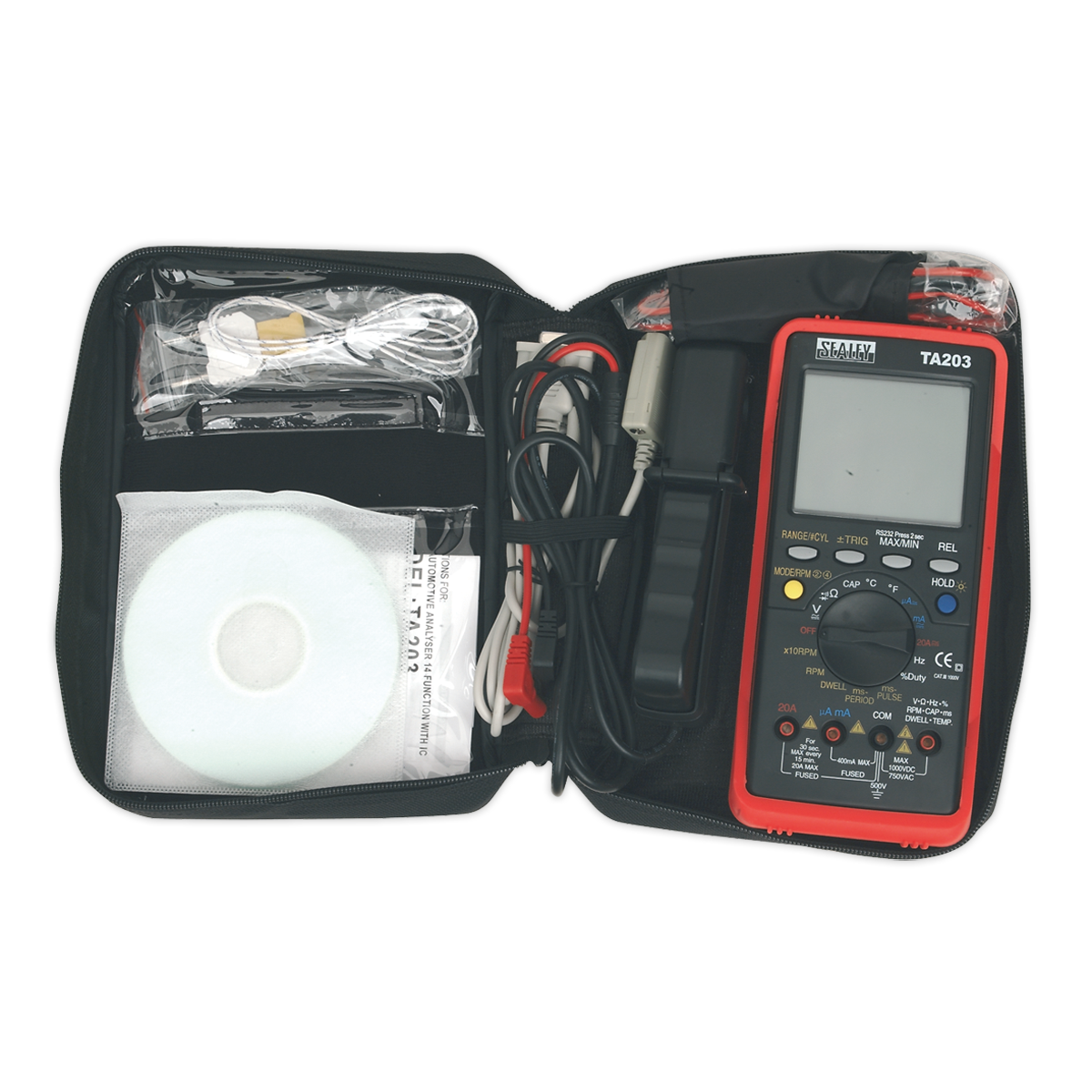

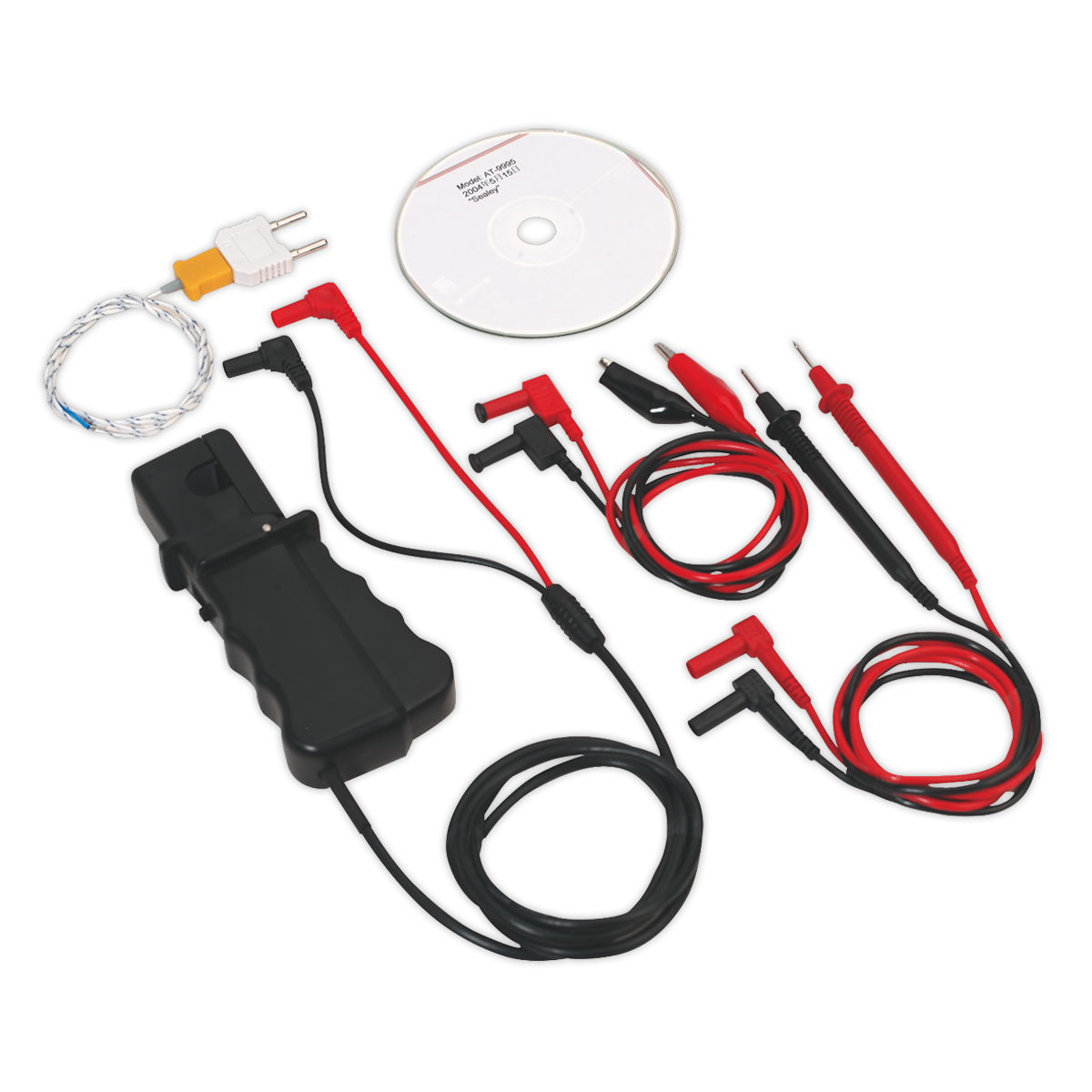

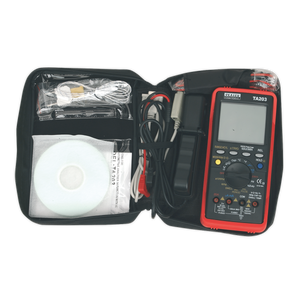

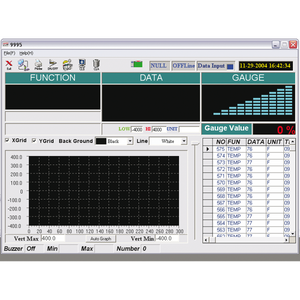

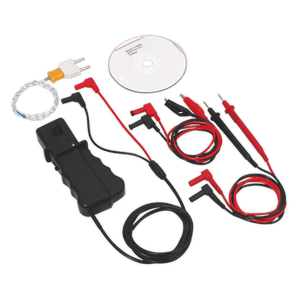

• Supplied with inductive coupler (IC) with adjustable sensitivity, for fast reading of engine rpm, test leads (probe and clip) and thermocouple plus USB interface cable and Windows ME/XP/Vista software for downloading data to PC.
| Model No | TA203 |
| Brand | Sealey |
| Nett Weight | 605g |
| Tach (rpm) | 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke & DIS; 300-4000 (x1)rpm, 300-6000 (x10)rpm |
| Dwell | 1Cyl 0-360°, 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36°, 12Cyl 0-30° |
| AC Voltage | 400mV, 4V, 40V, 400V, 750V (Auto-Ranging, except 400mV) |
| DC Voltage | 400mV, 4V, 40V, 400V, 1000V (Auto-Ranging) |
| AC Current | 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA) |
| DC Current | 400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA) |
| Capacitance | 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging) |
| Frequency | 5Hz, 50Hz, 500Hz, 5kHz, 30kHz (Auto-Ranging) |
| Duty Cycle | 0.1-99.9% |
| Period | 2-20ms |
| Pulse Width | 2-10ms |
| Resistance | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging) |
| Continuity | <150Ω |
| Temperature | -20 to +760°C/-4 to +1400°F |
| IR Temperature | No |
| Diode Check | Yes (Typical Test Current 0.3mA) |
| Transistor Test | No |
| Back Light | Yes |
| Bar Graph Display | Yes |
| Display Hold | Yes |
| Auto-Ranging | Yes |
| Inductive Coupler | Yes |
| PC Interface | Yes |
| Digits Height | 36mm |
| Auto Power Off | Yes |
| Low Battery Indicator | Yes |
| Batteries (supplied) | 9V (PP3) |
| Hi-Impact Case | Yes |
| Size (L x W x D) | 215 x 100 x 60mm |
| Weight | 605g |
