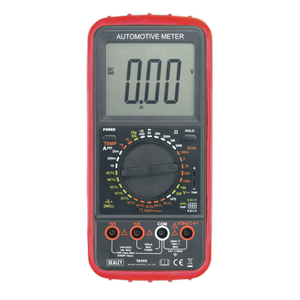

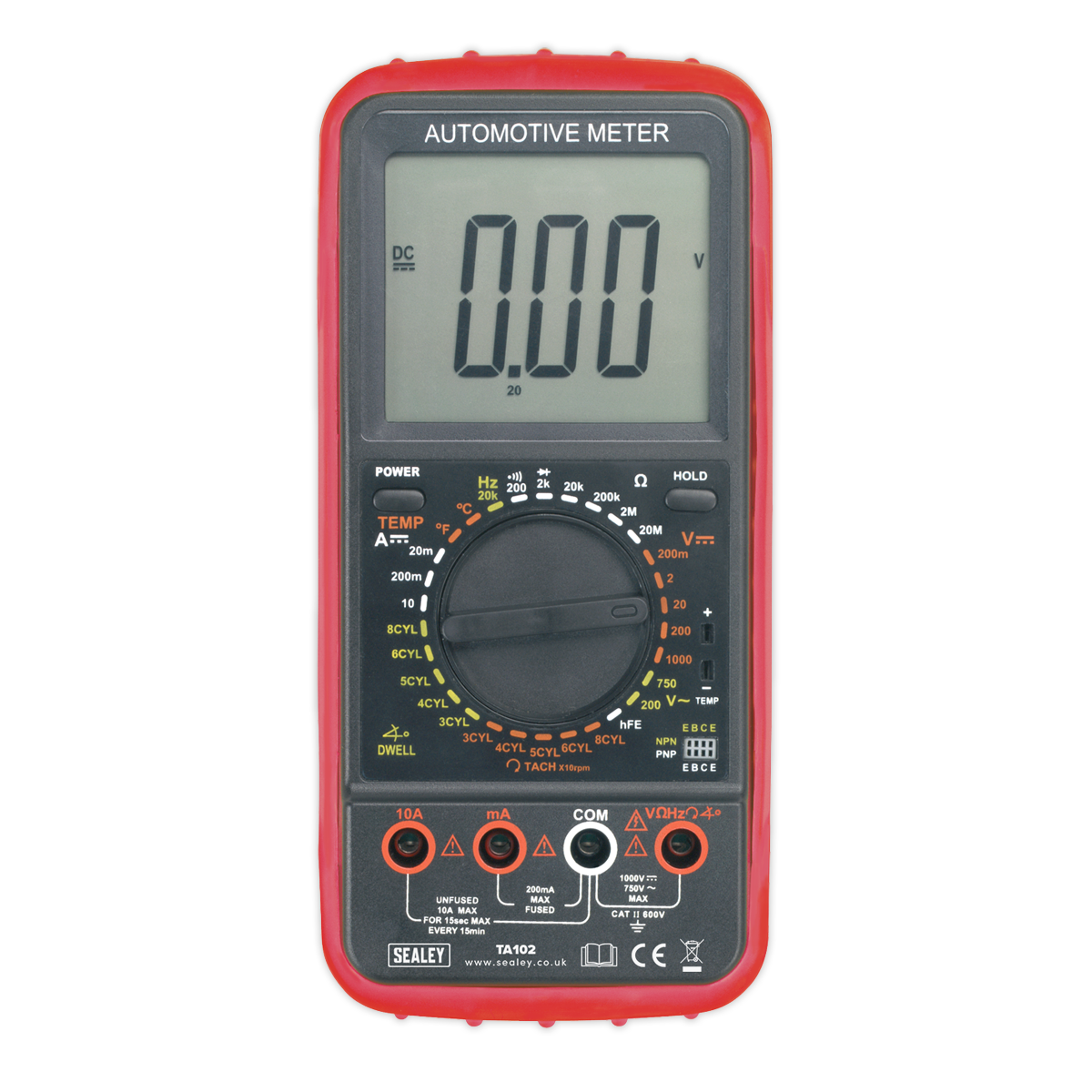

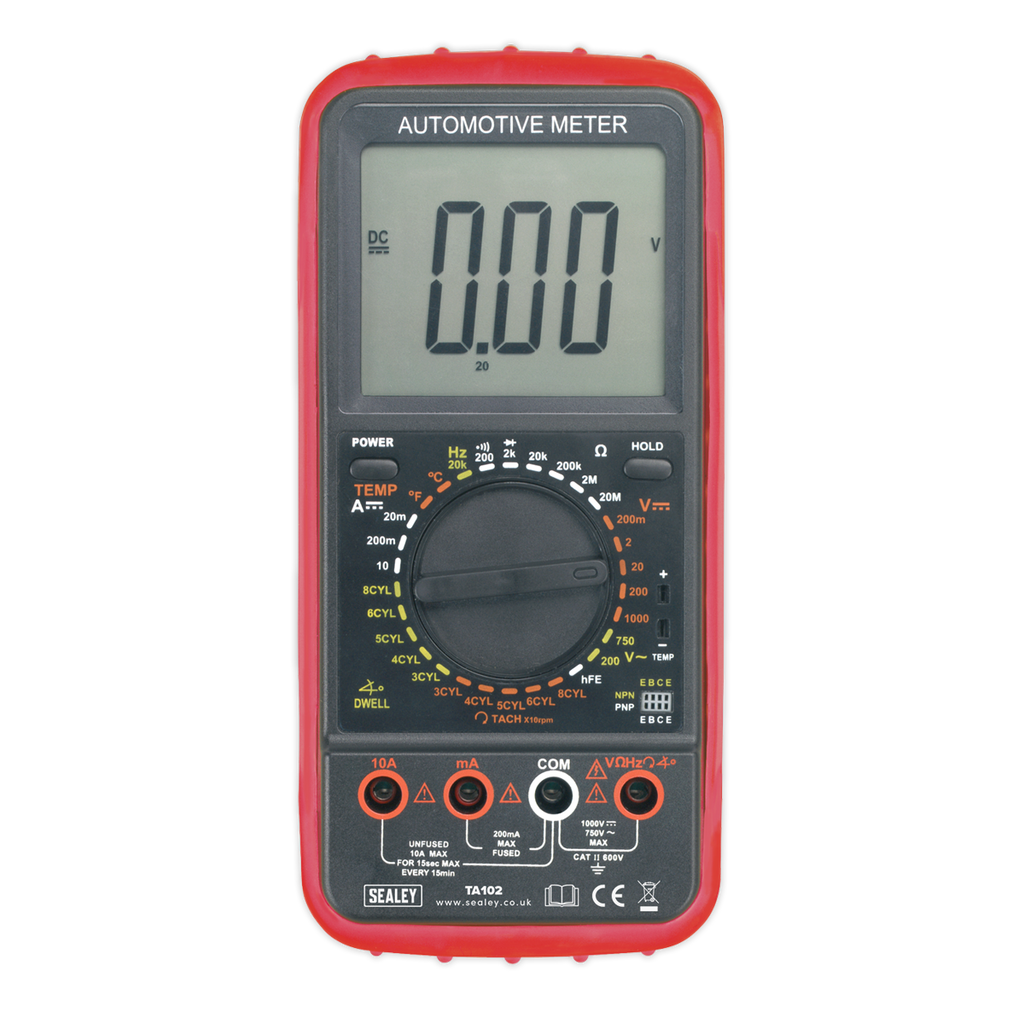

11-Function Digital Automotive Multimeter
11-Function Digital Automotive Multimeter
- Durable case and integral stand suitable for the toughest workshop conditions.
- Large, high-contrast LCD display with 34mm high digital read-out.
- Includes over-range indication, auto-zeroing, data-hold, auto-polarity, auto-power-off and low battery display functions.

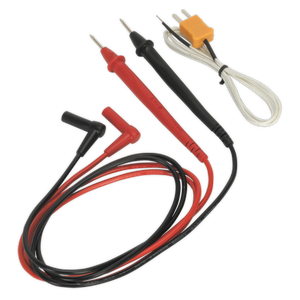

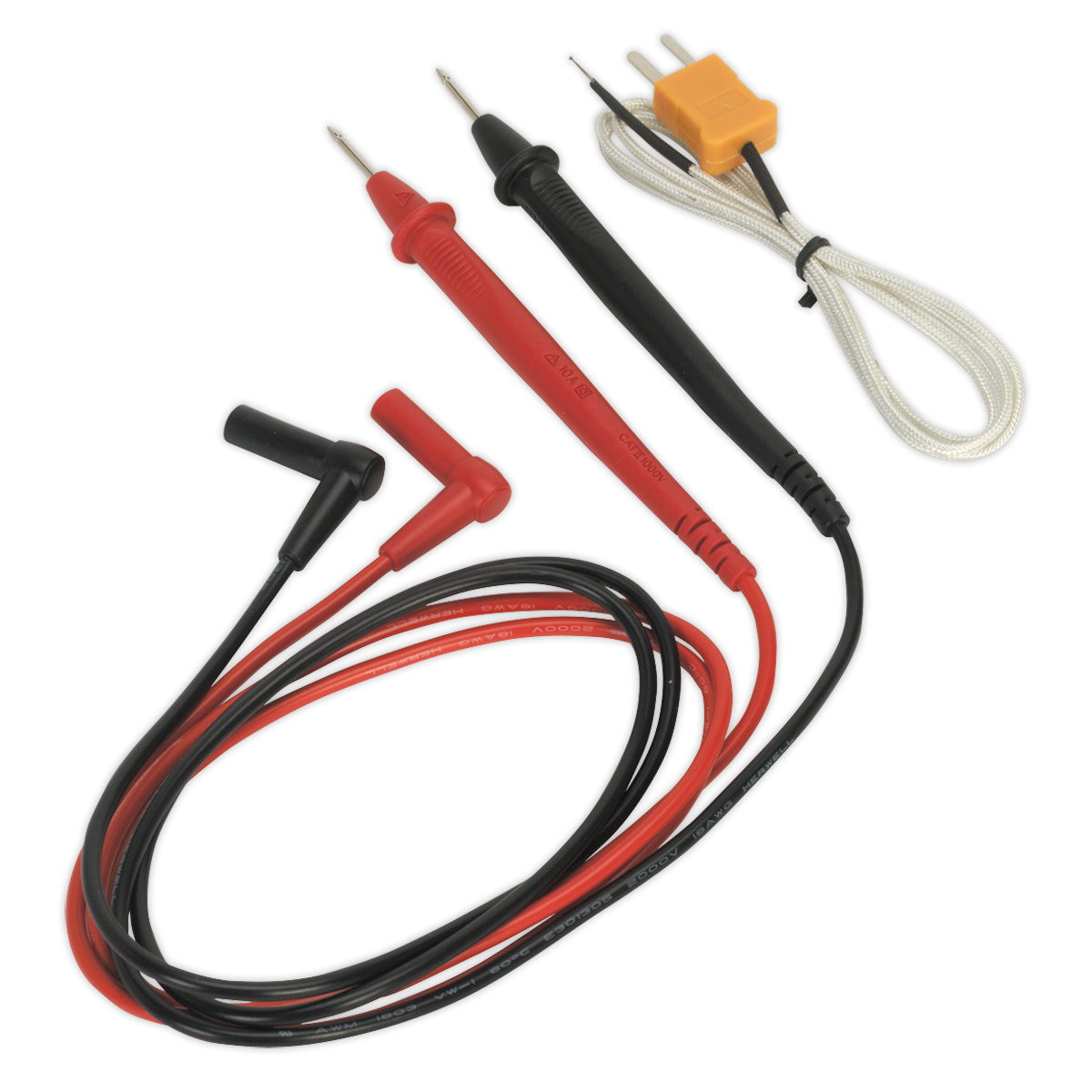

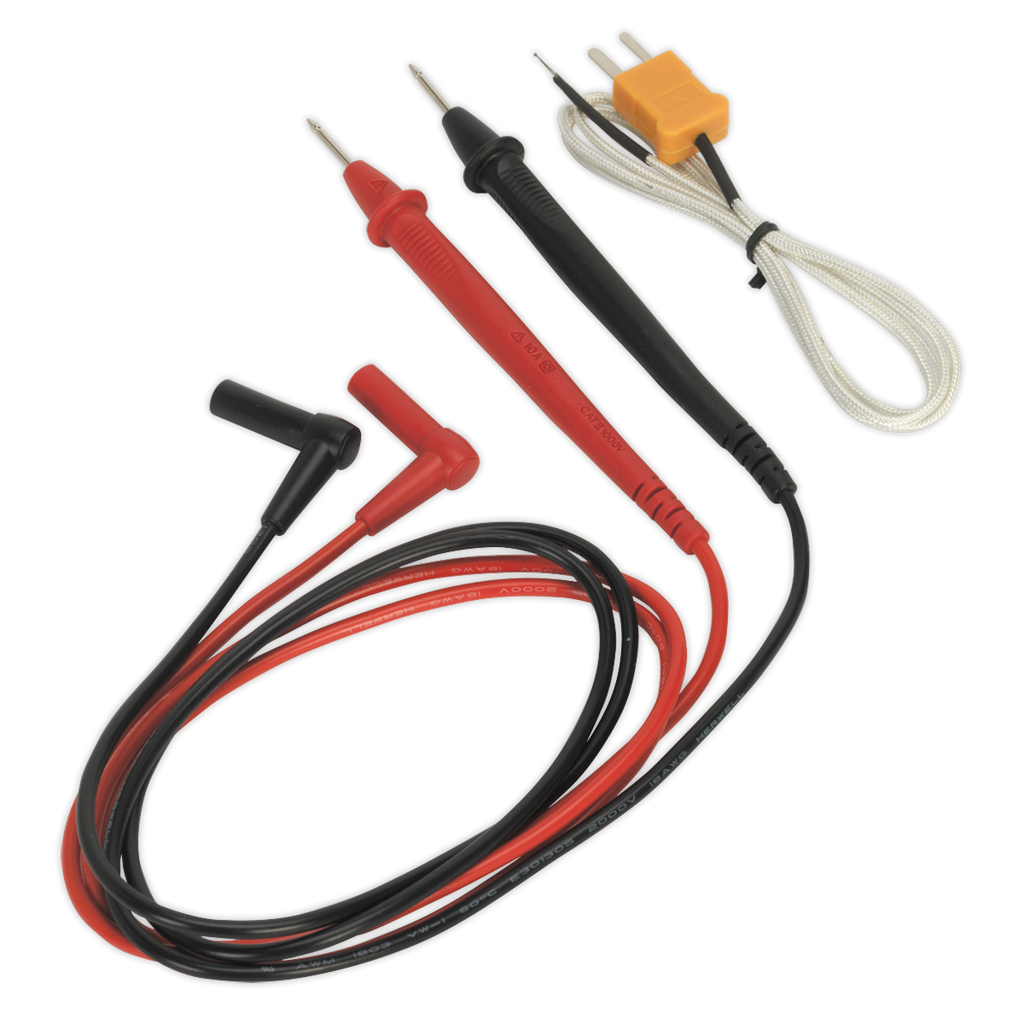

- Supplied with capped test probes and K-type thermocouple.
Durable case and integral stand suitable for the toughest workshop conditions. Large, high-contrast LCD display with 34mm high digital read-out. Includes over-range indication, auto-zeroing, data-hold, auto-polarity, auto-power-off and low battery display functions. Supplied with capped test probes and K-type thermocouple. - • Durable case and integral stand suitable for the toughest workshop conditions.
• Large, high-contrast LCD display with 34mm high digital read-out.
• Includes over-range indication, auto-zeroing, data-hold, auto-polarity, auto-power-off and low battery display functions.
• Supplied with capped test probes and K-type thermocouple.
| Model No | TA102 |
| Brand | Sealey |
| Nett Weight | 495g |
| Tach (rpm) | 3/4/5/6/8Cyl 180-10000 (x10)rpm |
| Dwell | 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45° |
| AC Voltage | 200-750V |

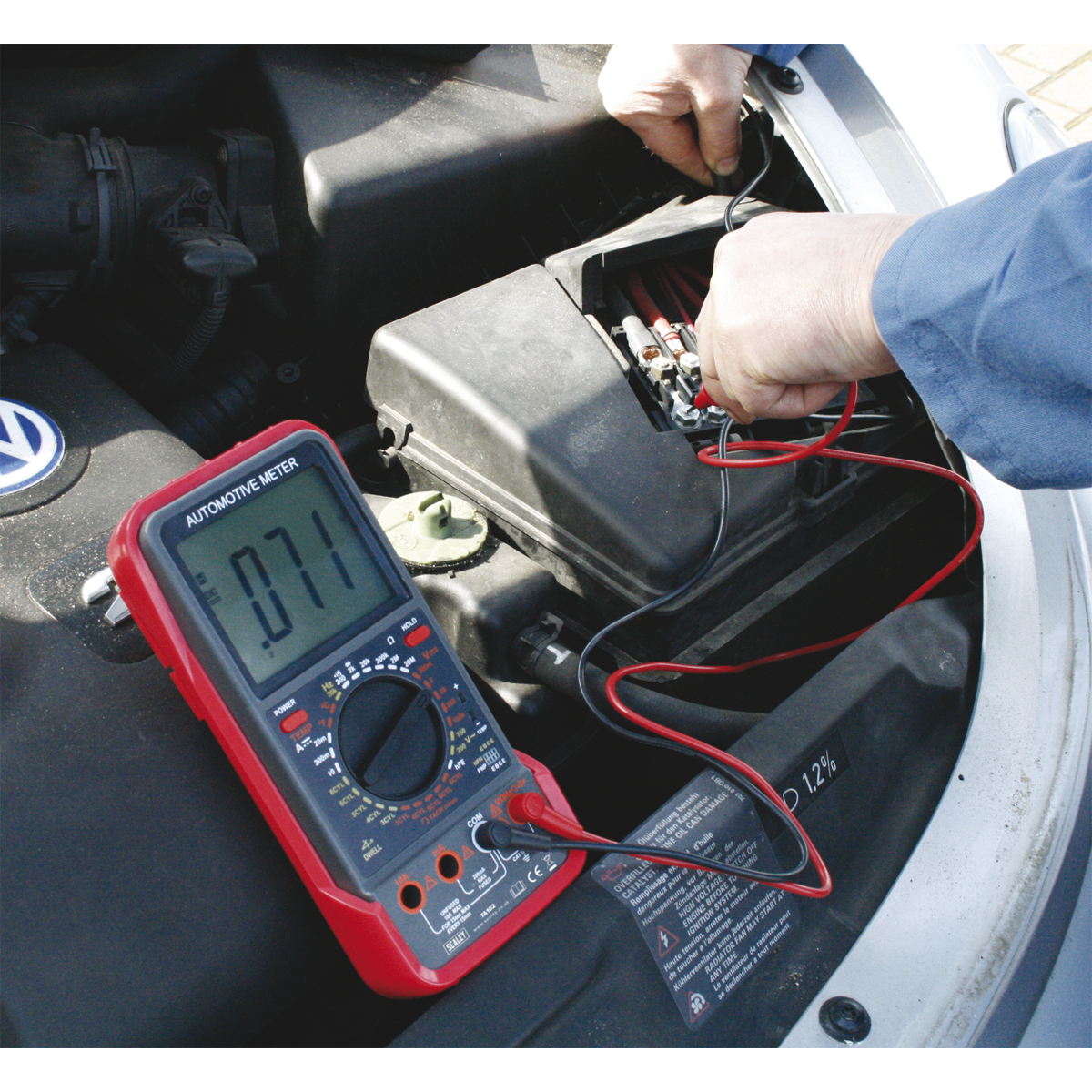

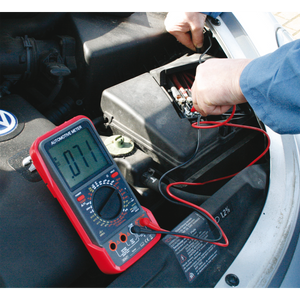

| DC Voltage | 200mV, 2V, 20V, 200V, 1000V |
| AC Current | No |
| DC Current | 20mA, 200mA, 10A |
| Capacitance | No |
| Frequency | 20kHz |
| Duty Cycle | No |
| Pulse Width | No |
| Resistance | 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ |
| Continuity | <30Ω |

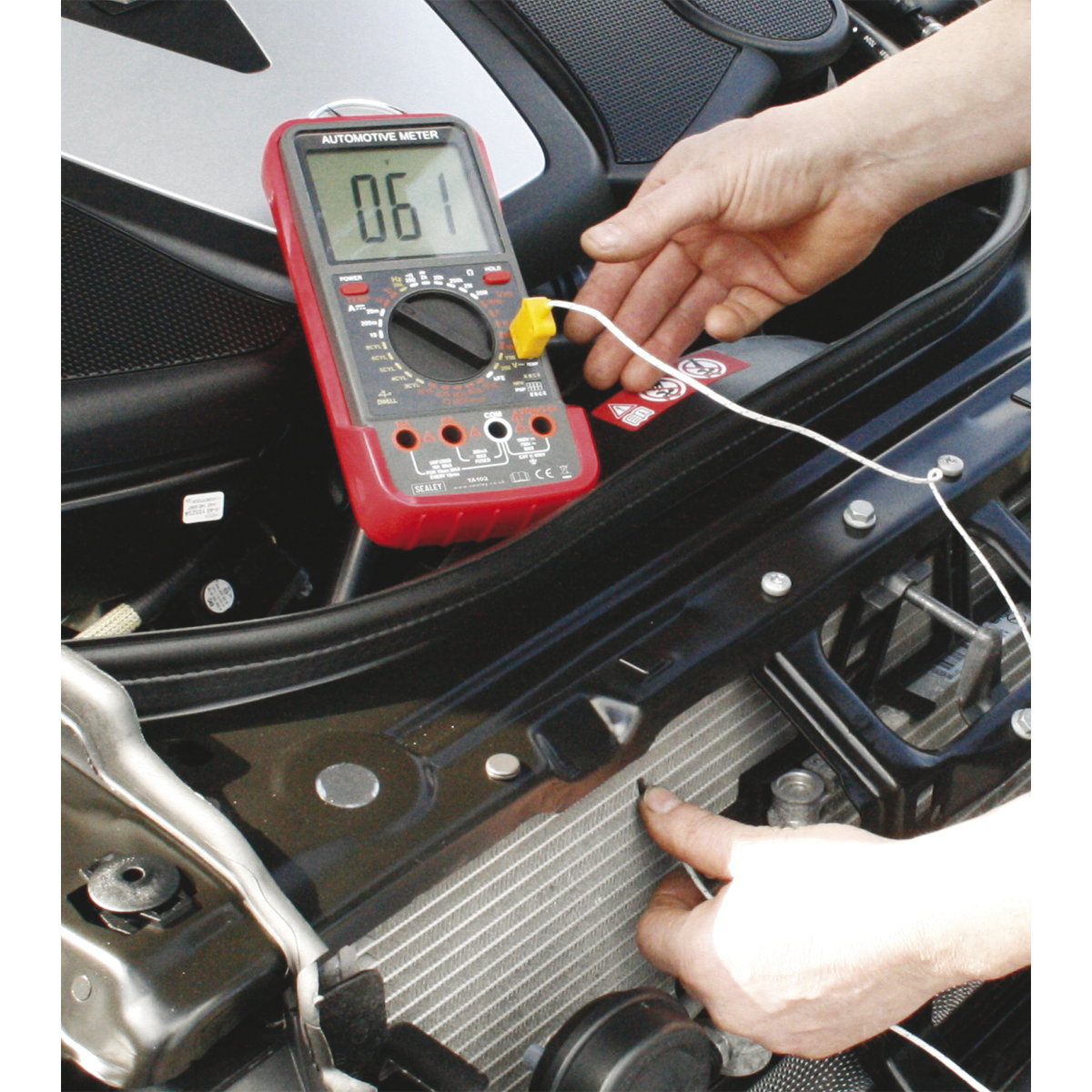

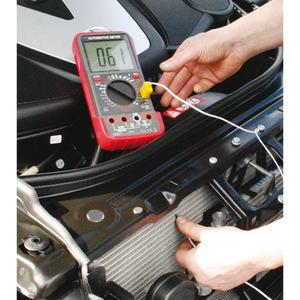

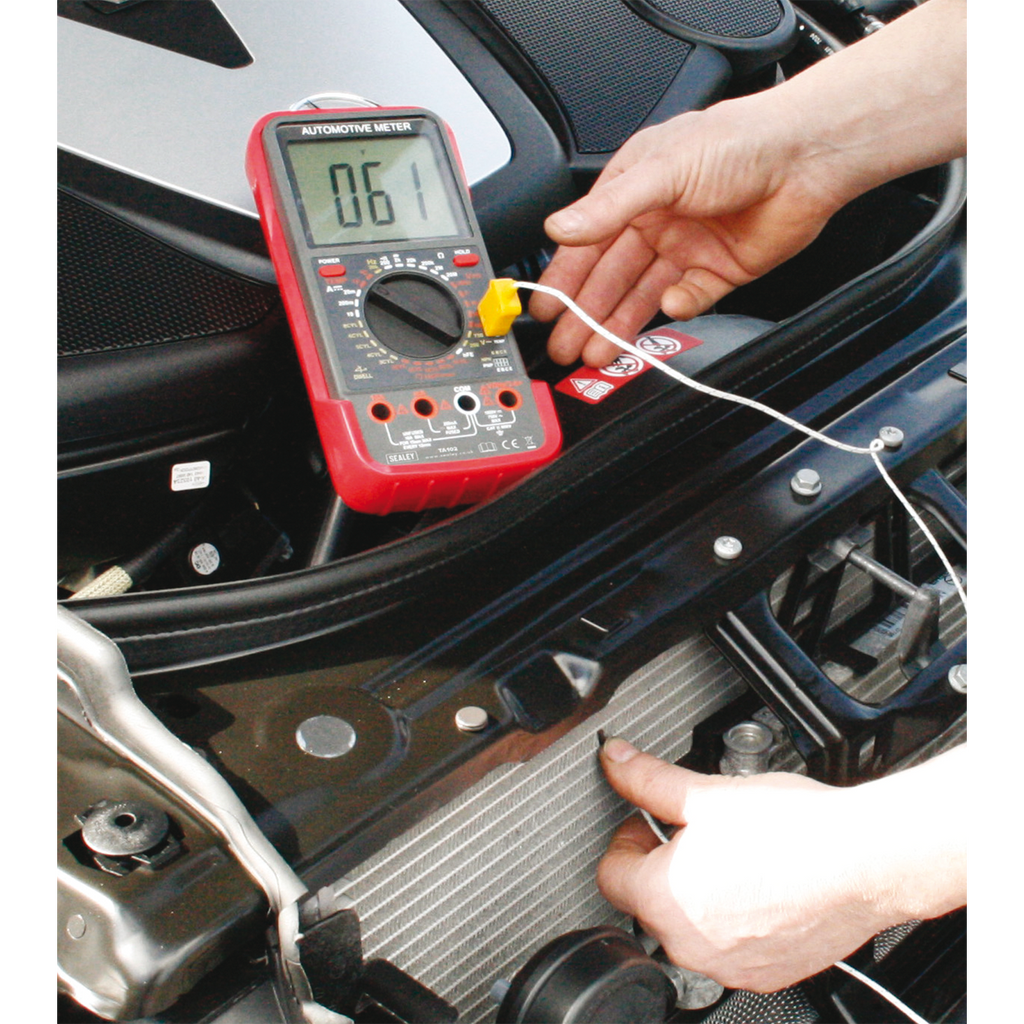

| Temperature | -20 to +750°C/-4 to +1382°F |
| IR Temperature | No |
| Diode Check | Yes (Typical Test Current 1mA) |
| Transistor Test (hFE) | Vce=3V, Ib=10µA |
| Back Light | No |
| Bar Graph Display | No |
| Display Hold | Yes |
| Auto-Ranging | No |
| Inductive Coupler | No |
| PC Interface | No |
| Digits Height | 34mm |
| Auto Power Off | Yes |
| Low Battery Indicator | Yes |
| Batteries (supplied) | 9V (PP3) |
| Hi-Impact Case | Yes |
| Size (L x W x D) | 200 x 97 x 48mm |
| Weight | 495g |
