Mini Lathe & Drilling Machine (SM2503)
Mini Lathe & Drilling Machine (SM2503)
- Bench mounting multifunction mini drill, mill and lathe with variable speed giving flexibility to handle most materials.
- Features two 150W motors, one to operate the drill/mill and the other to power the lathe.
- The lathe cutting feed can be power driven or advanced manually.
- Thread cutting may also be undertaken with the optional thread cutting kit.
- Supplied with Metric graduated scales and all necessary tools required for setting and adjusting.
Refurbished option available
This product is also sold factory refurbished at a lower price, with the condition graded as below.

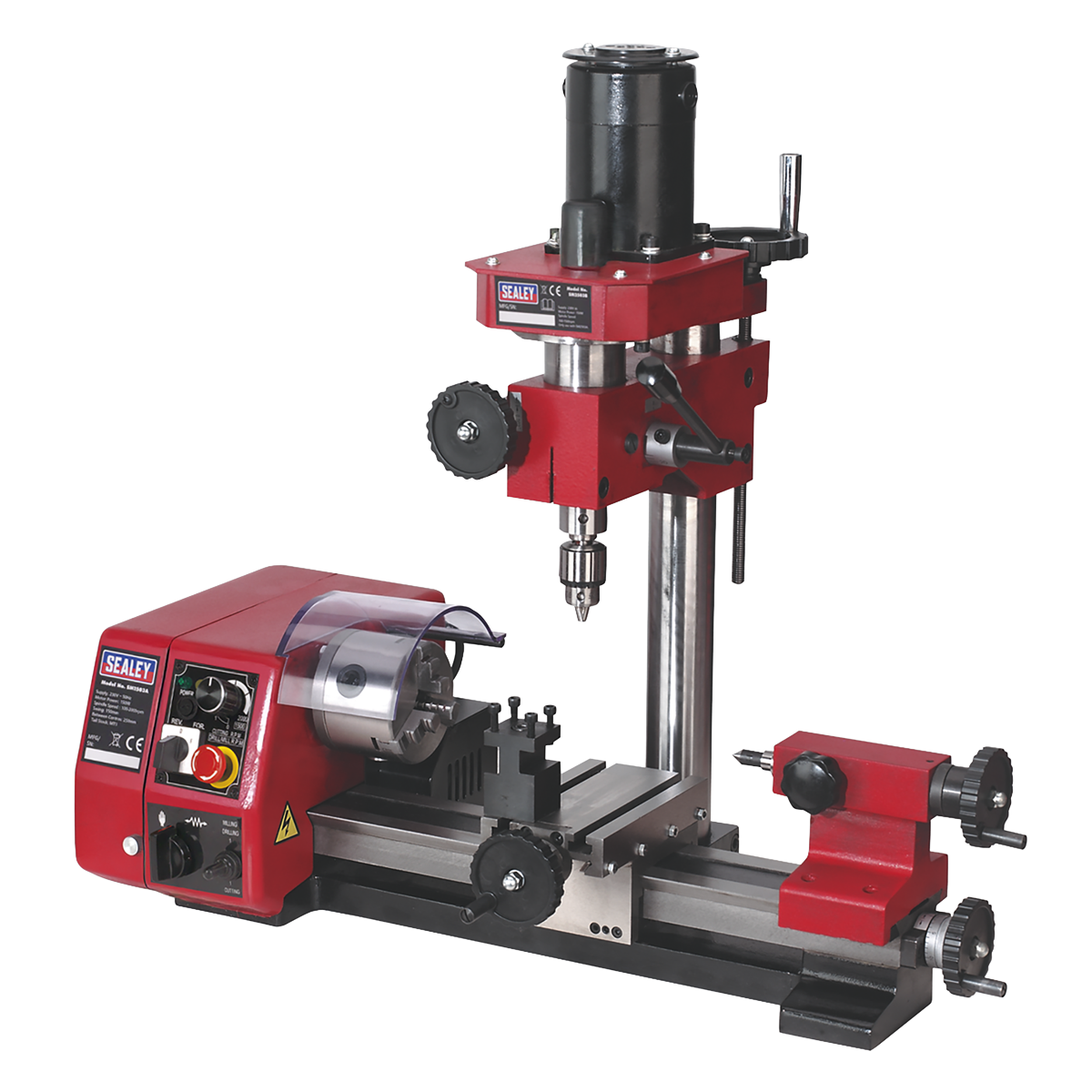

Sealey Mini Lathe & Drilling Machine, 300W 230V (SM2503)
Bench mounting multifunction mini drill, mill and lathe with variable speed giving flexibility to handle most materials. Features two 150W motors, one to operate the drill/mill and the other to power the lathe. The lathe cutting feed can be power driven or advanced manually. Thread cutting may also be undertaken with the optional thread cutting kit. Supplied with Metric graduated scales and all necessary tools required for setting and adjusting. An optional stand is available, order Model No. SM3002ST.
- Bench mounting multifunction mini drill, mill and lathe with variable speed giving flexibility to handle most materials.
- Features two 150W motors, one to operate the drill/mill and the other to power the lathe.
- The lathe cutting feed can be power driven or advanced manually.
- Thread cutting may also be undertaken with the optional thread cutting kit.
- Supplied with Metric graduated scales and all necessary tools required for setting and adjusting.
- An optional stand is available, order Model No. SM3002ST.
| Model No | SM2503 |
| Brand | Sealey |
| Motor Power | 2 x 150W - 230V |
| Specification - Cutting | |
| Cross Slide Travel | 61mm |
| Distance Between Centres | 250mm |
| Range of Metric Threads | 5 Pitches (0.5-1.25mm) |
| Spindle Hole Taper | MT2 |
| Spindle Speed (Variable) | 100-2000rpm |
| Swing Over Bed | 140mm |
| Tailstock Taper | MT1 |
| Specification - Drilling | |
| Distance from Spindle Centre to Column | 100mm |
| Distance from Spindle to Table | 180mm |
| Drilling/Milling Spindle Speed | 100-1300rpm |
| Drilling/Milling Spindle Travel | 30mm |
| Maximum Drilling/Milling Capacity | 10mm |
| T-Slot | 8mm |
| Weight | 39.20kg |
