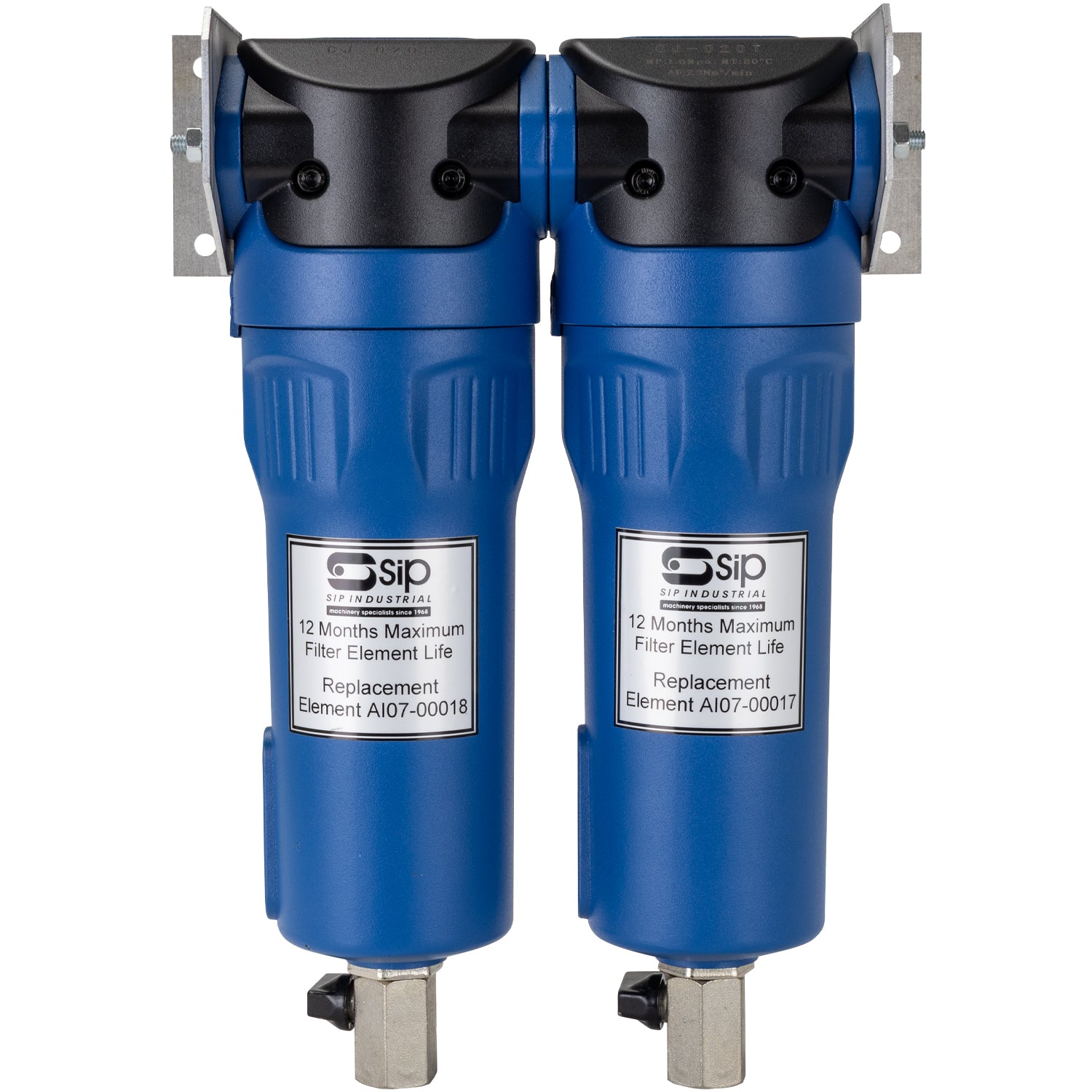

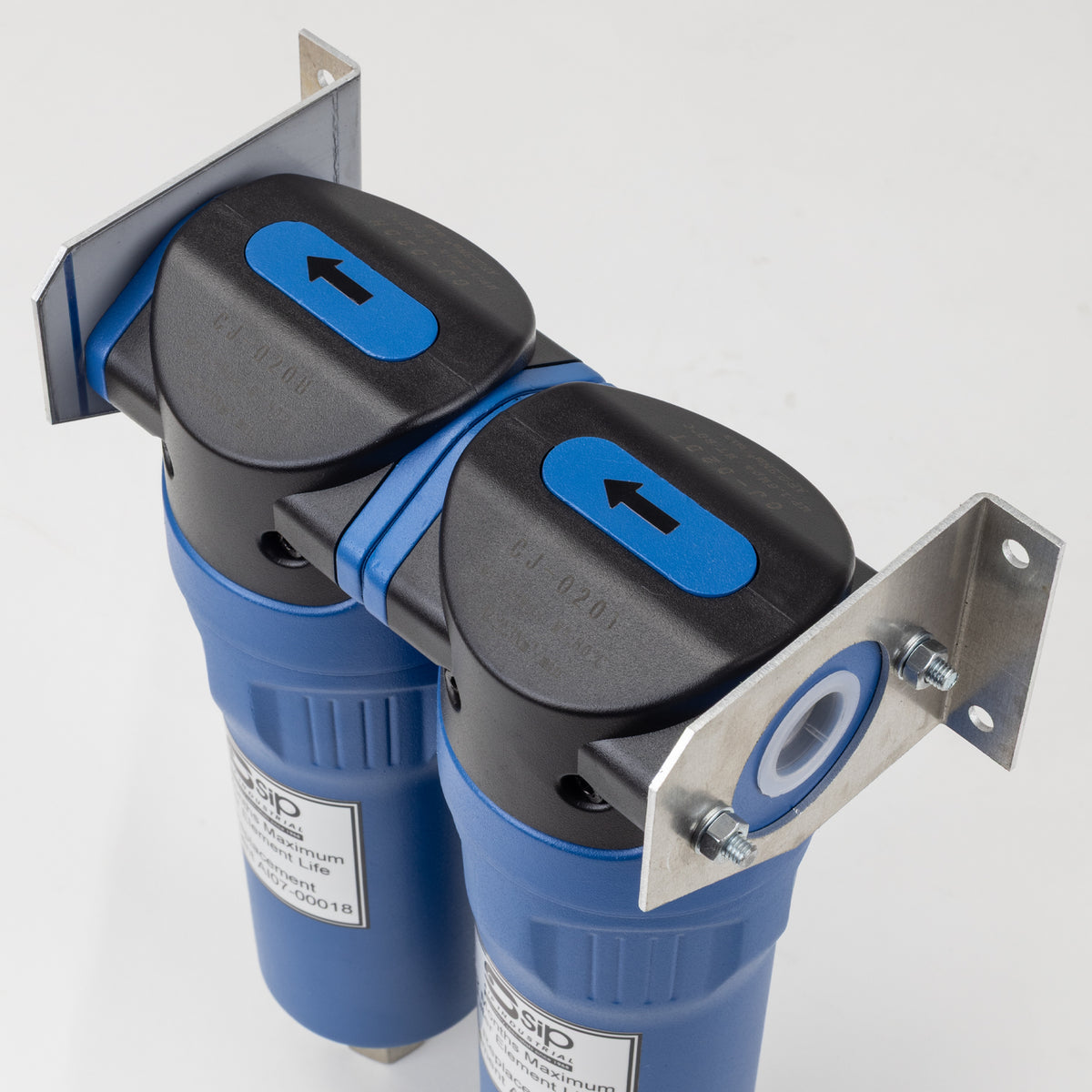

SIP Compressor Particulate & Oil Filtration System
SIP Compressor Particulate & Oil Filtration System
- Collects air particle contaminants including water droplets, oils, dirt and dust
- Achieves air quality level 2-4-2 using ISO 8573-1 as reference if paired with dryer
- Includes particulate and coalescing filters, adaptor, housing kit, bracket, fixings
- Helps to extend the life of tools and machinery powered by compressed air
- System is wall or compressor-mountable design for added versatility
The SIP Compressor Particulate & Oil Filtration System is designed to collect air particle contaminants including water droplets, oils, dirt and dust before powering air tools, air-powered equipment and ring main systems reliant on compressed air. This ensures a higher quality of compressed air is supplied and helps to extend service life.

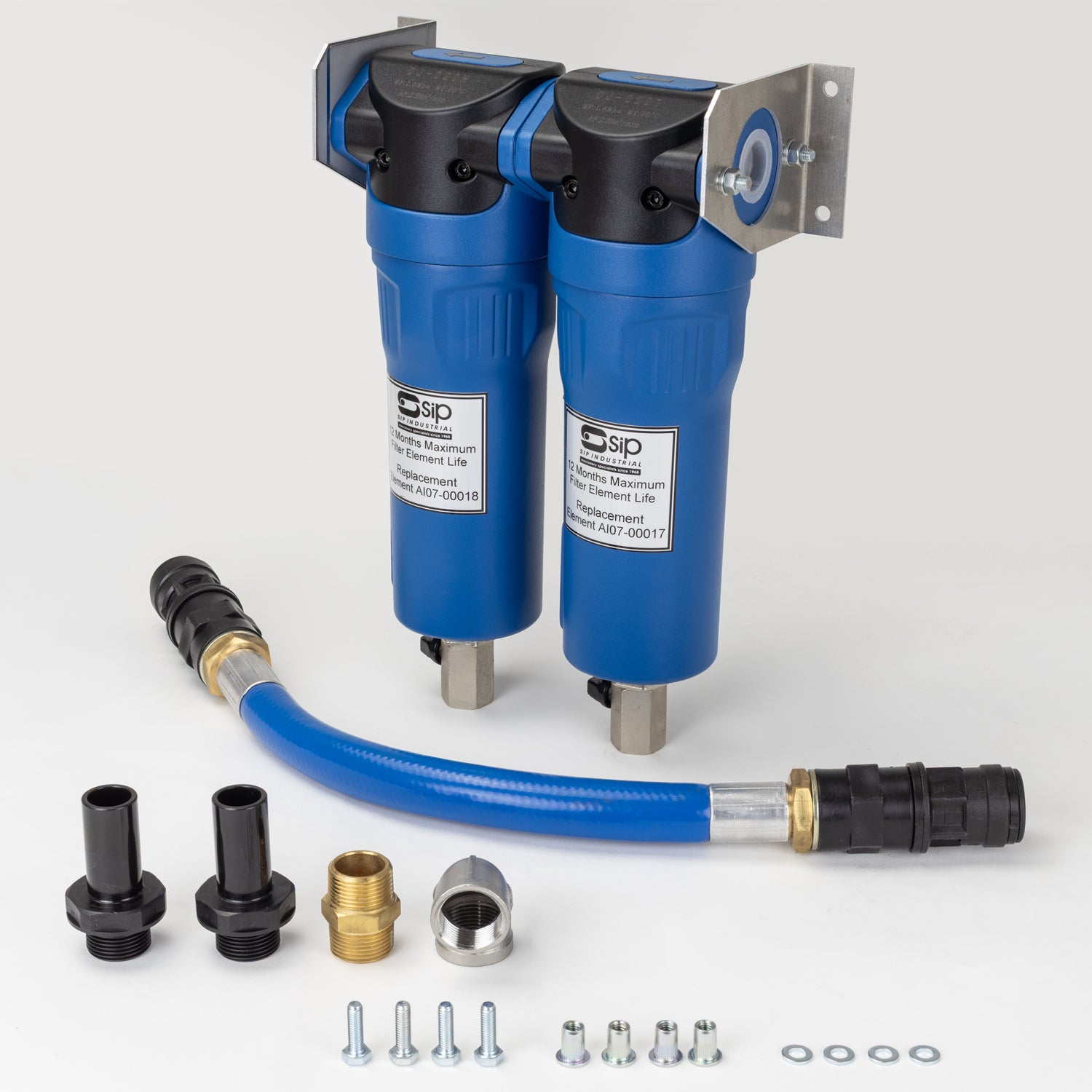

Consisting of a particulate filter, coalescing filter, adaptor and housing kit plus brackets and fixings, it can be fitted to the compressor or on walls. Compatible for the complete SIP VSDD Variable Speed and SIP RS Fixed Speed Rotary Screw Compressor ranges.
This system is designed to achieve air quality level 2-4-2 using ISO8573-1 as a reference standard, ensuring enhanced air purity when paired with a refrigerated dryer.
Applications & uses: Suitable for the complete SIP VSDD Variable Speed and SIP RS Fixed Speed Rotary Screw Compressor ranges.
What's in the box?: 1x ≤ ⌀ 1µm particulate filter, 1x ≤ ⌀ 0.01µm coalescing filter, adaptor, housing kit, brackets and fixing kit.
- PROVIDES HIGHER QUALITY COMPRESSED AIR TO AIR-POWERED TOOLS & MACHINERY: The system is designed to collect air particle contaminants including water droplets, oils, dirt and dust before powering equipment. Reduced air contamination can also help to extend the service life of air tools, air-powered equipment and ring main systems reliant on compressed air. The kit consists of ≤ ⌀ 1µm particulate filter, 1x ≤ ⌀ 0.01µm coalescing filter, adaptor, housing kit, brackets and fixing kit. Designed to achieve air quality level 2-4-2 using ISO 8573-1 as a reference standard, ensuring enhanced air purity when paired with a refrigerated dryer.
- VERSATILE DESIGN CAN BE MOUNTED ON THE COMPRESSOR OR ON NEARBY WALLS: Compatible with the complete range of SIP VSDD Variable Speed and SIP RS Fixed Speed Rotary Screw Compressor ranges.
Technical Specification
- ITEM NO. 08299
- Kit Contents: ≤ ⌀ 1µm particulate filter, 1x ≤ ⌀ 0.01µm coalescing filter, adaptor, housing kit, brackets, fixings
- Air Quality Level: 2-4-2 (ISO 8573-1*)
| Kit Contents | ≤ ⌀ 1µm particulate filter, 1x ≤ ⌀ 0.01µm coalescing filter, adaptor, housing kit, brackets, fixings |
| Air Quality Level | 2-4-2 (ISO 8573-1*) |
