SIP 80ltr Suction / Gravity Oil Drainer with Inspection Chamber
FREE SHIPPING (Mainland UK)
- Heavy-duty 80ltr steel collection tank and high-volume oil collection
- 20ltr collection tray with 360° rotation to minimise work area spills
- Pre-filter plate catches debris and contaminants before it enters the tank
- Adjustable 1500mm to 1810mm height for various vehicles and lifting set-ups
- Wheel-mounted with swivel castors for sturdy movement and easy positioning
We accept

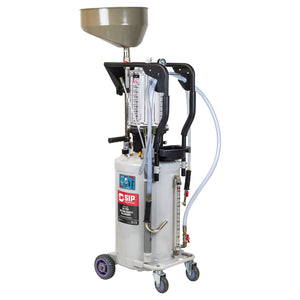

SIP 80ltr Suction / Gravity Oil Drainer with Inspection Chamber
The SIP 80ltr Suction / Gravity Oil Drainer with Inspection Chamber is designed for clean and efficient collection of waste oil from engines, geaboxes and assemblies in professional garages and automotive workshops.
With a heavy-duty 80ltr steel tank with adjustable height 20ltr collection tray and 360° rotation, plus 11ltr inspection chamber, the drainer is ideal for quick and easy oil changes and also supports proper disposal of oil in compliance with environmental guidelines.
For added versatility, the drainer is designed with solid wheel and swivel castors for sturdy movement and easy positioning.
Air supply required for vacuum and suction pressure (5CFM / 6-8bar, min. 100ltr air receiver) and oil discharge (10psi (0.7bar) - 15psi (1bar)).
Applications & uses: Ideal for efficient collection of waste oil from engines, gearboxes and assemblies. Perfect for professional garages and automotive workshops.

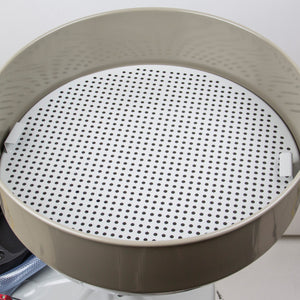

- HEAVY-DUTY 80LTR STEEL TANK & 20LTR TRAY PROVIDE EFFICIENT COLLECTION CAPACITY OF WASTE OIL: Made from heavy-duty steel, the large 80ltr collection tank reduces the amount of emptying required and increases efficiency. The 20ltr collection tray features an integrated pre-filter plate that catches debris and contaminants before they enter the tank. For additional versatility, the collection tray offers full 360° rotation for simple and precise positioning to minimise work area spills. The collection system as a whole supports high-capacity, clean and safe oil changes, and enables proper disposal in compliance with environmental guidelines. A parts tray is mounted to the top of the tank to help keep workspaces and parts tidy and organised.
- 1500MM TO 1810MM ADJUSTABLE HEIGHT RANGE SUPPORTS A VARIETY OF VEHICLES & VEHICLE LIFTING SET-UPS: The versatile height adjustment of the collection tray ensures optimal positioning for efficient draining and collection of waste oil. The drainer can be adjusted to accommodate a wide range of vehicle types and vehicle lifting equipment in garages and workshops.

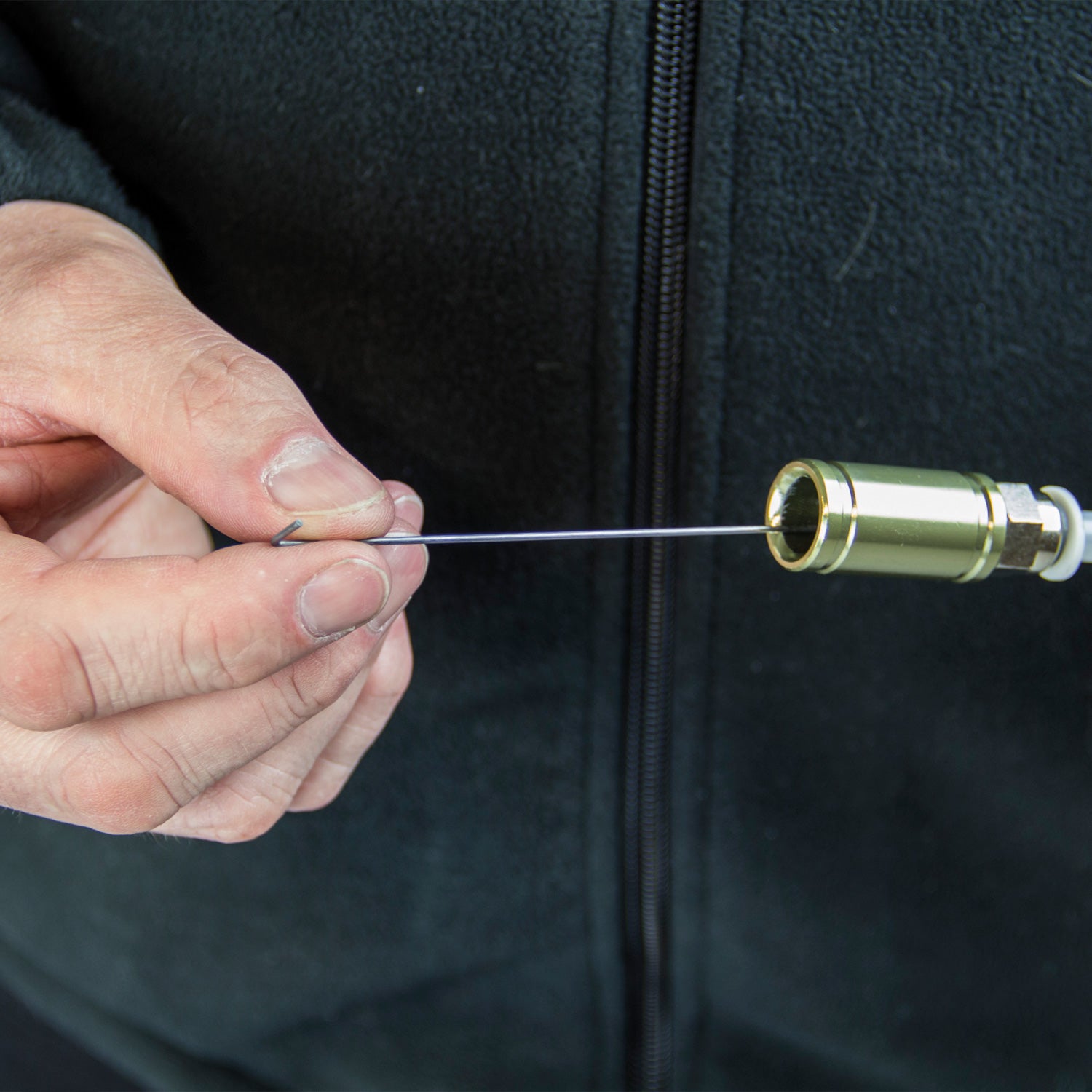

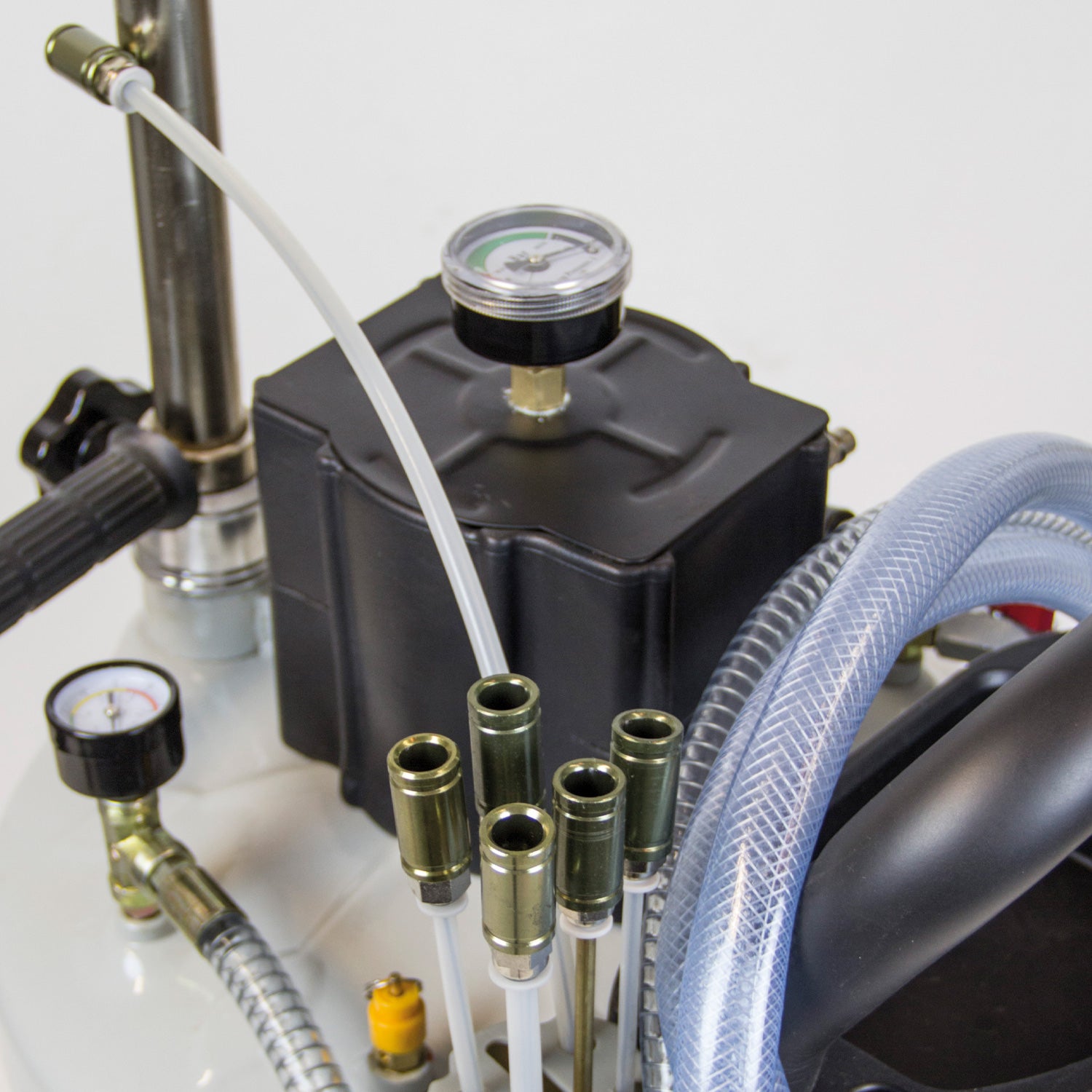

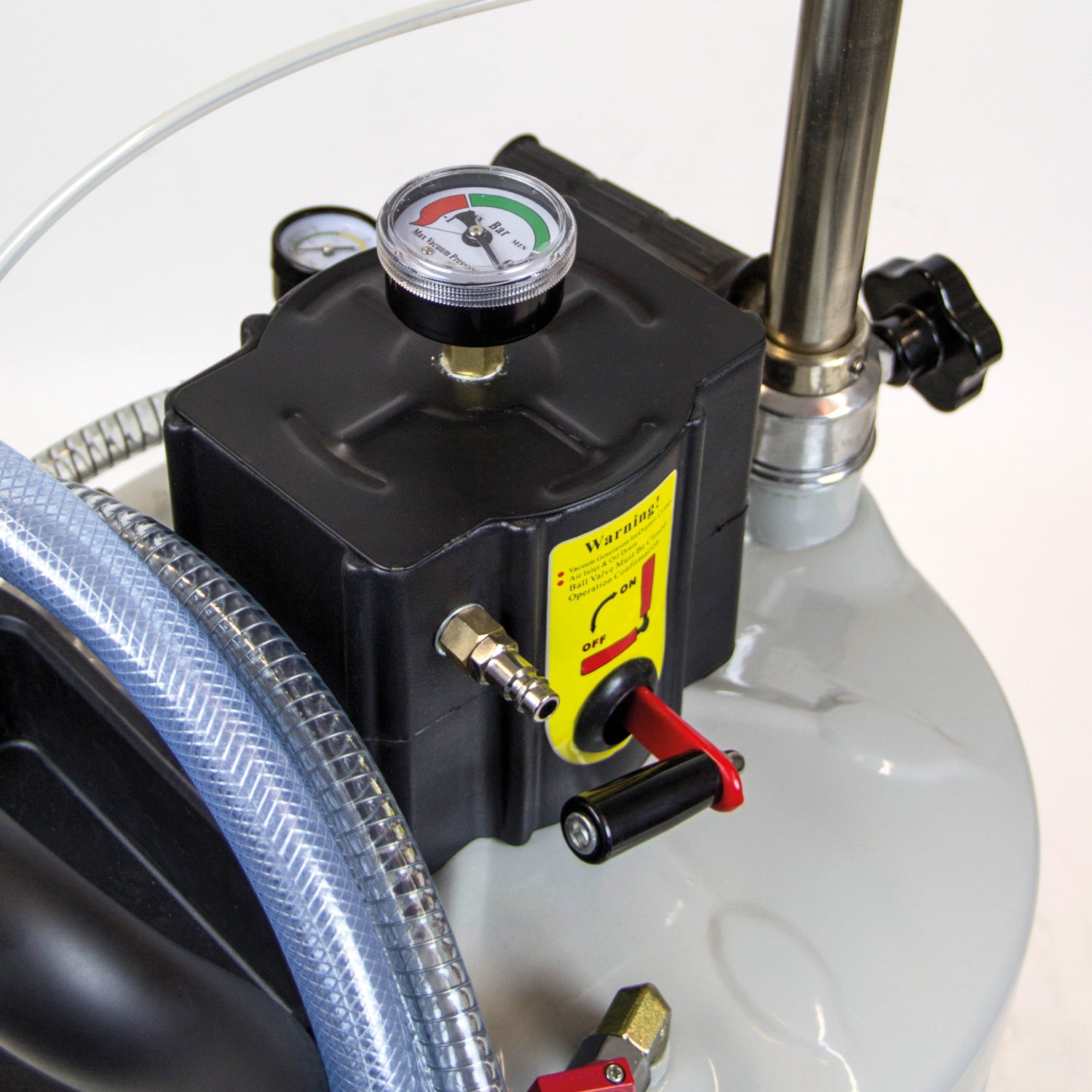

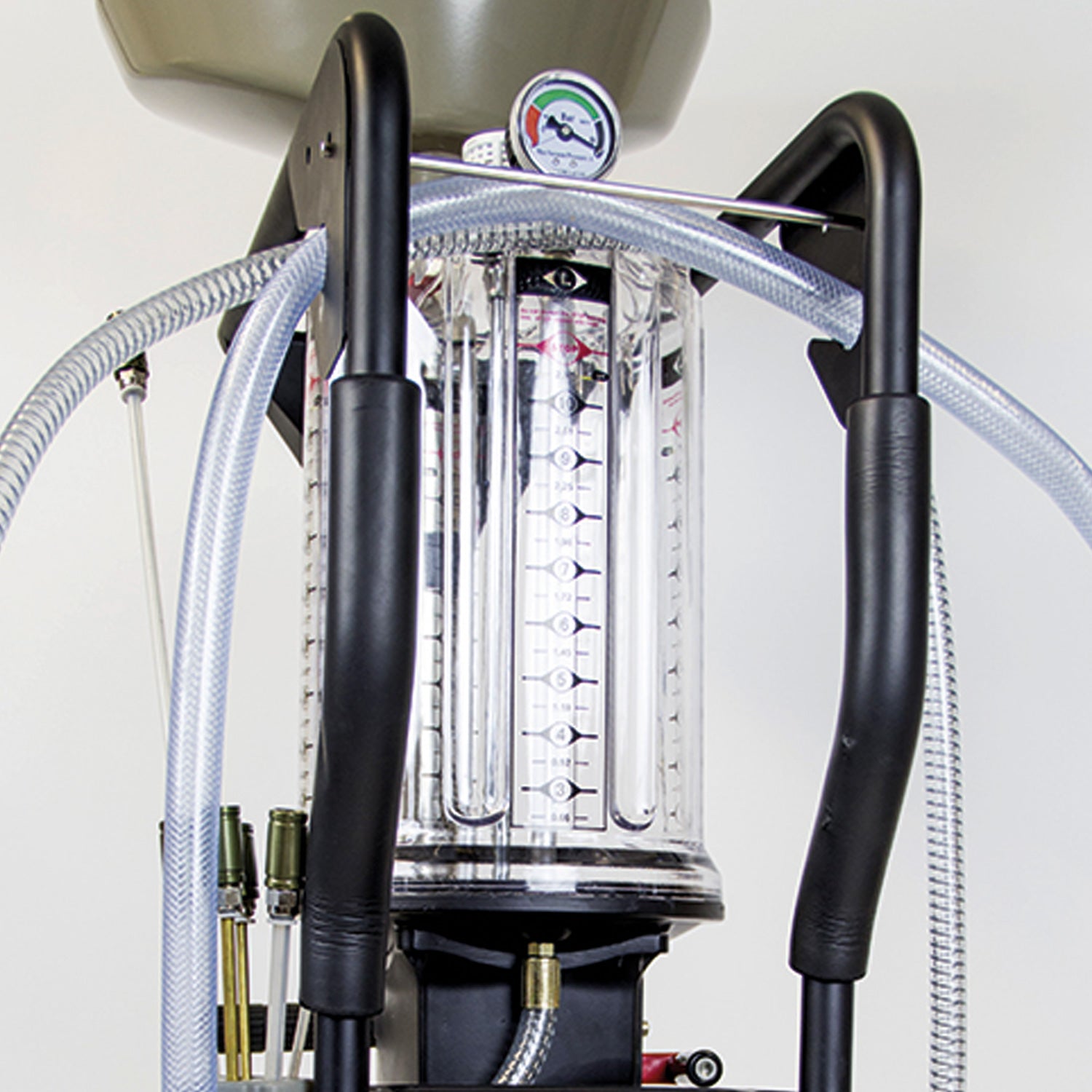

- INTEGRATED OIL LEVEL INDICATOR FOR EASY TRACKING OF REMAINING COLLECTION CAPACITY: Top-mounted 11ltr Perspex inspection chamber and oil level indicator on the side of the collection tank povide a clear visual indication of the oil level within the reservoir. This helps to prevent overfilling and negates unnecessary emptying for reduced downtime. Supplied with 6pc suction tube kit and includes 2x spare adaptors and 2x tube cleaners. Quick-action vacuum generation valve creates and maintains suction capability.
- WHEEL & CASTOR-MOUNTED DESIGN ENHANCES MOVEMENT AROUND PROFESSIONAL GARAGES & WORKSHOPS: Front swivel castors with large rear wheels and integrated handle provides sturdy mobility and positioning.
- AIR SUPPLY REQUIRED FOR EFFECTIVE OIL EXTRACTION & CONTROLLED DISCHARGE TO CONTAINER FOR DISPOSAL: Ensures efficient collection and transfer of oil with reduced risk of work area spills. Vacuum and suction pressure (5CFM / 6bar - 8bar, min. 100ltr air receiver) and oil discharge (10psi - 15psi (0.7bar - 1bar)).
- SIP 2-YEAR STANDARD SILVER WARRANTY*
Technical Specification
- ITEM NO. 03722
- Operation Type: Suction / Gravity
- Collection Tray Capacity: 20ltr
- Collection Tank Capacity: 80ltr
- Collection Tray Height: 1500mm - 1810mm
- Discharge Pressure: 10psi - 15psi (0.7bar - 1bar)
- Discharge Hose Length: 2.2mtr
- Suction Pressure: 87psi - 145psi (6bar - 10bar)
- Suction Hose Length: 2.2mtr
- Vacuum Gen. Valve / Air Requirement: 5CFM / 6bar - 8bar (min. 100ltr air receiver)
- Working Temperature (Engine Oil): 40°C to 60°C
- Air Inlet: 1/4"
| Operation Type | Suction / Gravity |
| Collection Tray Capacity | 20ltr |
| Collection Tank Capacity | 80ltr |
| Collection Tray Height | 1500mm - 1810mm |
| Discharge Pressure | 10psi - 15psi (0.7bar - 1bar) |
| Discharge Hose Length | 2.2mtr |
| Suction Pressure | 87psi - 145psi (6bar - 10bar) |
| Suction Hose Length | 2.2mtr |
| Vacuum Gen. Valve / Air Requirement | 5CFM / 6bar - 8bar (min. 100ltr air receiver) |
| Working Temperature (Engine Oil) | 40°C to 60°C |
| Air Inlet | 1/4" |
