SIP 14" x 43" Swivel Head Wood Lathe
FREE SHIPPING (Mainland UK)
- 3/4" x 16TPI spindle thread size for various attachments
- 350mm max. turning diameter (1100mm between centres)
- Heavy-duty cast iron legs and lathe bed for enhanced stability
- Fitted with hollow tailstock suitable for long-hole boring
- Digital speedometer display up to 2000rpm
We accept
SIP 14" x 43" Swivel Head Wood Lathe

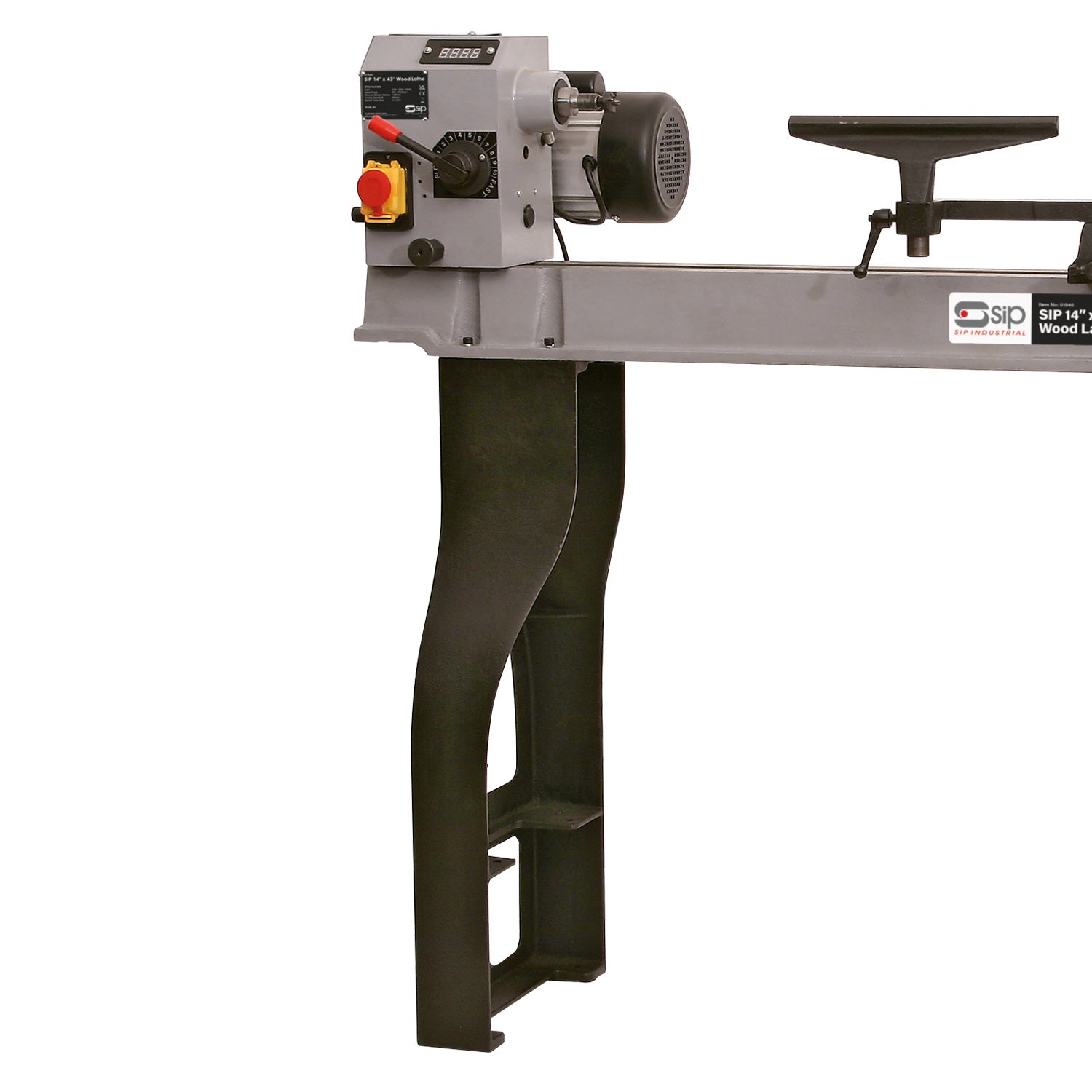

The SIP 14" x 43" Swivel Head Wood Lathe is an ideal solution for those seeking a robust and adaptable lathe for woodturning. Crucial to a functioning workshop, this machine tool allows a woodturner to accurately shape, turn, drill and sand workpieces to the desired specification.
For added functionality, a 360° swivel headstock with four locking positions is fitted to allow outboard turning of larger wood materials. Heavy-duty cast iron legs are fitted to the lathe to maximise stability during this process. The lathe bed, headstock and tailstock are also manufactured to a professional finish from heavy-duty cast iron.
The headstock has an MT1 taper and tailstock an MT2 taper alongside a variable speed motor which runs between 500rpm and 2000rpm. The easy-change speed handle has 10 settings and a digital readout speed display for greater turning control.

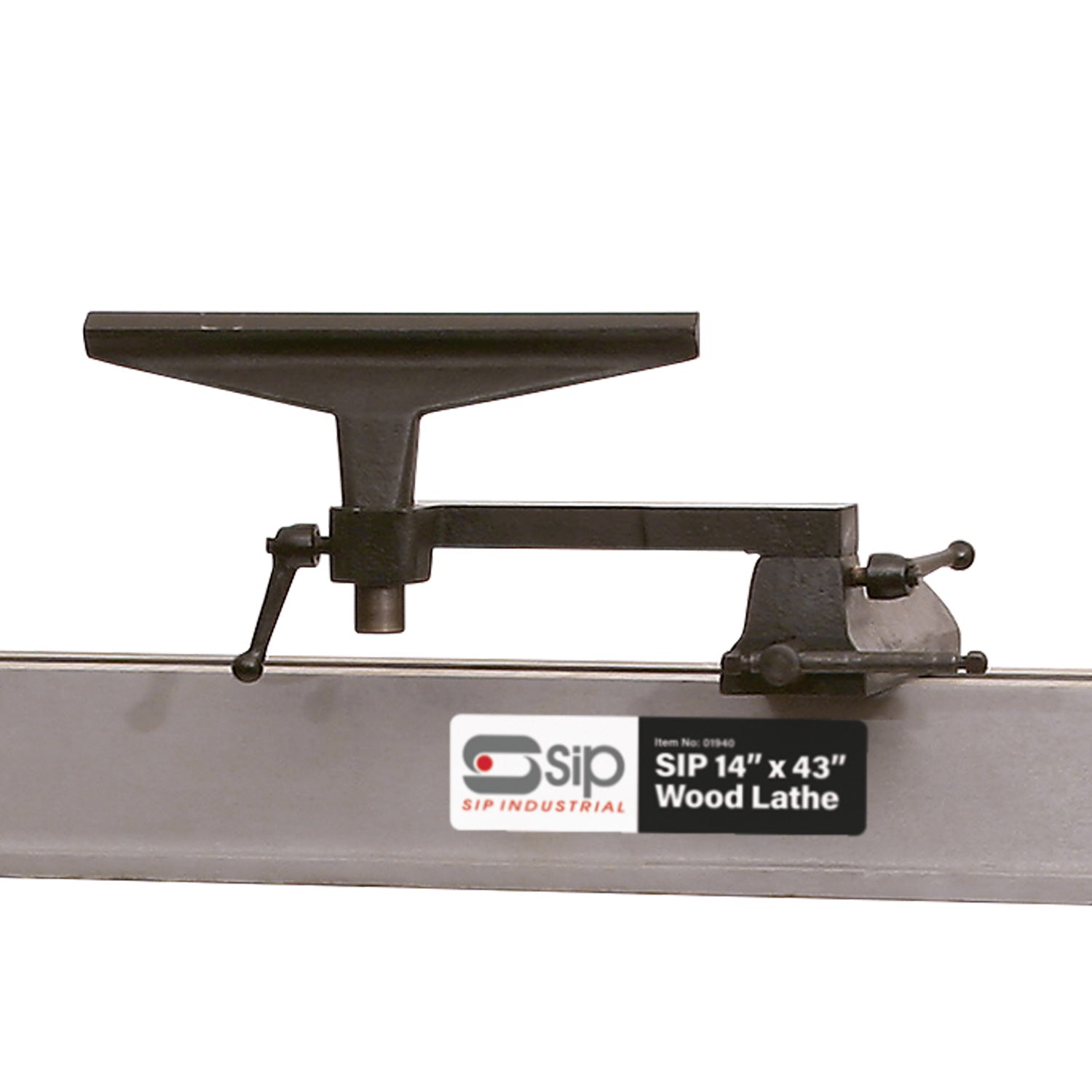

Supplied with tool rest, 6" faceplate, drive and tailstock centres.
Applications & uses: Perfect for turning furniture legs, staircase spindles and bespoke woodwork items. Accurately turns, shapes, drills and sands workpieces to the desired specification. Suitable for soft and hard woods.
- 3/4" x 16TPI SPINDLE THREAD SIZE: Allows the use of various turning attachments.
- 350MM MAX. TURNING DIAMETER (1100MM BETWEEN CENTRES): Enables a variety of woodwork projects and jobs.
- 360° SWIVEL HEADSTOCK WITH 4 LOCK POSITIONS: Allows for outboard turning of larger wood materials.
- HEAVY-DUTY CAST IRON LEGS: Prevents flex and movement of the bed and enhances stability when outboard turning.
- HEAVY-DUTY CAST IRON LATHE BED: Ensures greater turning stability and accuracy.
- CAST IRON MT1 HEADSTOCK AND MT2 TAILSTOCK: For an assured hold to the workpiece when turning.

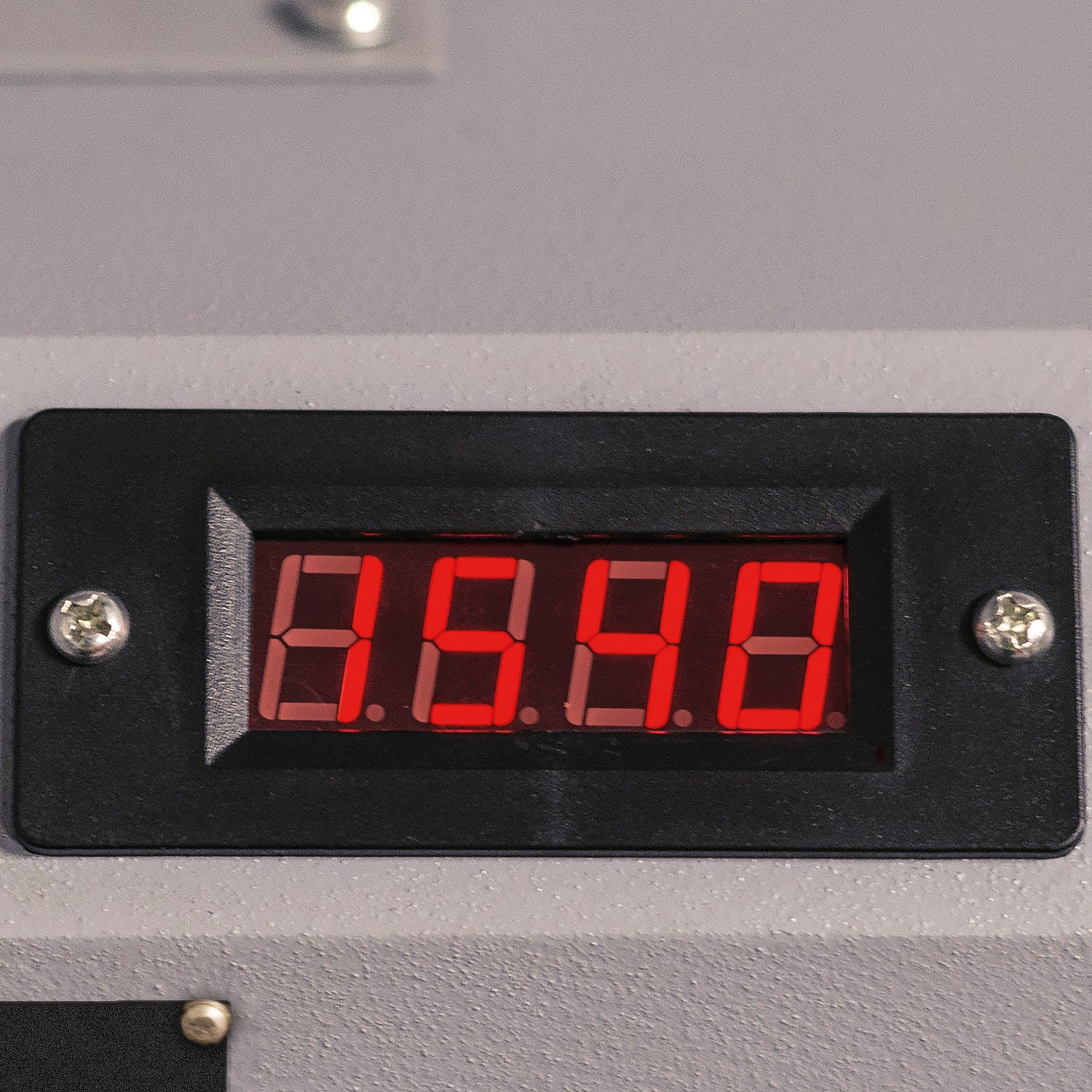

- DIGITAL SPEEDOMETER DISPLAY: Provides accurate readout of headstock spindle speed.
- FITTED WITH HOLLOW TAILSTOCK FOR LONG HOLE BORING: Offers added versatility for professional applications.
- SIP 2-YEAR STANDARD SILVER WARRANTY*
Technical Specification
- ITEM NO. 01940
- Input Supply: 230v (13A)
- Motor Power: 750w (1hp)
- Speed Range: 500rpm - 2000rpm
- Distance Between Centres: 1100mm (43")
- Turning Capacity: 350mm (14")
- Spindle Through Hole: 10mm (Drive) / 10mm (Tailstock)
- Drive Spur Size: 1 Morse Taper
- Tailstock Rotating Centre Size: 2 Morse Taper
- Noise Level: 68dB(A)
| Input Supply | 230v (13A) |
| Motor Power | 750w (1hp) |
| Speed Range | 500rpm - 2000rpm |
| Distance Between Centres | 1100mm (43") |
| Turning Capacity | 350mm (14") |
| Spindle Through Hole | 10mm (Drive) / 10mm (Tailstock) |
| Drive Spur Size | 1 Morse Taper |
| Tailstock Rotating Centre Size | 2 Morse Taper |
| Noise Level | 68dB(A) |
