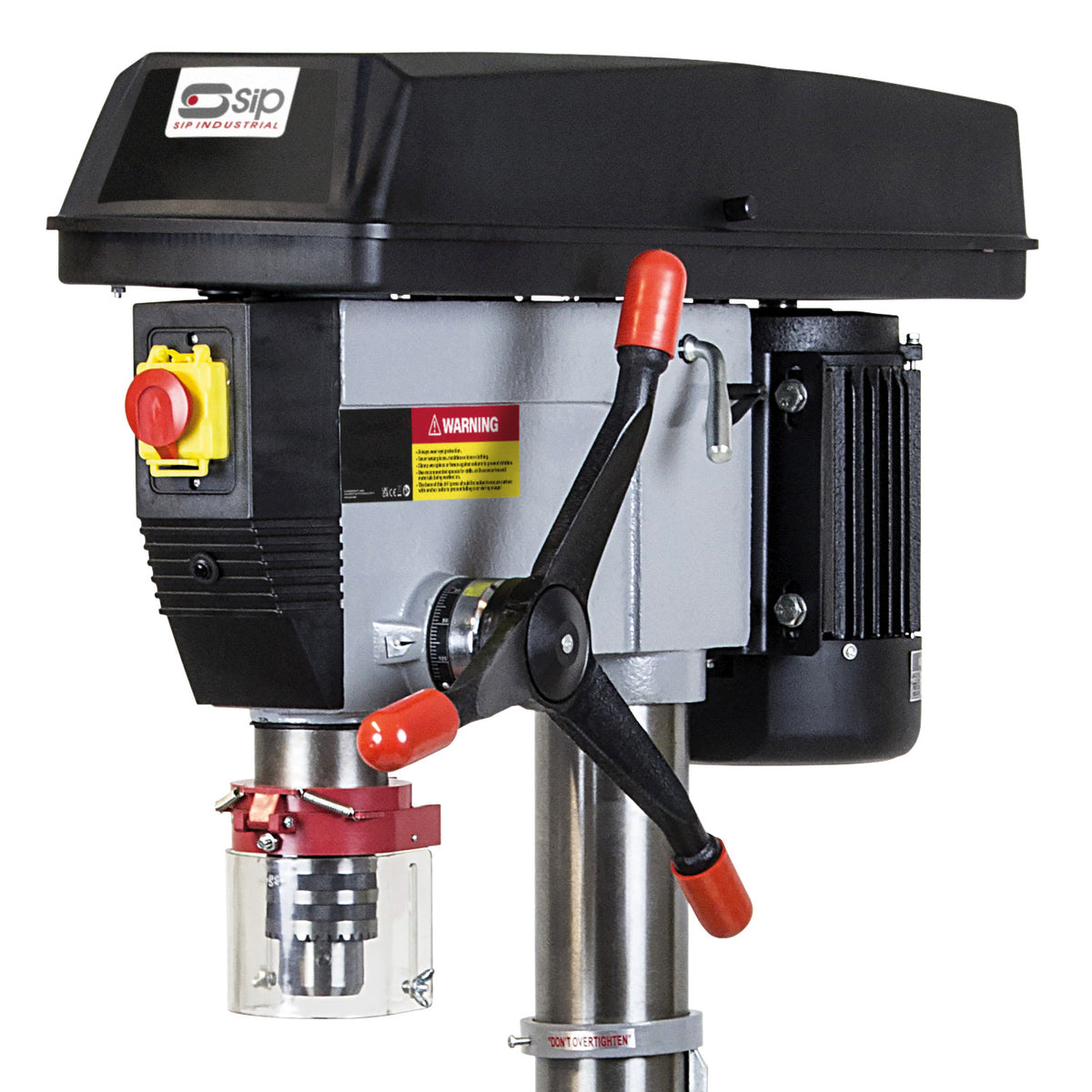

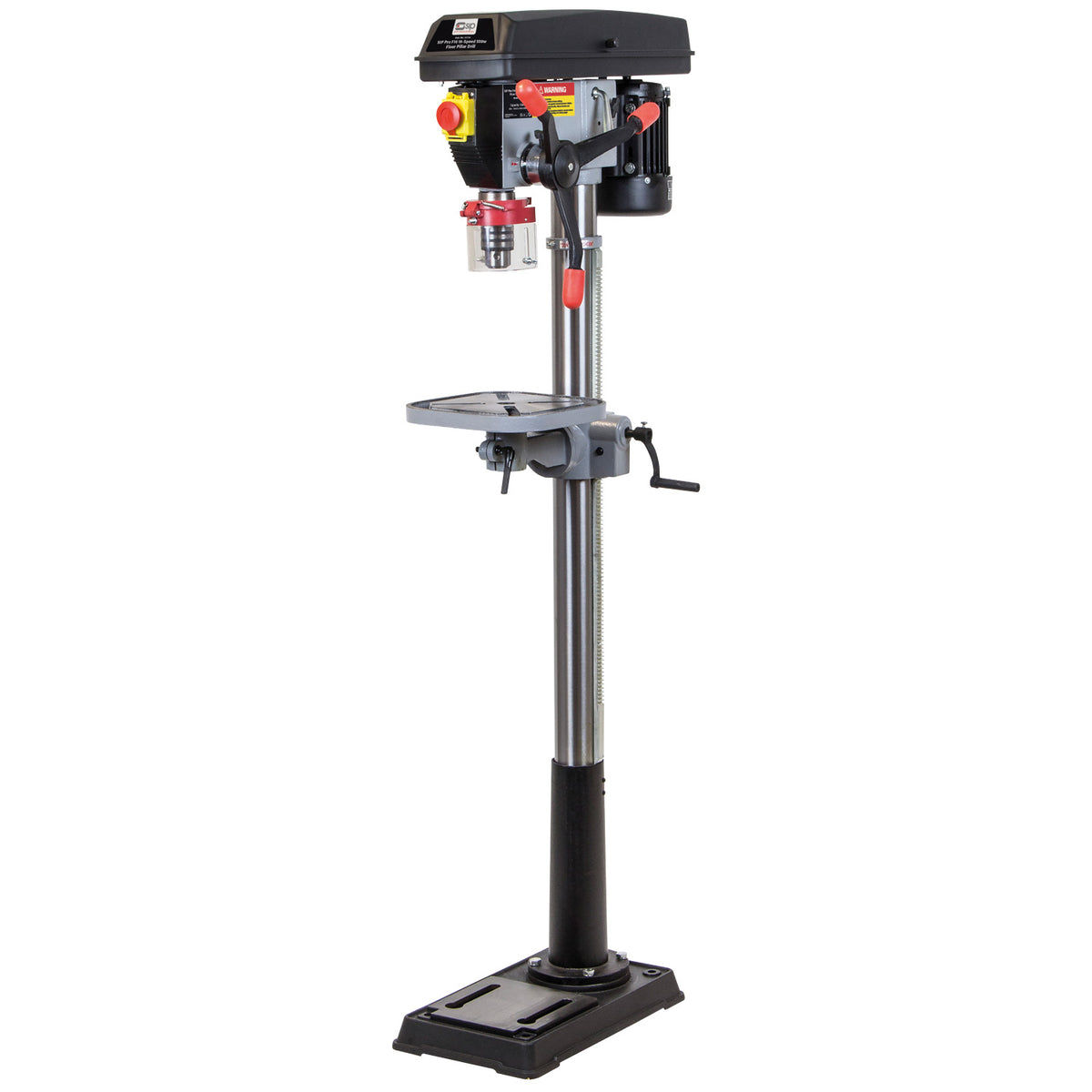

SIP Pro F16 Floor Pillar Drill 1570mm, 16-Speed, 550W (01714)
SIP Pro F16 Floor Pillar Drill 1570mm, 16-Speed, 550W (01714)
- 16 spindle speeds powered by a 550w motor from a 230v (13A) supply
- Supports a variety of drilling applications
- High-power brushless induction motor
- Fitted with drilling depth stop
- Adjustable drill table for greater accuracy
SIP Pro F16 Floor Mounted Pillar Drill, 1570mm Height, 16-Speed, 550W 230V (01714)

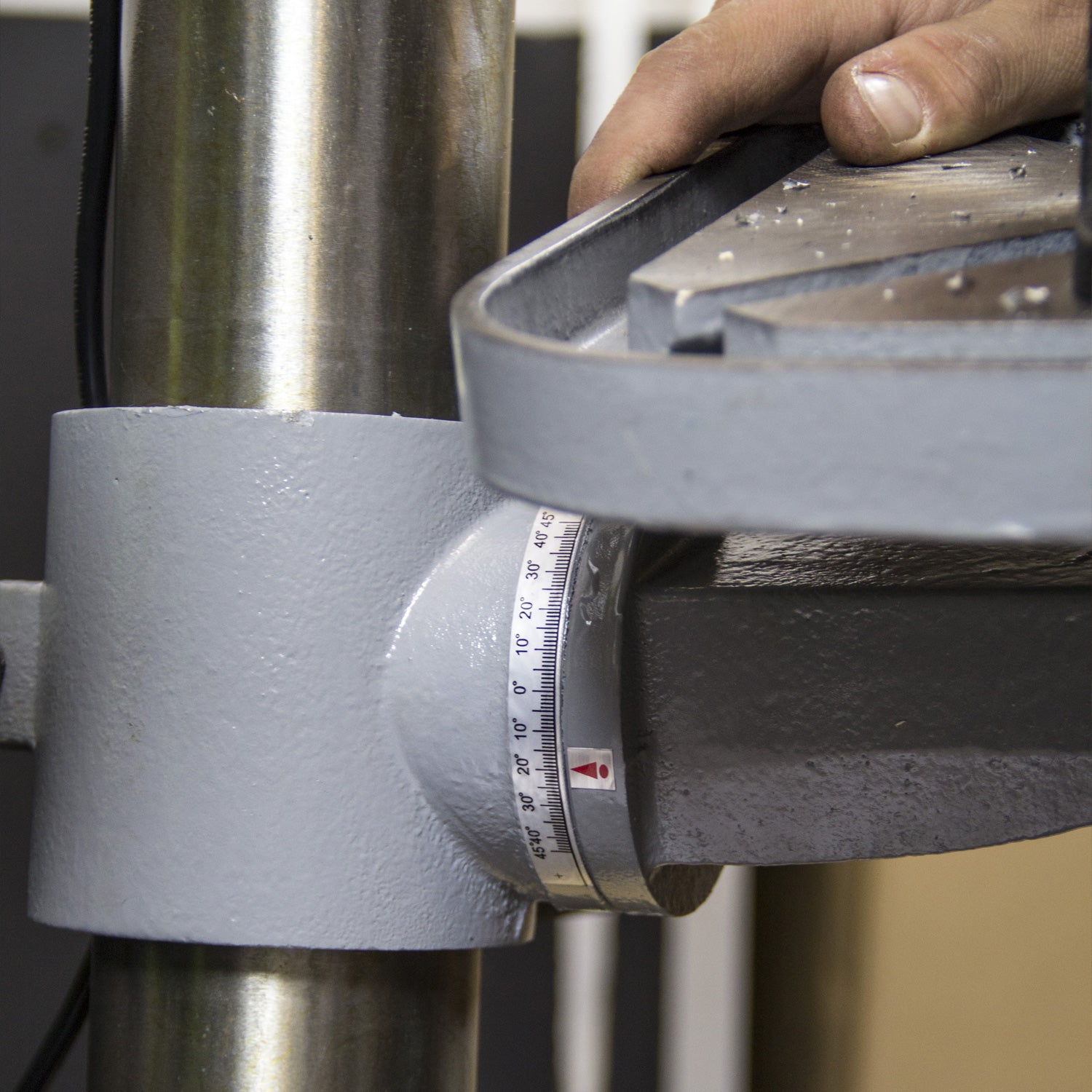

The SIP Pro F16 16-Speed 550w Floor Pillar Drill makes light work of preparing and finishing a variety of workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table and tilt scale, the drill can be easily positioned to enable accurate drilling.

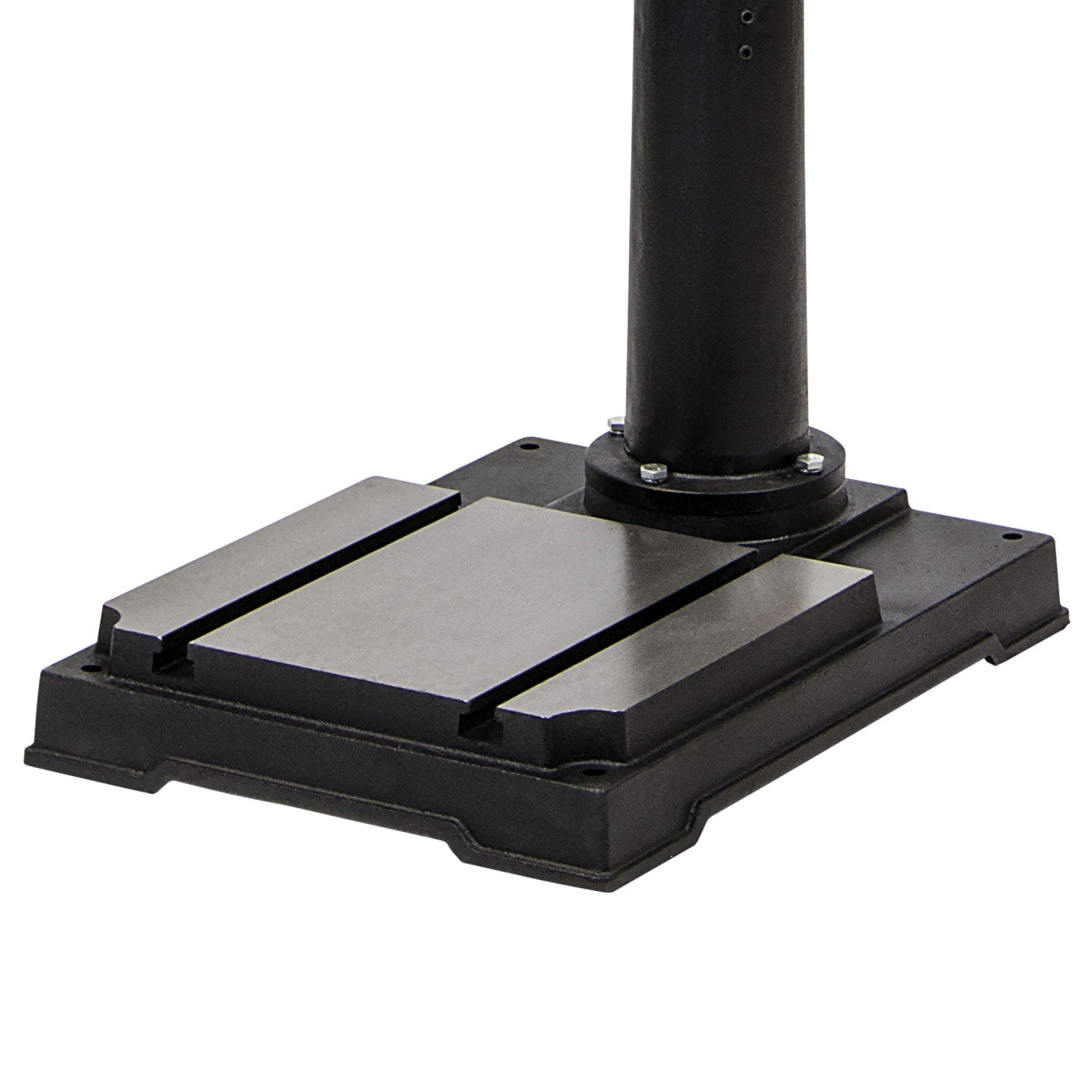

Longevity and safety are paramount to this pillar drill, using integrated chuck guards to reduce user risk and a sturdy cast iron base for added stability. With a floor-mounted design, it is perfect for a range of professional applications in workshop settings.
Applications & uses: Suitable for ferrous and non-ferrous metals, woods and plastics, pilot, blind, batch and general drilling applications, manufacturing gates, rails and trailers, plus metalwork and woodwork environments.
- SUPPORTS A VARIETY OF DRILLING APPLICATIONS: Compatible with materials including ferrous and non-ferrous metals, hard and soft woods, and high-density plastics.
- MULTI-SPEED FUNCTIONALITY: Allow precise control of hole sizes across the drilling spectrum.
- HIGH-POWER BRUSHLESS INDUCTION MOTOR: Delivers powerful performance for consistent high-quality drilling.
- INTUITIVE FEATURES FOR EASE-OF-USE: Adjustable drilling table and 3-lever handle ensures smooth drilling.
- FITTED WITH DRILLING DEPTH STOP: Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.

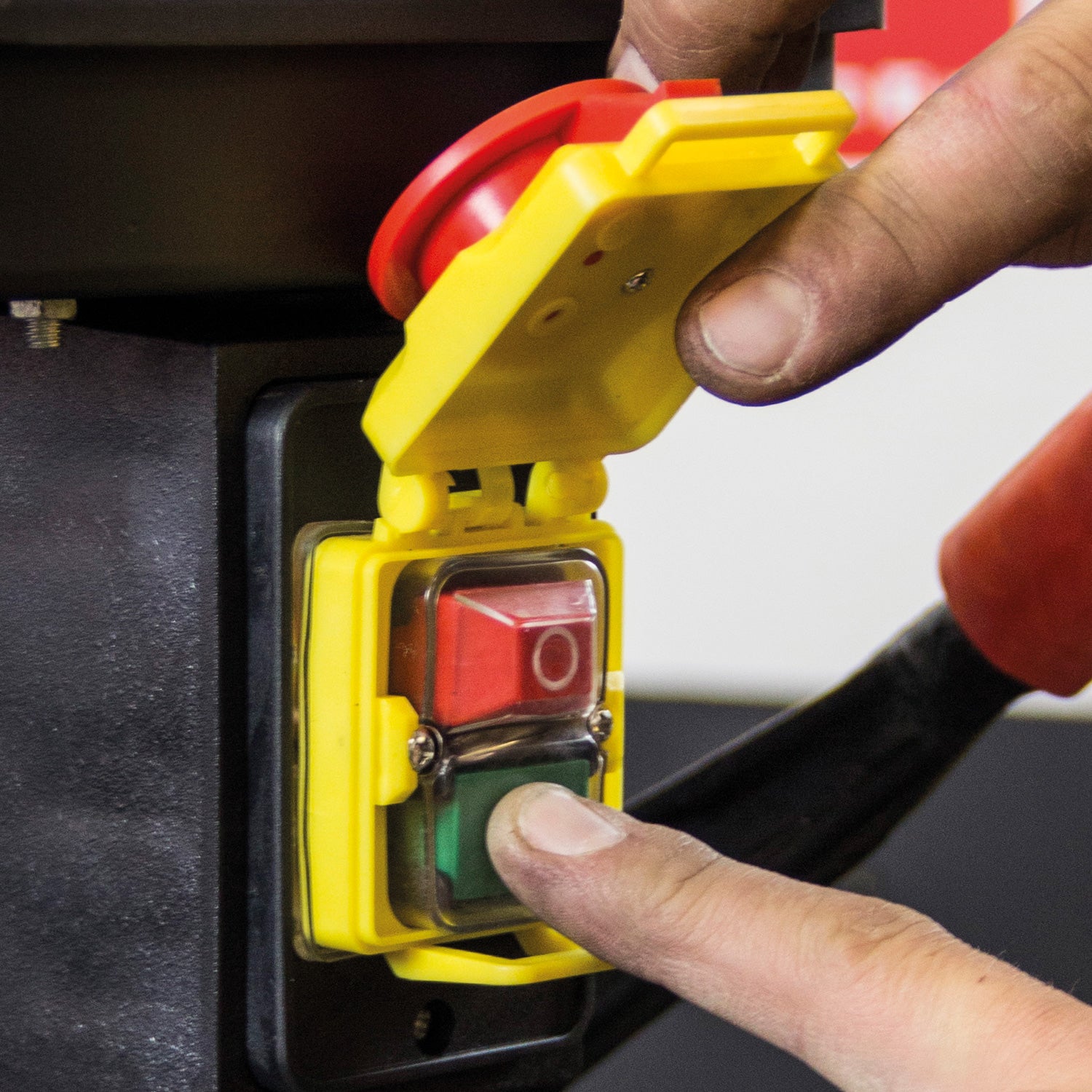

- SAFETY INTERLOCK SWITCH: Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up acidental.
| Input Voltage | 230v (13A) |
| Motor Power | 550w |
| No. of Speeds | 16 speeds |
| Speed Range | 220rpm - 2800rpm |
| Drill Bit Size | 3mm - 16mm |
| Max. Drilling Capacity | 16mm |
| Spindle Taper | MT2 |
| Table Size | 250mm x 250mm |
| Base Size | 460mm x 270mm |
| Column Diameter | Ø 72mm |
| Swing | 316mm |
| Height | 1570mm |
| Spindle Travel | 80mm |
| Collar Diameter | Ø 72mm |
| Max. Distance | 663mm (chuck to table) / 1150mm (chuck to base) |
