Description:

Rothley Ares 2 Sliding Door Gear Wardrobe Twin Track System Kit 70kg

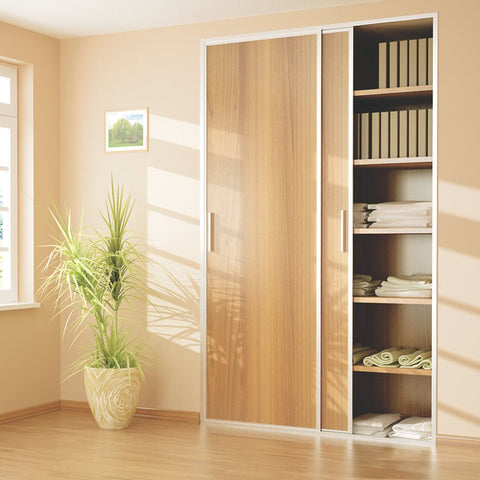

ARES 2 is a versatile twin track sliding door system for use with two or three doors. The system is ideal for sliding wardrobe door and features high quality bottom mounted rollers on ball bearings with top mounted guides, each running on high quality aluminium tracks.

For use on internal sliding wardrobe or cupboard doors of wood, MDF or laminate.

Kit contains all components needed to fit two or three internal sliding wooden, MDF or doors (depending on size opening purchased).

System Features:

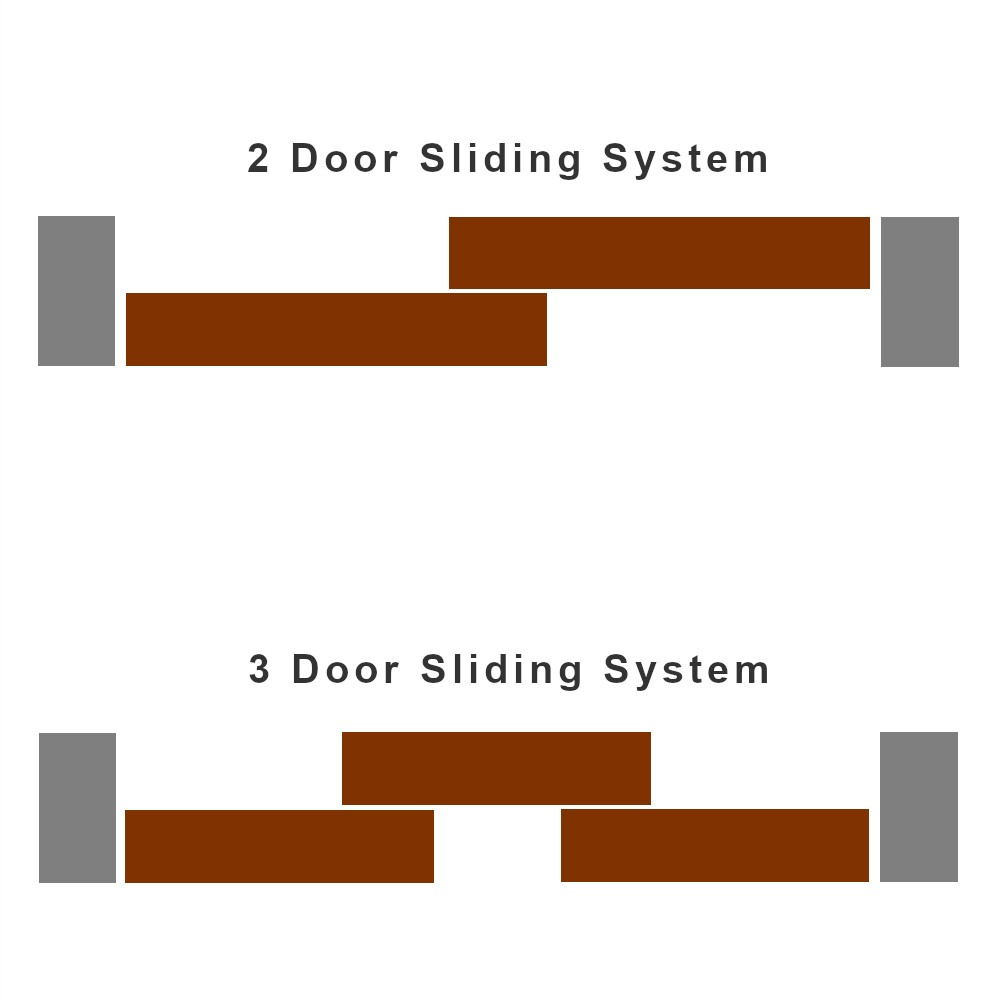

• ARES 2 Sliding Door System available for 2 or 3 Doors.
• This system is suitable for doors up to 70kg in weight
• Minimum door thickness needed for this system is 16mm
• No maximum door thickness (individual rails can be put further apart to accommodate thicker doors)
• Aluminium track for a durable, long lasting finish.
• Aluminium tracks can be easily cut to the required length
• Multiple systems can be aligned together to create longer tracks when required
• Double track top and bottom means that positioning can be adjusted to accommodate different depths of doors
• Strong bottom fixed rollers are mounted on ball bearings for extra smooth and quiet running
• Adjustable top mounted guides make installation and removal of doors easy.
• Anti-jump system means wheels will always run smoothly.
• Tested to over 100,000 cycles - to BS EN152

System Includes:

• 1200mm - 2 Doors: 4 x 1200mm Track, 4 x Bottom Wheels, 4 x Upper Guides, 2 x Wheel Positioner & Fixings Screws.

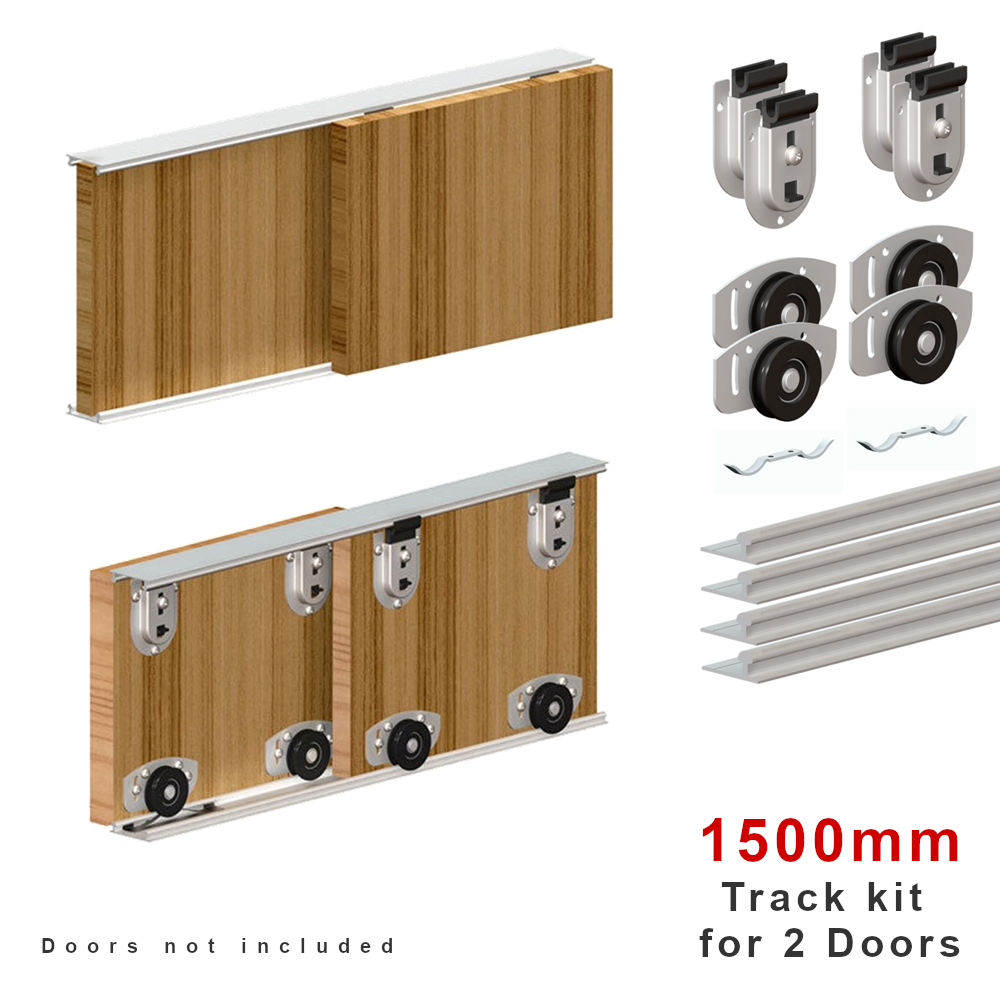

• 1500mm - 2 Doors: 4 x 1500mm Track, 4 x Bottom Wheels, 4 x Upper Guides, 2 x Wheel Positioner & Fixings Screws.
• 1800mm - 2 Doors: 4 x 1800mm Track, 4 x Bottom Wheels, 4 x Upper Guides, 2 x Wheel Positioner & Fixings Screws.
• 2000mm - 3 Doors: 4 x 2000mm Track, 6 x Bottom Wheels, 6 x Upper Guides, 3 x Wheel Positioner & Fixings Screws.
• 2400mm - 3 Doors: 4 x 2400mm Track, 6 x Bottom Wheels, 6 x Upper Guides, 3 x Wheel Positioner & Fixings Screws.

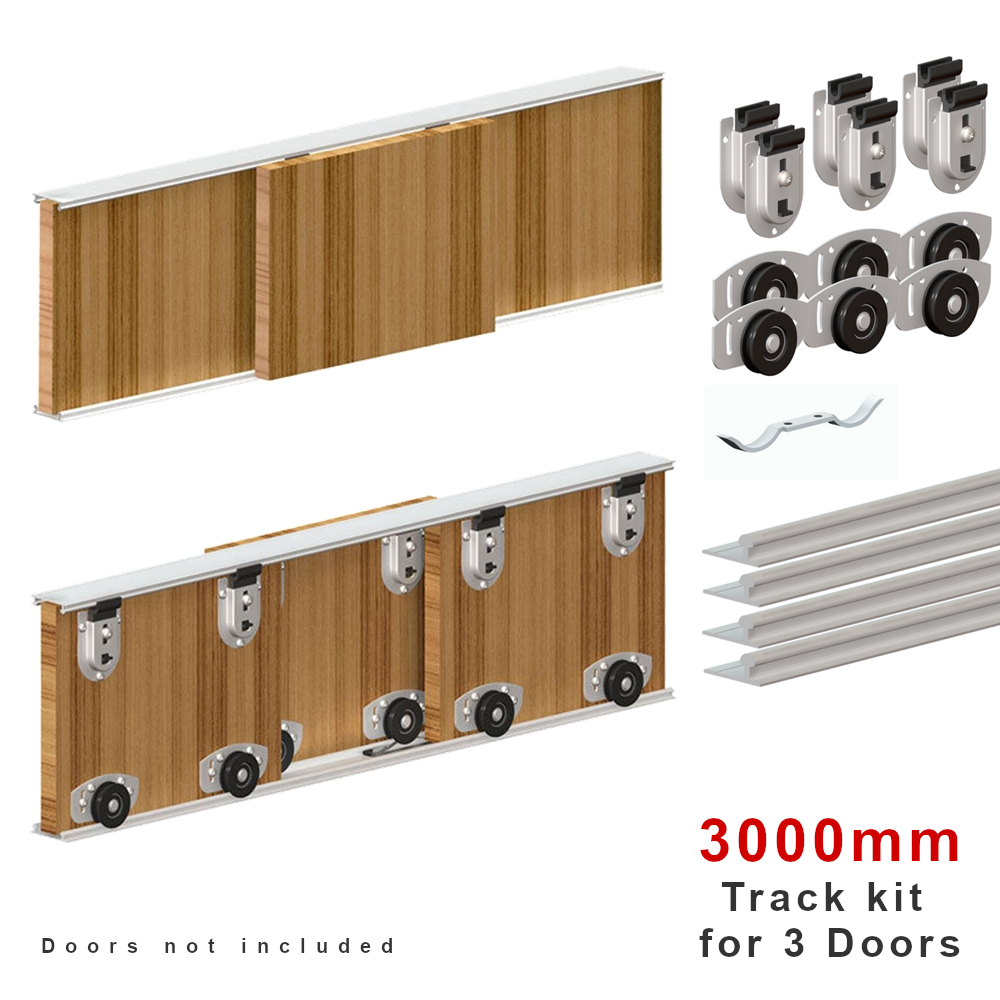

• 3000mm - 3 Doors: 4 x 3000mm Track, 6 x Bottom Wheels, 6 x Upper Guides, 3 x Wheel Positioner & Fixings Screws.

System Specification:

• Maximum door weight: 70kg (154lb)
• Maximum door height: n/a
• Maximum door width: n/a
• Minimum door thickness: 16mm
• Maximum door thickness: n/a
• Door Material: Timber
