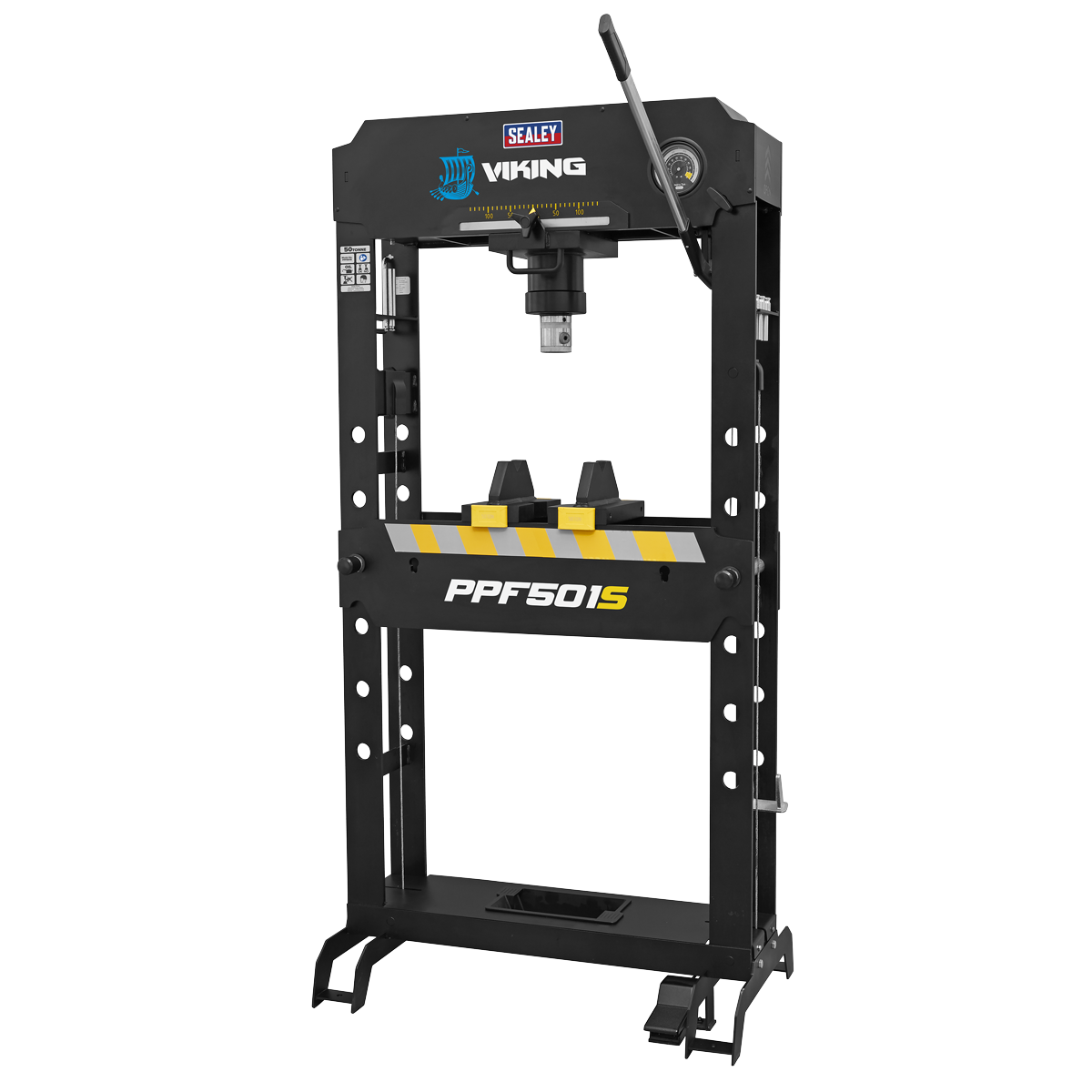

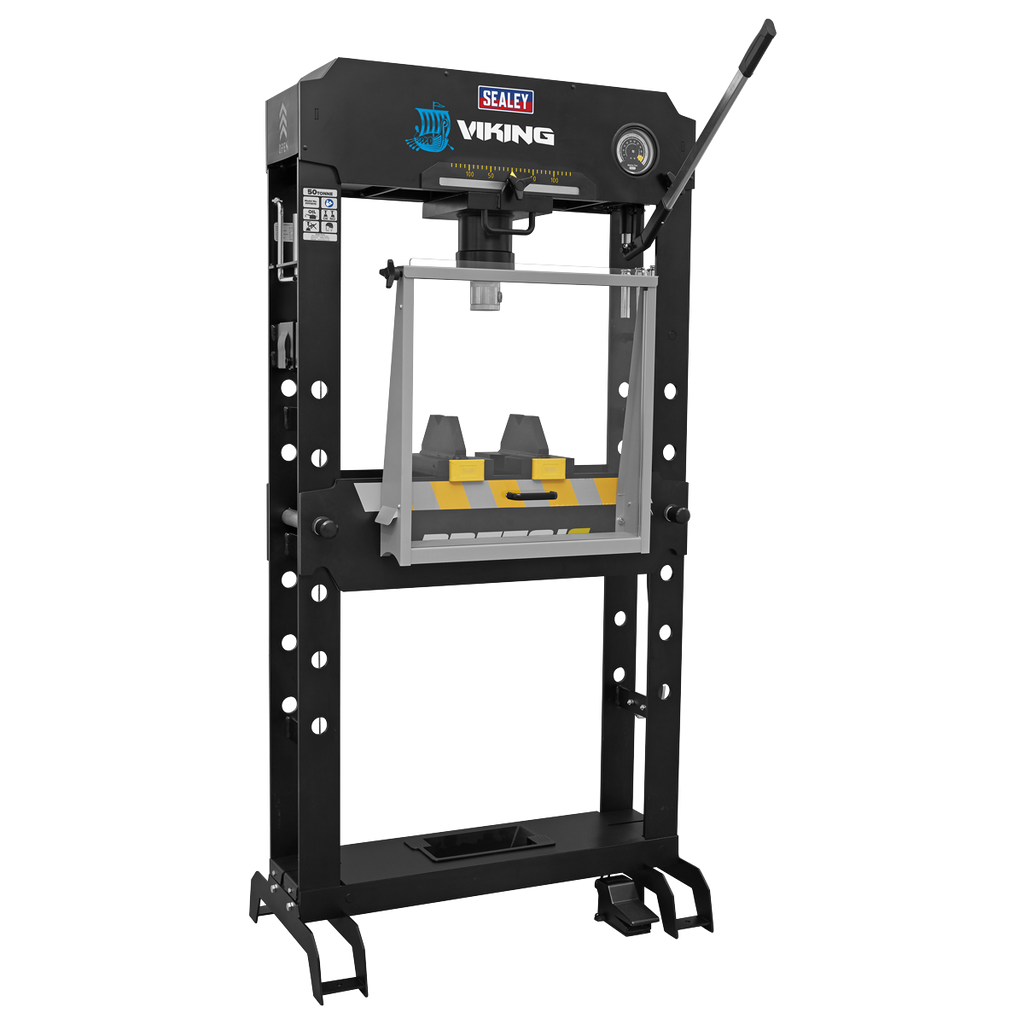

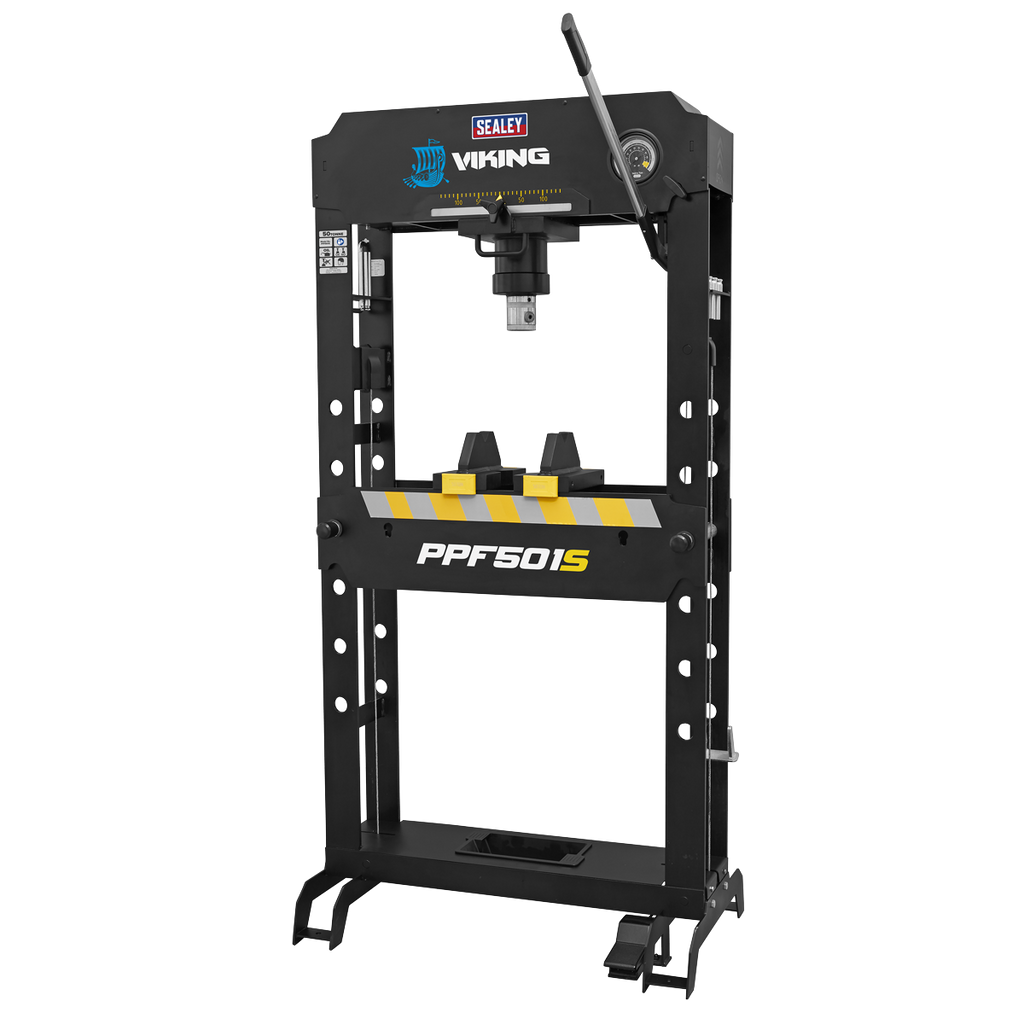

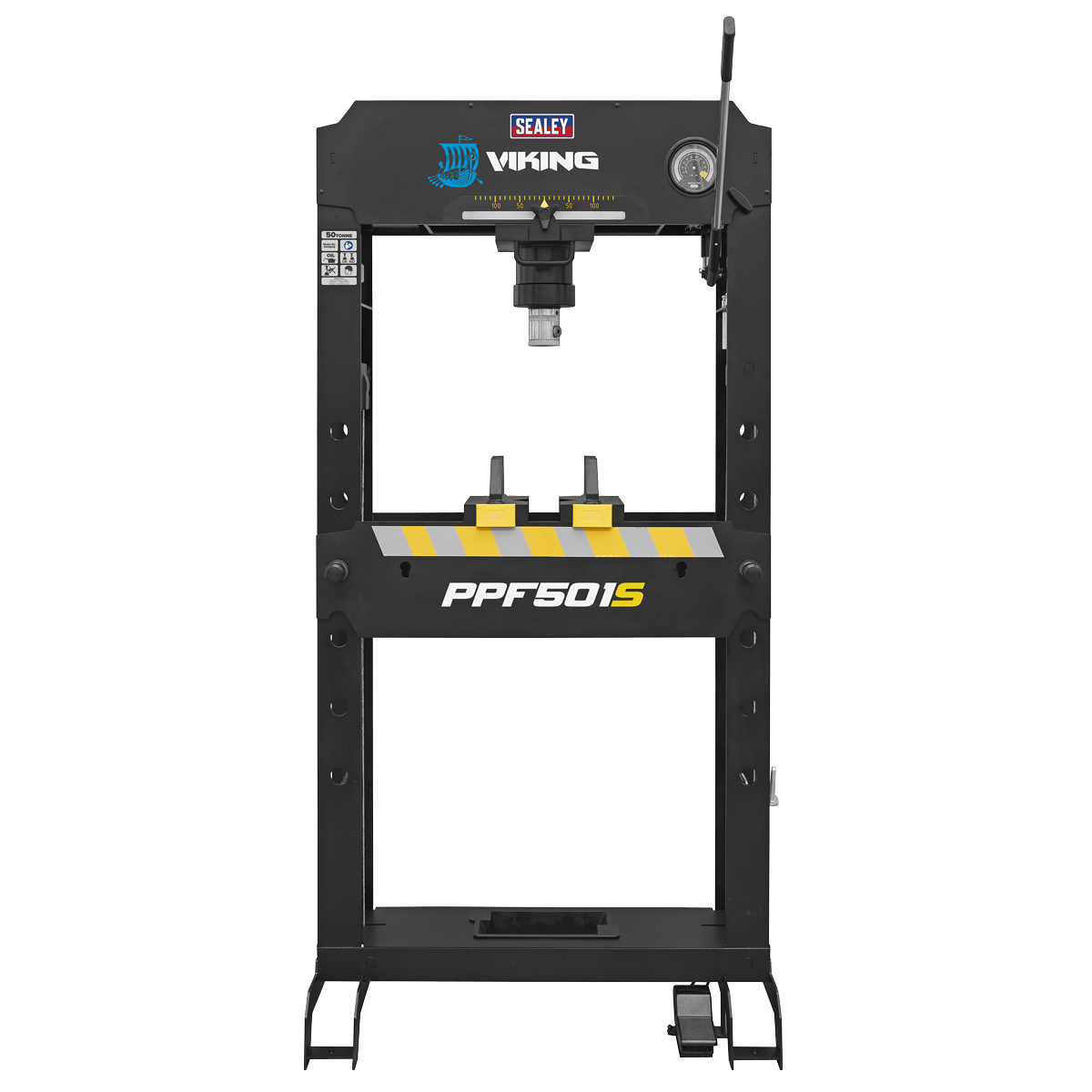

Viking Floor Type Air/Hydraulic Press with Sliding Ram, 50 Tonne
Viking Floor Type Air/Hydraulic Press with Sliding Ram, 50 Tonne
- HEAVY-DUTY - Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.

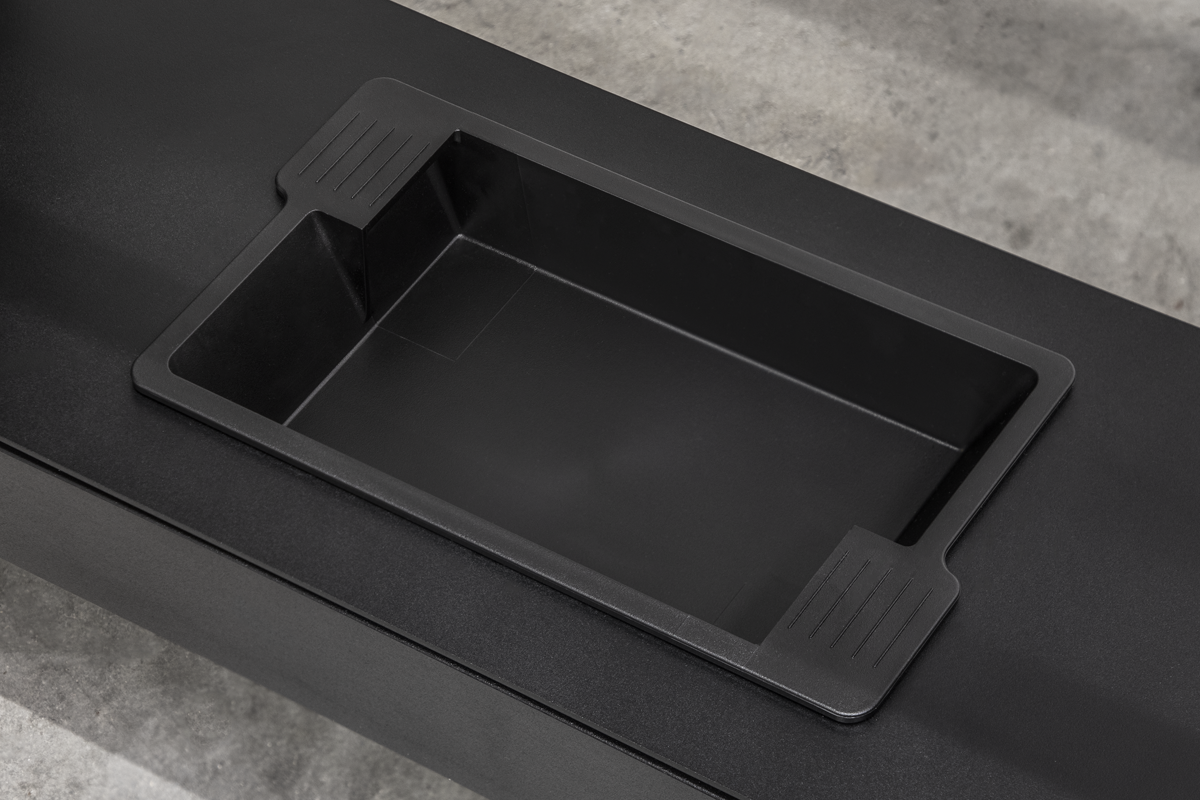

- ADJUSTABLE - Adjustable work area with removable tray.
- HYDRAULIC RAM - Sliding hydraulic ram assembly giving 280mm of lateral travel for off-centre pressing applications.
- GAUGE - Frame head fitted with ram pressure gauge.

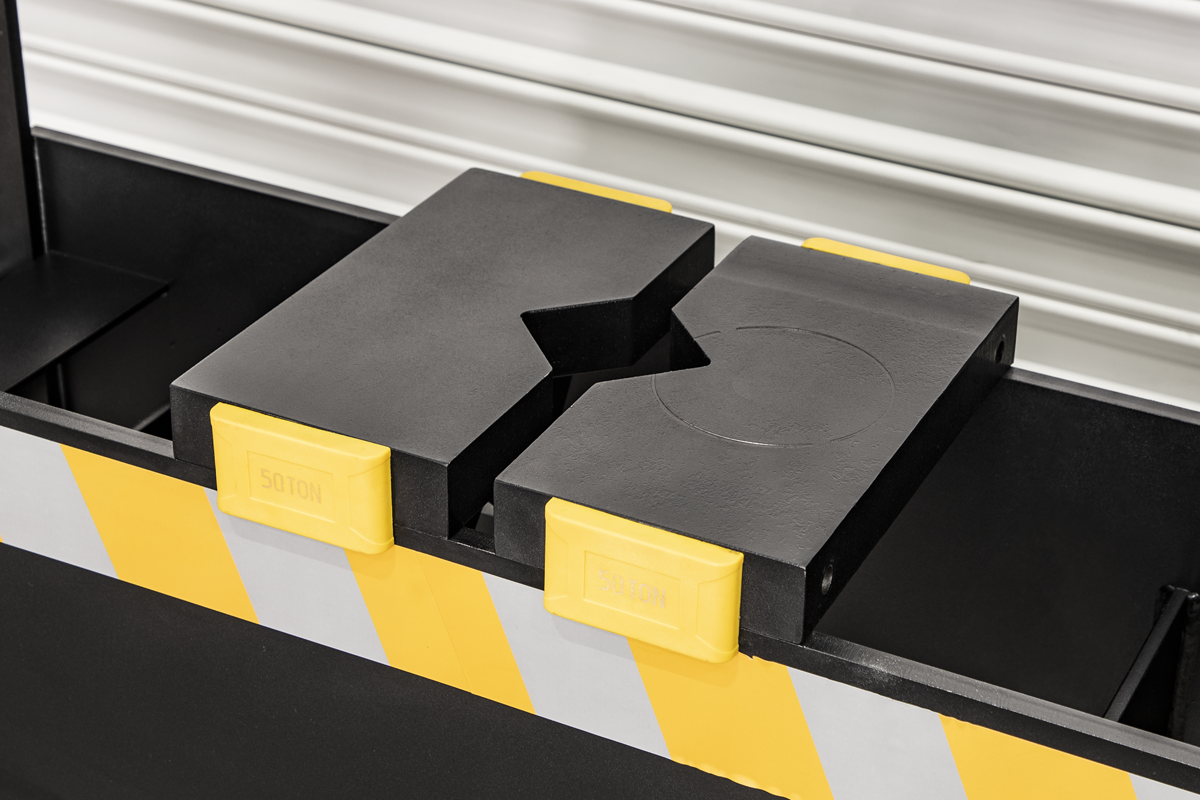

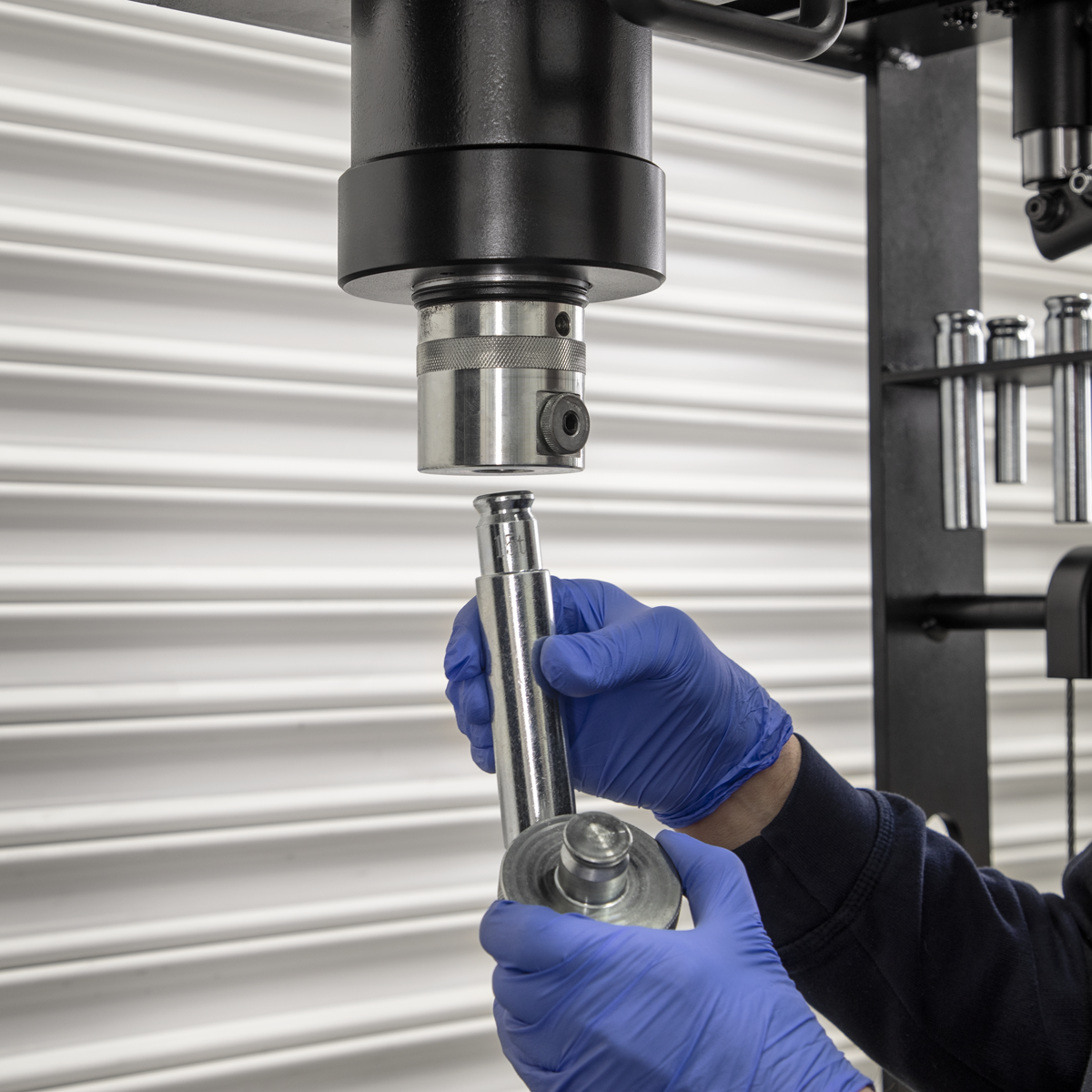

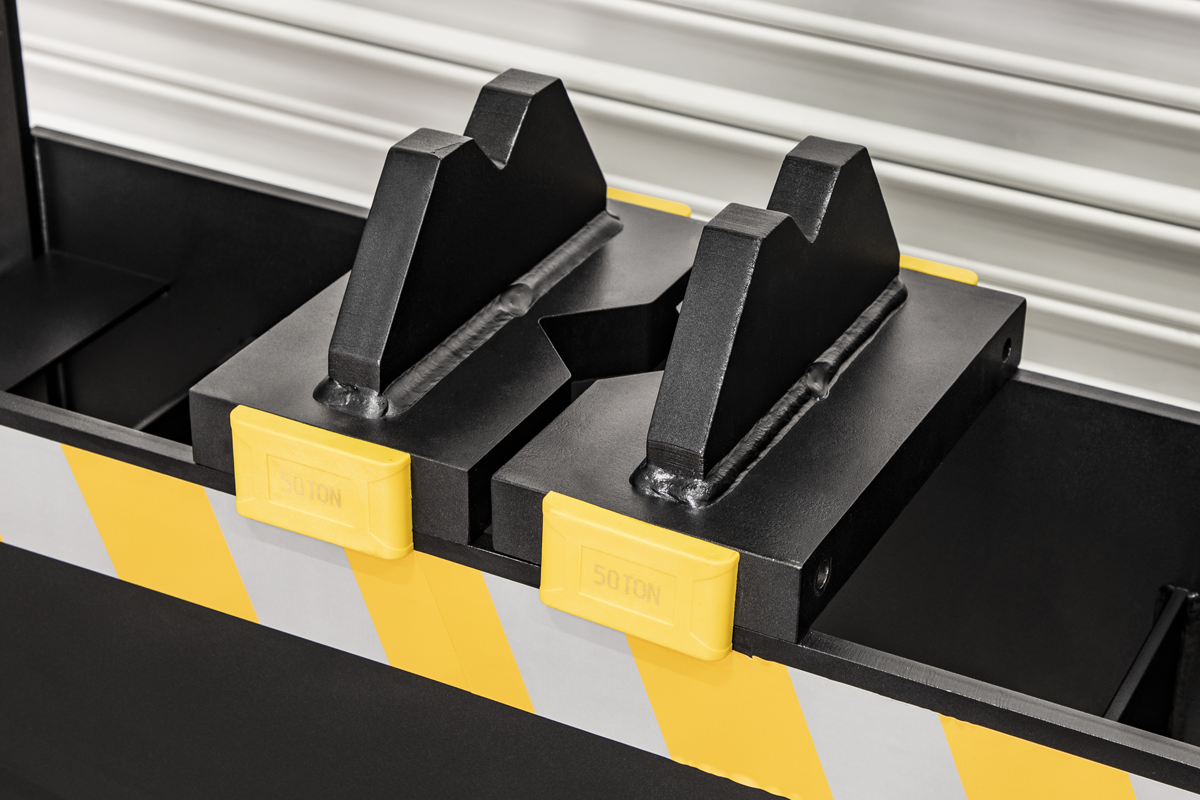

- SUPPLIED - Supplied with press pins, flat pressing plate/V-blocks.

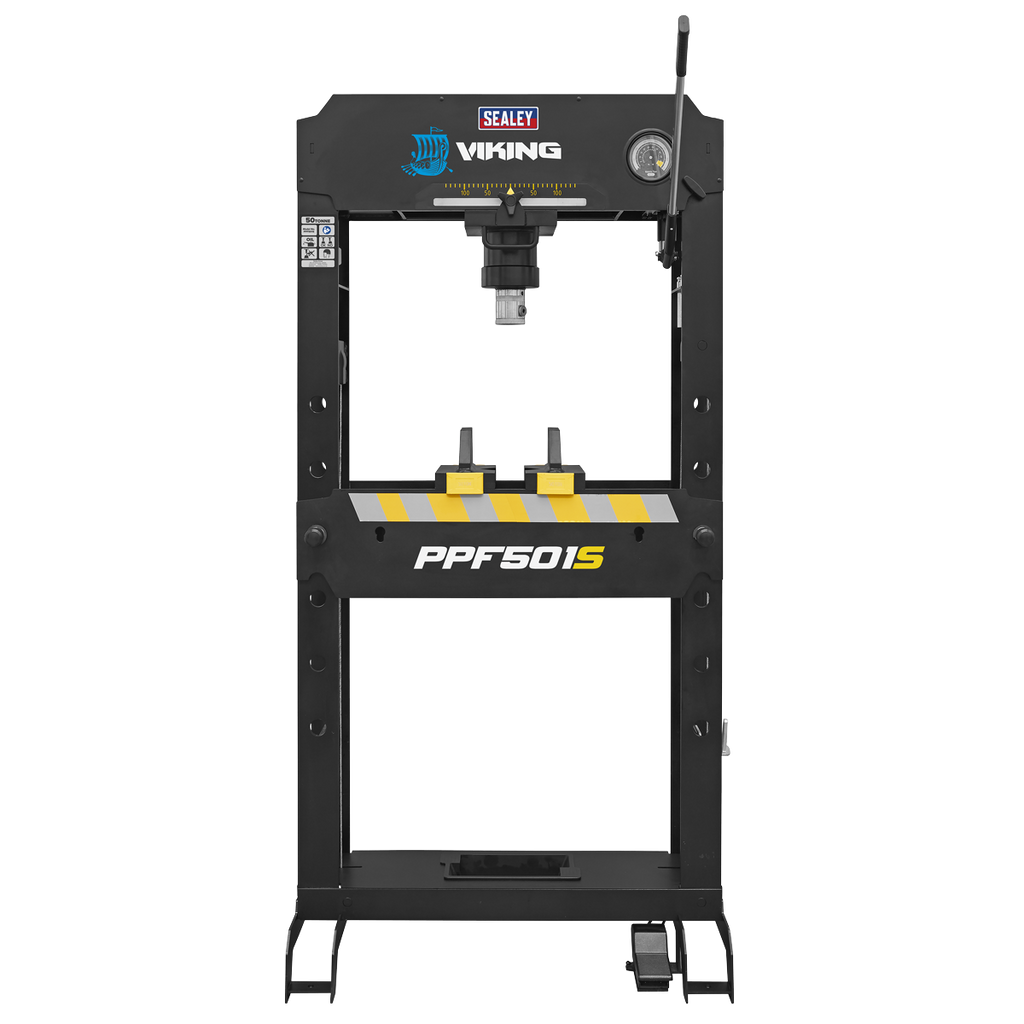

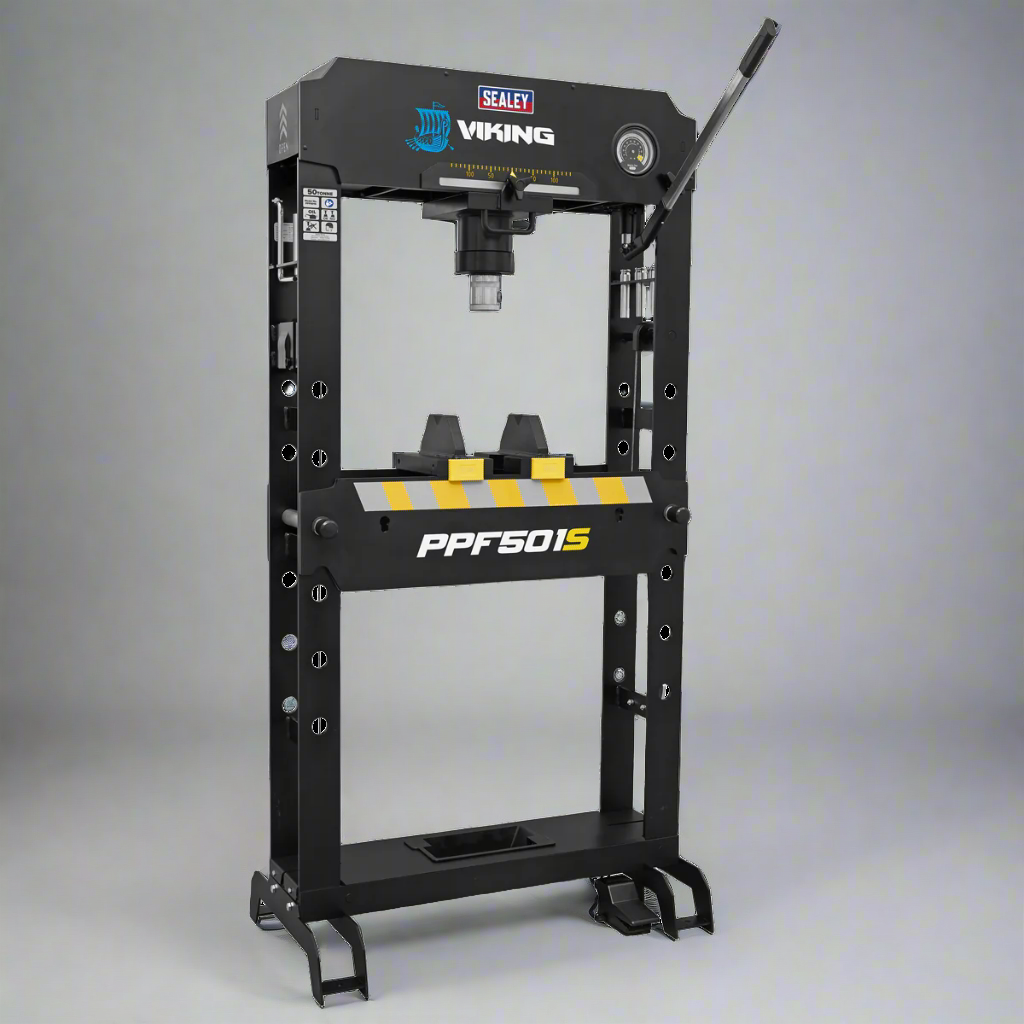

Sealey PPF501S Viking Floor Type Air/Hydraulic Press with Sliding Ram & Foot Pedal, 50 Tonne Capacity
The Viking PPF501S air-powered 50-tonne press combines effortless foot pedal operation with a game-changing sliding ram system—eliminating repetitive manual pumping and constant workpiece repositioning for faster, smarter pressing operations.
Key Features and Benefits
Air-Powered 50 Tonne Hydraulic System

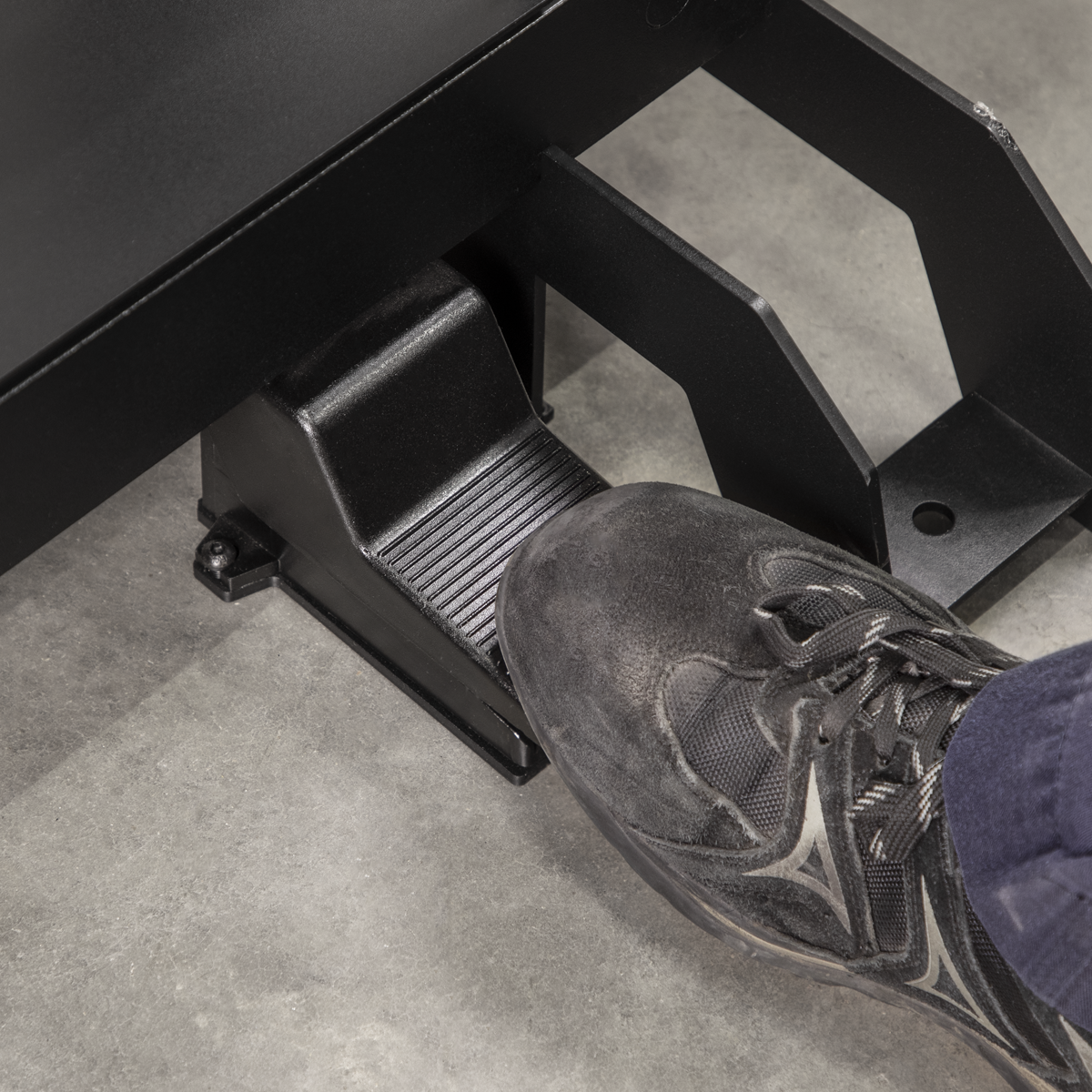

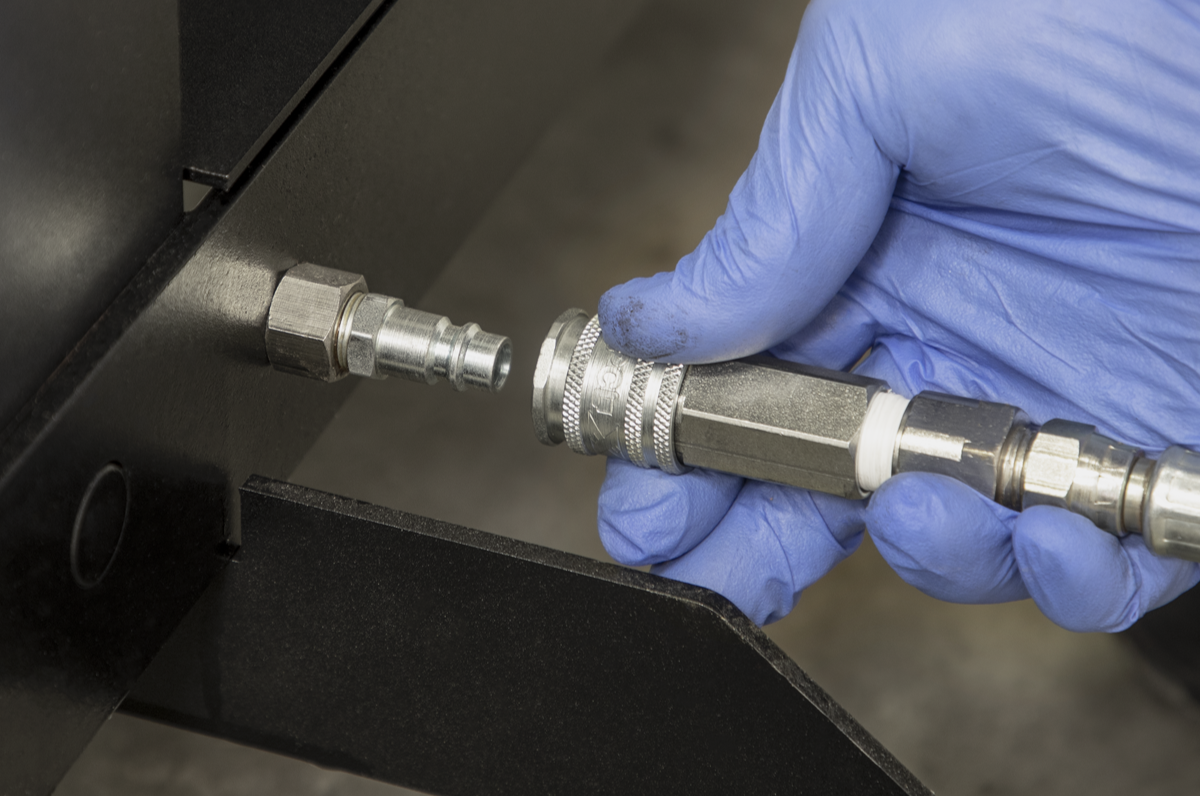

Heavy-duty steel frame with integral air motor powering the hydraulic pump unit delivers effortless 50-tonne pressing force via foot pedal control - no manual pumping required. Air consumption: just 4.5cfm.

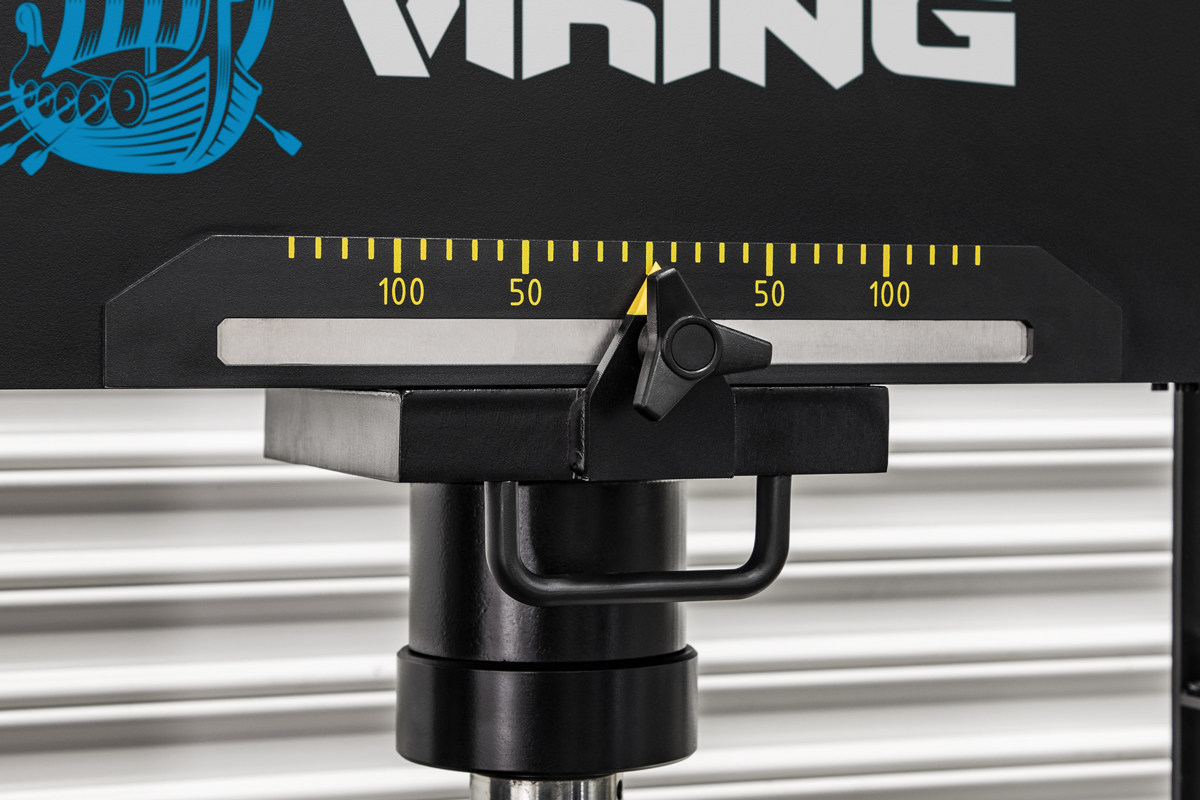

280mm Sliding Ram Technology
Revolutionary sliding hydraulic ram assembly provides 280mm of lateral travel for off-centre pressing applications, dramatically boosting productivity by eliminating the need to constantly reposition heavy or awkward components.
Precision Screw Adjustable Ram
Features 220mm ram stroke with 75mm screw extension and 123.6mm ram diameter for exceptional positioning control. Adjustable work area with removable tray adapts to virtually any pressing configuration.

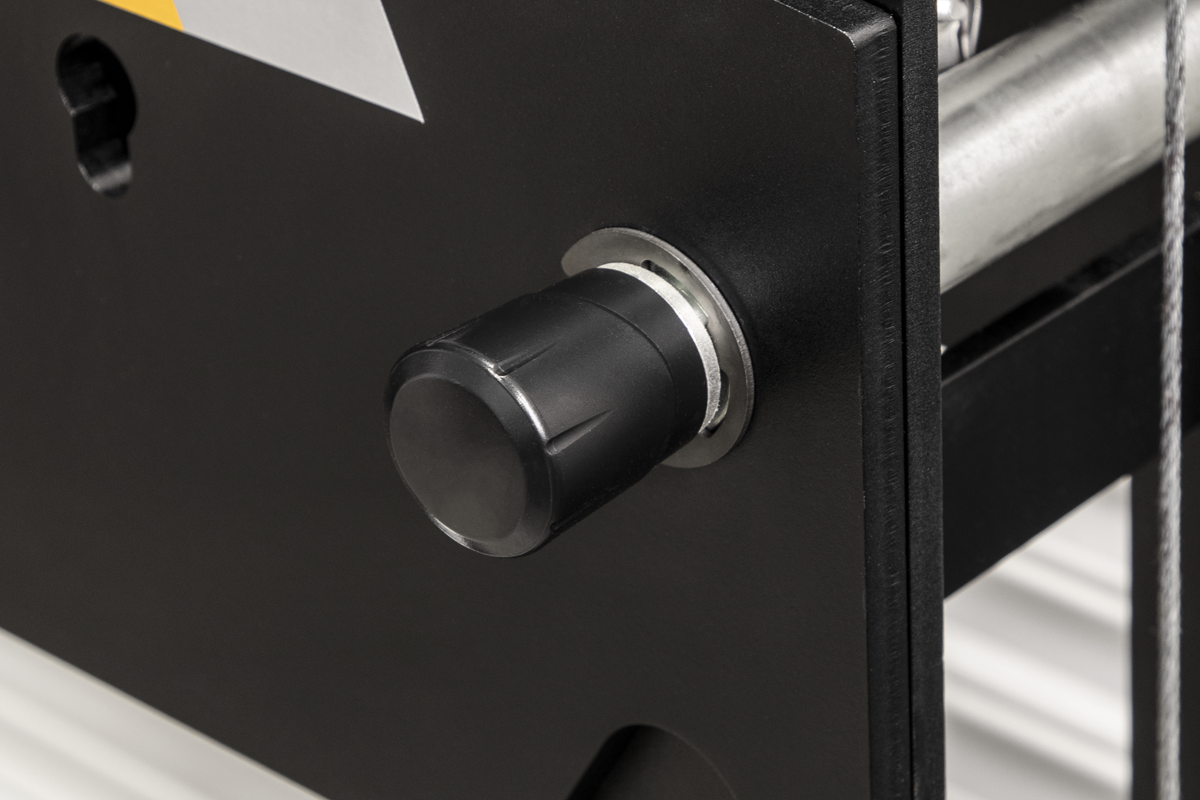

Winch-Assisted Press Table System

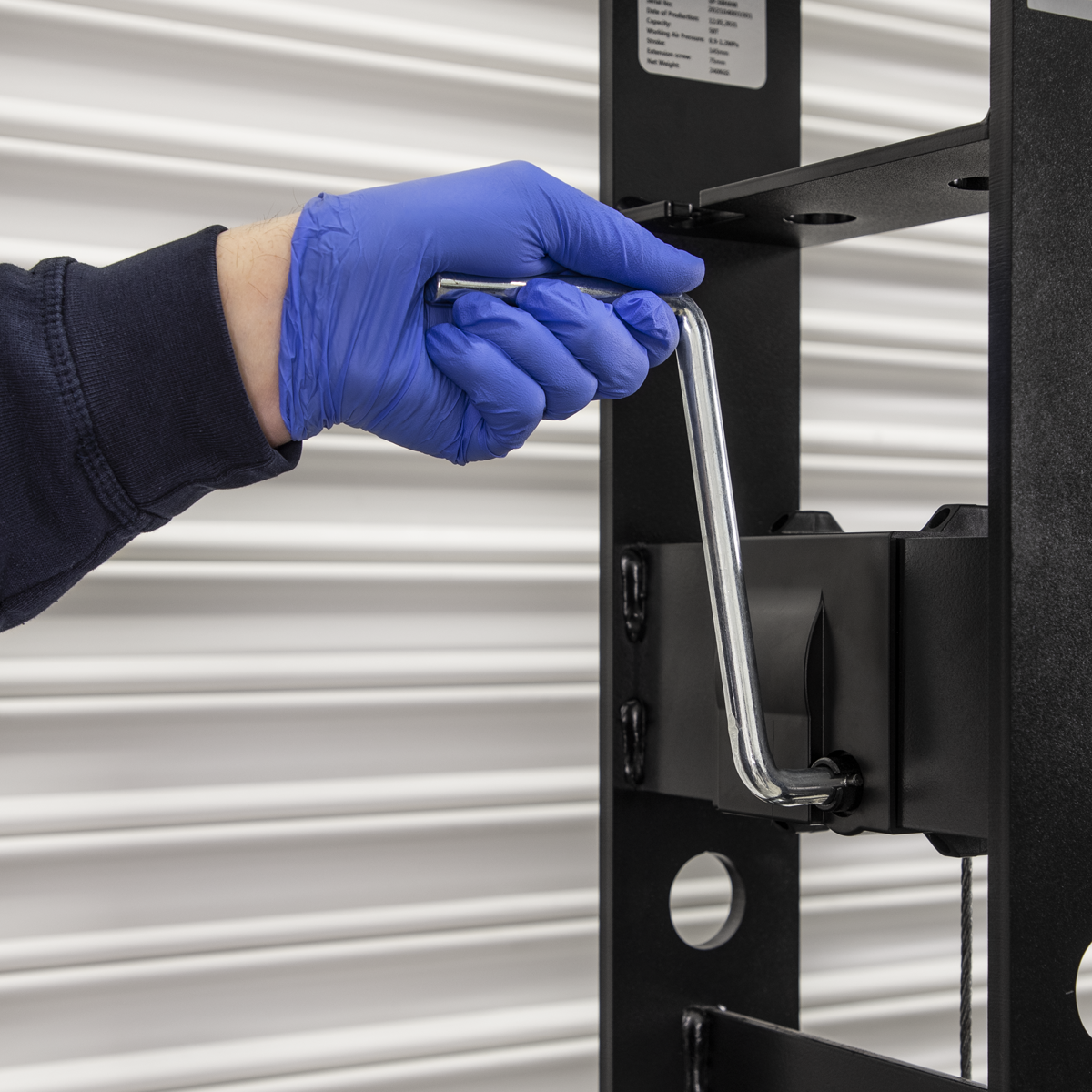

Integrated winch effortlessly adjusts the press table across an 700mm range (80mm to 780mm), making setup of heavy components safe and efficient while reducing physical strain.

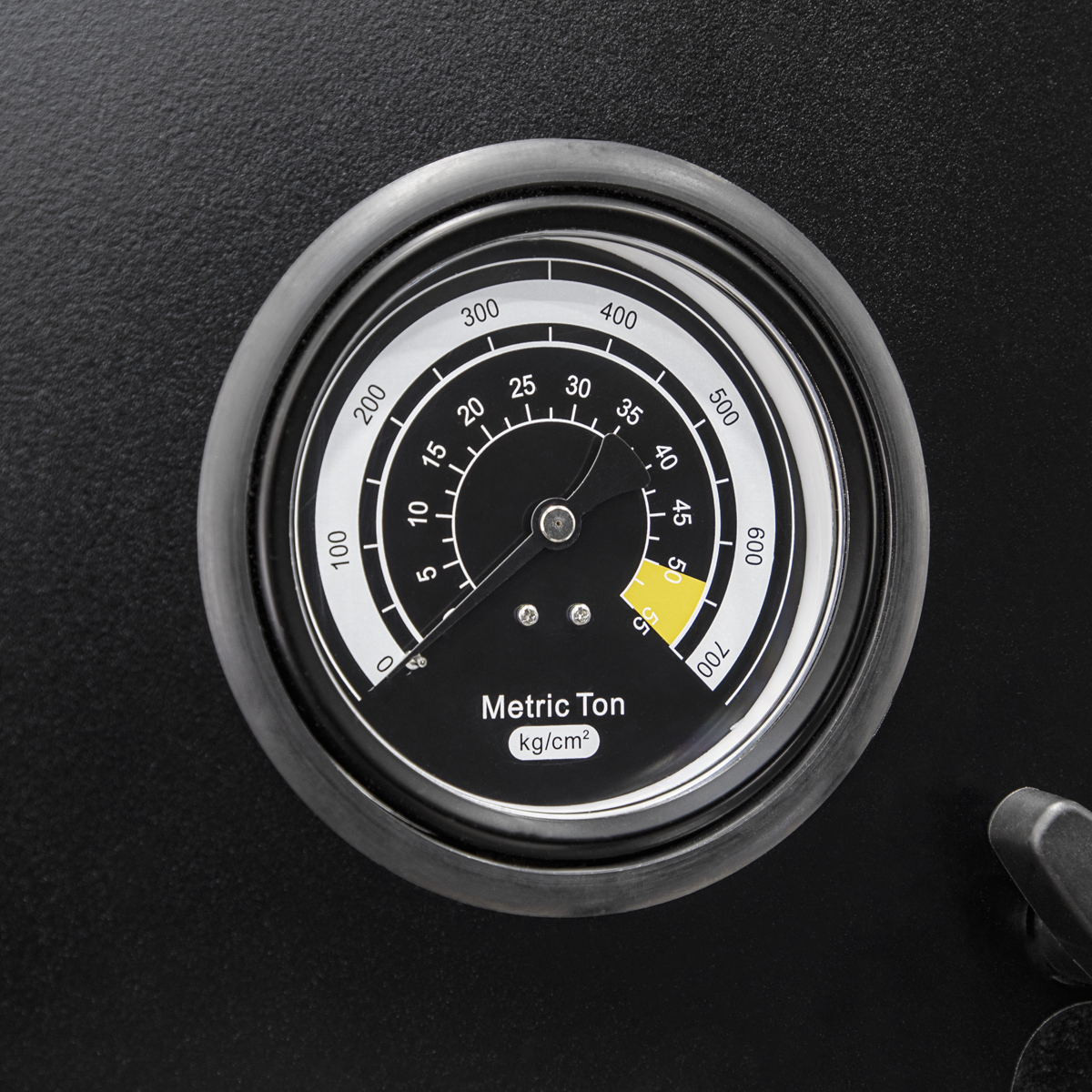

Integrated Ram Pressure Gauge

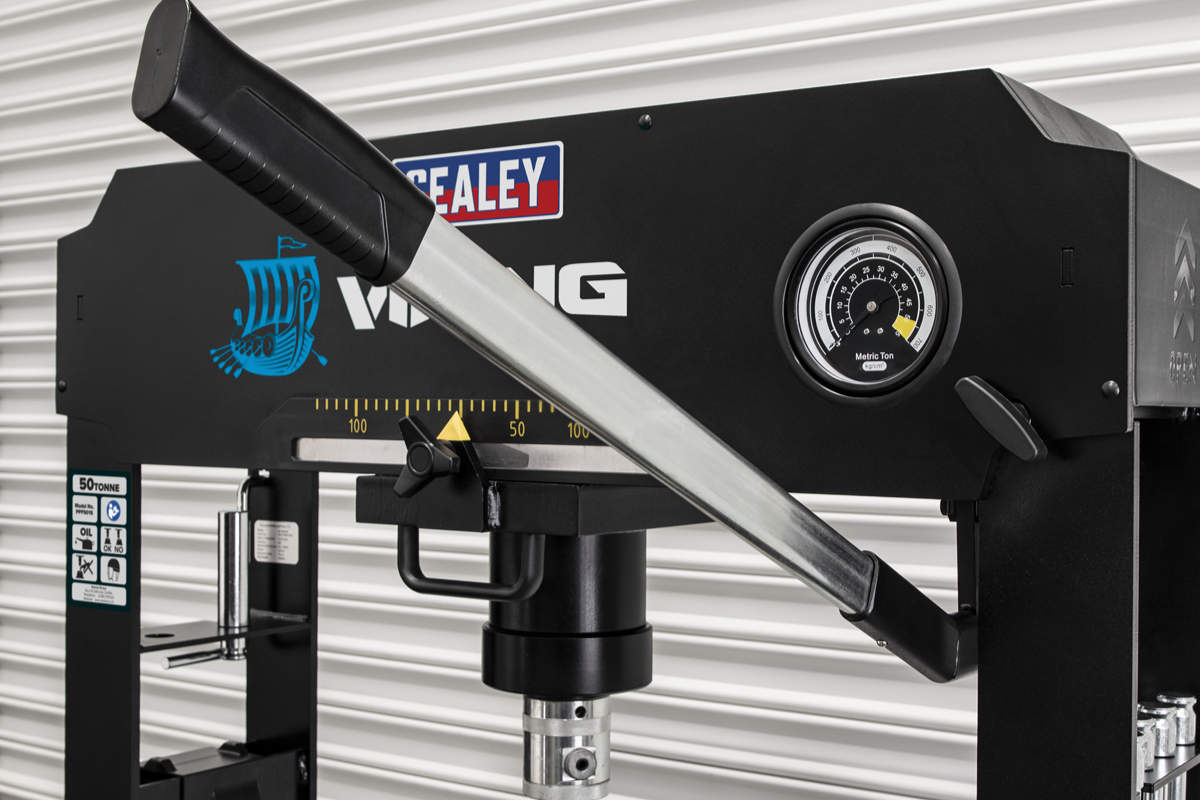

Frame-mounted pressure gauge provides real-time force monitoring for precise control during delicate operations, preventing costly component damage from over-pressing.
Complete Professional Package

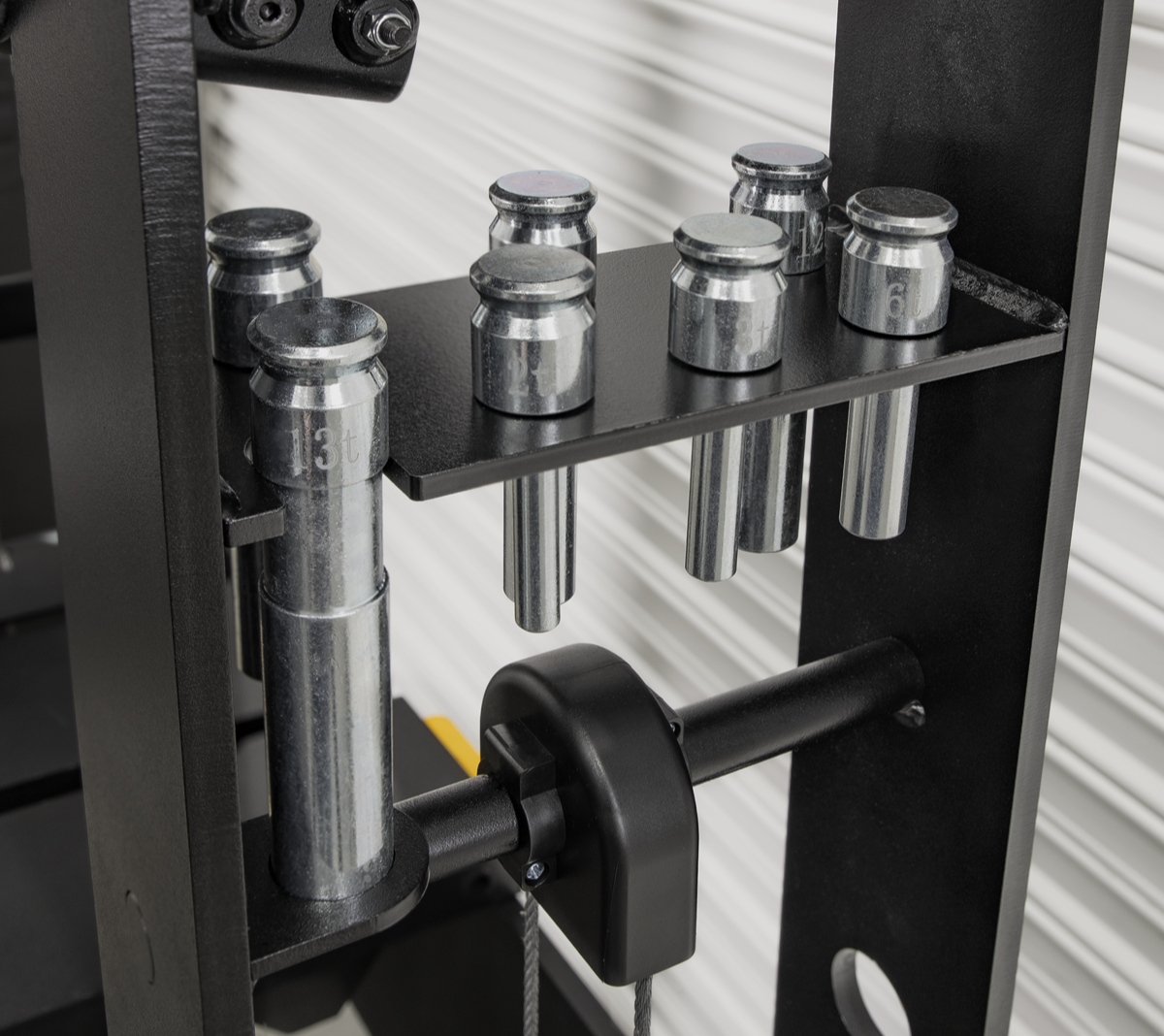

Arrives ready for immediate use with press pins, flat pressing plate, and V-blocks included. Built-in storage for press pins keeps accessories organized. Backed by Sealey's comprehensive 5-year guarantee.
Installation and Operation Details
Note: 249kg weight requires professional installation. Onboard pin storage included (pins sold separately).

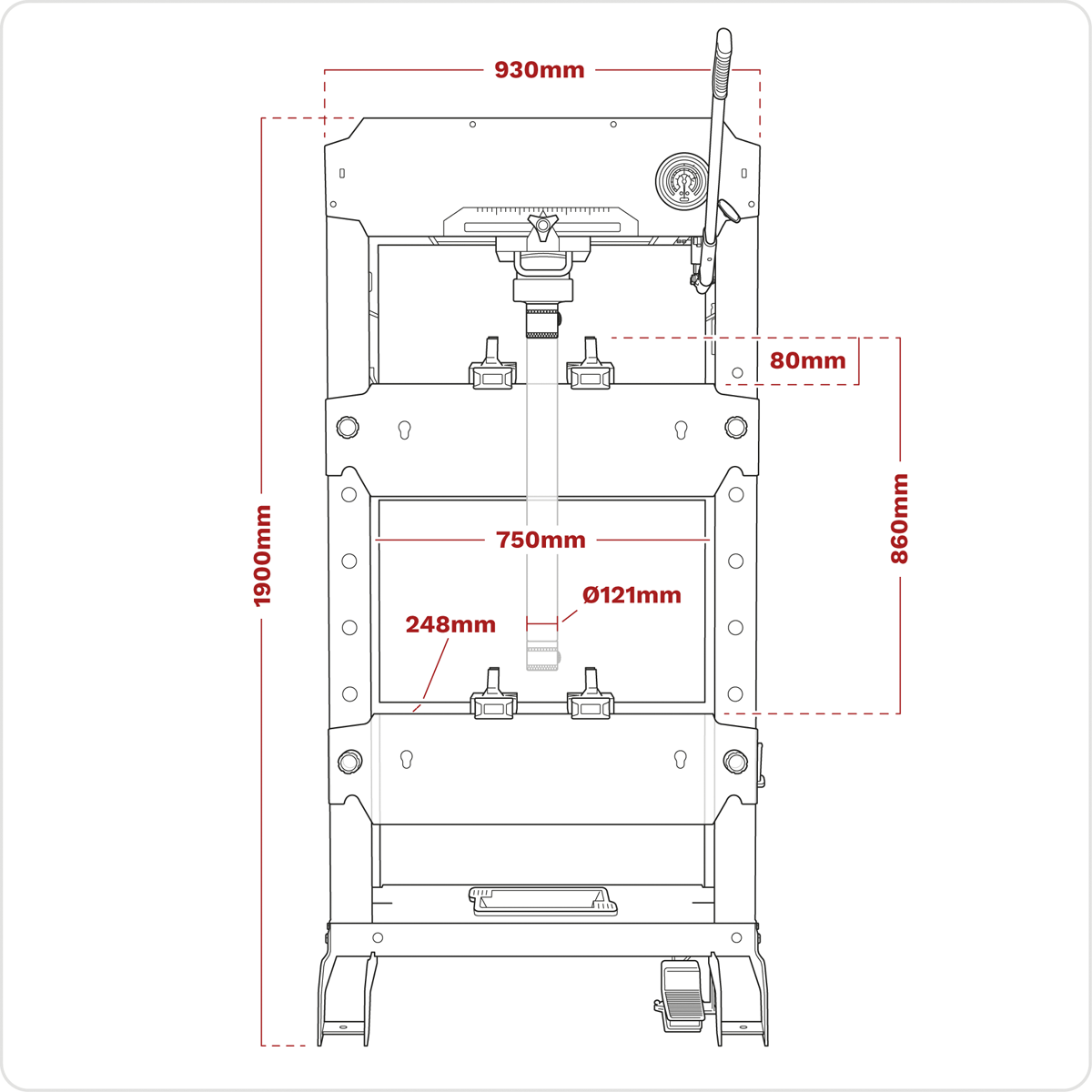

| Model No | PPF501S |
| Air Consumption | 4.5cfm |
| Bench or Floor Mounting | Floor |
| Brand | Viking |
| Capacity | 50 Tonne |
| Gauge Included | Yes |
| Lateral Ram Travel | 280mm |
| Maximum Height - Ram to Table | 780mm |
| Minimum Height - Ram to Table | 80mm |
| Operating Table Width | 750mm |
| Overall Height | 1900mm |
| Ram Diameter | Ø123.6mm |
| Ram Stroke | 220mm |
| Screw Extension | 75mm |
| Table Aperture | 224mm |
| Type | Floor |
| Working Table Depth | 248mm |
| Working Table Width | 930mm |
| Weight | 249.20kg |
