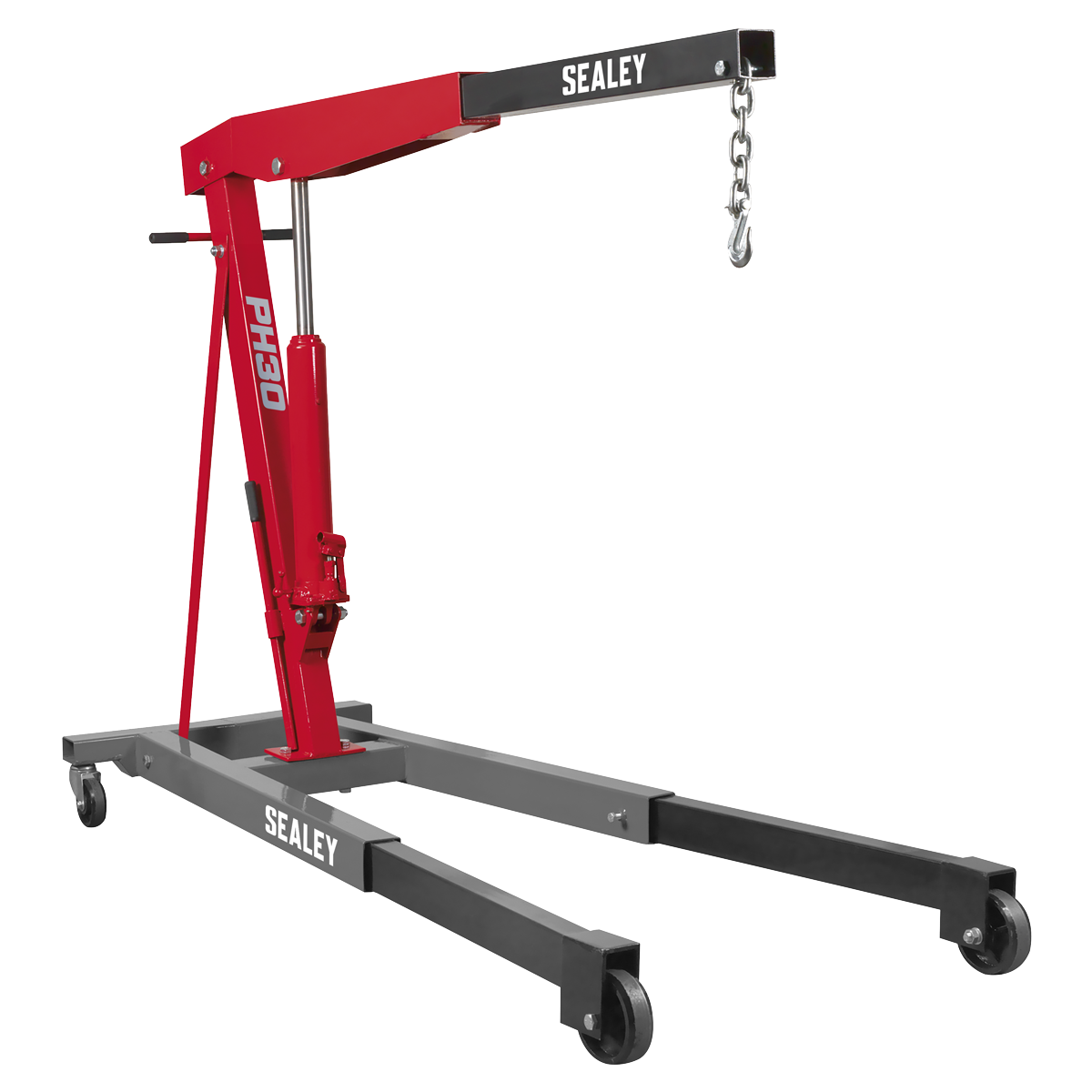

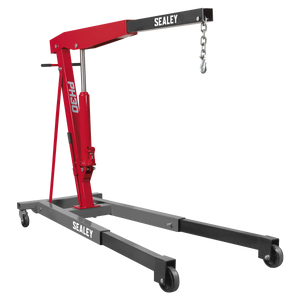

Fixed Frame Engine Crane with Extendable Legs, 3 Tonne (PH30)
Fixed Frame Engine Crane with Extendable Legs, 3 Tonne (PH30)
- HIGH CAPACITY - Lifts 3000kg at 1200mm jib extension.
- EASY MANOEUVRABILITY - Heavy-duty fixed front wheels and rear castors.
- INDUSTRIAL STRENGTH - Perfect for heavy commercial, industrial and workshop use.
- STABLE - Extendable legs for improved stability, particularly when operating at maximum jib extensions.
- SIMPLE ACCESS - Pump access from the side for safe handling of heavy loads.
Sealey Fixed Frame Vehicle Engine Crane Support Lift with Extendable Legs, 3 Tonne Capacity, Red (PH30)
Weighs 155kg and is perfect for heavy commercial, industrial and workshop use. Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions. Beam can be set in 4-positions with a capacity of 1000kg at its full extension of 1820mm. Heavy-duty castors and pump access from side, for safe handling of heavy loads. Delivered in knock-down form for reduced freight cost. Some self-assembly required.
- HIGH CAPACITY - Lifts 3000kg at 1200mm jib extension.
- EASY MANOEUVRABILITY - Heavy-duty fixed front wheels and rear castors.
- INDUSTRIAL STRENGTH - Perfect for heavy commercial, industrial and workshop use.
- STABLE - Extendable legs for improved stability, particularly when operating at maximum jib extensions.
- SIMPLE ACCESS - Pump access from the side for safe handling of heavy loads.
- DELIVERY - Delivered in knock-down form for reduced freight cost.
- Some self-assembly required.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
| Model No | PH30 |
| Brand | Sealey |
| Height Jib Down | 1610mm |
| Height Legs Folded | N/A |
| Height of Frame | 195mm |
| Length Legs Extended | 950mm |
| Length of Jib Position 1 | 1200mm |
| Length of Jib Position 2 | 1400mm |
| Length of Jib Position 3 | 1610mm |
| Length of Jib Position 4 | 1820mm |
| Length of Jib Position 5 | n/a |
| Lifting Capacity in Position 1 | 3000kg |
| Lifting Capacity in Position 2 | 2000kg |
| Lifting Capacity in Position 3 | 1500kg |
| Lifting Capacity in Position 4 | 1000kg |
| Lifting Capacity in Position 5 | n/a |
| Max. Lift Ht at Jib Position 1 | 1880mm |
| Max. Lift Ht at Jib Position 2 | 1970mm |
| Max. Lift Ht at Jib Position 3 | 2010mm |
| Max. Lift Ht at Jib Position 4 | 2220mm |
| Max. Lift Ht at Jib Position 5 | n/a |
| Note | *Legs Extended |
| Rear Width | 780mm |
| Width Front Frame | 855mm* |
| Width Inside Front Frame | 700mm* |
| Weight | 155.00kg |
