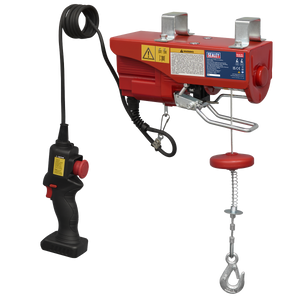

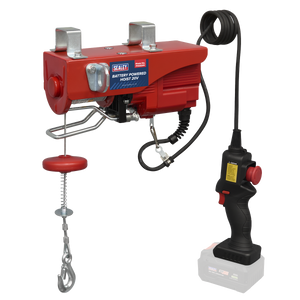

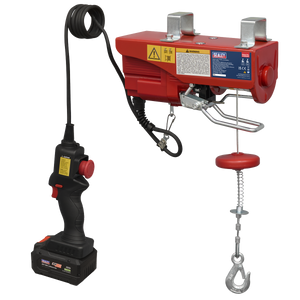

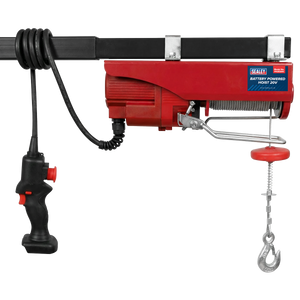

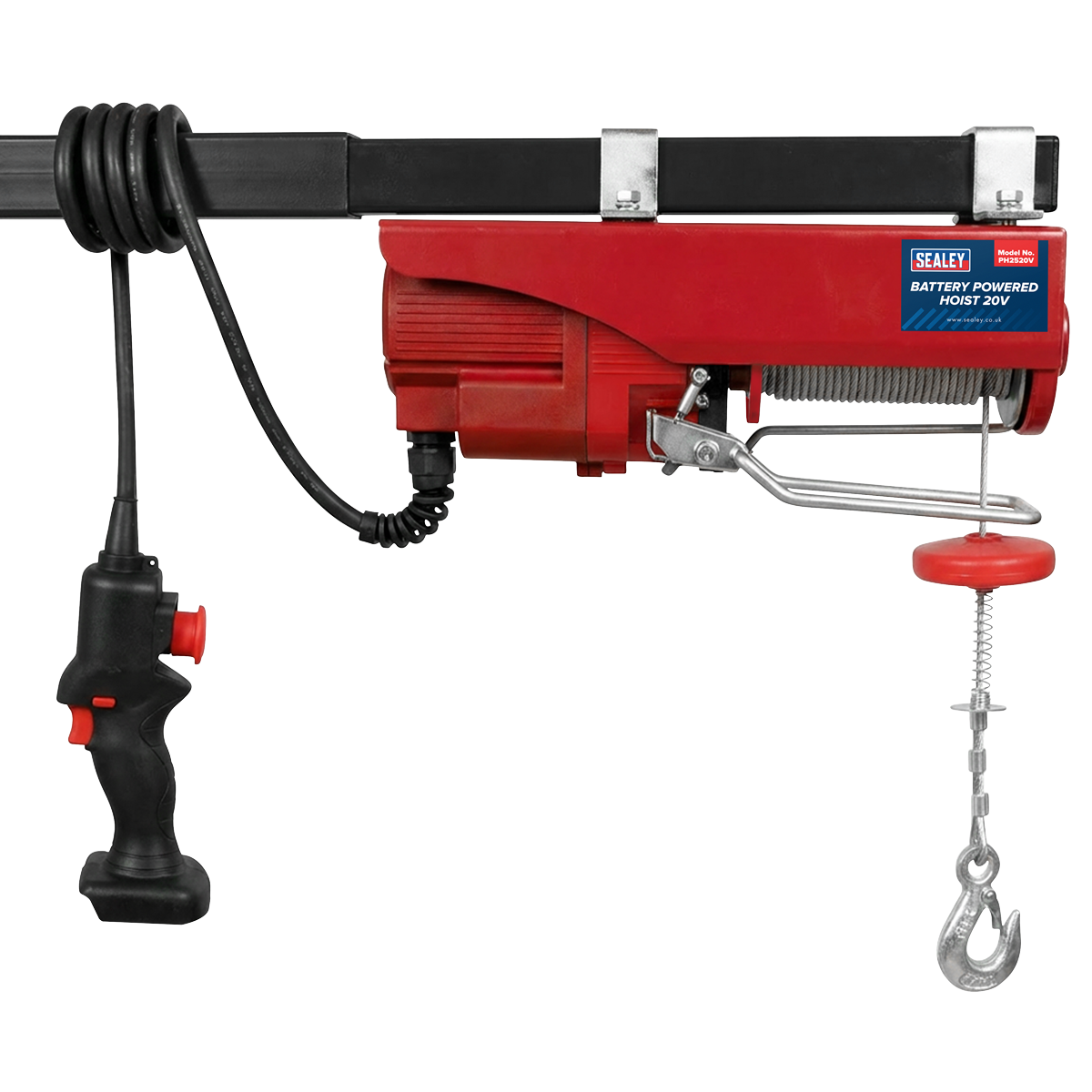

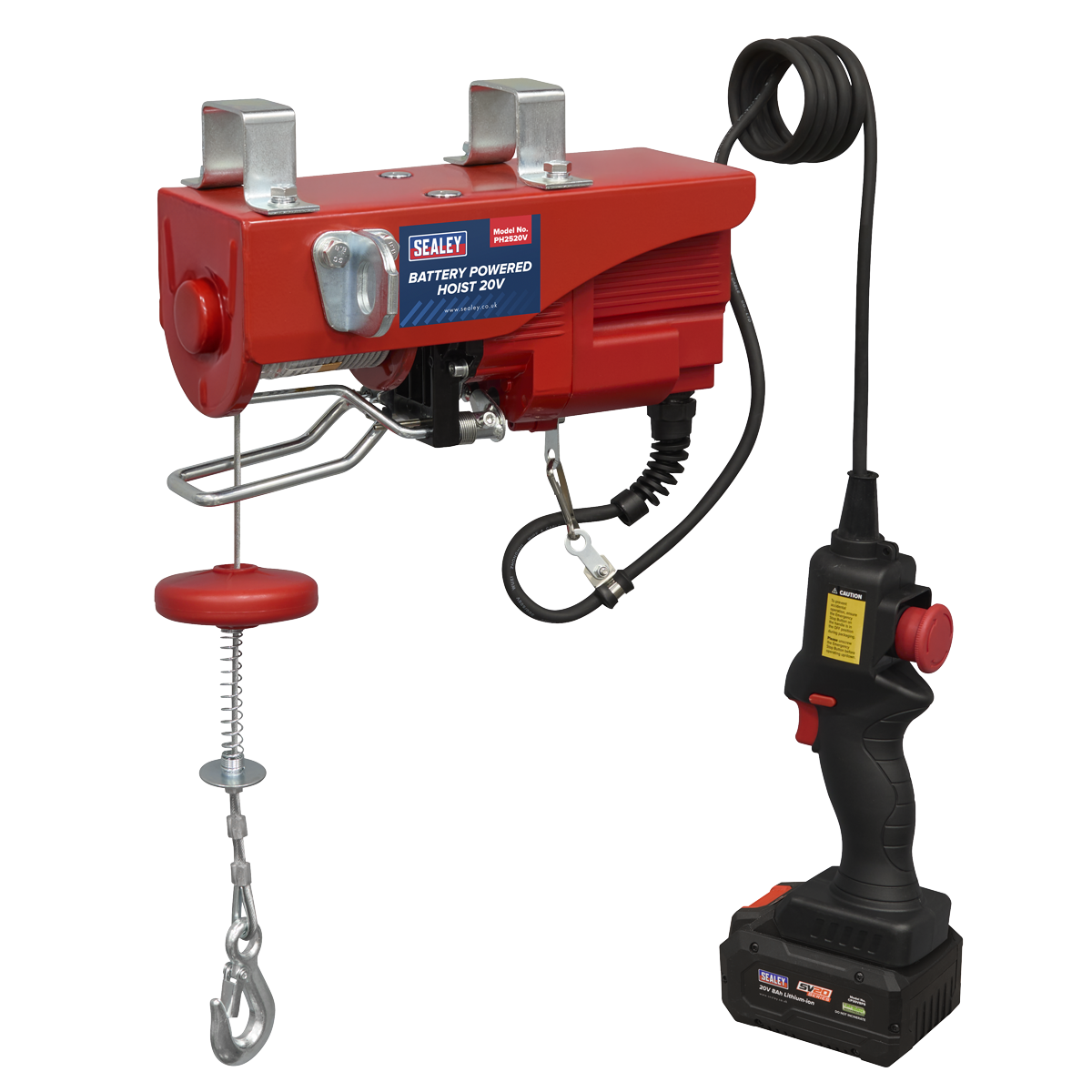

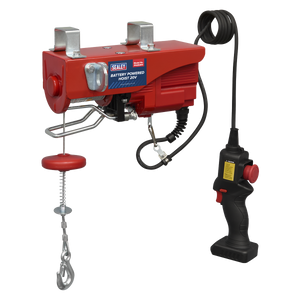

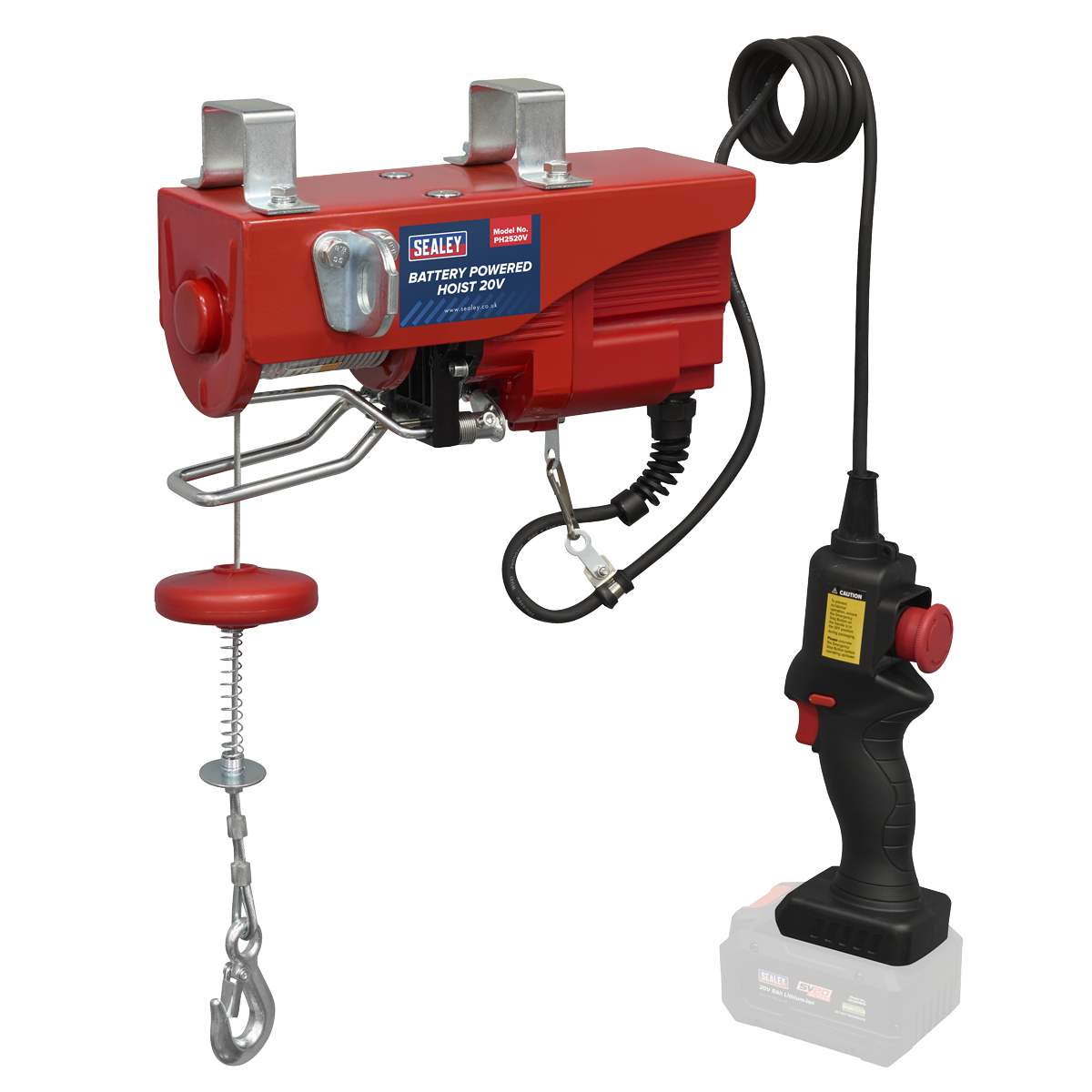

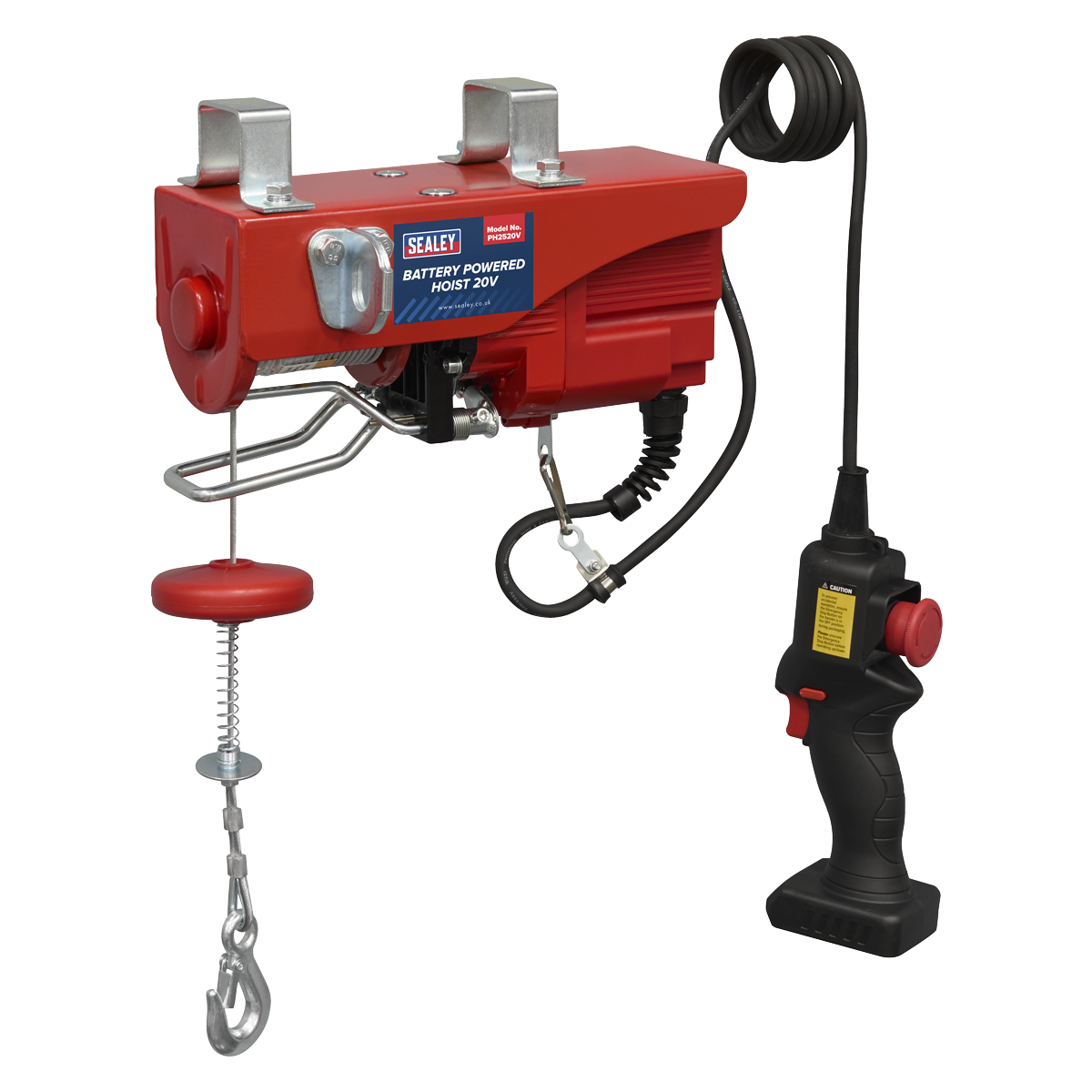

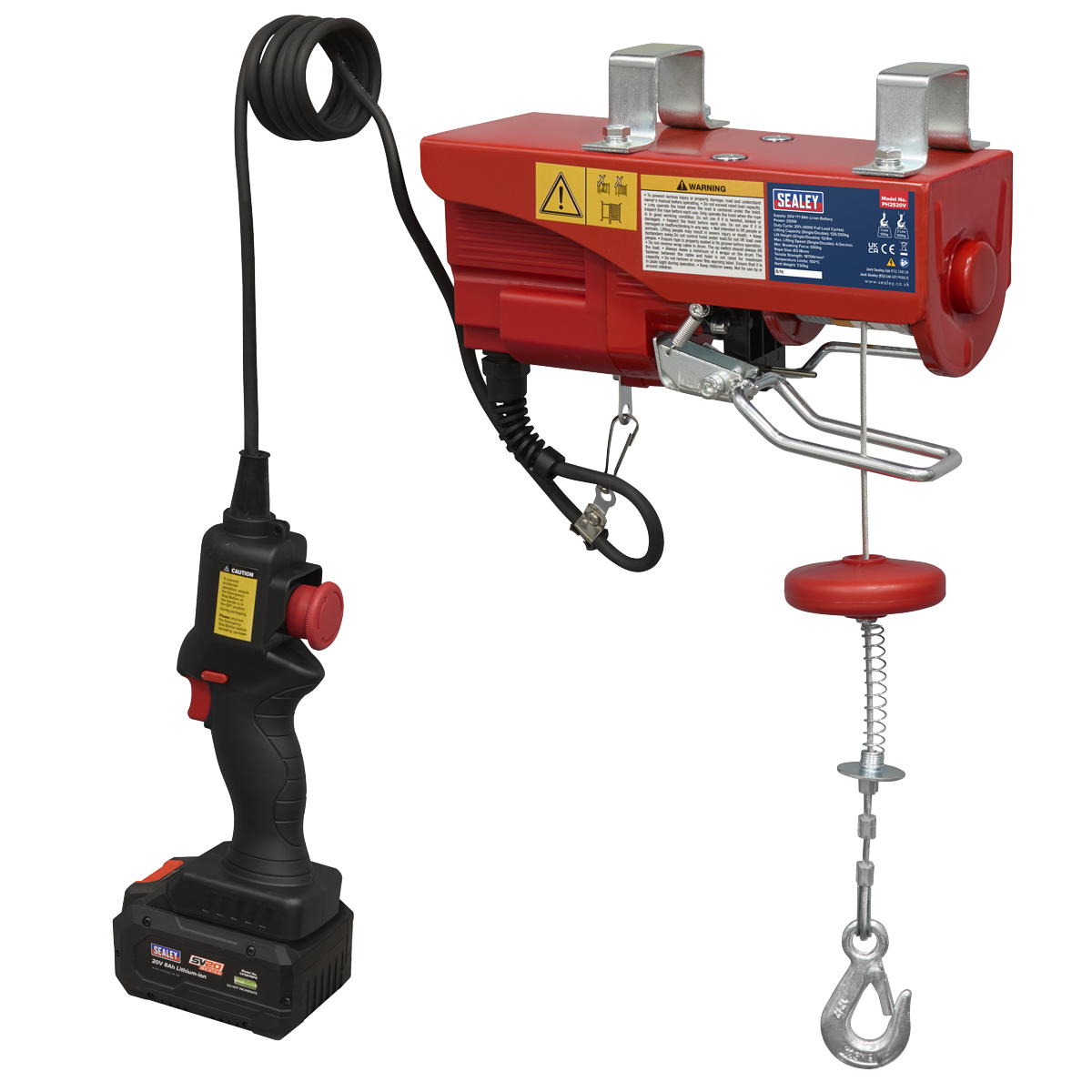

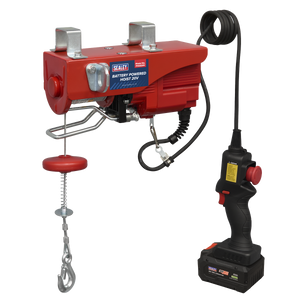

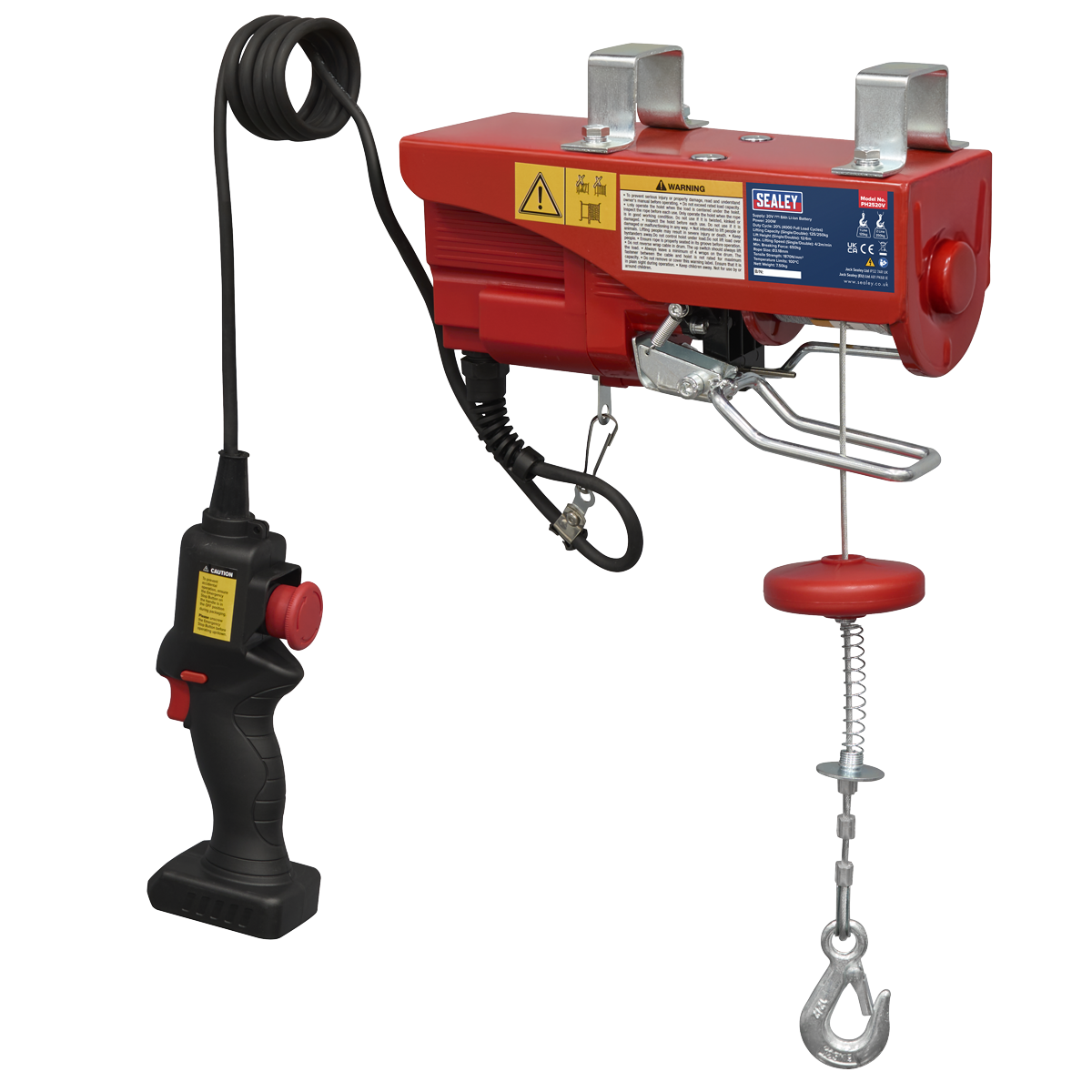

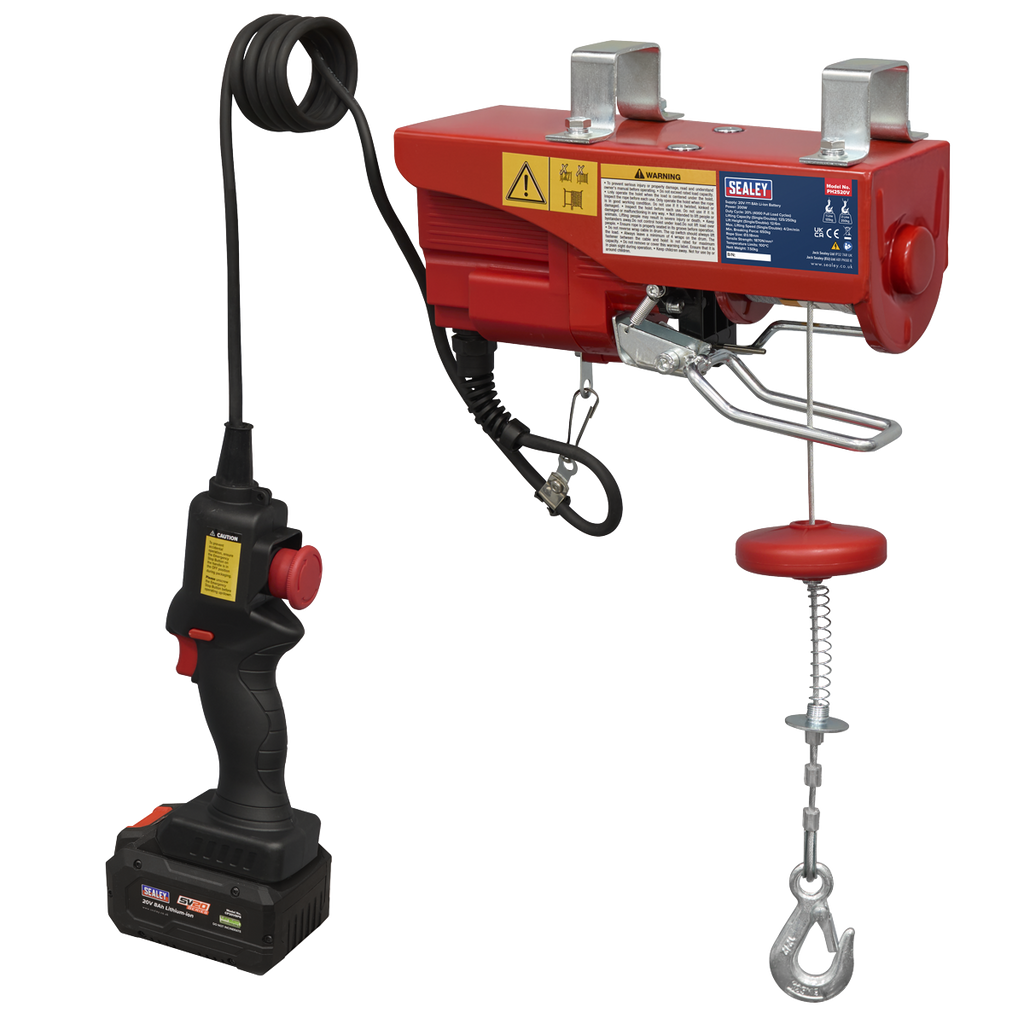

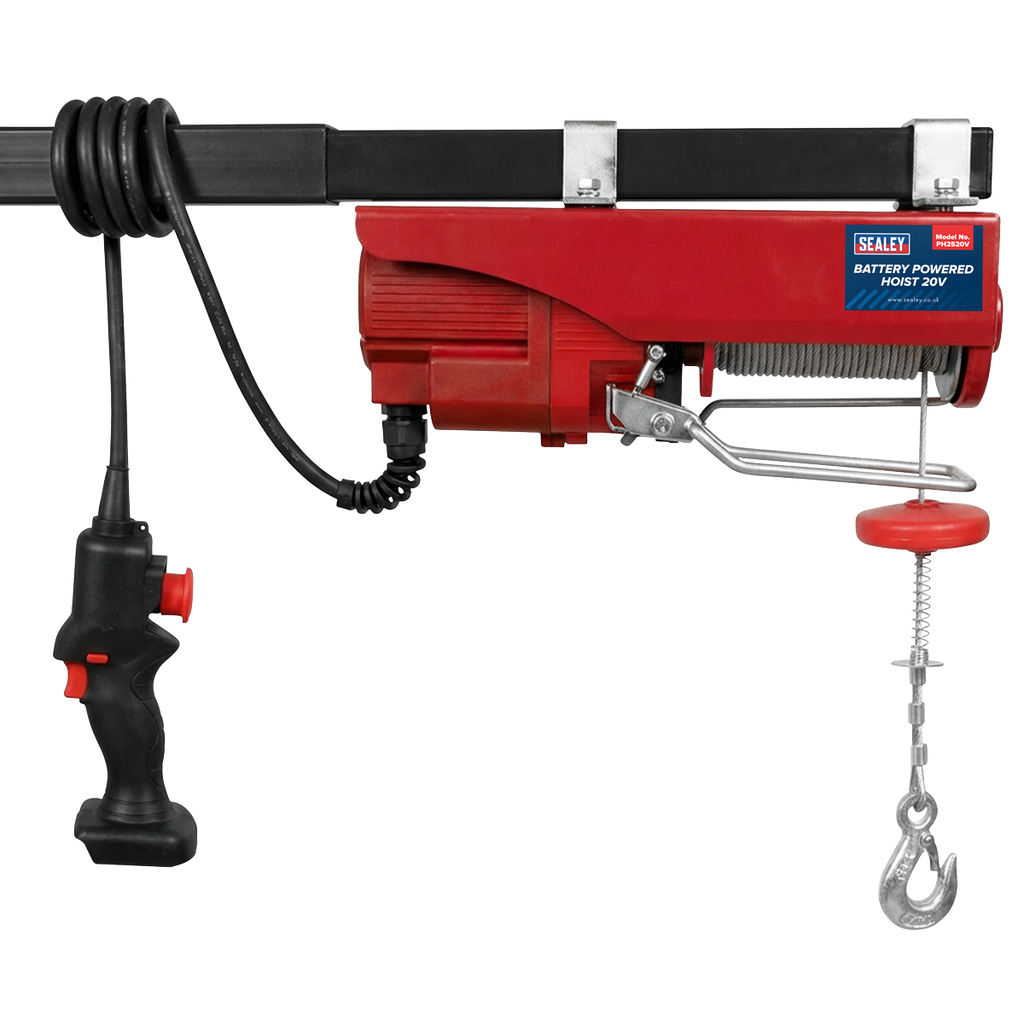

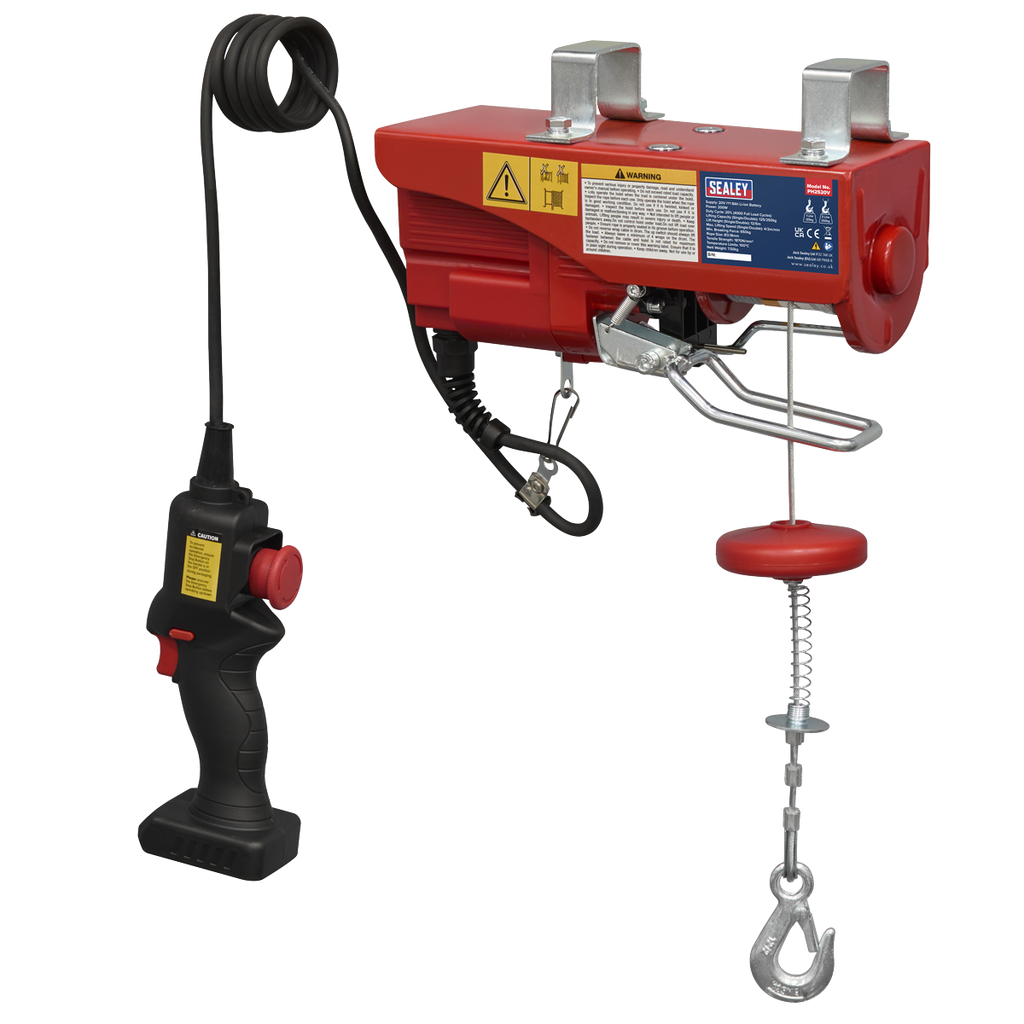

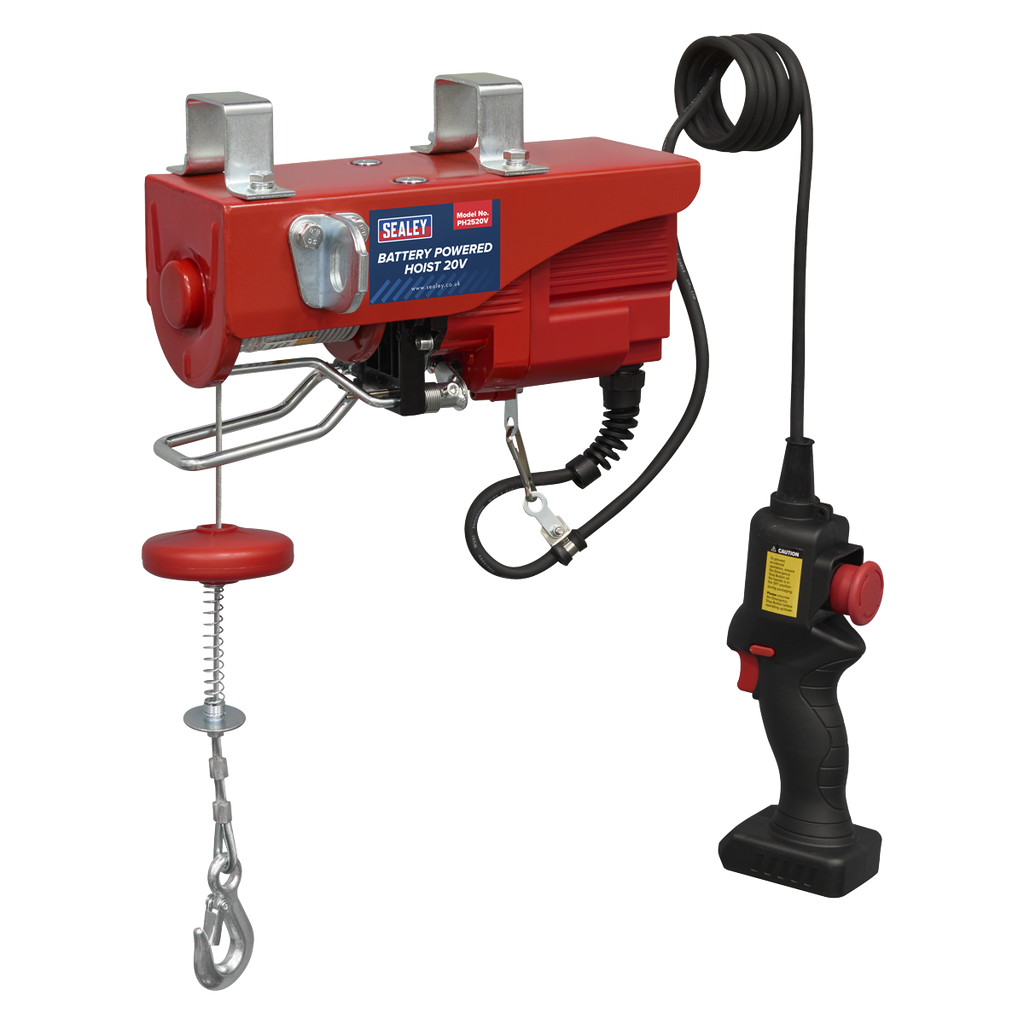

SV20 Series Battery Powered Hoist 125kg, Body Only (PH2520V)
SV20 Series Battery Powered Hoist 125kg, Body Only (PH2520V)
- Lifts 125kg on a single line or 250kg double lined
- 12m wire rope, up to 4m per minute on the 200W motor
- Electronic and mechanical brakes hold the load
- Runs on any SV20 battery, sold separately (CP20VBP8 best)
SV20 Series Battery Powered Hoist 125kg, Body Only (PH2520V)

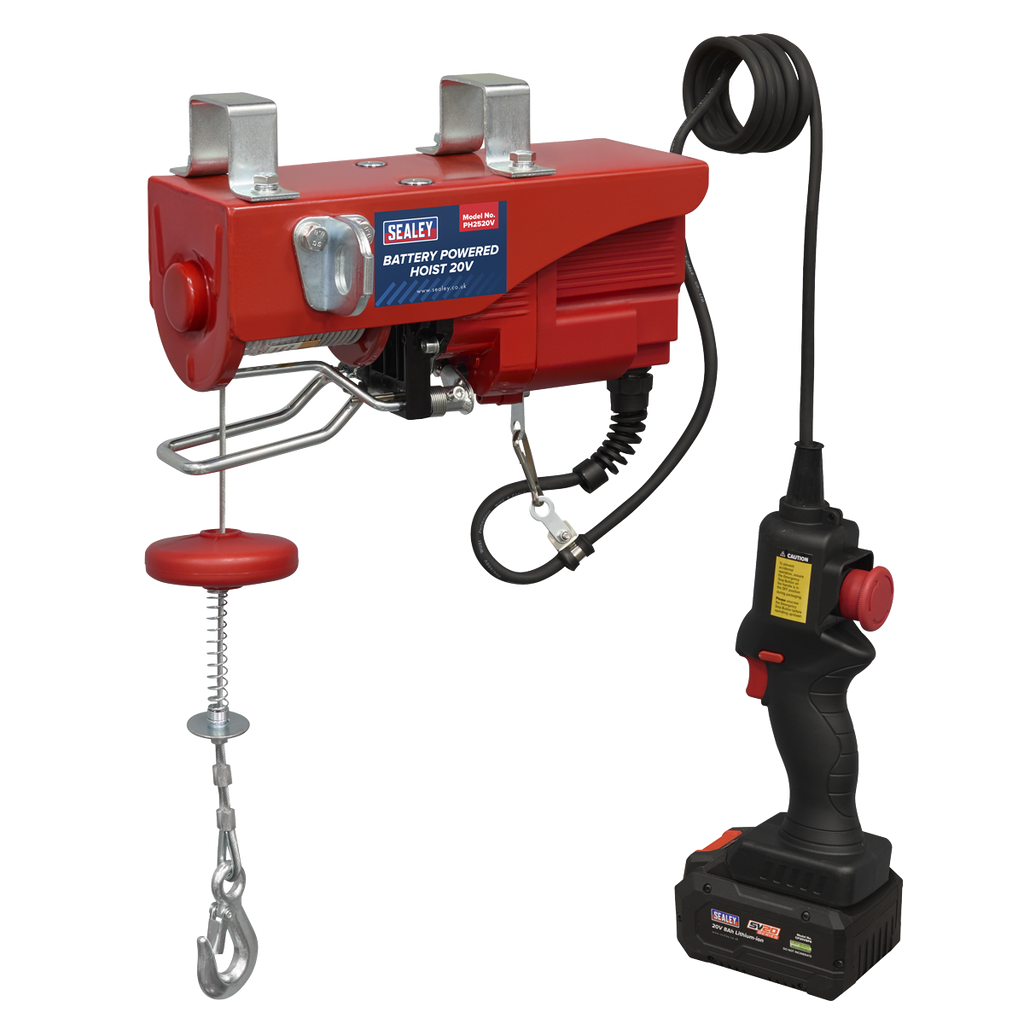

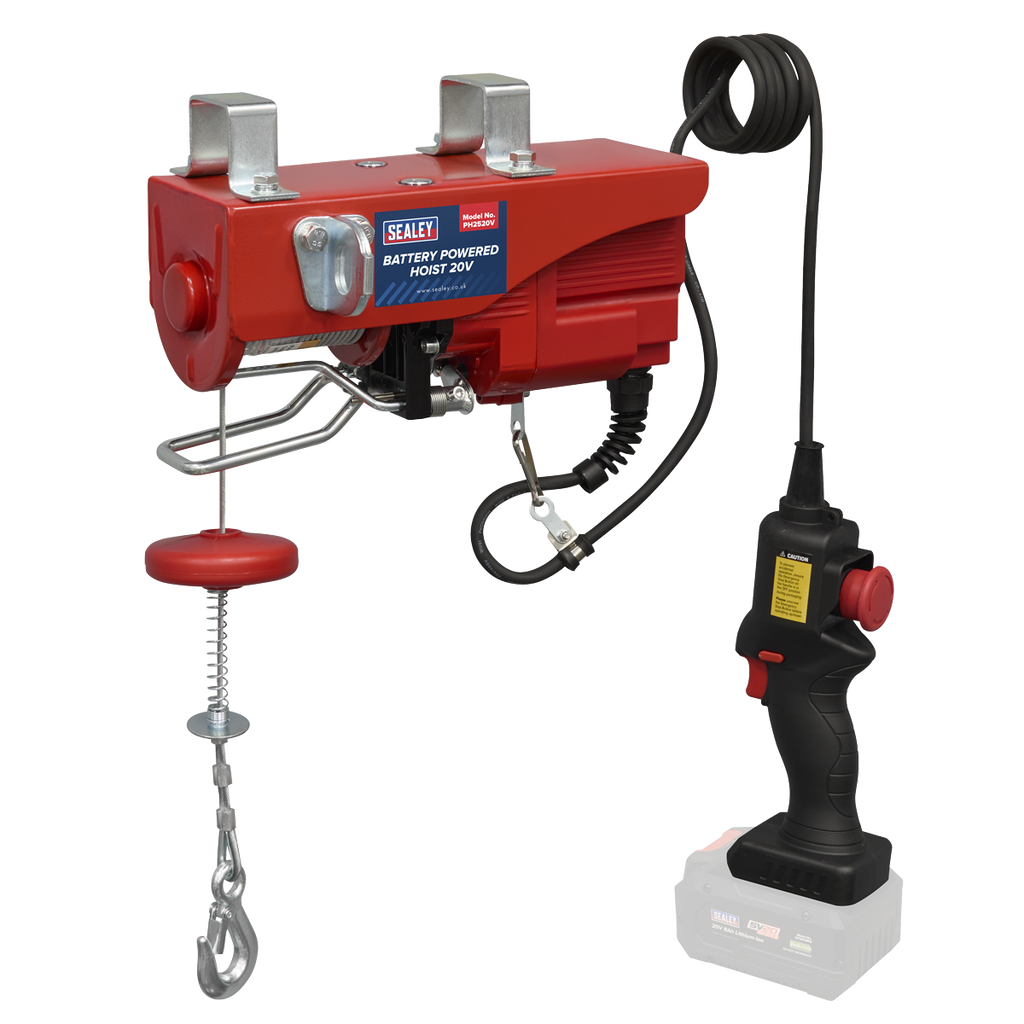

A battery powered hoist running on Sealey's SV20 20V battery system, lifting 125kg on a single line or 250kg double lined. Supplied as a body only: the battery and charger are sold separately, and Sealey recommend the CP20VBP8 battery for best performance.
The 12m wire rope gives 12m of lift single lined or 6m double lined, at up to 4m per minute.
What it brings to the job
125kg single line, 250kg double
The 200W motor lifts 125kg on 12m of single line or 250kg on 6m of double line.
Two braking systems
Electronic and mechanical brakes work together so the load holds when the trigger releases.
Protects itself
Integrated overheat protection improves safety and extends product life, in an IP23 rated body.
Runs on the SV20 platform
Any SV20 Series 20V battery powers it; Sealey recommend the CP20VBP8 for best performance. Battery and charger sold separately.
What arrives in the package
PH2520V Battery Powered Hoist 20V, Body Only, with 12m wire rope. Battery and charger sold separately.
| Model No | PH2520V |
| Brand | Sealey |
| Capacity (Double Cable) | 250kg |
| Capacity (Single Cable) | 125kg |
| Insulating Grade | B |
| IP Rating | IP23 |
| Lift Height (Double Cable) | 6m |
| Lift Height (Single Cable) | 12m |
| Lift Speed (Maximum) | Single - 4m/minDouble - 2m/min |
| Minimum Rope Tensile Strength | 1870N/mm² |
| Motor Power | 200W |
| Nett Weight | 7.5kg |
| Rope Diameter | Ø3.18mm |
| Voltage | 20V |
