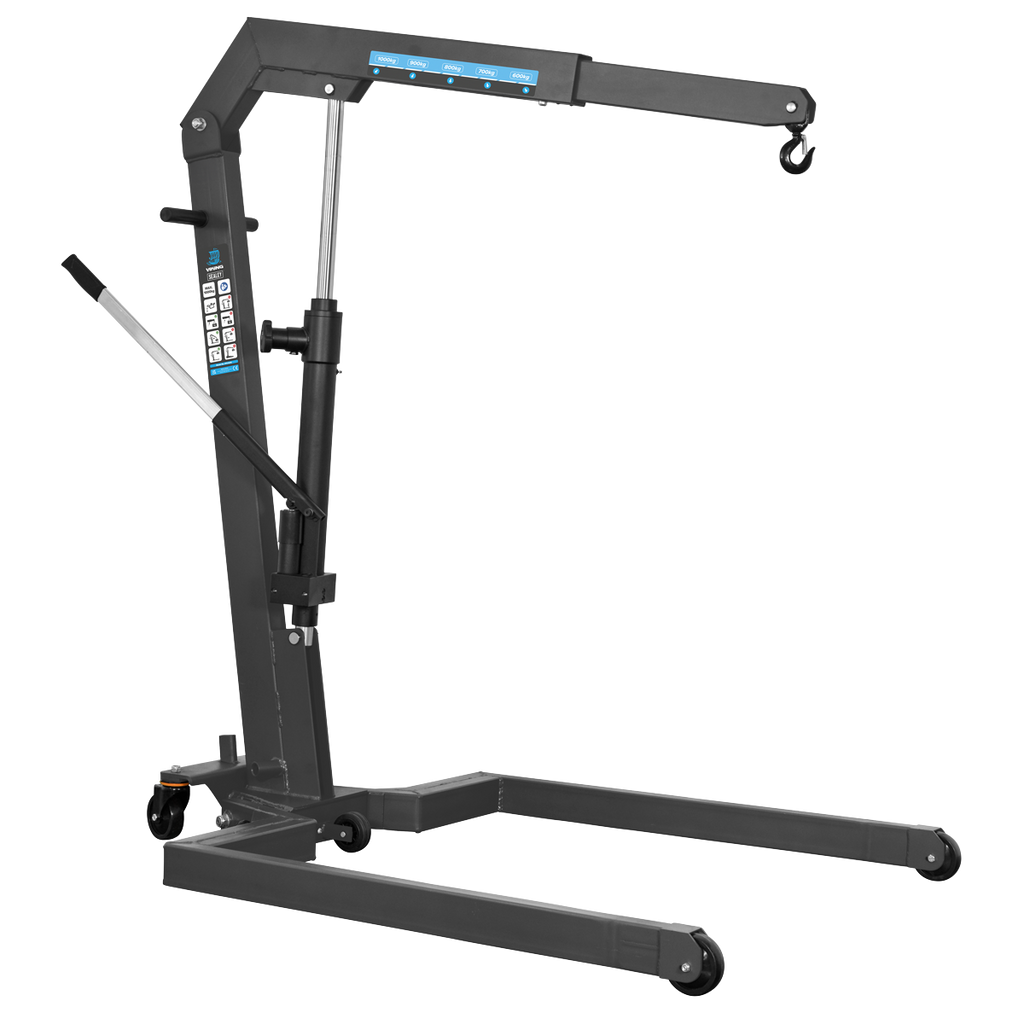

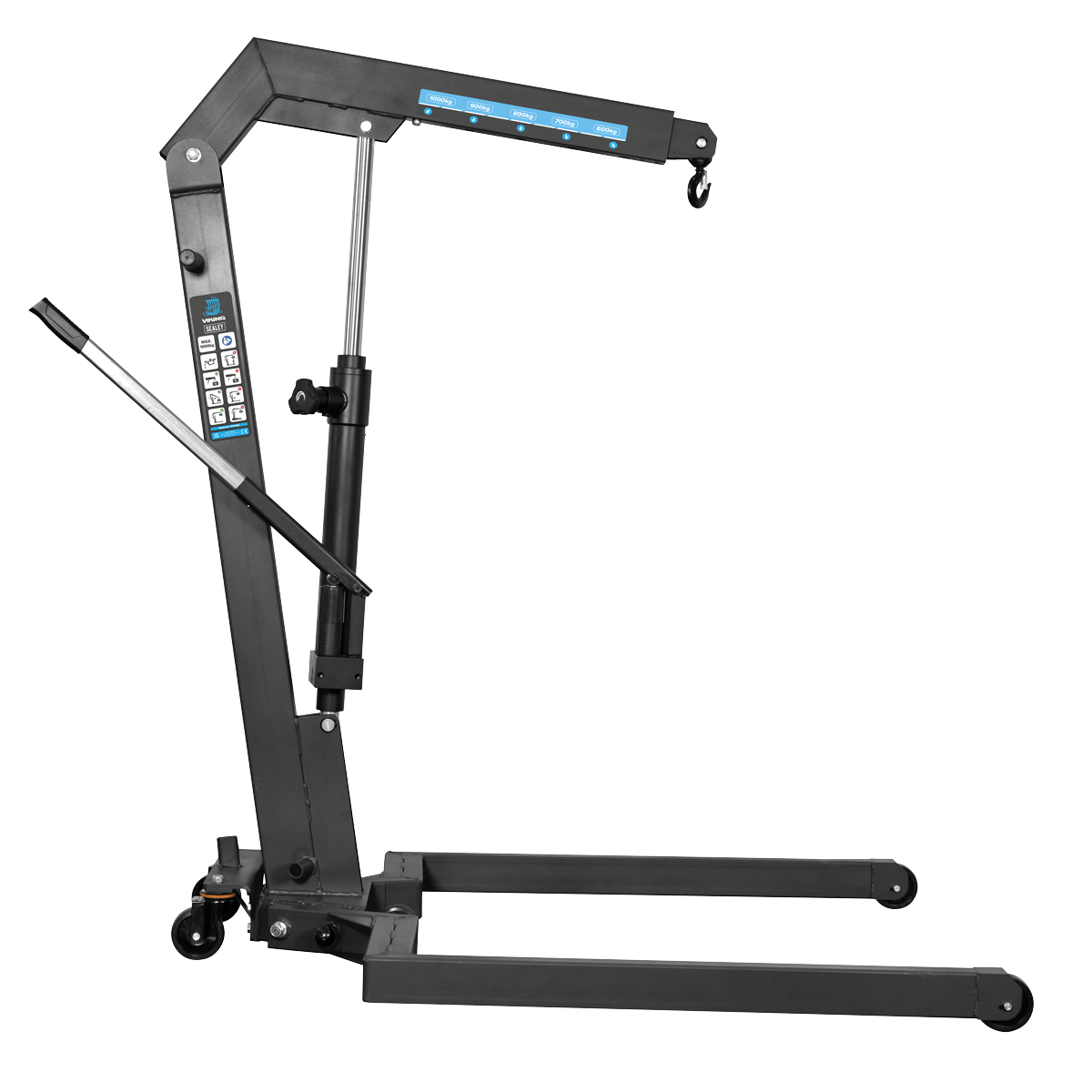

Viking Industrial Engine Crane, 1 Tonne (PFC101S)
Viking Industrial Engine Crane, 1 Tonne (PFC101S)

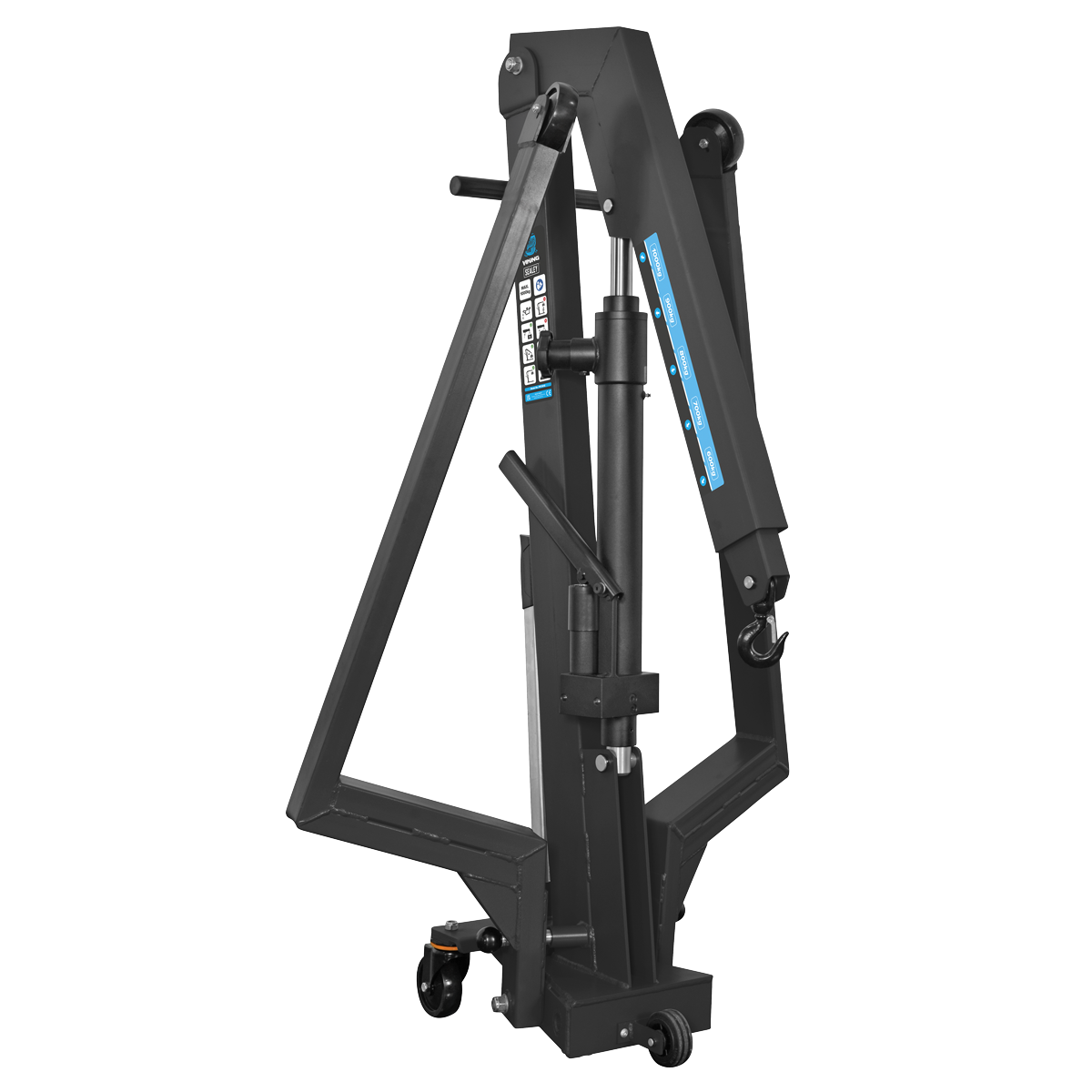

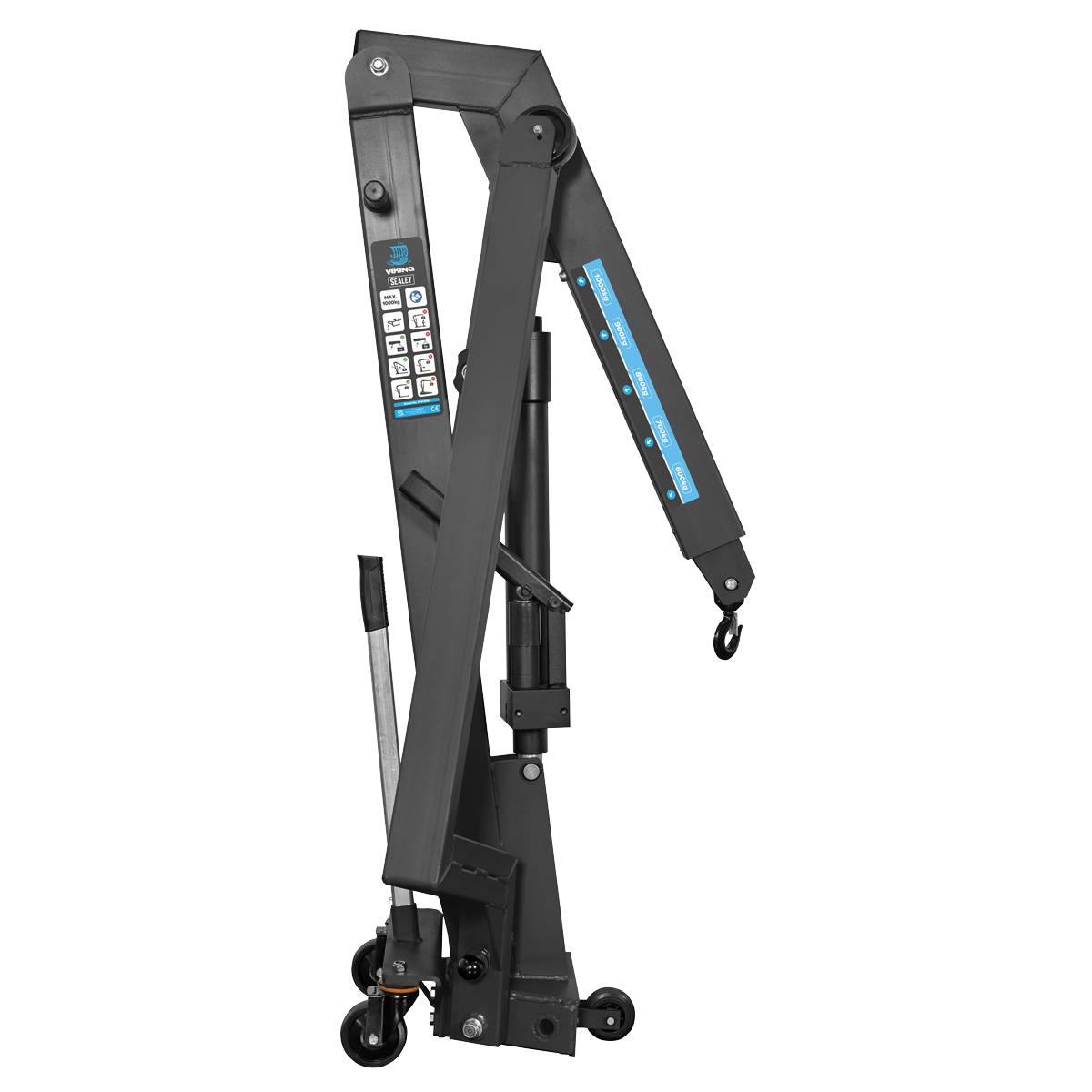

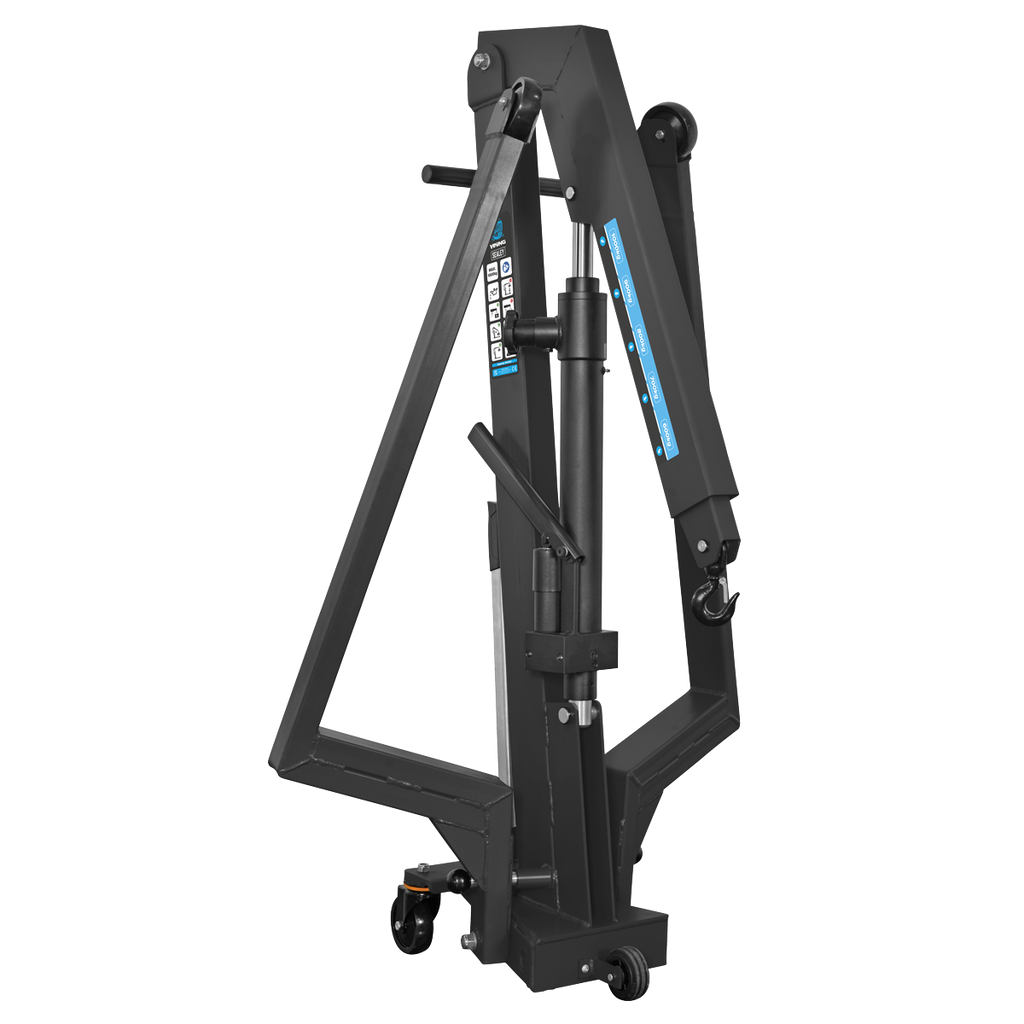

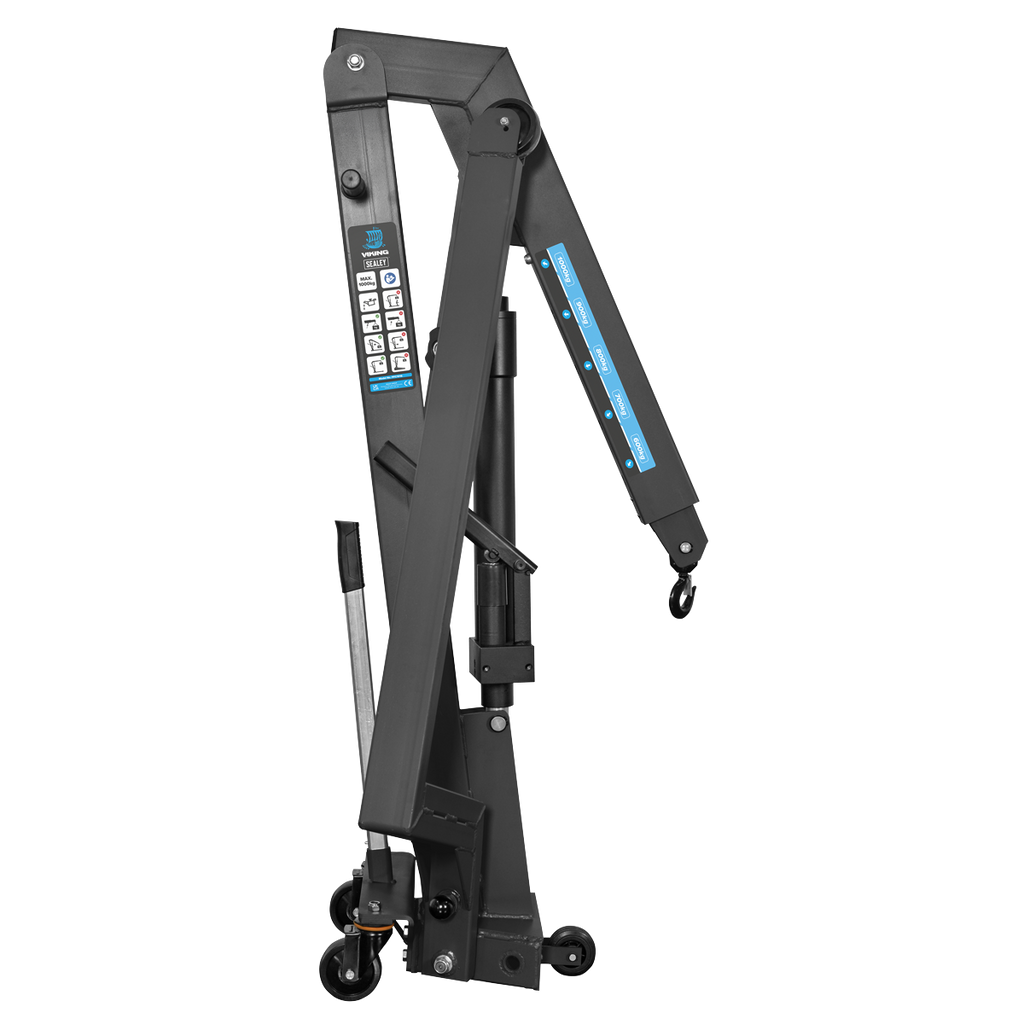

- FOLDING PARALLEL LEGS - The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets, boxes, etc.

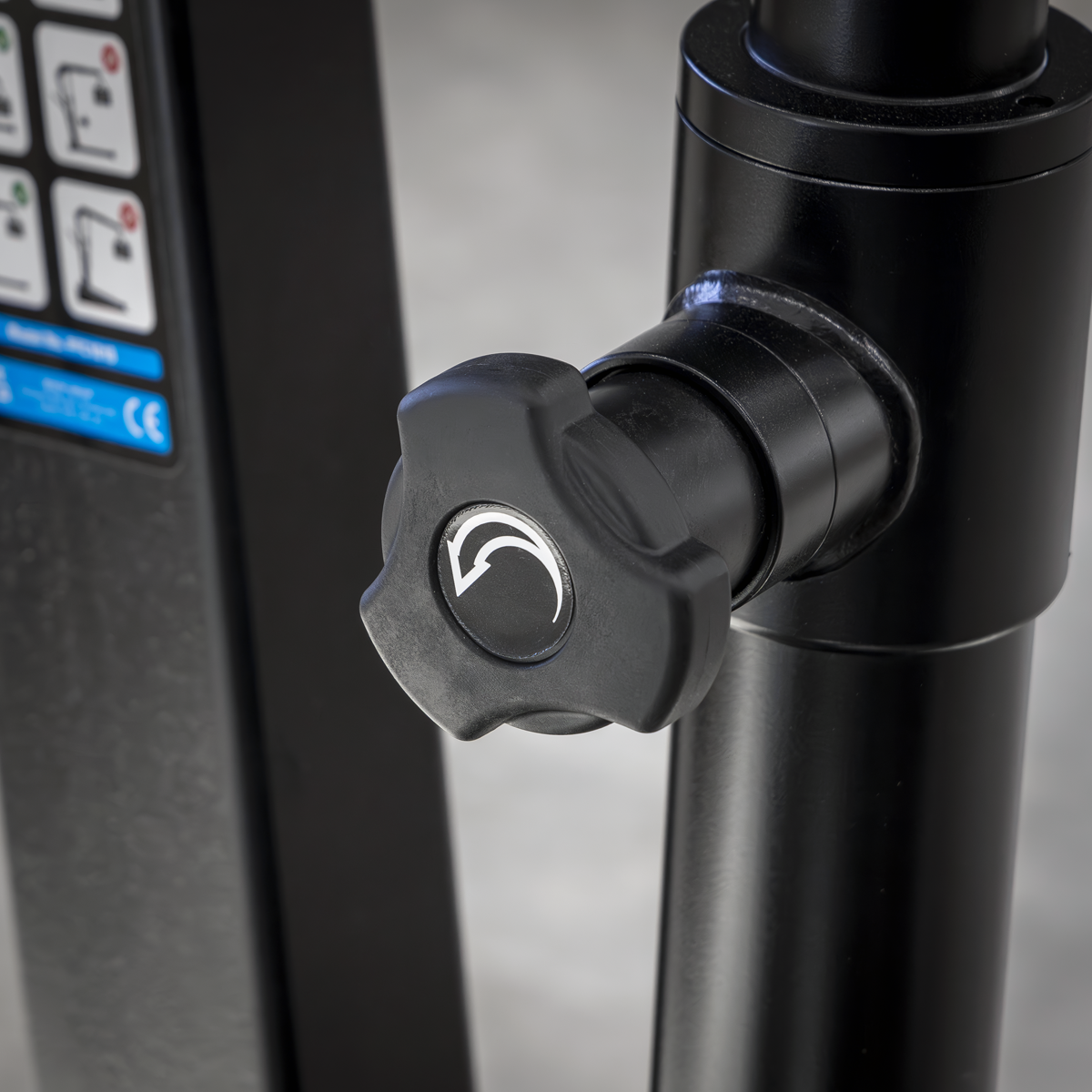

- SAFETY RELEASE - Hand operated dead man's control to prevent accidental lowering.

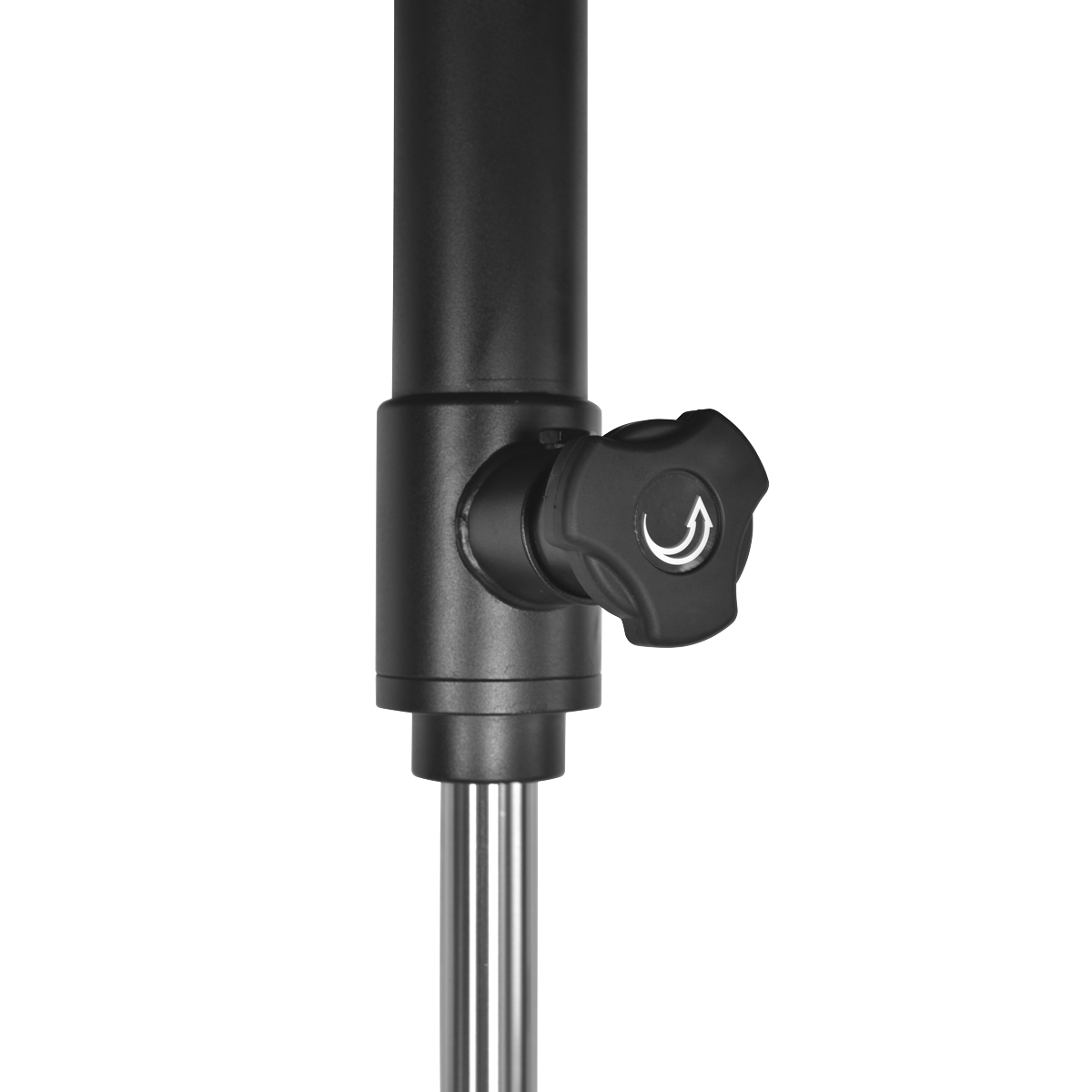

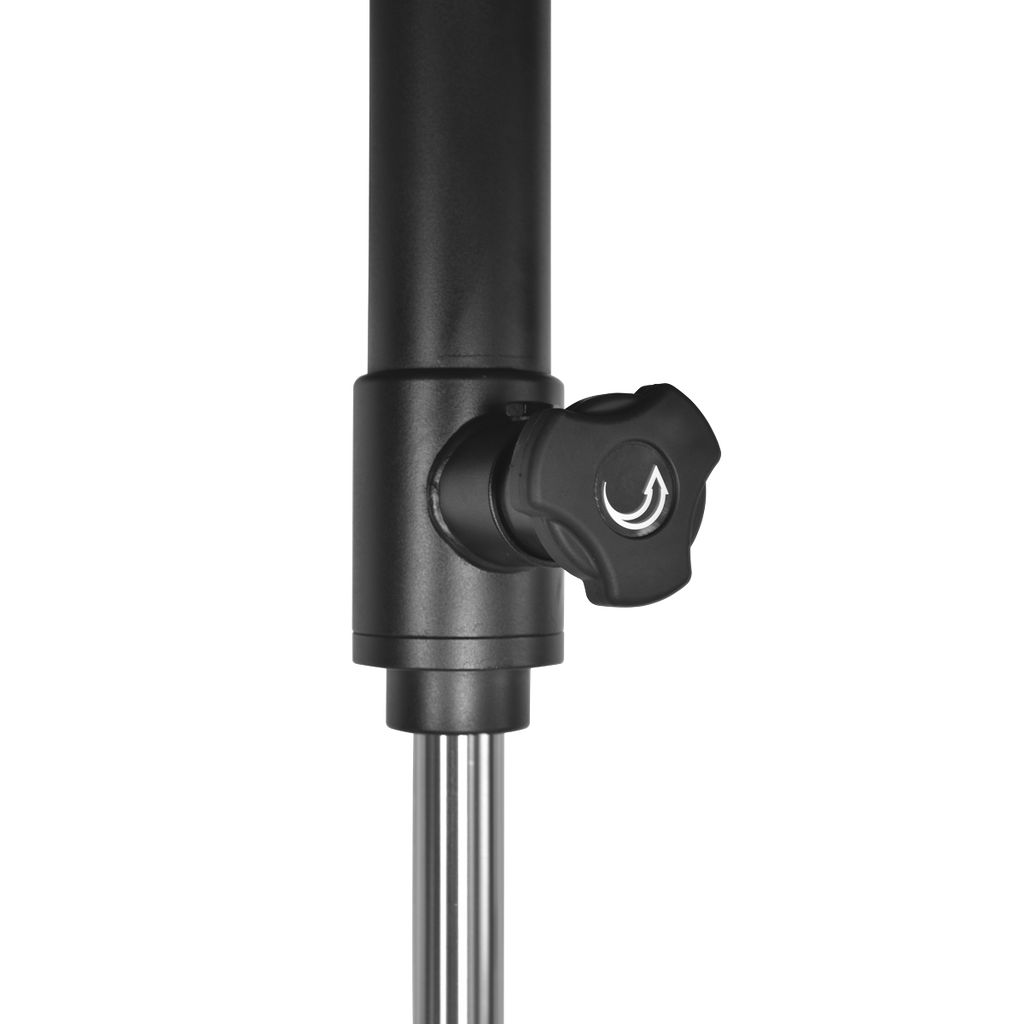

- CONTROLLABLE RELEASE - Manually controlled descent speed.

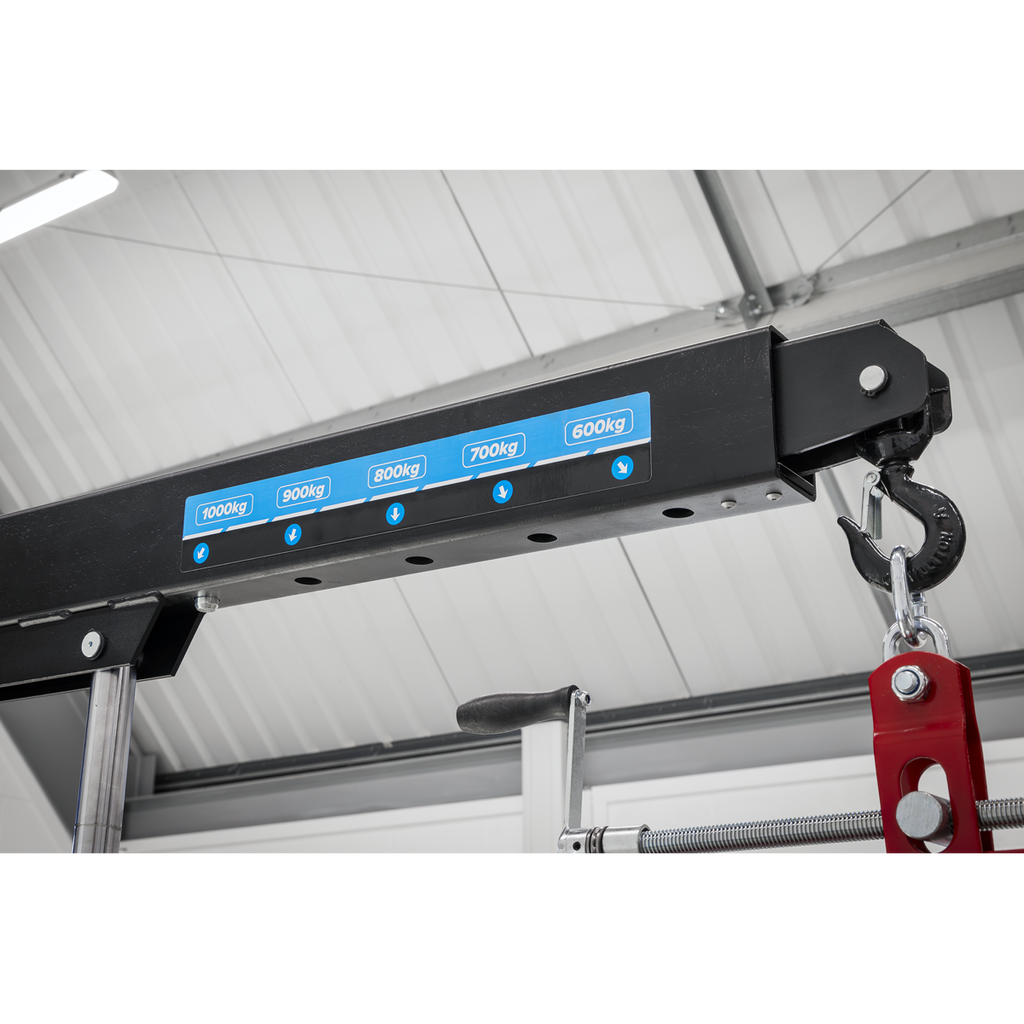

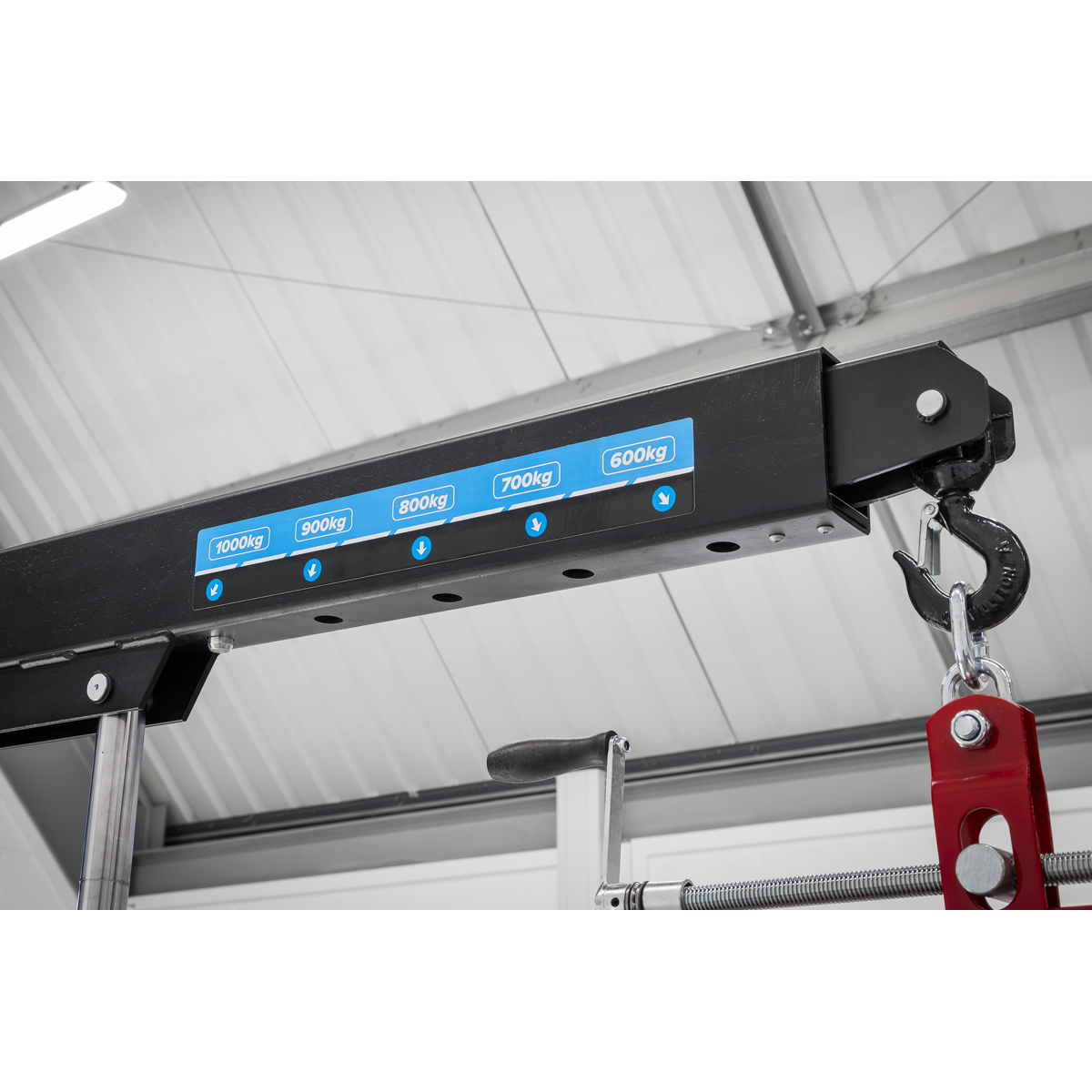

- FIVE POSITION JIB - The jib can be extended and locks in five positions between 960-1350mm.

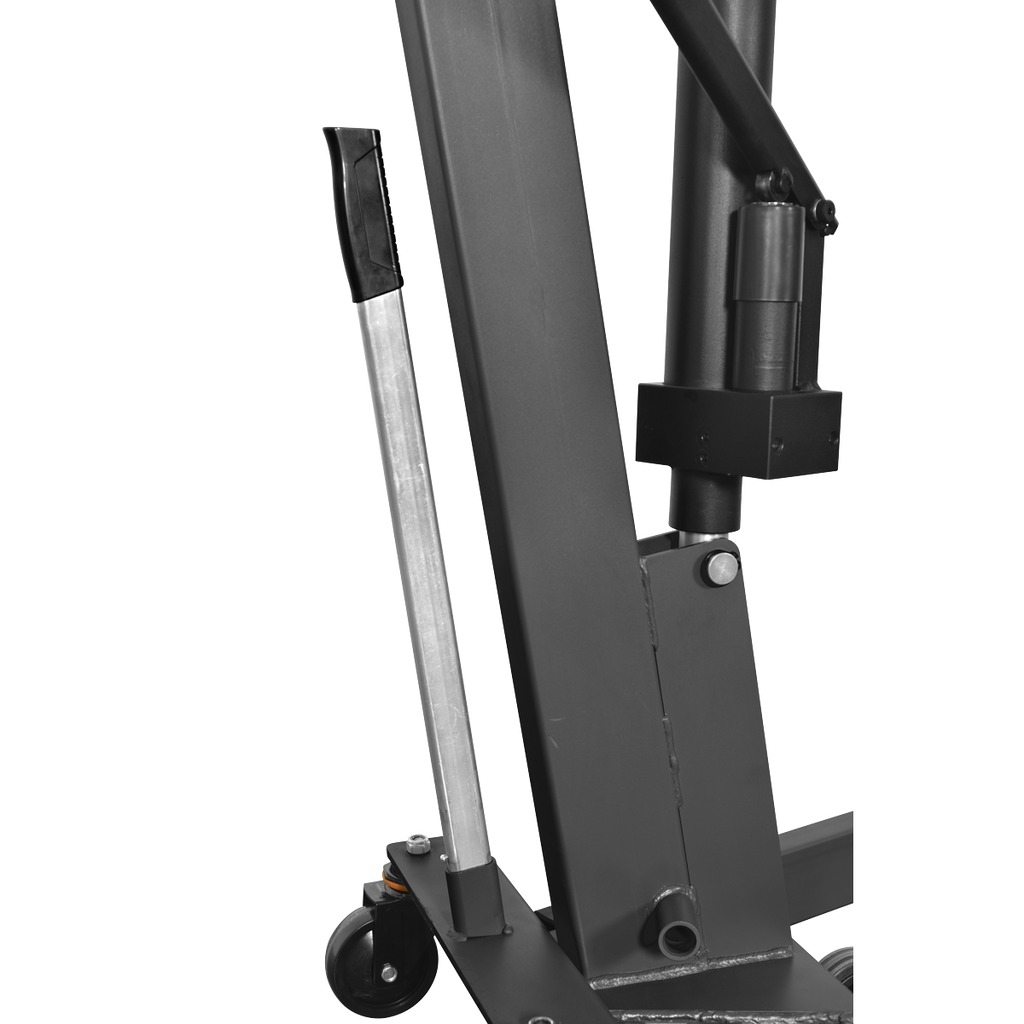

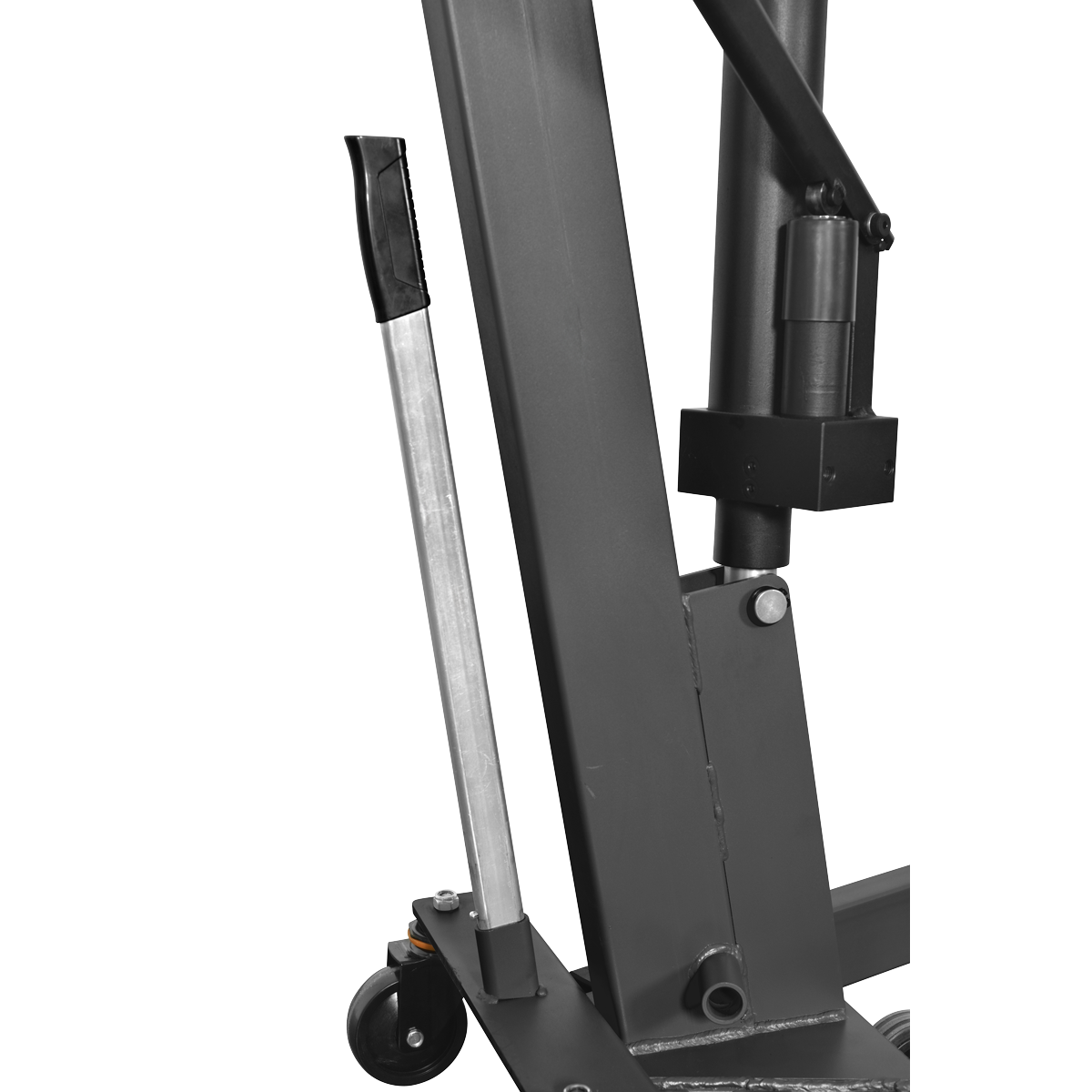

- TURNING PUMP HANDLE - The hydraulic unit and handle rotates by 200° aiding use where space is limited.
Sealey Viking Industrial Engine Crane, 1 Tonne Capacity (PFC101S)
The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets, boxes, etc. Hand operated dead man's control to prevent accidental lowering. Manually controlled descent speed. The jib can be extended and locks in five positions between 960-1350mm. The hydraulic unit and handle rotates by 200° aiding use where space is limited. Strong non-marking, nylon and fibreglass wheels front and rear. Rear castor wheels fitted with brakes. An additional wheel is also fitted for ease of movement when folded.
- FOLDING PARALLEL LEGS - The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets, boxes, etc.
- SAFETY RELEASE - Hand operated dead man's control to prevent accidental lowering.
- CONTROLLABLE RELEASE - Manually controlled descent speed.
- FIVE POSITION JIB - The jib can be extended and locks in five positions between 960-1350mm.
- TURNING PUMP HANDLE - The hydraulic unit and handle rotates by 200° aiding use where space is limited.

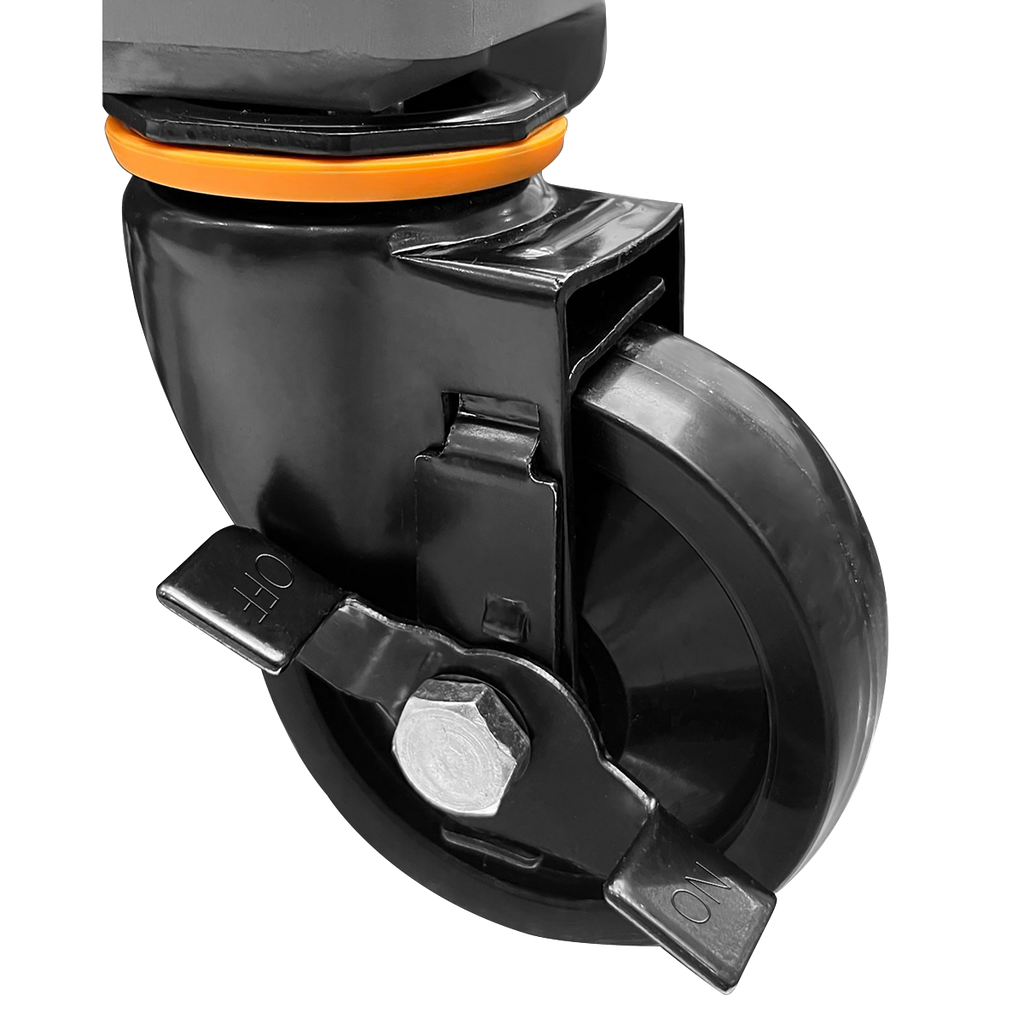

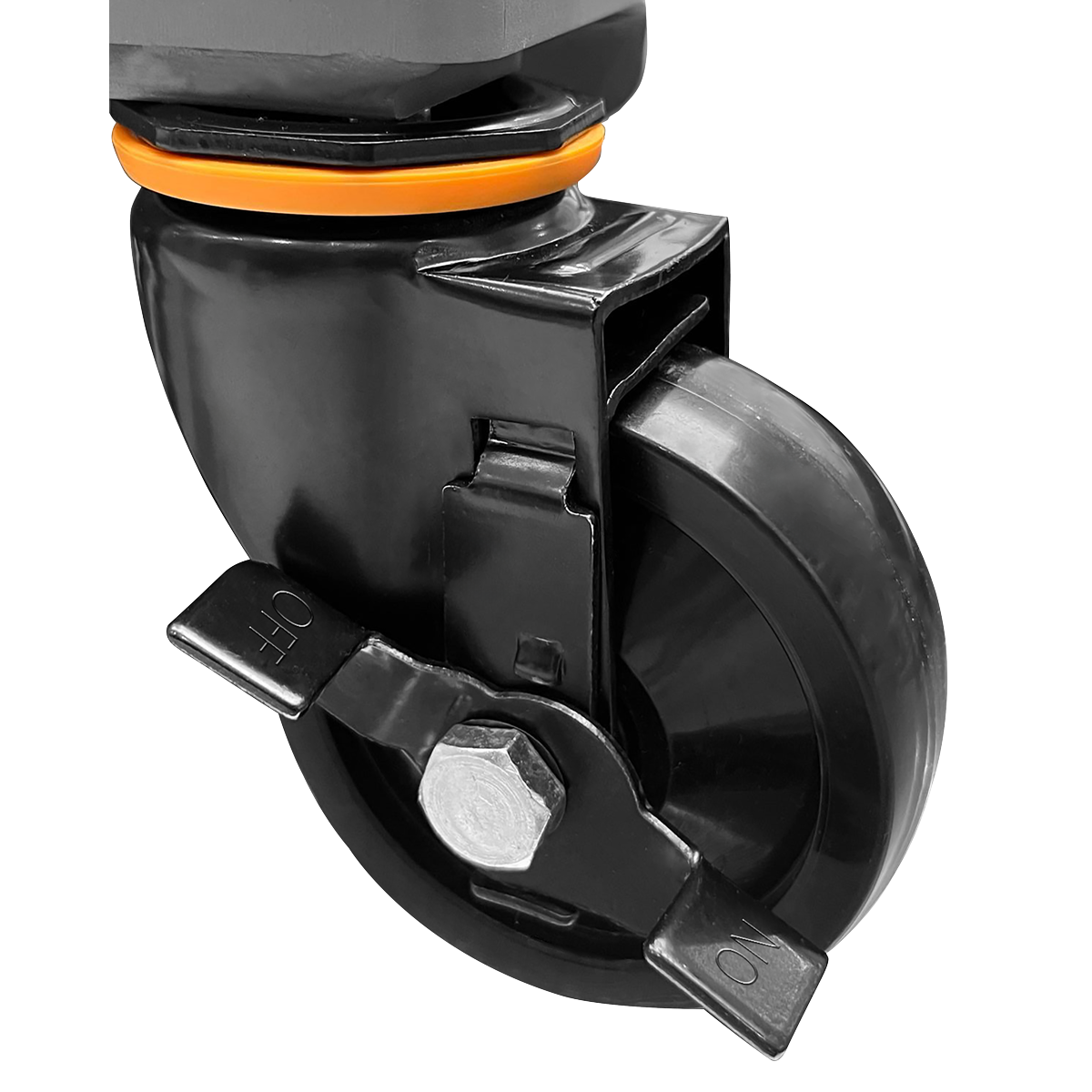

- NON FLOOR MARKING WHEELS - Strong non-marking, nylon and fibreglass wheels front and rear. Rear castor wheels fitted with brakes. An additional wheel is also fitted for ease of movement when folded.
| Model No | PFC101S |
| Brand | Viking |
| Height Jib Down | n/a |
| Height Legs Folded | 1550mm |
| Height of Frame | 105mm |
| Length Legs Extended | n/a |
| Length of Jib Position 1 | 960mm |
| Length of Jib Position 2 | 1053mm |
| Length of Jib Position 3 | 1152mm |
| Length of Jib Position 4 | 1250mm |
| Length of Jib Position 5 | 1350mm |
| Length | 1600mm |
| Lifting Capacity in Position 1 | 1000kg |
| Lifting Capacity in Position 2 | 900kg |
| Lifting Capacity in Position 3 | 800kg |
| Lifting Capacity in Position 4 | 700kg |
| Lifting Capacity in Position 5 | 600kg |
| Max. Lift Ht at Jib Position 1 | 2080mm |
| Max. Lift Ht at Jib Position 2 | 2140mm |
| Max. Lift Ht at Jib Position 3 | 2190mm |
| Max. Lift Ht at Jib Position 4 | 2250mm |
| Max. Lift Ht at Jib Position 5 | 2300mm |
| Note | n/a |
| Rear Width | 390mm |
| Width Front Frame | 1129mm |
| Width Inside Front Frame | 1025mm |
| Weight | 96.00kg |
