Premier Floor Pillar Drill 1610mm, 16-Speed, 370W (PDM170F)
Premier Floor Pillar Drill 1610mm, 16-Speed, 370W (PDM170F)
- DURABLE - Features heavy-duty aluminium-bodied motor for long and reliable performance.
- SAFETY - No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
- SCOPE - Spindle Centre to Column: 170mm.
- CONTROL - Large sized square table fitted with precision rack and pinion height adjustment.
- CHUCK CAPACITY - 16mm (5/8"), MT2.

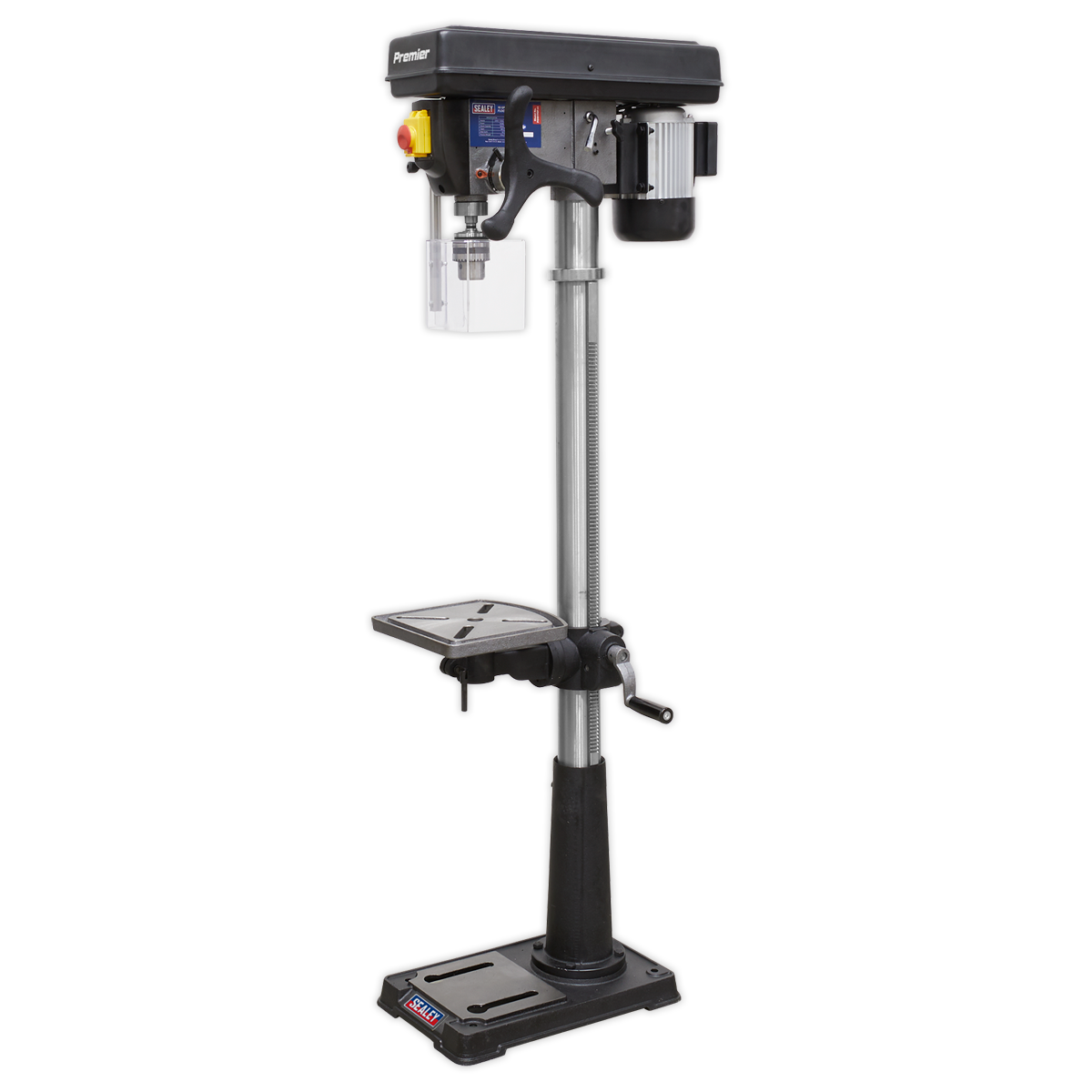

Sealey Premier Floor Mounted Pillar Drill, 1610mm Height, 16-Speed, 370W 230V (PDM170F)
One of a comprehensive range of Premier floor standing pillar drills for the professional workshop. Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.
- DURABLE - Features heavy-duty aluminium-bodied motor for long and reliable performance.
- SAFETY - No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
- SCOPE - Spindle Centre to Column: 190mm.
- CONTROL - Large sized square table fitted with precision rack and pinion height adjustment.
-
CHUCK CAPACITY - 16mm (5/8"), MT2.
-
CHUCK GUARD - Supplied with an electrically inter-locked chuck guard.
| Model No | PDM170F |
| Base Size | 450 x 270mm |
| Brand | Premier |
| Collar Diameter | Ø55mm |
| Column Diameter | Ø73mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Integral Work Light | No |
| Maximum Distance Spindle to Base | 1255mm |
| Maximum Distance Spindle to Table | 770mm |
| Motor Power (Start) | 370W (600W) |
| Number of Speeds | 16 |
| Optional Accessories | PDM/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 1610mm |
| Speed Range | 190-3000rpm |
| Spindle Centre to Column | 170mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 340mm |
| Working Base Surface Size | 205 x 200mm |
| Working Table Surface Size | 254 x 254mm |
| Weight | 47.00kg |
