Bench Pillar Drill 750mm, 5-Speed, 370W (GDM50B)
Bench Pillar Drill 750mm, 5-Speed, 370W (GDM50B)
- SAFETY - Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
- SPINDLE HOUSING - Model No. GDM50B and up have Morse taper spindle housings for accepting taper shank drill bits.
- SPEED CONTROL - All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
- PRECISION - All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
- CHUCK CAPACITY - 16mm (5/8"), MT2.

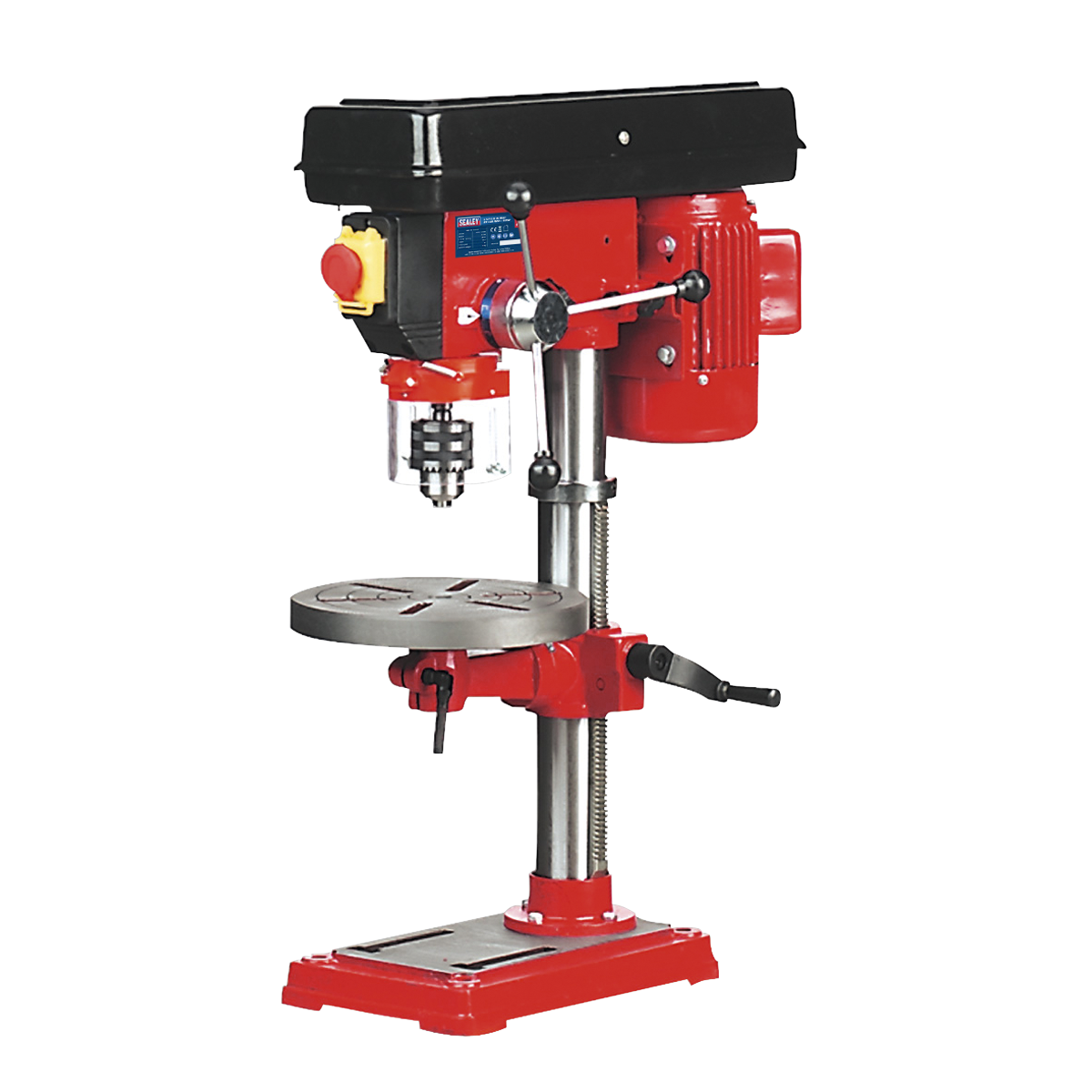

Sealey Bench Mounted Pillar Drill, 750mm Height, 5-Speed, 370W 230V (GDM50B)
One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments. Access to drive belts is denied during operation by mechanical protection. Mortise attachment available, order Model No. MA10.
- RANGE - One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
- SAFETY - Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
- SPINDLE HOUSING - Model No. GDM50B and up have Morse taper spindle housings for accepting taper shank drill bits.
- SPEED CONTROL - All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
- PRECISION - All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
- SCOPE - Spindle Centre to Column: 127mm.
- CHUCK CAPACITY - 16mm (5/8"), MT2.
| Model No | GDM50B |
| Base Size | 345 x 215mm |
| Brand | Sealey |
| Collar Diameter | Ø55mm |
| Column Diameter | Ø60mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Maximum Distance Spindle to Base | 450mm |
| Maximum Distance Spindle to Table | 300mm |
| Motor Power (Start) | 220W (370W) |
| Number of Speeds | 5 |
| Optional Accessories | GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 750mm |
| Speed Range | 460-2890rpm |
| Spindle Centre to Column | 127mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 60mm |
| Supply | 230V |
| Swing | 254mm |
| Working Base Surface Size | 160 x 180mm |
| Working Table Surface Size | Ø248mm |
| Weight | 32.00kg |
