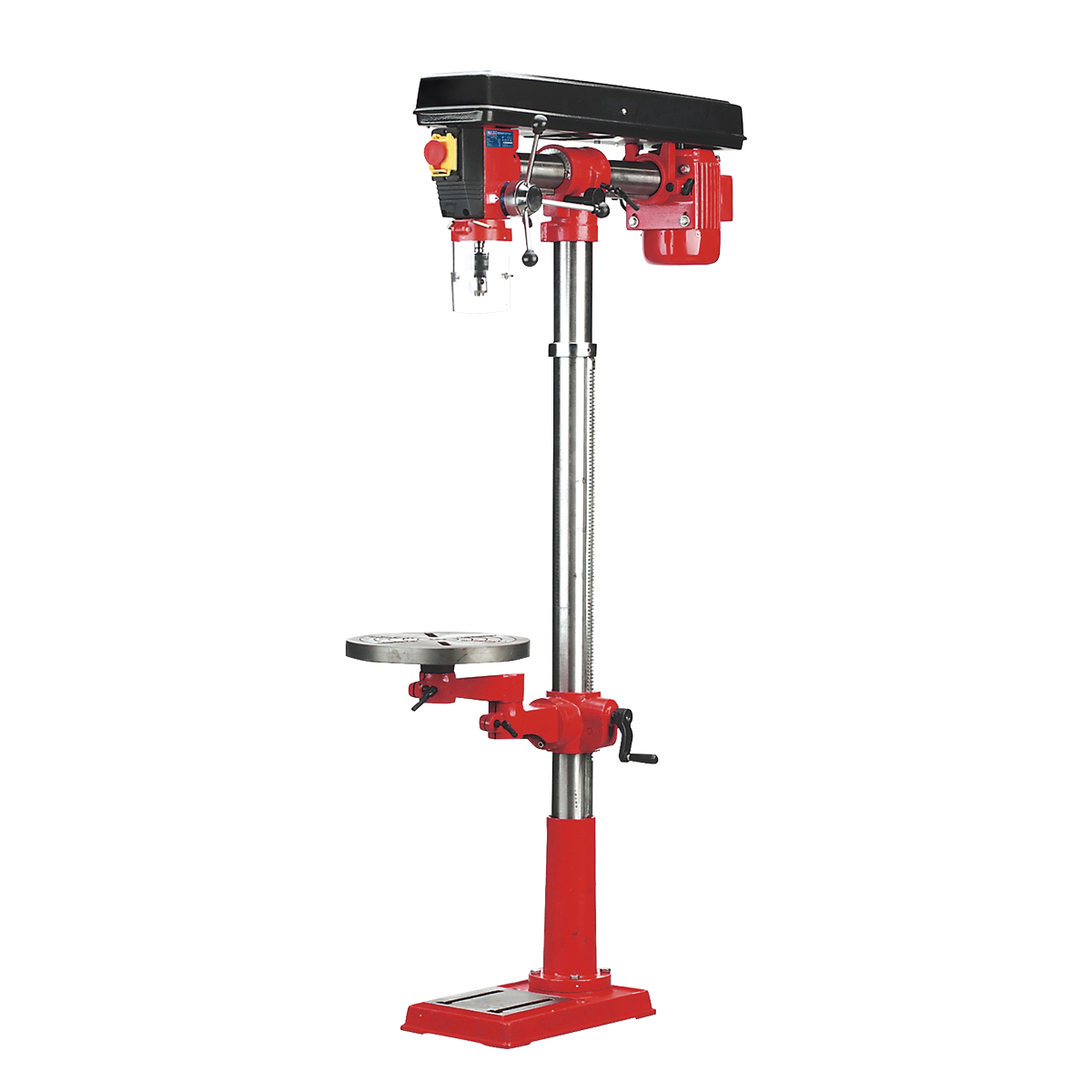

Floor Radial Pillar Drill 1620mm, 5-Speed, 550W (GDM1630FR)
Floor Radial Pillar Drill 1620mm, 5-Speed, 550W (GDM1630FR)
- Heavy-duty construction.
- Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.

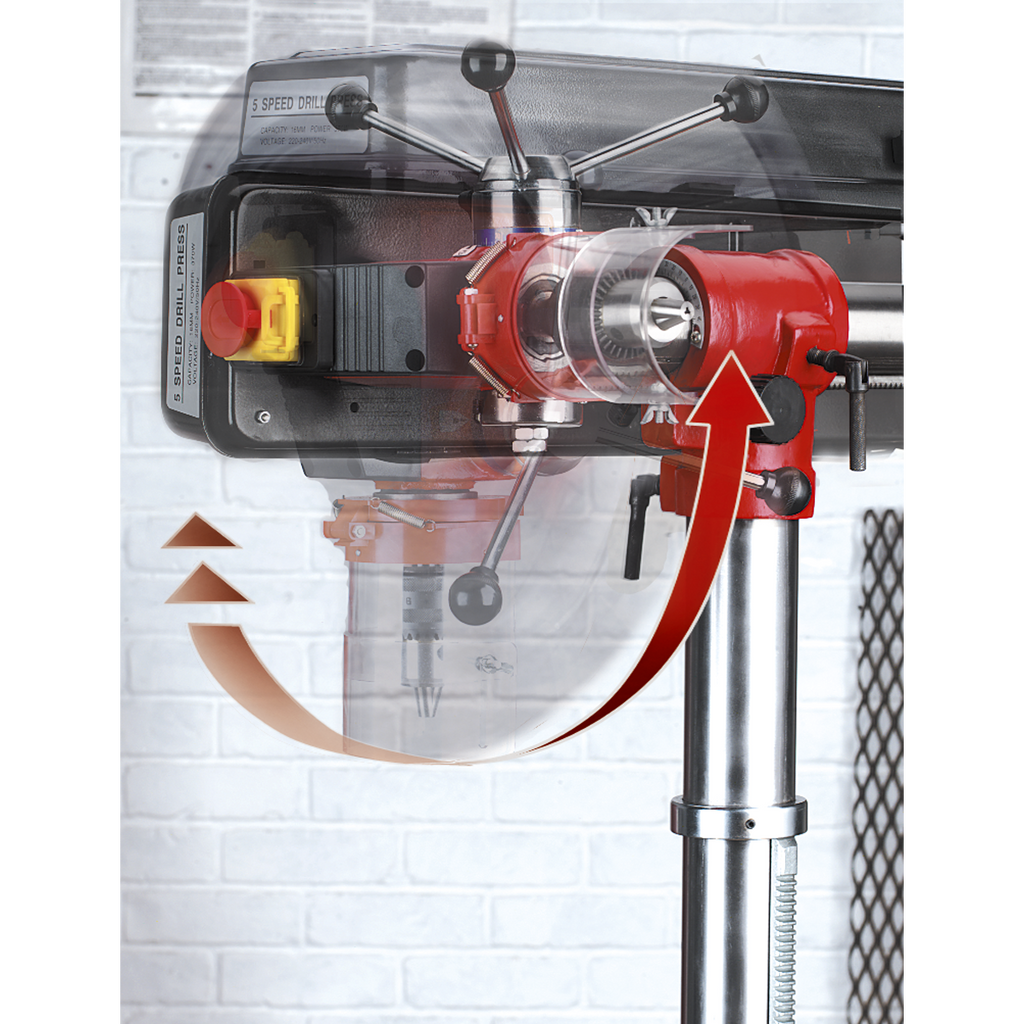

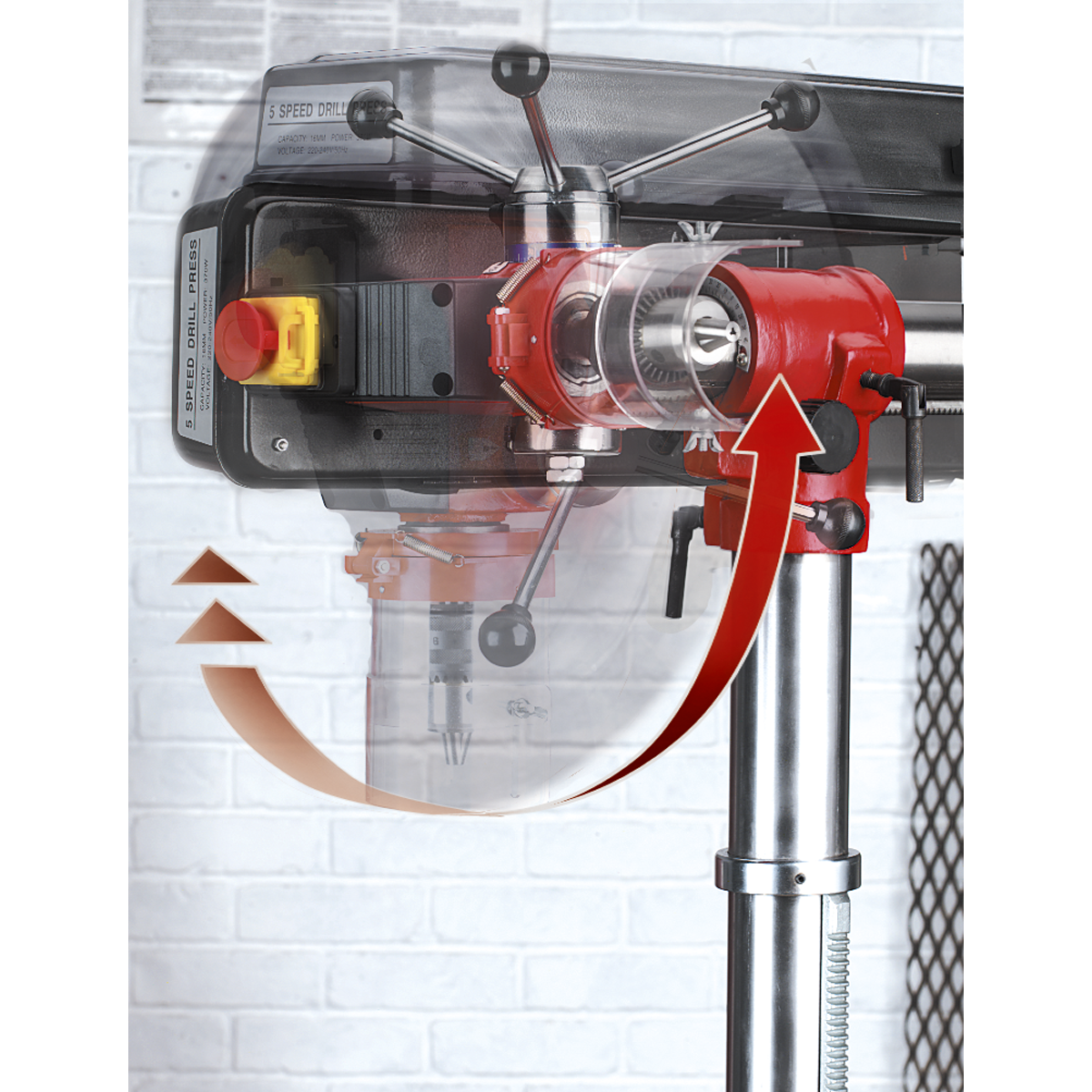

- Radial feature allows off-table drilling and angle drilling.
- Features a maximum throat depth of 420mm.

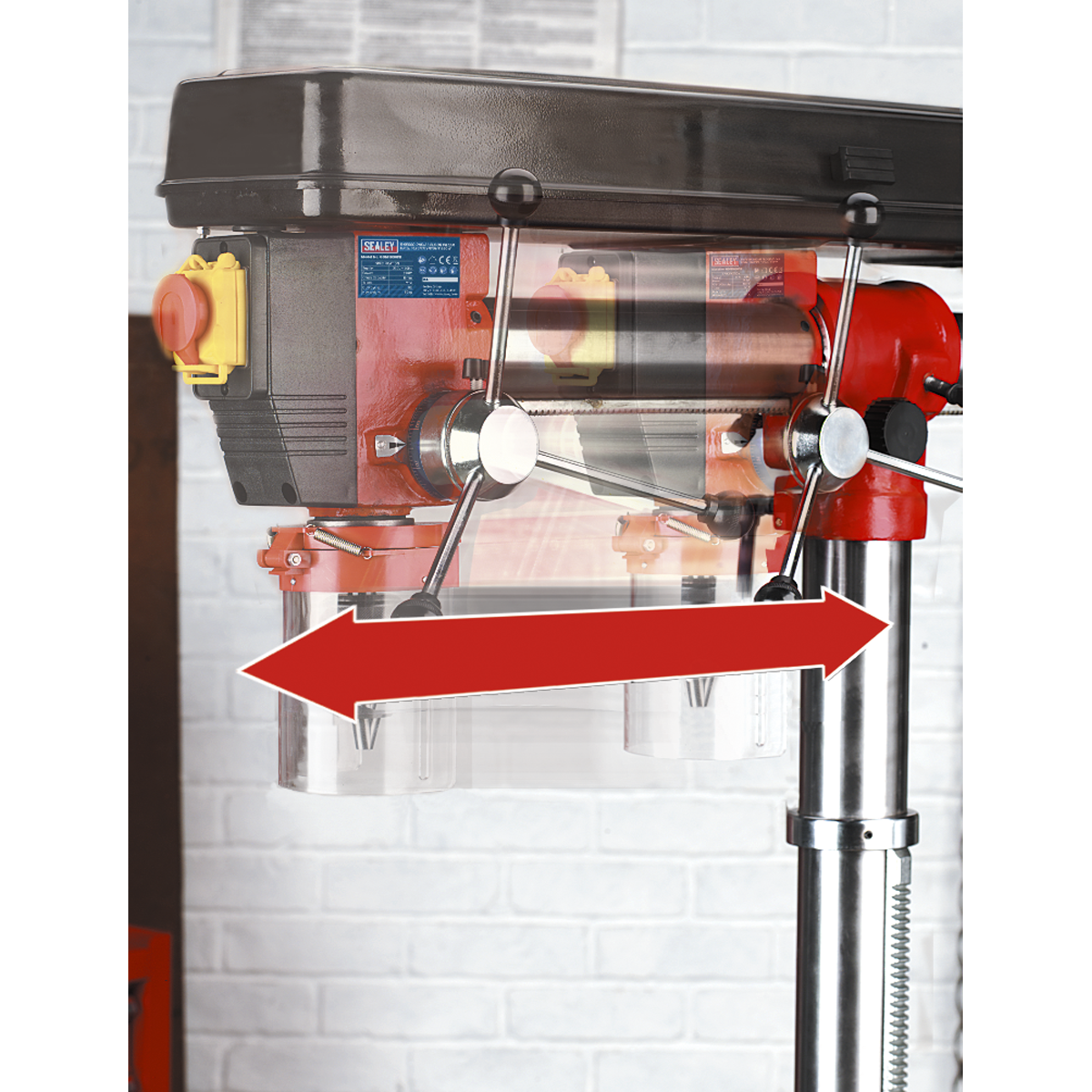

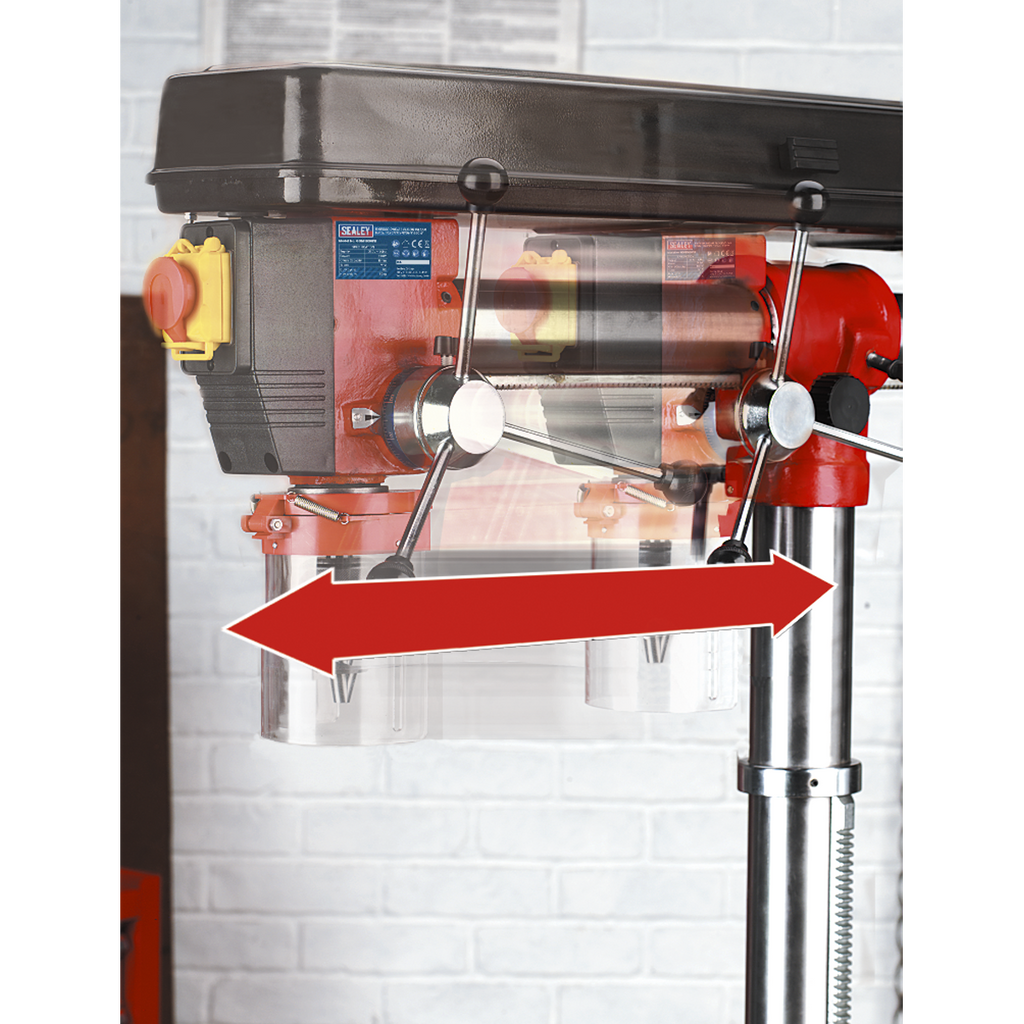

- Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
Refurbished option available
This product is also sold factory refurbished at a lower price, with the condition graded as below.
Sealey Floor Radial Pillar Drill 1620mm, 1620mm Height, 5-Speed, 550W 230V (GDM1630FR)
Heavy-duty construction. Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch. Radial feature allows off-table drilling and angle drilling. Features a maximum throat depth of 420mm. Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit. Mortise attachment available, order Model No. MA10. Also available as floor standing type - Model No. GDM1630FR.
- Heavy-duty construction.
- Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.
- Radial feature allows off-table drilling and angle drilling.
- Features a maximum throat depth of 420mm.
- Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
- Also available as bench mounting type - GDM790BR.
| Model No | GDM1630FR |
| Base Size | 420 x 250mm |
| Brand | Sealey |
| Collar Diameter | Ø60mm |
| Column Diameter | Ø70mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Maximum Distance Spindle to Base | 1280mm |
| Maximum Distance Spindle to Table | 830mm |
| Motor Power | 550W |
| Number of Speeds | 5 |
| Optional Accessories | GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 1620mm |
| Radial Arm Travel | 285mm |
| Speed Range | 500-2450rpm |
| Spindle Centre to Column | 420mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 840mm |
| Working Base Surface Size | 210 x 190mm |
| Working Table Surface Size | Ø310mm |
| Weight | 59.00kg |
