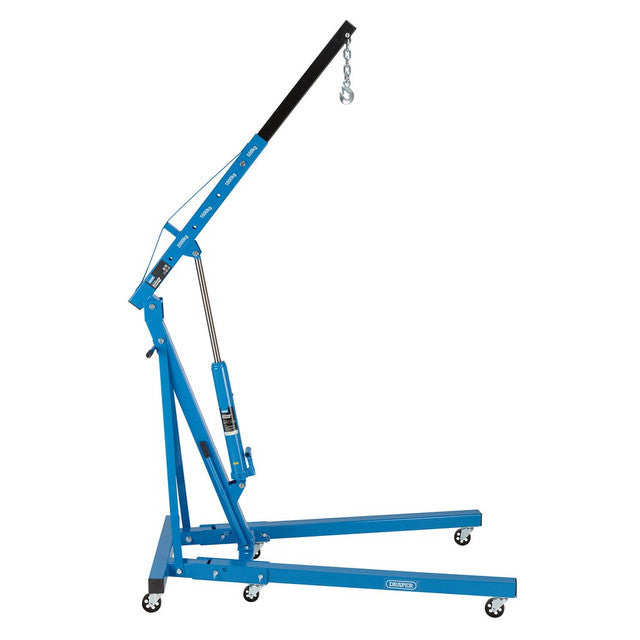

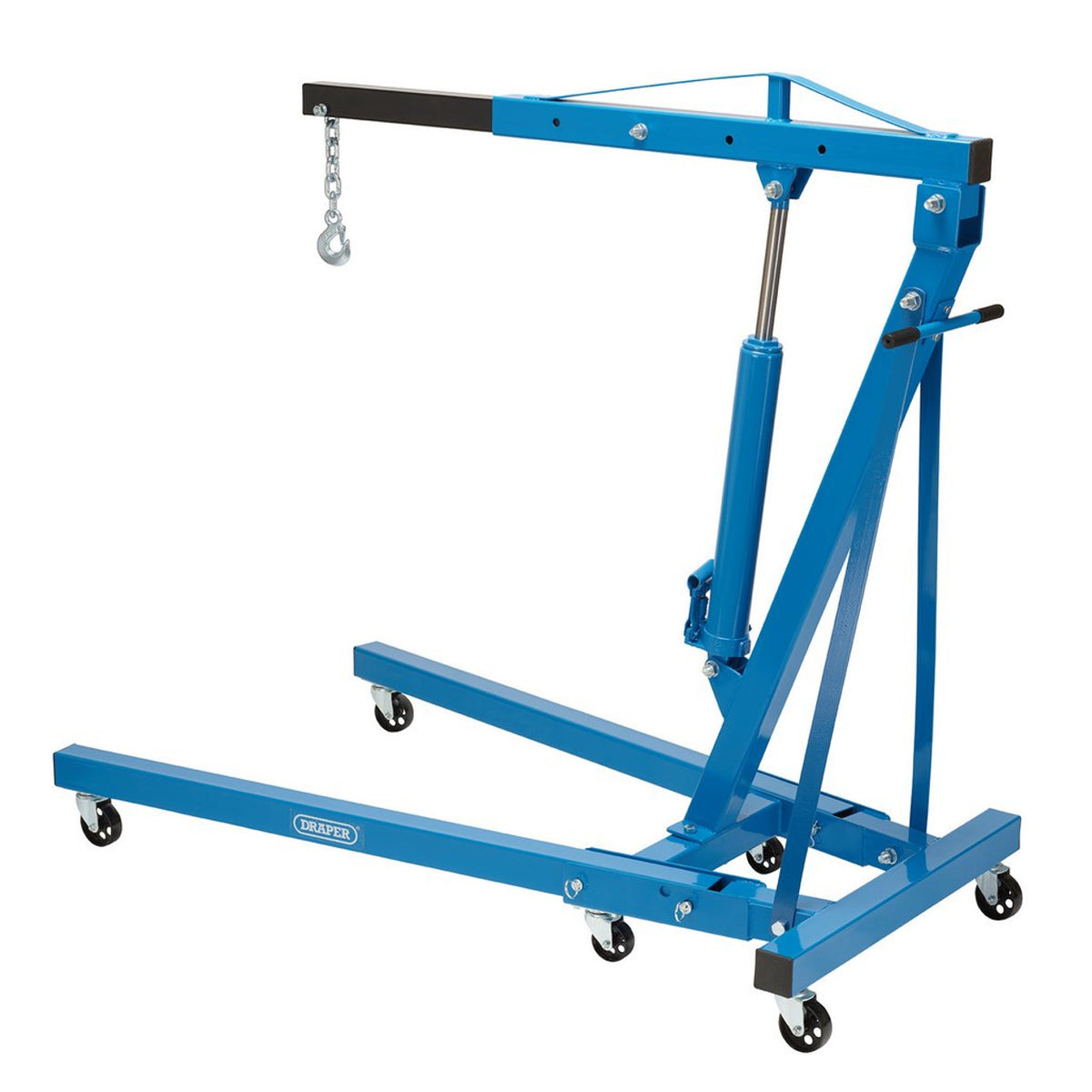

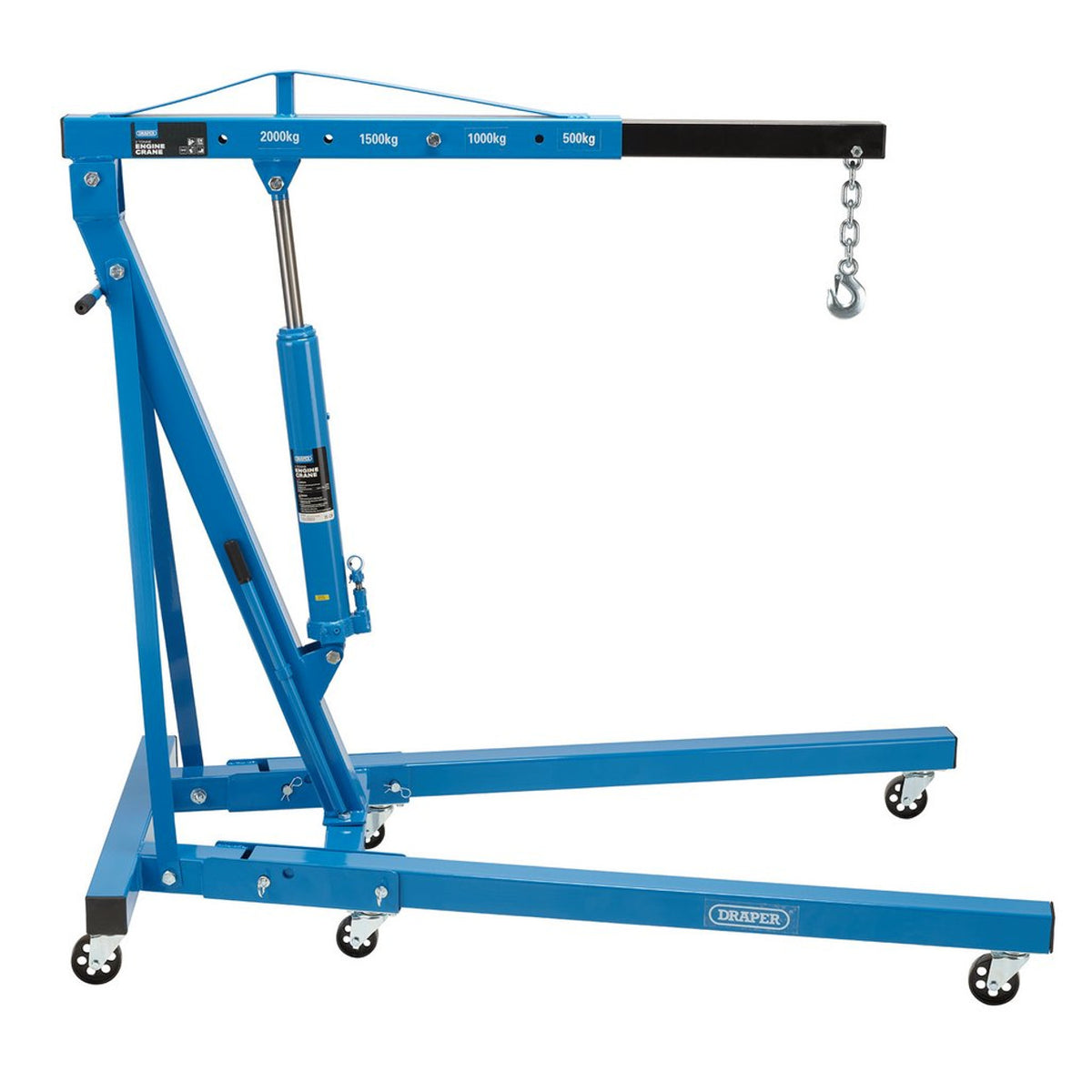

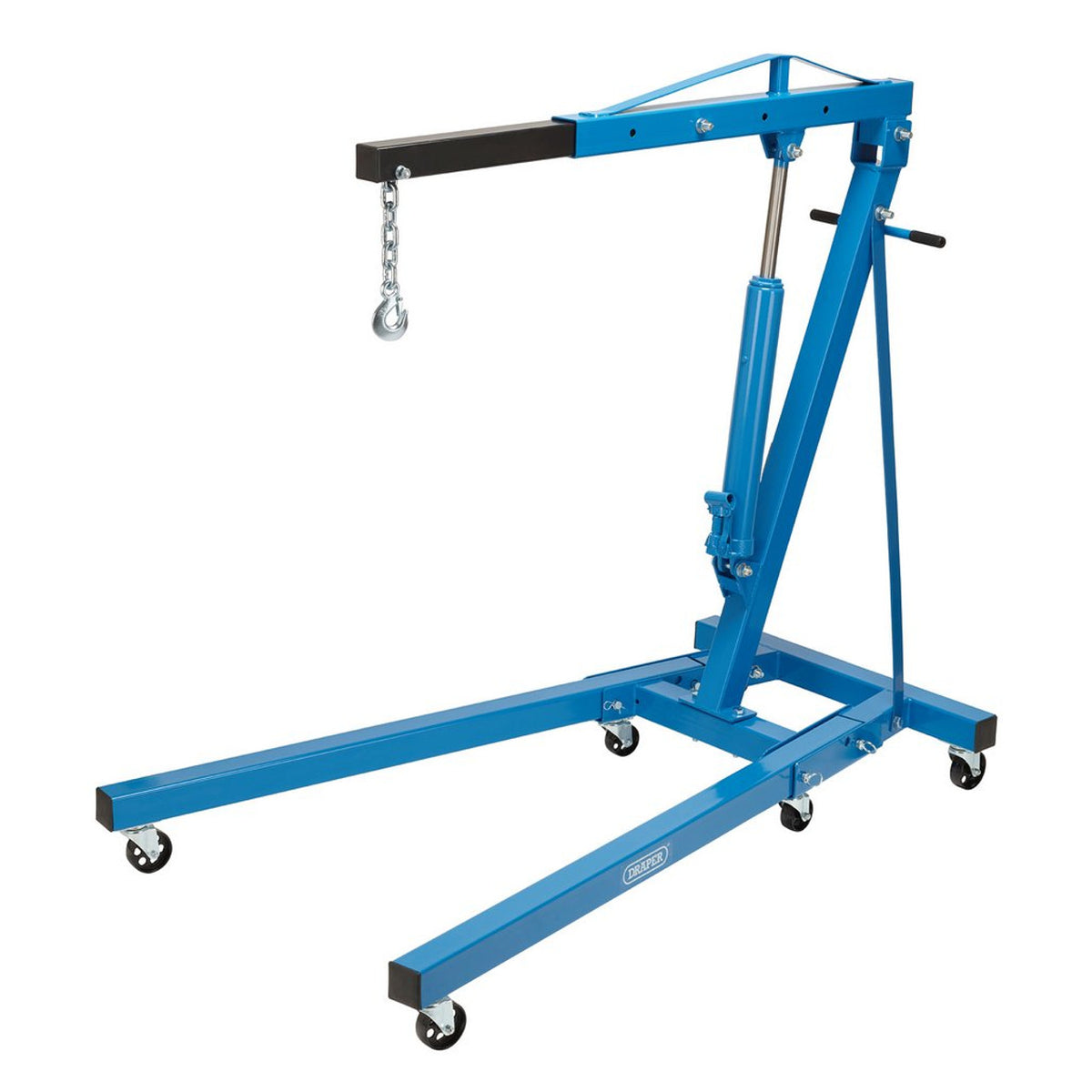

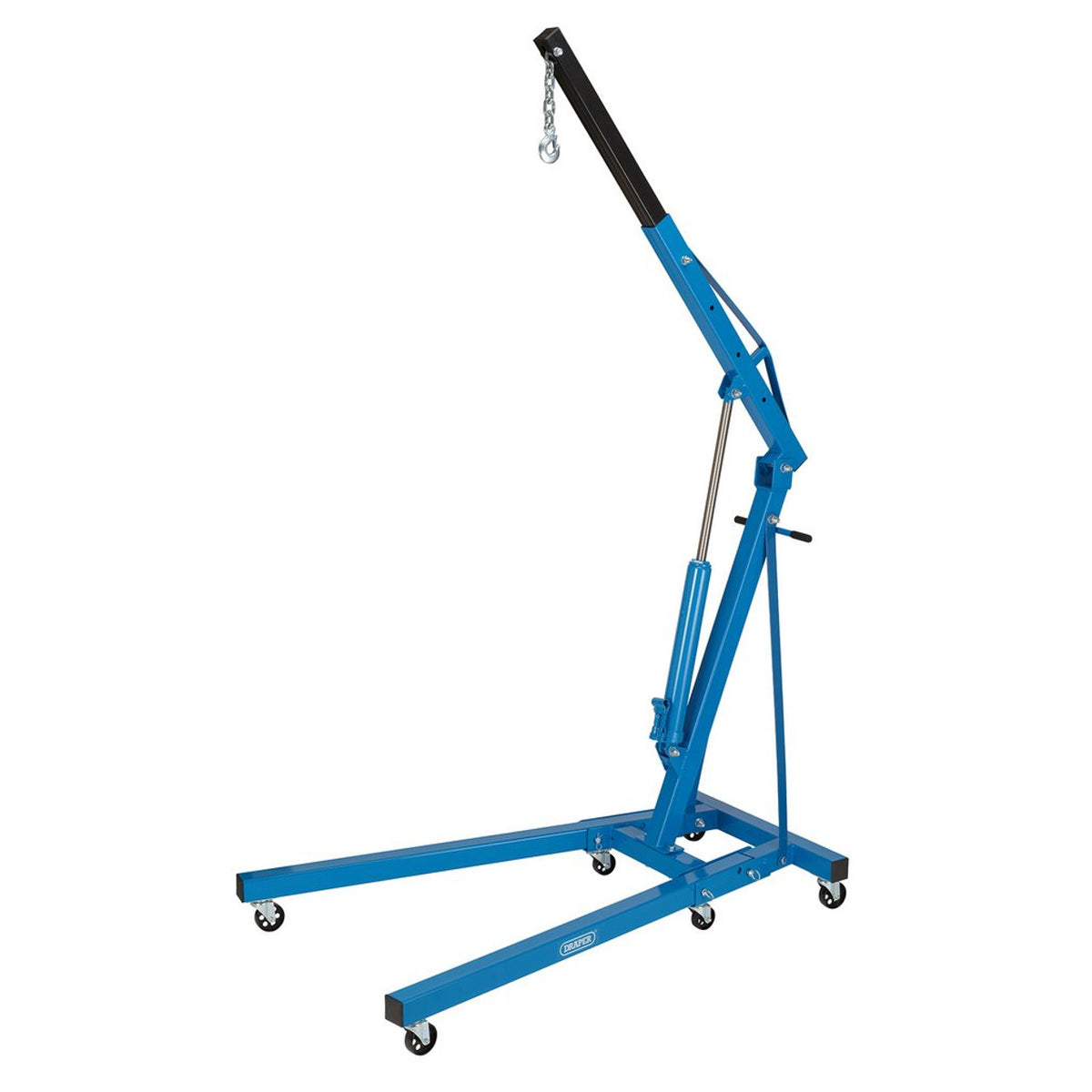

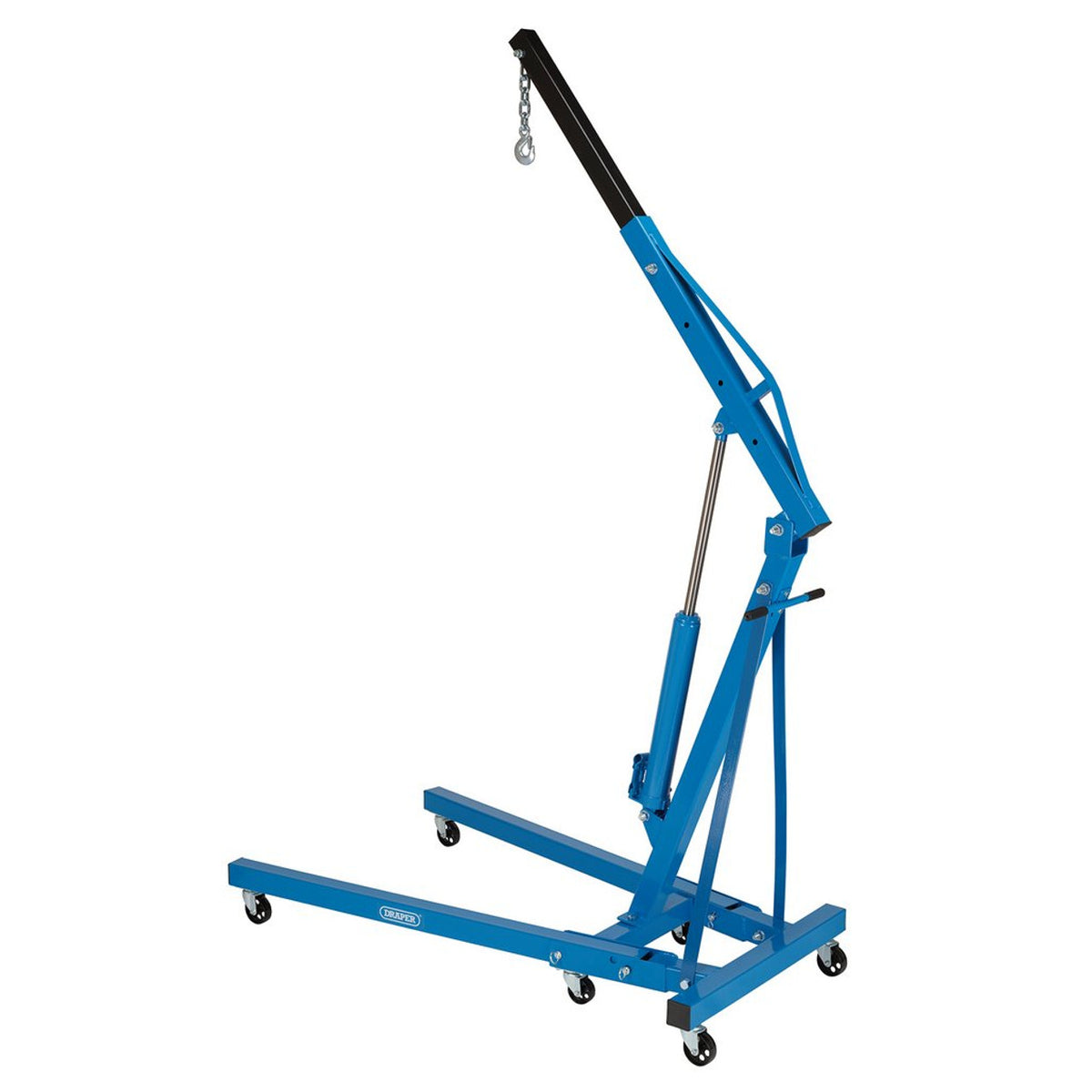

Draper Folding Engine Crane, 2 Tonne (93510)
Draper Folding Engine Crane, 2 Tonne (93510)
- Single piston hydraulic pump for rapid lifting.
- Four pre-set jib positions for lifting.
- Twin safety overload valves.
- Six robust castor wheels for safe mobility.

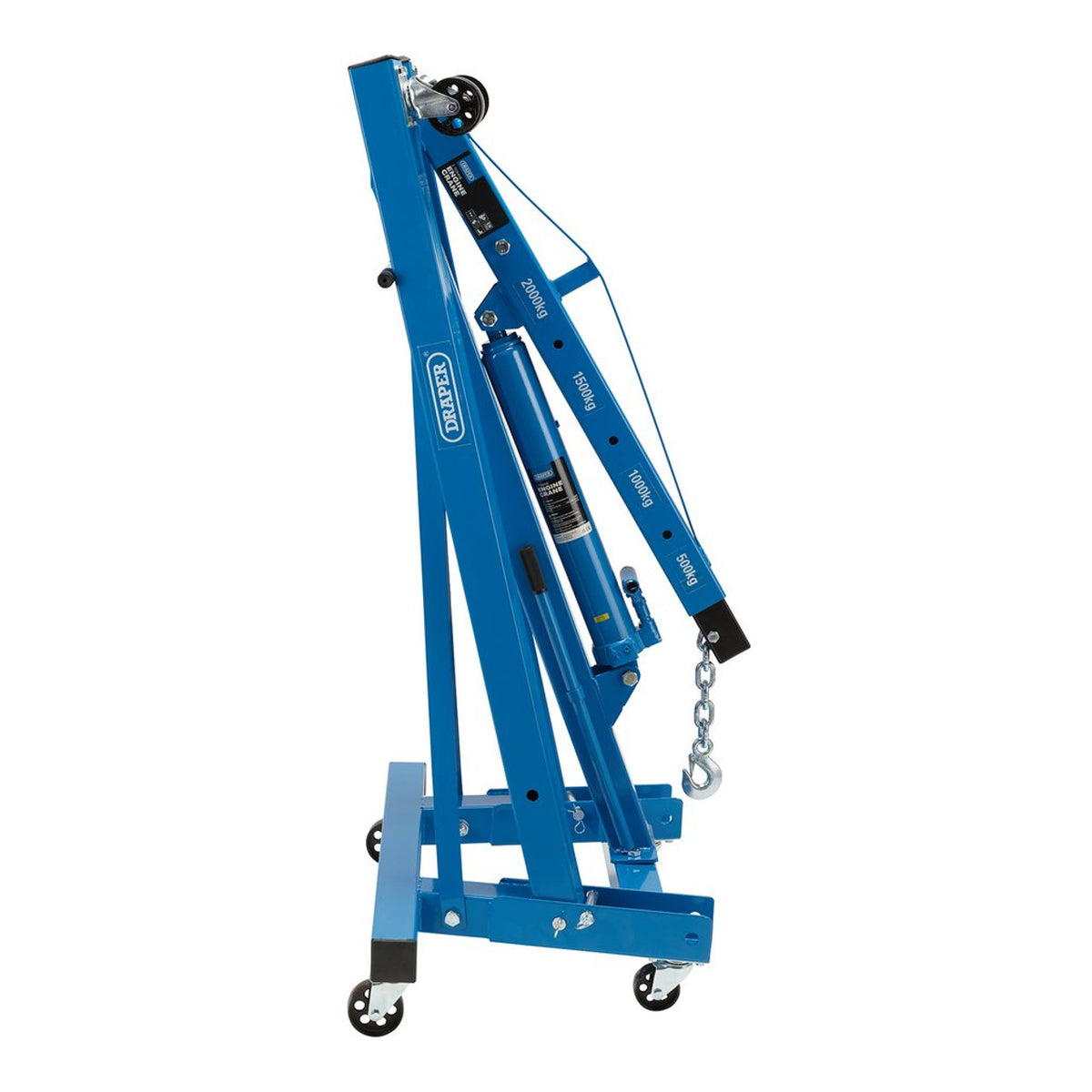

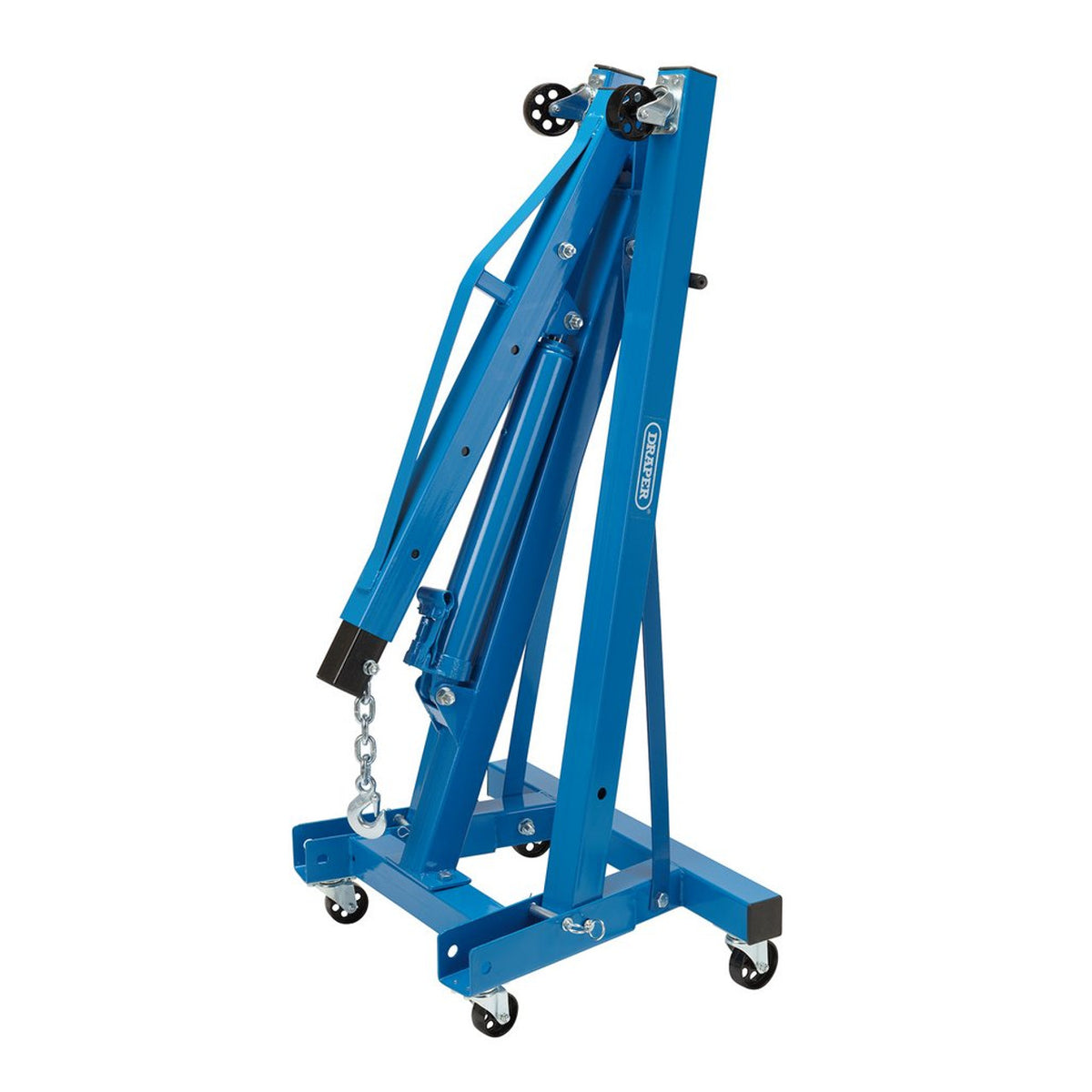

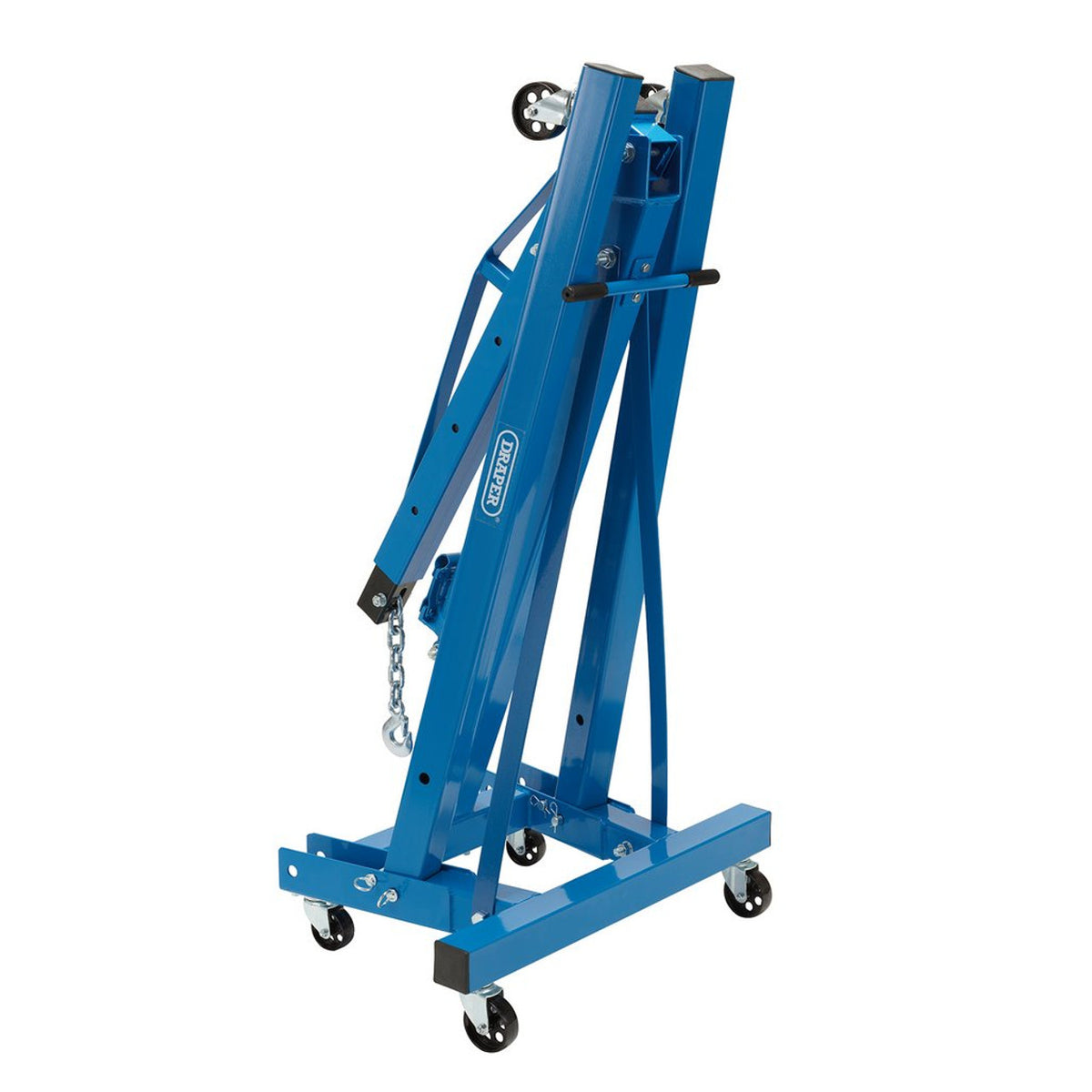

- Folding design optimises storage space.
Draper Folding Vehicle Engine Crane Support Lift, 2 Tonne Capacity, Blue (93510)
This robust engine crane has a maximum capacity of 2 Tonnes. The single-piston hydraulic pump ensures rapid lifting of an engine out of its bay with little effort. There are four pre-set jib positions, with a maximum capacity of 500kg when the jib is fully extended. The outrigger legs can be folded to optimise storage workshop space or for easy transportation. There are six robust castor wheels to allow safe mobility. For safety, they are twin overload valves to prevent exceeding capacity. This engine crane is compatible with a wide range of load slings and levelers.
Manufactured to EN1494 Specification
- Four pre-set jib positions for lifting.
- Single piston hydraulic pump for rapid lifting.
- Folding design optimises storage space.
- Six robust castor wheels for safe mobility.
- Fitted with twin safety overload valves.
- Compatible with a wide range of load slings and levellers.
| Model No | 93510 |
| Brand | Draper |
| Capacity | 2 Tonne |
| Distance Between Centre of Front Wheels | 1020mm |
| Distance Between Centre of Rear Wheels | 660mm |
| Frame Height | 210mm |
| Frame Length | 855mm |
| Frame Width | 70mm |
| Folded Dimensions (W x L x H) | 611 x 500 x 1305mm |
| Lifting Capacity in Position 1 | 2000kg |
| Lifting Capacity in Position 2 | 1500kg |
| Lifting Capacity in Position 3 | 1000kg |
| Lifting Capacity in Position 4 | 500kg |
| Maximum Jib Length Position 1 | 638mm |
| Maximum Jib Length Position 2 | 458mm |
| Maximum Jib Length Position 3 | 278mm |
| Maximum Jib Length Position 4 | 98mm |
| Weight | 79.40kg |
