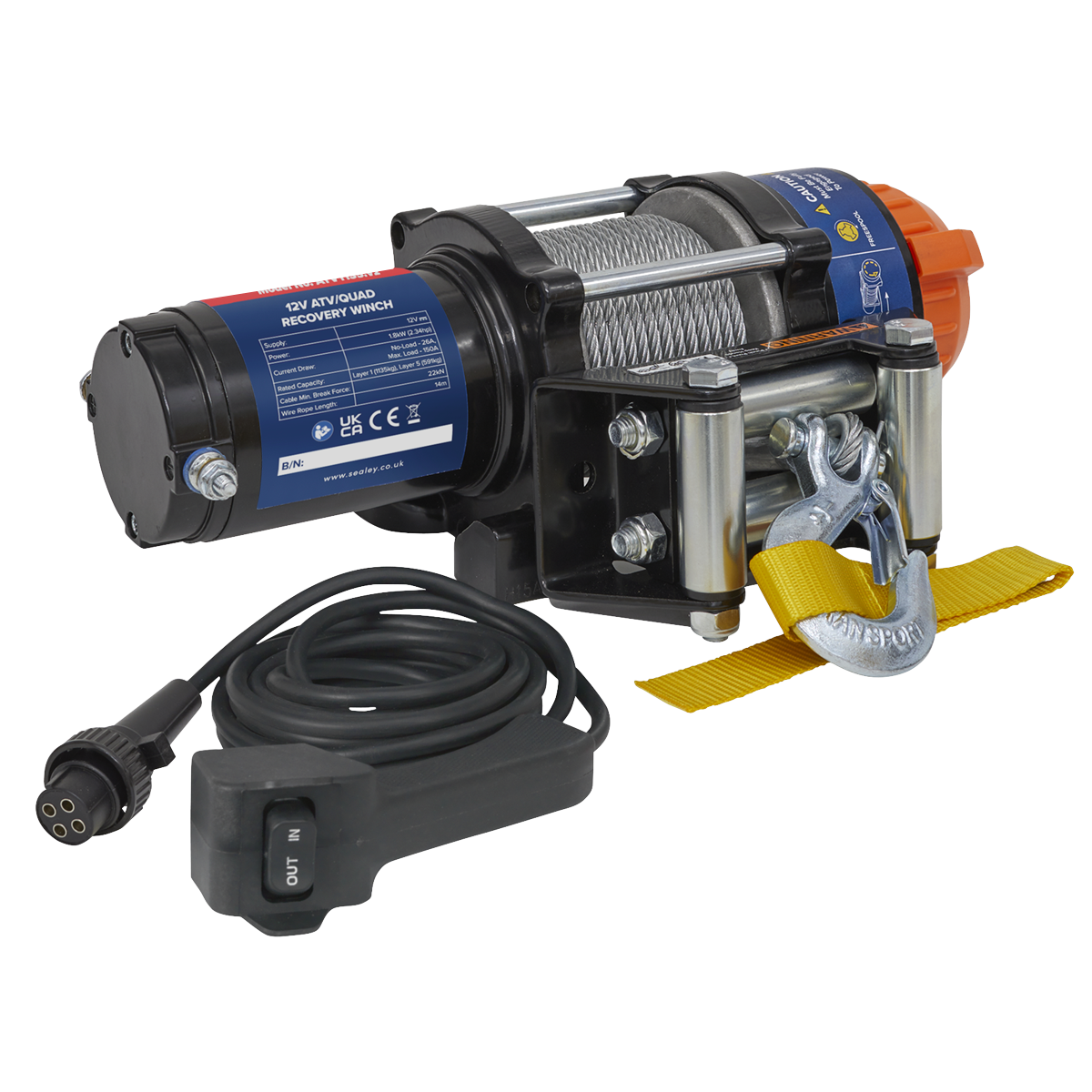

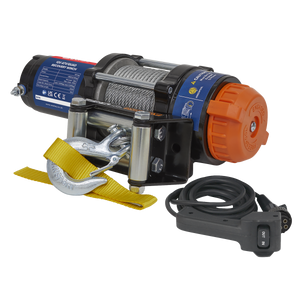

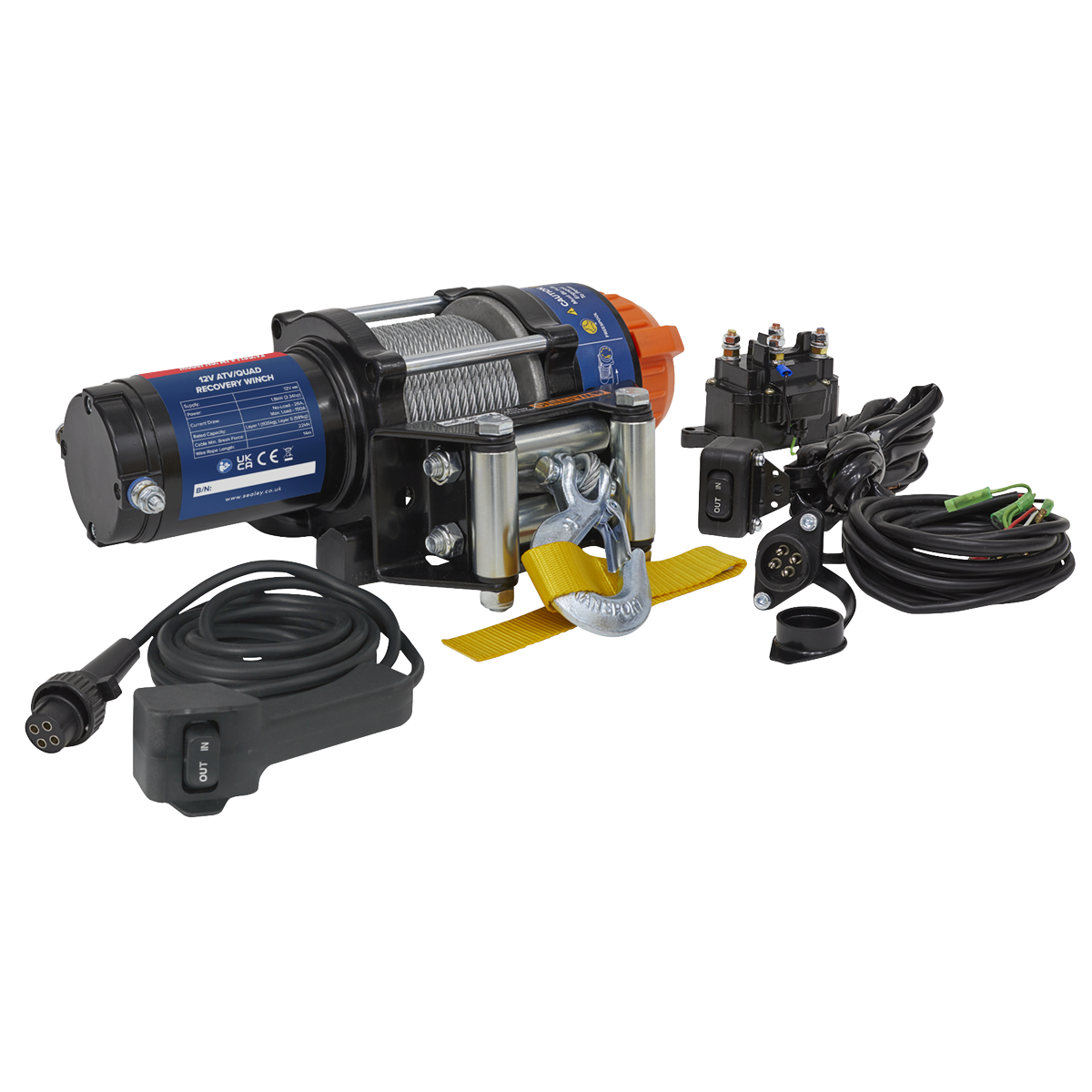

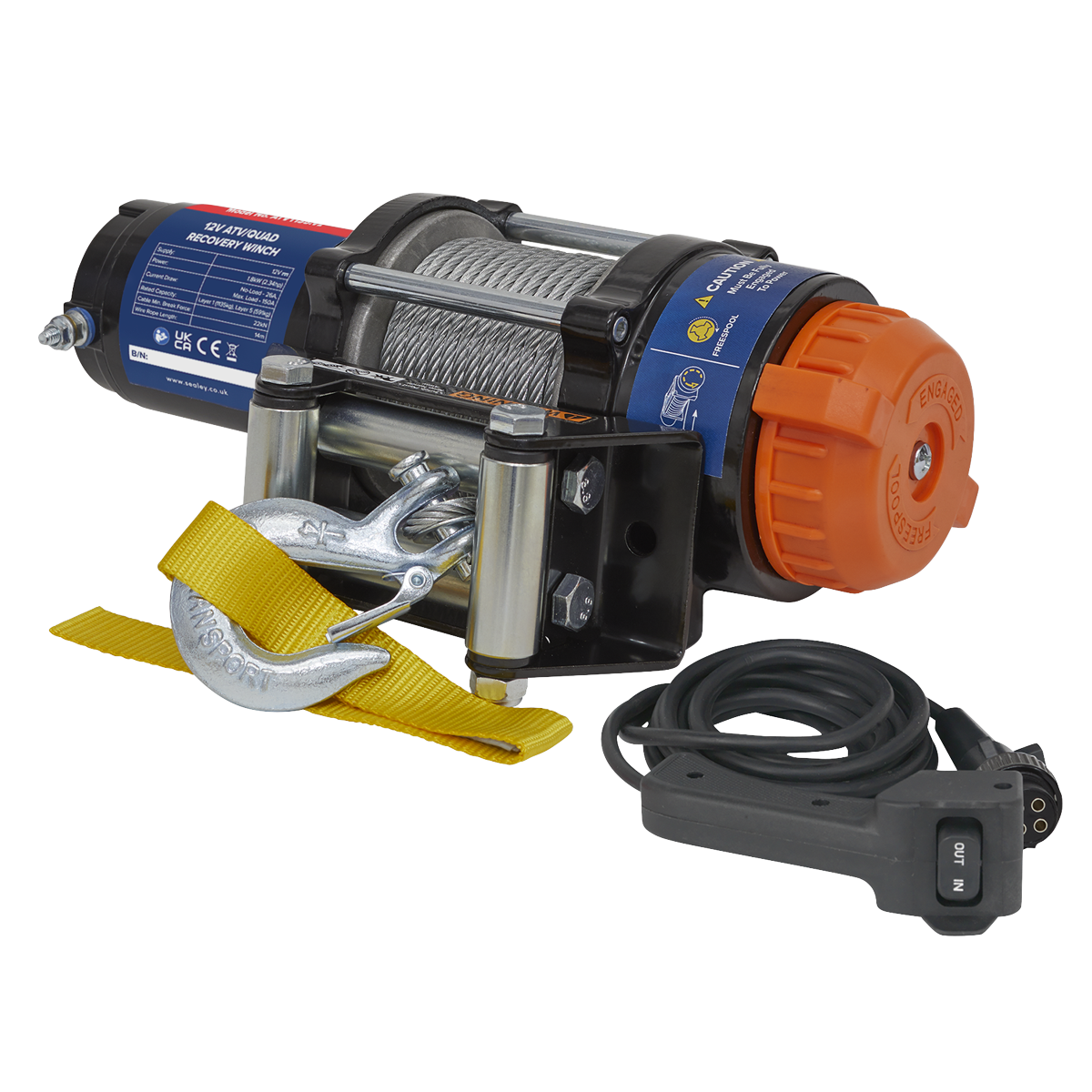

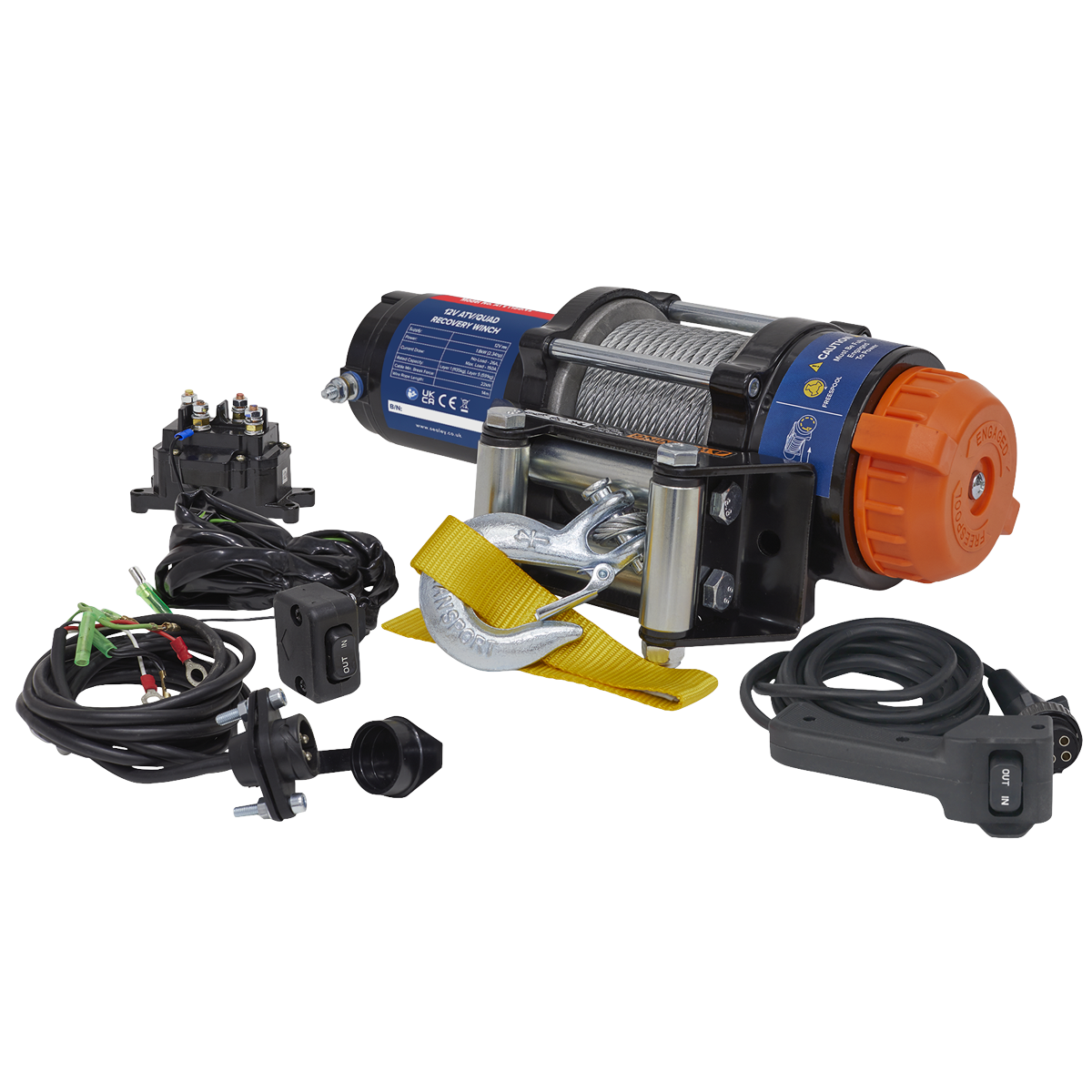

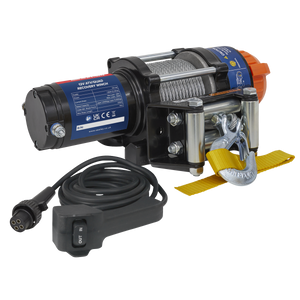

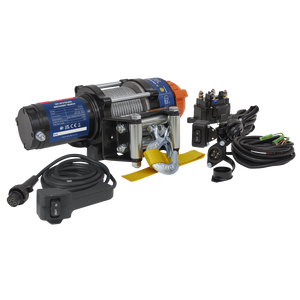

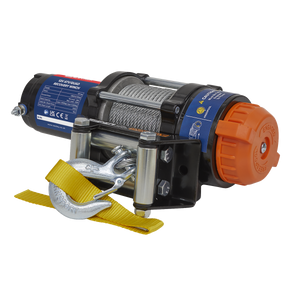

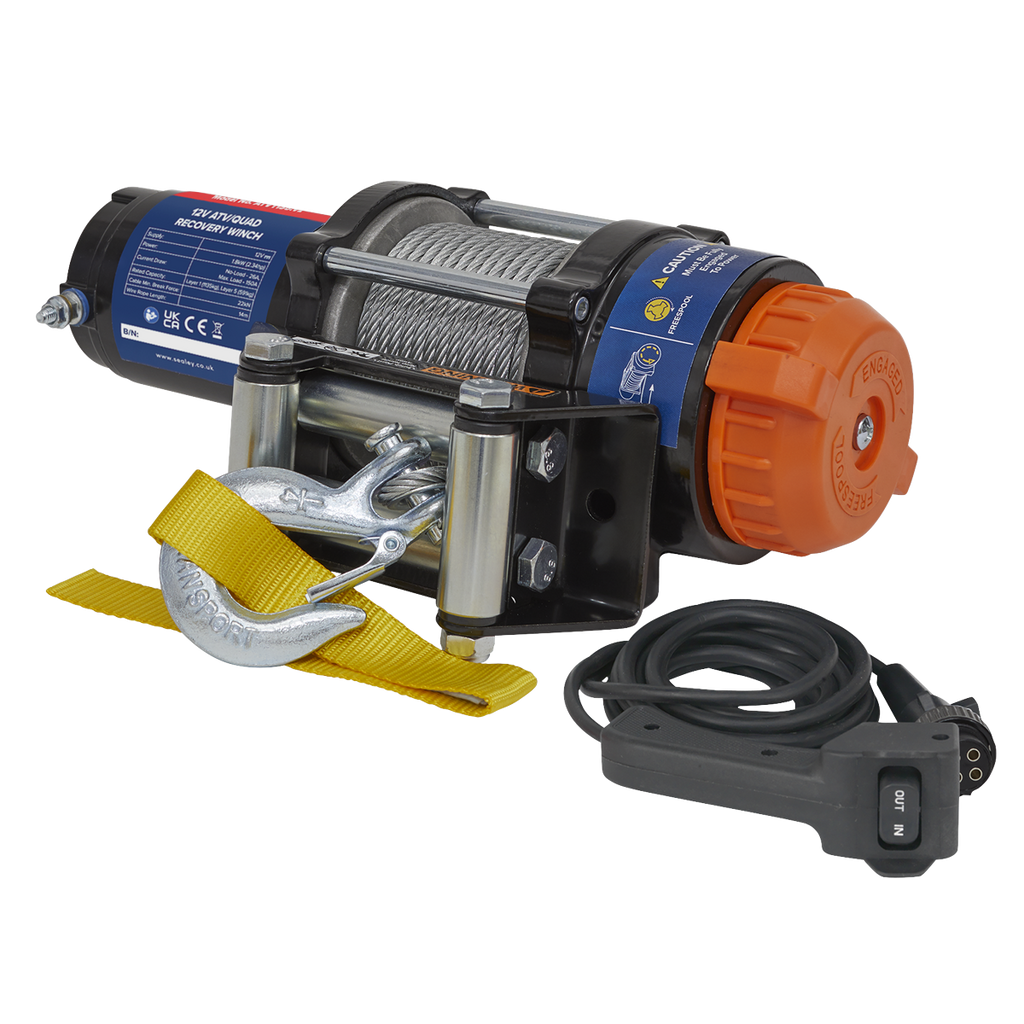

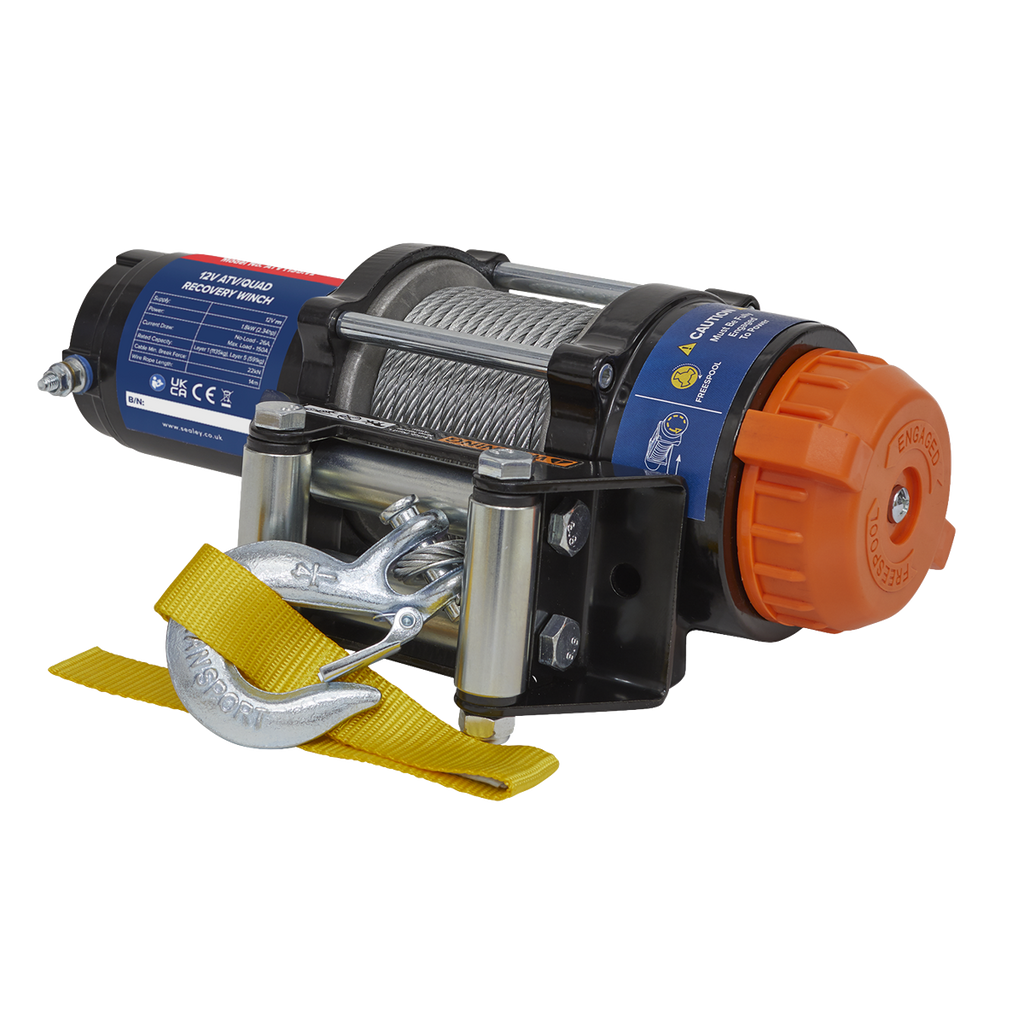

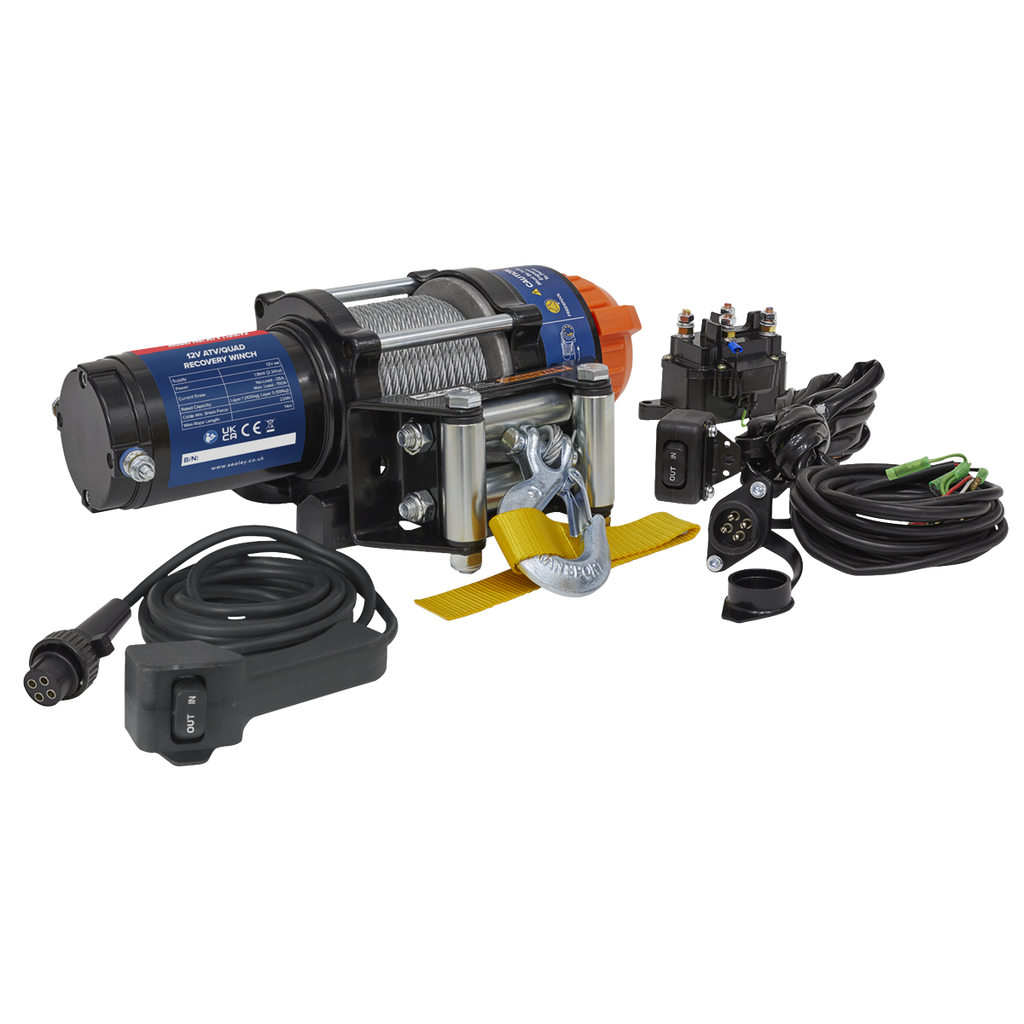

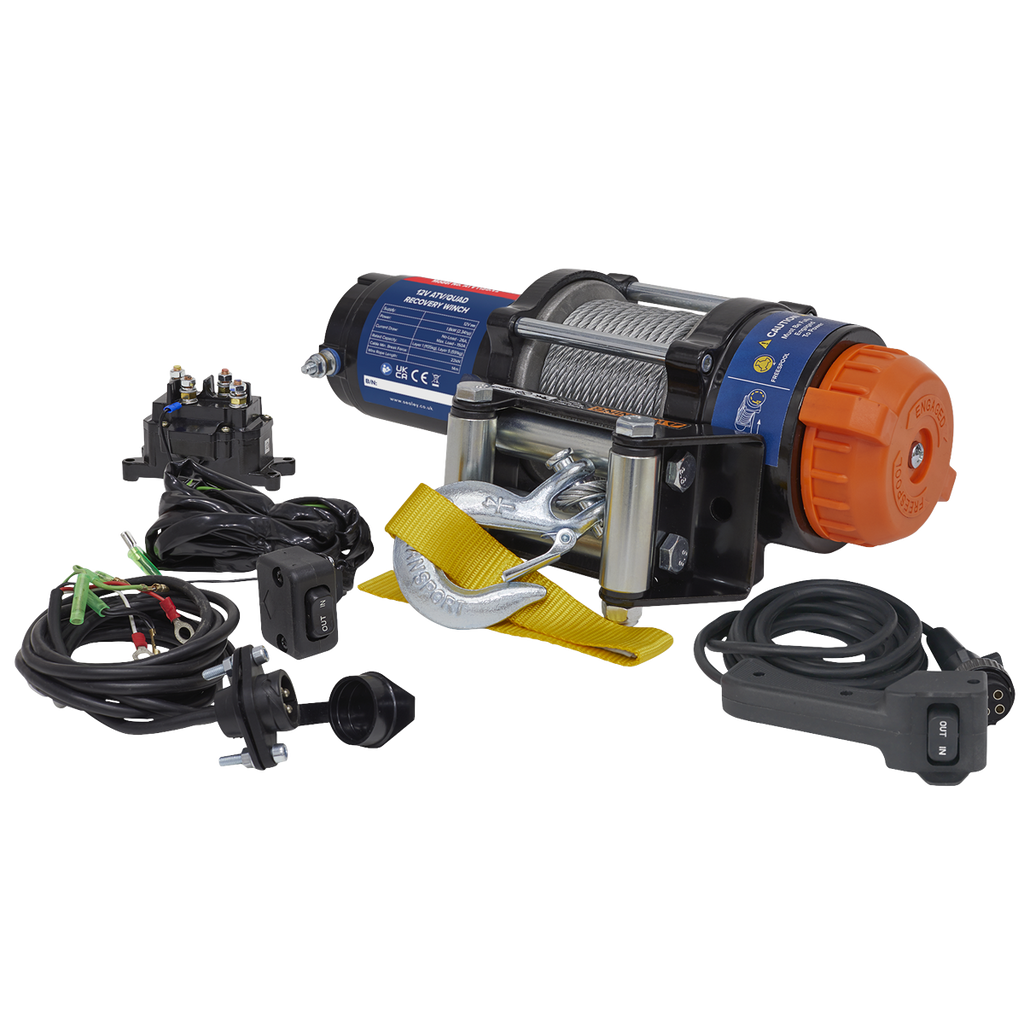

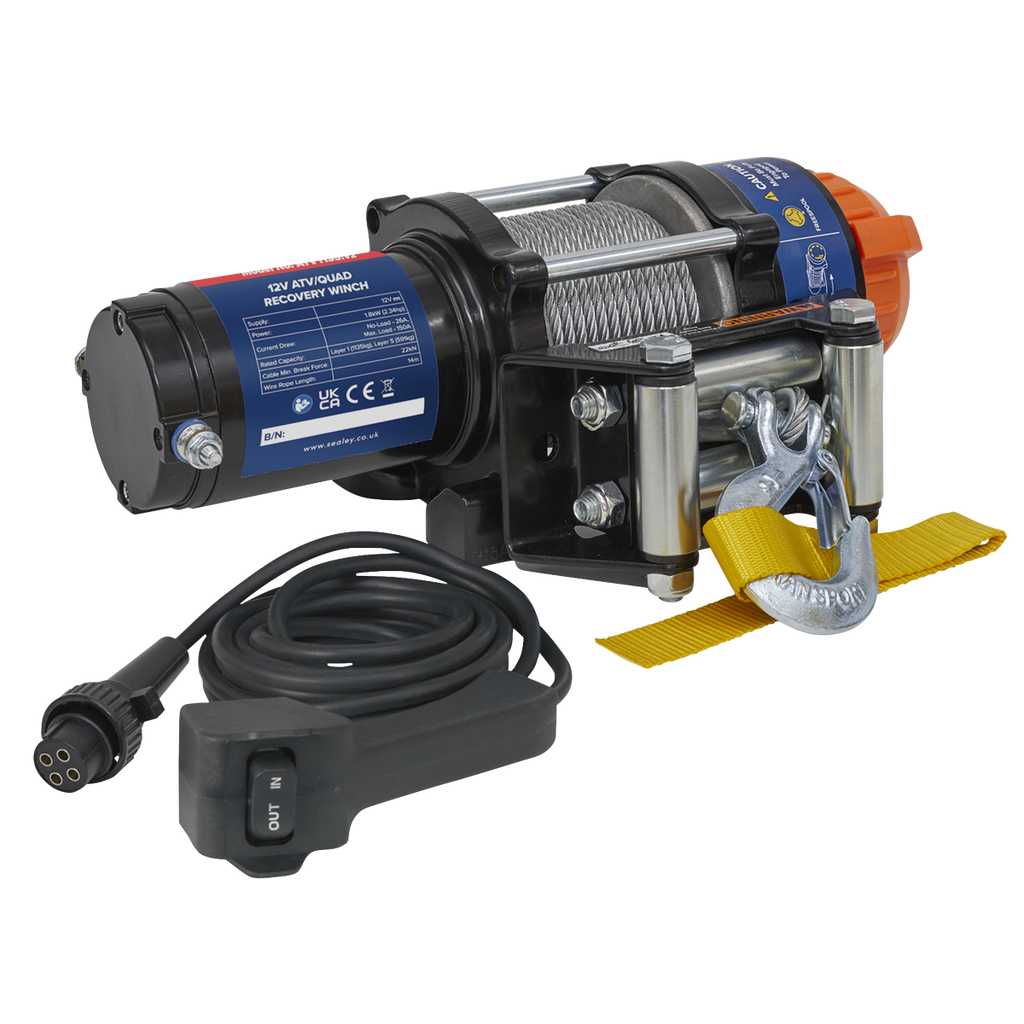

ATV/Quad Recovery Winch 1135kg (2500lb) Line Pull 12V
ATV/Quad Recovery Winch 1135kg (2500lb) Line Pull 12V

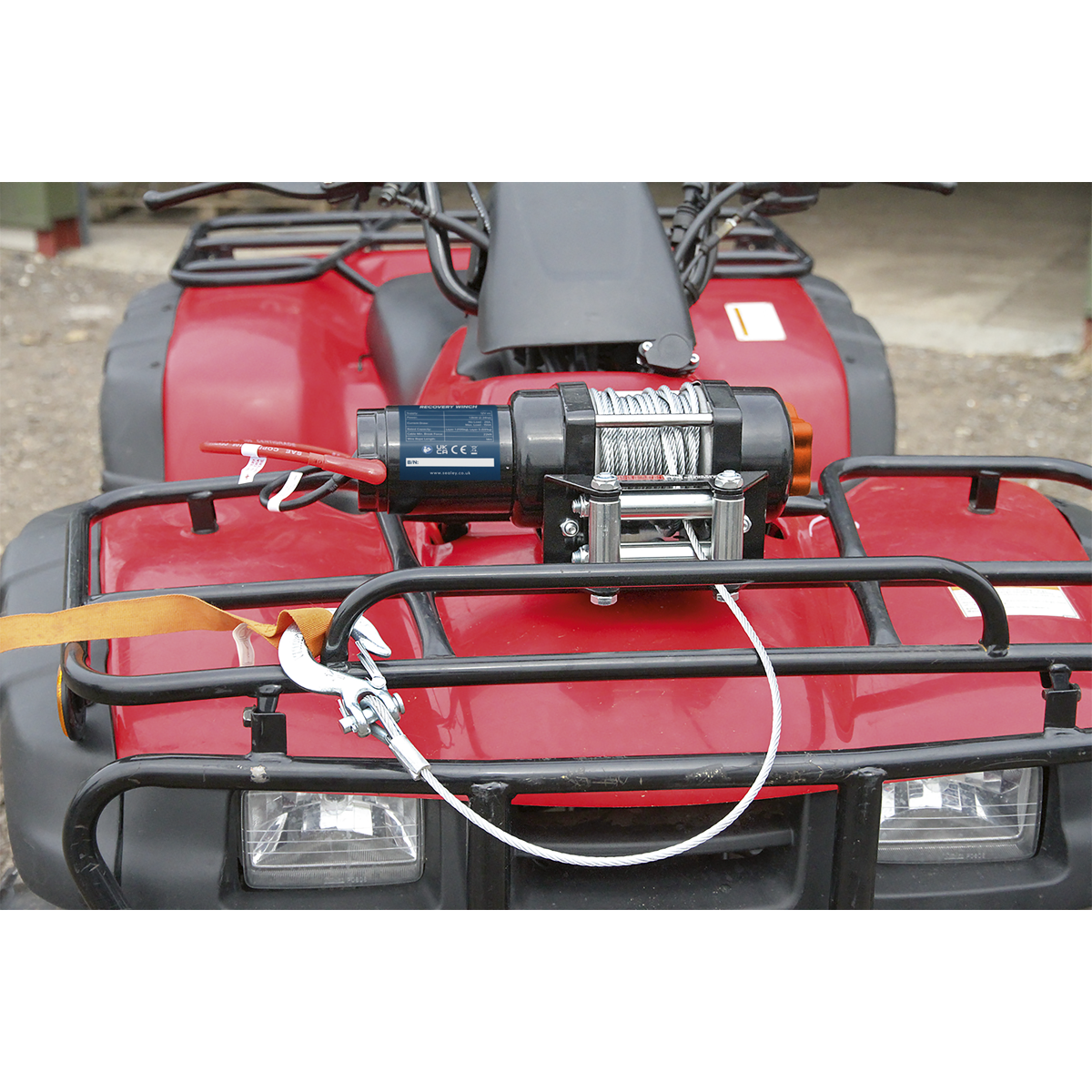

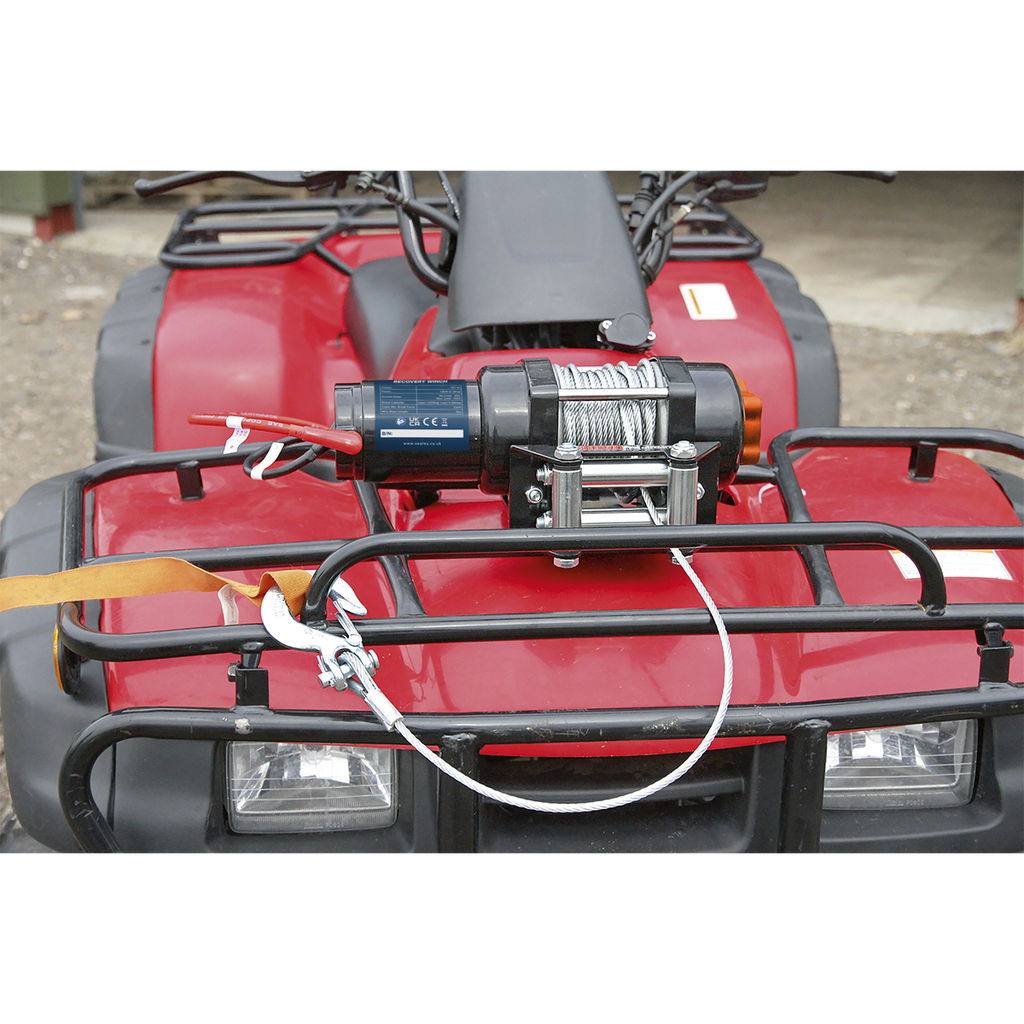

- Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.
- Designed and built with the toughest jobs in mind.
- High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power.

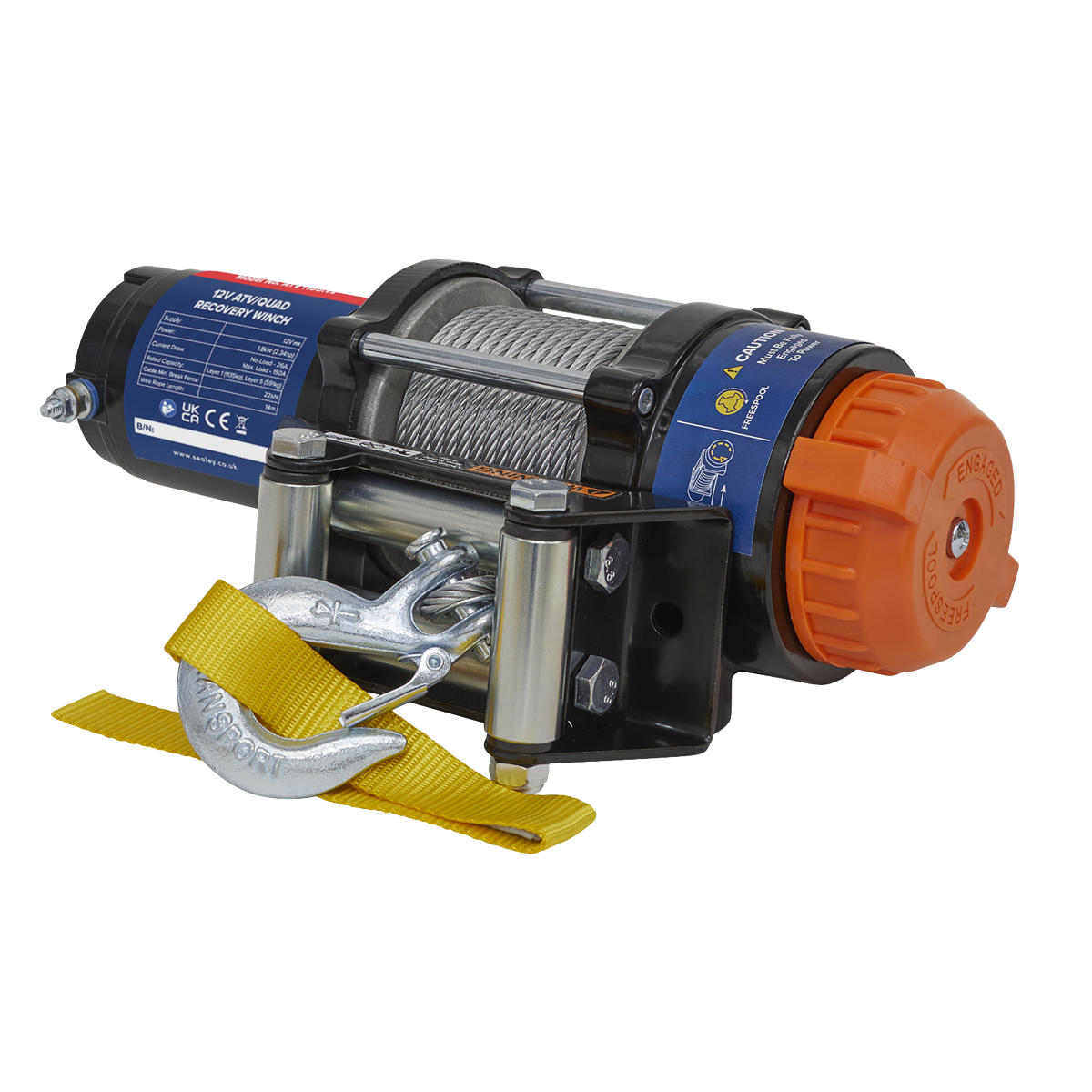

- Heavy-duty all-weather housing.
- 3-Stage planetary gears.
Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.
- Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.
- Designed and built with the toughest jobs in mind.
- High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power.
- Heavy-duty all-weather housing.
- 3-Stage planetary gears.
- Patented unique automatic spring brake, reliable in full load operation.
- Sliding ring gear clutch
- High quality wire rope feeds through 4-way roller fairlead.
- IP67 rated motor and gearbox.
- Gear Ratio: 180:1.
| Model No | ATV1135 |
| Brand | Sealey |
| Cable Minimum Brake Force | 22kN |
| Current Draw | No-Load - 26A, Maximum Load - 150A |
| Gear Ratio | 180 |
| Line Pull* | 1135kg(2500lb) |
| Line Speed* | No-Load - 4.8m/min, Maximum Load - 1.6m/min |
| Motor Power | 1.8kW(2.34hp) |
| Note | *Performance quoted at first layer of cable on drum |
| Rated Capacity | Layer 1 |
| Supply | 12V |
| Wire Rope Diameter | 4.8mm |
| Wire Rope Length | 14m |
| Weight | 11.80kg |
